Acrosser Technology ACE-B8701 Guía de instalación

ACE-B8701 Quick Manual

P/N：220010404-G

ACE-B8701 Quick Manual V1.0

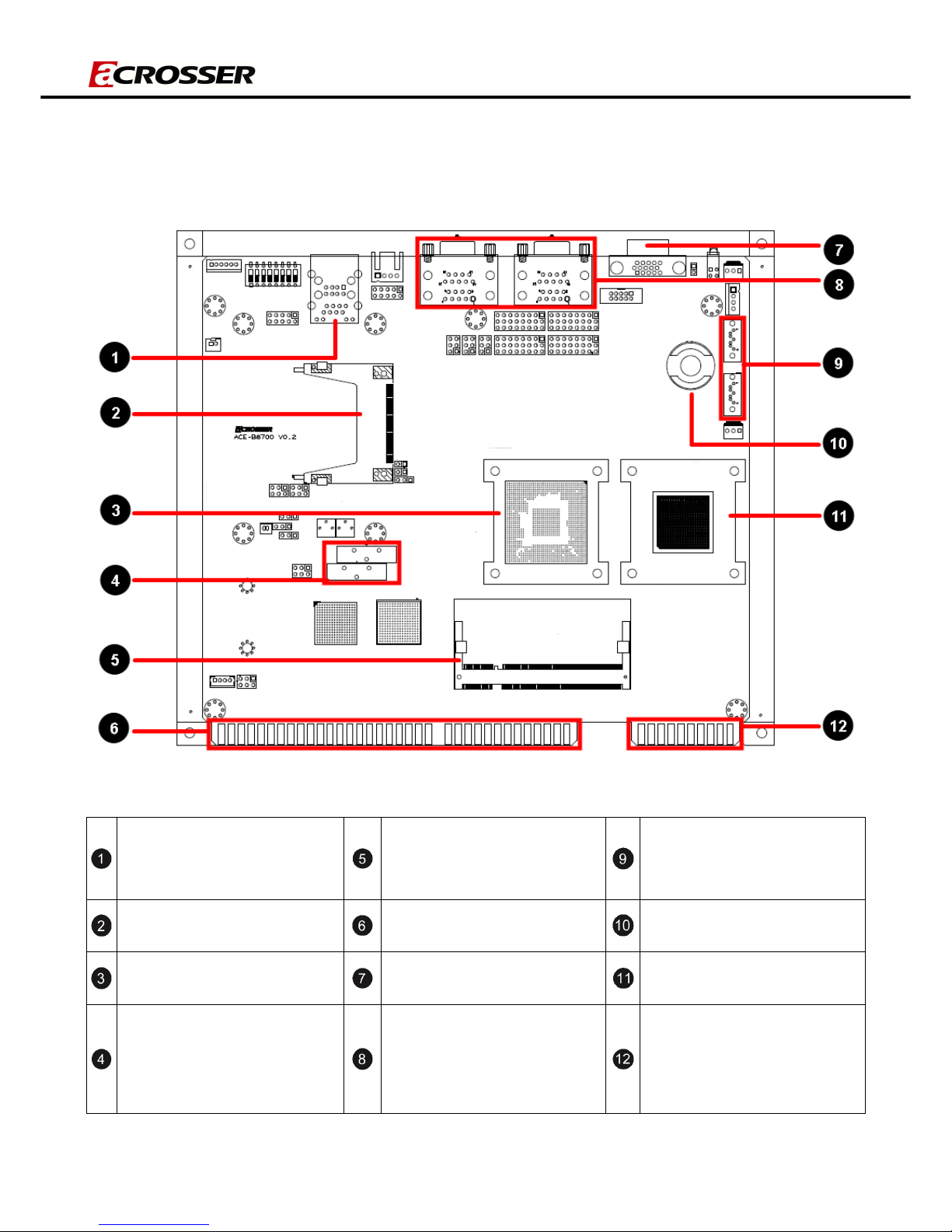

1.Mainboard illustration (Top Side)

USB1

One RJ45 with two layer USB

connector

DIMM1

DDR2 SODIMM socket

SATA1 & SATA2

Standard 7-pin SATA connector

CF1

Standard CF Card Slot

72 Pins Golden Fingers

General Gaming interface

U73

iButton holder

Chipset VIA VX800

VGA1

D-Sub 15-pin VGA connector

Processor VIA C7 1.5G

BAT1

CR2032 Size Coin Battery

BAT2

CR2032 Size Coin Battery for

AGA/SRAMA

COM1_2 & COM3_4

Dual D-Sub 9-pin RS232

connector

20 Pins Golden Fingers

Work with 72 Pins Golden Fingers

ACE-B8701 Quick Manual

P/N：220010404-G

2. Connector and Jumper Setting (Top Side)

ACE-B8701 Quick Manual

P/N：220010404-G

CCTALK1

JST connector for ccTalk (Signal

share with COM6).

KM1

JST connector for Keyboard and

Mouse.

SW1

8-bit readable DIP switch.

CN4

JST connector for Case Open

Intrusion logger.

CN3

Pin header for 2 USB ports.

COM6(optional)

Pin header for RS232 port.

JP11

CF Card master/slave select pin

header.

JP13

CF Card Voltage select pin

header.

JPC_2

Bill enable, Coin enable

and Hopper

pre-set pin header.

JBAT3

SRAM A and SRAM B supply

voltage

select from BAT2 or BAT3 pin

header.

JSRAMA & JSRAMB

SRAM A and SRAM B data clear pin

header.

BAT3(optional)

Rechargeable Battery for SRAM

A and SRAM B.

VR1 & VR2

Adjust audio volume.

JPB_1

Select Audio output with/without

amplifier pin header.

JPB_2

Select SPEAKER RIGHT+ connect

to 72 Pins Golden Fingers (B4, B5)

or (A2, B2).

AUDIO1

JST connector for Audio output.

COM3_4

RS232/ccTalk/RS485 output.

LED1

LED for Power & HDD.

SATAPWR1

JST connector for SATA power.

JP20

Reset pin header.

VGA2

Secondary VGA.

FAN1

CPU Fan Connector.

JPA_1 & JPA_2

Select COM1 or COM2 is RS232 or

TTL.

JPA_3

Select COM3 is RS232 or ccTalk.

JPA_5

Select COM4 is RS232 or RS485.

JPA_4

Select COM3 is RS232 or ccTalk.

JPA_6

Select COM4 is RS232 or RS485.

JPA_7

Select COM6 is RS232 or ccTalk.

JBAT1

CMOS clear pin header.

ACE-B8701 Quick Manual

P/N：220010404-G

3. Connector and Jumper Setting Table

1. CCTALK1 2. KM1 3. SW1

Signal

1 DATA

2 COM

3 NC

4 12V

Pin Signal

1 Mouse data

2 Keyboard data

3 GND

4 5V

5 Mouse clock

6 Keyboard clock

Status

Signal

ON GND

OFF 3.3V

4. CN4 5. CN3 6. COM6

Signal

1 Case open

2 GND

Signal

1 5V 2 5V

3 -USB0

4 -USB2

5 +USB0

6 +USB2

7 GND 8 GND

9 NC 10

GND

Signal

1 -DCD

2 -DSR

3 SIN 4 -RTS

5 SOUT

6 -CTS

7 -DTR

8 -RI

9 GND

7. JP11/JP13 8. JPC_2 9. JBAT3/JSRAMA/JSRAMB

JP11

Pin Setting

1-2

Open

Slave

1-2

Master

(default)

JP13

Pin Setting

1-2

2-3

3.3V

(default)

Status

Setting

1-2

Open Preset is

LOW

(default)

Preset is

HIGH

3-4

Open Preset is

LOW

(default)

Preset is

HIGH

5-6

Open Preset is

LOW

(default)

Preset is

HIGH

JBAT3

JSRAMA

JSRAMB

Setting

1-2

BAT2

(default)

Normal

(default)

2-3

BAT3 Clear

SRAM

ACE-B8701 Quick Manual

P/N：220010404-G

10. BAT3 11. VR1/VR2 12. JPB_1/JPB_2

Signal

1 GND

2 3.3V

Adjust volume level by turning VR

clockwise

JPB_1 JPB_2

Pin Setting Setting

1-3,

2-4

Audio Out

with

Amplifier

(default)

SPEAKER

RIGHT+

connect to 72

Pins Golden

Fingers(B5, B4)

(default)

3-5,

4-6

Audio Out

without

Amplifier

SPEAKER

RIGHT+

connect to 72

Pins Golden

Fingers(A2, B2)

13. AUDIO1 14. COM3_4 15. LED1

Signal

1 SPEAKER

RIGHT+

2 GND

3 SPEAKER

LEFT+

4 GND

COM3

COM4

RS232

ccTalk

RS485

1 -DCD

12V -

2 SIN Data Data+

3 SOUT

- Data-

4 -DTR

- -

5 GND

GND

6 -DSR

- -

7 -RTS

- -

8 -CTS

- -

9 -RI - -

LED Signal

Green

HDD

Red Power

16. SATAPWR1 17. JP20 18. VGA2

Signal

1 12V

2 GND

3 3.3V

4 5V

Signal

1 Reset

2 GND

Signal

1 RED 2 GND

3 GREEN

4 GND

5 BLUE 6 GND

7 VSYNC

8 SCL

9 HSYNC

SDA

ACE-B8701 Quick Manual

P/N：220010404-G

19. FAN1 20. JPA_1/JPA_2/JPA_3/JPA_5

Pin Signal

1 GND

2 12V

3 NC

JPA_1 &

JPA_2 JPA_3 JPA_5

Pin Setting Setting Setting

1-2, 4-5, 7-8, 10-11,

13-14, 16-17, 19-20,

22-23 Close

TTL

Output

ccTalk

output

RS485

output

2-3, 5-6, 8-9, 11-12,

14-15, 17-18, 20-21,

23-24 Close

RS232 output

(default)

RS232 output

(default)

RS232 output

(default)

21. JPA_4/JPA_6/JPA_7 22. JBAT1

JPA_4 JPA_6 JPA_7

Pin Setting Setting Setting

1-3, 2-4

RS232 (default)

RS232

3-5, 4-6

ccTalk RS485 ccTalk (default)

Pin Setting

1-2

Close Normal (default)

2-3

Close Clear COMS

ACE-B8701 Quick Manual

P/N：220010404-G

72 Pins Golden Finger

I: TTL Input

I.I: Isolated Input

O.D: Open Drain Output

A.O: Audio Output

Component Side Solder Side

I/O TYPE

Port/Bit Function Pin

Function Port/Bit I/O TYPE

A.O SPEAKER

RIGHT+

2 Audio GND

A.O SPEAKER

LEFT +

3 Audio GND

I.I B0 Button 1 4 Audio GND

I.I

B1 Button 2 5 SPEAKER

RIGHT+

A.O

I.I B2 Button 3 6 Door SW2 A1 I

I.I B3 Button 4 7 Door SW3 A2 I

I.I B4 Button 5 8 Door SW4 A3 I

I.I B5 Button 6 9 Door SW5 A4 I

I.I B6 Button 7 10

Touch-Cal

Key-Lock D3 I.I

I.I B7 Button 8 11

Spare Key-Lock D4 I.I

I.I C0 Button 9 12

Coin-En I0 O.D

I.I C1 Button10 13

Bill-En I1 O.D

I.I D0 Dissolve

Key-Lock 15

Button 15 C6 I.I

I.I C2 Button11 16

Button 16 C7 I.I

I A0 Door SW1 17

I.I E0 Coin-In Signal A

Button 12 C3 I.I

I.I E2 Bill-In 19

Coin-In Signal B E1 I.I

I.I D1 OM Key-Lock 20

Setup Key-Lock

(Hand Pay) D2 I.I

I.I C5 Button 14 21

Button 13 C4 I.I

GND 22

Hopper Sensor E3 I.I

O.D H7 Spare Meter1 23

Lamp13 G4 O.D

O.D H0 Key-In Meter 24

Hand-Pay Meter1

H5 O.D

O.D H1 Bill-In Meter 25

Hand-Pay Meter2

H6 O.D

ACE-B8701 Quick Manual

P/N：220010404-G

Component Side Solder Side

I/O TYPE

Port/Bit Function Pin

Function Port/Bit I/O TYPE

O.D. H2 Coin-In Meter 26

Lamp14 G5 O.D.

O.D. H3 Pay-Out Meter 27

Lamp15 G6 O.D.

O.D. H4 Key-Out Meter 28

Lamp16 G7 O.D.

O.D. F0 Lamp1 29

Lamp7 F6 O.D.

O.D. F1 Lamp2 30

Lamp8 F7 O.D.

O.D. F2 Lamp3 31

Lamp9 G0 O.D.

O.D. F3 Lamp4 32

Lamp10 G1 O.D.

O.D. F4 Lamp5 33

Lamp11 G2 O.D.

O.D. F5 Tower Lamp6 34

Tower Lamp12 G3 O.D.

GND 35

GND

GND 36

GND

20 Pins Golden Finger

Component Side Solder Side

I/O TYPE Port/Bit

Function Pin

Function Port/Bit I/O TYPE

GND 1 GND

GND 2 GND

+5V 3 +5V

+5V 4 +5V

+12V 5 +12V

+12V 6 +12V

O.D. I2 Hopper SSR 7

GND 9 GND

GND 10

GND
