APMC4110 POWERED PMC CARRIER

STANDALONE PCI INTERFACE MODULE

USER’S MANUAL

ACROMAG INCORPORATED Tel: (248) 295-0310

30765 South Wixom Road Fax: (248) 624-9234

P.O. BOX 437

Wixom, MI 48393-7037 U.S.A.

Data and specifications are subject to change without notice.

8500-899-A10L000

APMC4110 User’s Manual Standalone PMC Carrier

__________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

IMPORTANT SAFETY CONSIDERATIONS

You must consider the possible negative effects of power, wiring,

component, sensor, or software failure in the design of any type of

control or monitoring system. This is very important where property

loss or human life is involved. It is important that you perform

satisfactory overall system design and it is agreed between you and

Acromag, that this is your responsibility.

1.0 GENERAL INFORMATION 3

1.1 FIELD I/O CONNECTORS 3

1.2 POWER 6

1.3 MANUAL RESET 6

1.4 XILINX JTAG PORT 6

2.0 PREPARATION FOR USE 8

2.1 UNPACKING AND INSPECTION 8

2.2 INSTALLATION CONSIDERATIONS 8

2.3 NON-ISOLATION CONSIDERATIONS 8

3.0 SERVICE AND REPAIR ASSISTANCE 9

3.1 PRELIMINARY SERVICE PROCEDURE 9

3.2 WHERE TO GET HELP 9

4.0 SPECIFICATIONS 10

4.1 PHYSICAL 10

4.2 ENVIRONMENTAL 10

4.3 POWER REQUIREMENTS 10

CERTIFICATE OF VOLATILITY 11

Trademarks are the property of their respective owners.

TABLE OF

CONTENTS

The information of this manual

may change without notice.

Acromag makes no warranty

of any kind with regard to this

material, including, but not

limited to, the implied

warranties of merchantability

and fitness for a particular

purpose. Further, Acromag

assumes no responsibility for

any errors that may appear in

this manual and makes no

commitment to update, or

keep current, the information

contained in this manual. No

part of this manual may be

copied or reproduced in any

form without the prior written

consent of Acromag, Inc.

APMC4110 User’s Manual Standalone PMC Carrier

___________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel: 248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

1.0 General Information

The Acromag APMC4110 Powered PMC Carrier is a board that functions as a stand-alone PCI

interface. Using an external power supply, the carrier allows any industry standard PMC module to

be mounted without an accompany processor. The user has full access to the field I/O via two 50-

pin ribbon cable connectors, P1 and P2. A 14-pin Xilinx JTAG connector is also available for

utilizing boundary scan debugging. A manual reset button allows the user to force a RST# signal

when needed. An on-board DC-DC converter creates +3.3VDC from the external +5VDC source,

lowering the number of external power connections required.

1.1 FIELD I/O CONNECTORS

The PMC module’s connections are made to the Acromag APMC4110 carrier field I/O

connections through the P1 and P2 50-pin connectors. The connections are terminated as defined

within the PCI specification. The reset and clock signals are sourced from the APMC4110. In

addition, power is provided to the PMC module through the APMC4110 Carrier board.

The field I/O connections are made via two 50 pin ribbon cable connectors. Table 1.1 indicates

the pin assignments for the field I/O signal mapping of the Powered PMC Carrier board for

connector P1. Table 1.2 indicates the pin assignments for the field I/O signal mapping of the

Powered PMC Carrier board for connector P2. The field I/O signals are split equally between the

two connectors.

The diagram below shows how the pins on the I/O pins in the tables correspond to the P1 and

P2 connectors on the Powered PMC Carrier module.

Note: Notice the notch on the top side of the connector. Pin 1 is indicated with a square pad.

The odd pins are in order on the top row from right to left, as shown. The even pins are in order on

the bottom row from right to left.

Pin 49 Pin 1

Pin 50 Pin 2

APMC4110 User’s Manual Standalone PMC Carrier

__________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

Connector P1

Pin Description Pin Pin Description Pin

Differential Ch0+ (1) 1 Differential Ch0- (2) 2

COMMON 3 COMMON 4

Differential Ch1+ (3) 5 Differential Ch1- (4) 6

Differential Ch2+ (5) 7 Differential Ch2- (6) 8

COMMON 9 COMMON 10

Differential Ch3+ (7) 11 Differential Ch3- (8) 12

COMMON 13 COMMON 14

Differential Ch4+ (9) 15 Differential Ch4- (10) 16

Differential Ch5+ (11) 17 Differential Ch5- (12) 18

COMMON 19 COMMON 20

Differential Ch6+ (13) 21 Differential Ch6- (14) 22

COMMON 23 COMMON 24

Differential Ch7+ (15) 25 Differential Ch7- (16) 26

Differential Ch16+ (33) 27 Differential Ch16- (34) 28

COMMON 29 COMMON 30

Differential Ch17+ (35) 31 Differential Ch17- (36) 32

COMMON 33 COMMON 34

Differential Ch18+ (37) 35 Differential Ch18- (38) 36

Differential Ch19+ (39) 37 Differential Ch19- (40) 38

COMMON 39 COMMON 40

Differential Ch20+ (41) 41 Differential Ch20- (42) 42

Differential Ch21+ (43) 43 Differential Ch21- (44) 44

COMMON 45 COMMON 46

Differential Ch22+ (45) 47 Differential Ch22- (46) 48

Differential Ch23+ (47) 49 Differential Ch23- (48) 50

Table 1.1: Powered PMC Carrier Board Field I/O Pin Connections for P1

Note that the number in parenthesis corresponds to rear I/O PMC P4 pin number.

APMC4110 User’s Manual Standalone PMC Carrier

___________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel: 248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

Connector P2

Pin Description Pin Pin Description Pin

Differential Ch8+ (17) 1 Differential Ch8- (18) 2

COMMON 3 COMMON 4

Differential Ch9+ (19) 5 Differential Ch9- (20) 6

Differential Ch10+ (21) 7 Differential Ch10- (22) 8

COMMON 9 COMMON 10

Differential Ch11+ (23) 11 Differential Ch11- (24) 12

COMMON 13 COMMON 14

Differential Ch12+ (25) 15 Differential Ch12- (26) 16

Differential Ch13+ (27) 17 Differential Ch13- (28) 18

COMMON 19 COMMON 20

Differential Ch14+ (29) 21 Differential Ch14- (30) 22

COMMON 23 COMMON 24

Differential Ch15+ (31) 25 Differential Ch15- (32) 26

Differential Ch24+ (49) 27 Differential Ch24- (50) 28

COMMON 29 COMMON 30

Differential Ch25+ (51) 31 Differential Ch25- (52) 32

COMMON 33 COMMON 34

Differential Ch26+ (53) 35 Differential Ch26- (54) 36

Differential Ch27+ (55) 37 Differential Ch27- (56) 38

COMMON 39 COMMON 40

Differential Ch28+ (57) 41 Differential Ch28- (58) 42

Differential Ch29+ (59) 43 Differential Ch29- (60) 44

COMMON 45 COMMON 46

Differential Ch30+ (61) 47 Differential Ch30- (62) 48

Differential Ch31+ (63) 49 Differential Ch31- (64) 50

Table 1.2: Powered PMC Carrier Board Field I/O Pin Connections for P2

Note that the number in parenthesis corresponds to rear I/O PMC P4 pin

number.

APMC4110 User’s Manual Standalone PMC Carrier

__________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

1.2

POWER

The APMC4110 module features a 4-pin power connection. An external power supply is used

to provide the proper voltage and current to the board. Use the table and figure below to make the

appropriate connections. An external +3.3VDC connection is not needed; this voltage is generated

on-board via a high-current DC-DC converter.

CAUTION: Ensure your power connections are correct BEFORE turning on your power supply.

Incorrect power connections may cause hazardous conditions and damage the board.

Pin Voltage Current

1 COMMON N/A

2 +12 VDC ±10% 0.5A Max

3 -12 VDC ±10% 0.5A Max

4 +5 VDC ±5% 6.0A Max

Table 1.3: APMC4110 Power Connections

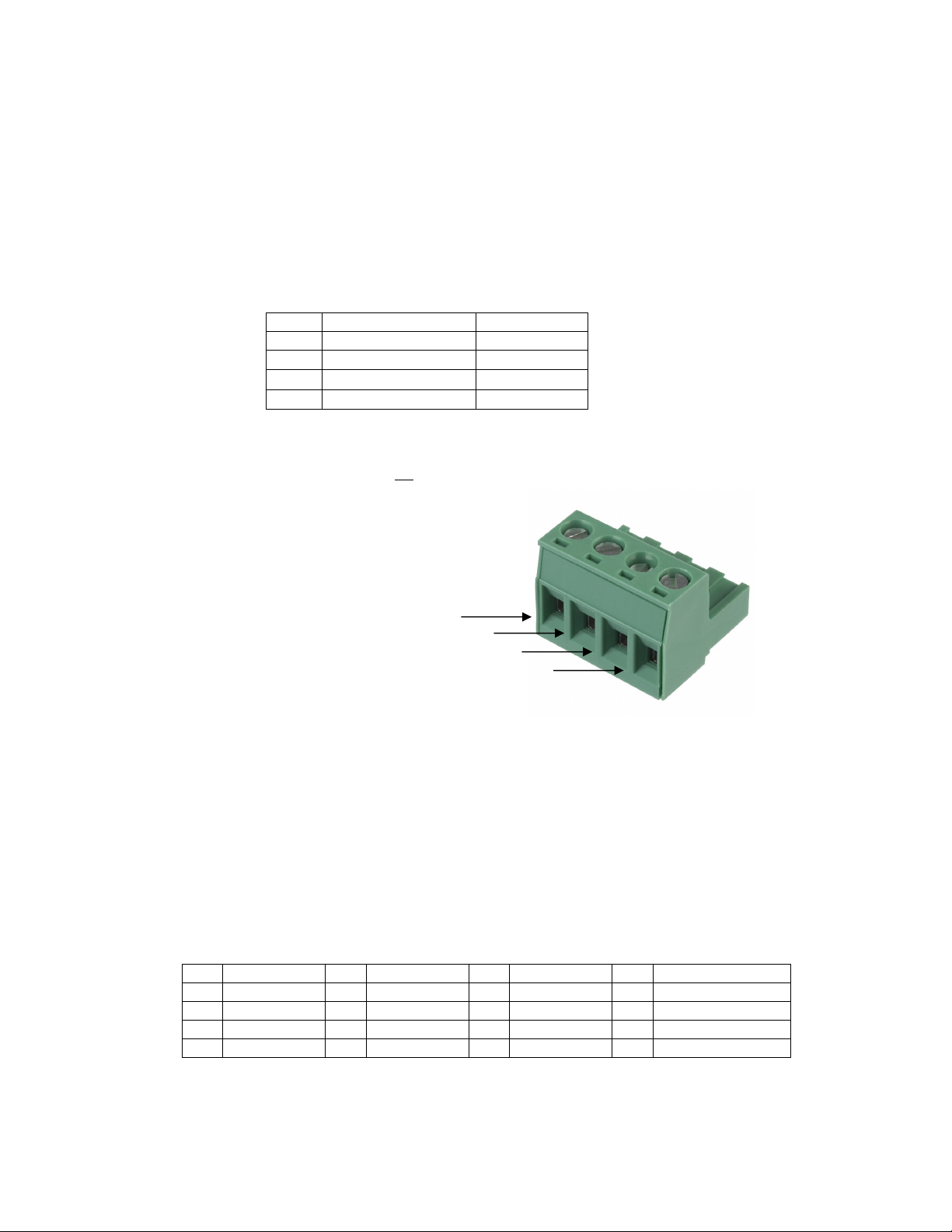

The 4-pin male connector shown below mates with the 4-

pin female header P3 on the board.

+5 VDC

-12 VDC

+12 VDC

COMMON

1.3 MANUAL RESET

The APMC4110 module features a manual reset button. This is a SPST switch which can be

pressed to assert the active-low RST# signal and reset the PMC module. A reset delay chip is

used on the board to keep RST# asserted for a minimum of 140ms after the +5VDC rail has risen

above 1V. This is designed to prevent code execution errors during power-up, power-down, or

potential brown-out conditions when +5VDC dips too low.

1.4 XILINX JTAG PORT

A standard 14-pin Xilinx JTAG connection is available for utilizing the TDI, TDO, TCK, and TMS

signals routed through the PMC connectors. The pin out for this connector (P4) is shown in the

table below.

Description

1 COMMON 5 COMMON 9 COMMON 13 COMMON

2 +3.3VDC 6 TCK 10 TDI 14 N.C.

3 COMMON 7 COMMON 11 COMMON

4 TMS 8 TDO 12 N.C.

APMC4110 User’s Manual Standalone PMC Carrier

___________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel: 248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

Figure 1.1: APMC4110 Feature Location

P1 P2

Manual Reset

Button

Power

connector

Xilinx JTAG

connector

APMC4110 User’s Manual Standalone PMC Carrier

__________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel:248-624-1541 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

2.0 PREPARATION FOR USE

2.1 UNPACKING AND INSPECTION

Upon receipt of this product, inspect the shipping carton for evidence of mishandling during

transit. If the shipping carton is badly damaged or water stained, request that the carrier's agent be

present when the carton is opened. If the carrier's agent is absent when the carton is opened and

the contents of the carton are damaged, keep the carton and packing material for the agent's

inspection.

For repairs to a product damaged in shipment, refer to the Acromag Service Policy to obtain

return instructions. It is suggested that salvageable shipping cartons and packing material be

saved for future use in the event the product must be shipped.

WARNING: This board utilizes static sensitive components and should only be handled at a static-

safe workstation.

This board is physically protected with packing material and electrically protected with an anti-

static bag during shipment. However, it is recommended that the board be visually inspected for

evidence of mishandling prior to applying power.

2.2 INSTALLATION CONSIDERATIONS

Refer to the specifications for loading and power requirements. Be sure that the system power

supplies are able to accommodate the power requirements of the system boards, plus the installed

Acromag board, within the voltage tolerances specified.

IMPORTANT: Adequate air circulation must be provided to prevent a temperature rise above the

maximum operating temperature.

Adequate air circulation must be provided to prevent a temperature rise above the maximum

operating temperature and to prolong the life of the electronics. If the installation is in an industrial

environment and the board is exposed to environmental air, careful consideration should be given

to air-filtering.

2.3 NON-ISOLATION CONSIDERATIONS

The board is non-isolated, since there is electrical continuity between the PCI interface and

PMC module grounds. As such, the field I/O connections are not isolated from the system. Care

should be taken in designing installations without isolation to avoid noise pickup and ground loops

caused by multiple ground connections.

APMC4110 User’s Manual Standalone PMC Carrier

___________________________________________________________________

________________________________________________________________________

Acromag, Inc. Tel: 248-295-0310 Fax:248-624-9234 Email:solutions@acromag.com http://www.acromag.com

3.0 SERVICE AND REPAIR ASSISTANCE

Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly

recommended that a non-functioning board be returned to Acromag for repair. The board can be

easily damaged unless special SMT repair and service tools are used. Further, Acromag has

automated test equipment that thoroughly checks the performance of each board. When a board is

first produced and when any repair is made, it is tested, placed in a burn-in room at an elevated

temperature, and retested before shipment.

Please refer to Acromag’s Service Policy Bulletin or contact Acromag for complete details on how

to obtain parts and repair.

3.1 PRELIMINARY SERVICE PROCEDURE

Before beginning repair, be sure that all of the procedures in Section 2, Preparation For Use,

have been followed. Also, refer to the documentation of your carrier/CPU board to verify that it is

correctly configured. Replacement of the board with one that is known to work correctly is a good

technique to isolate a faulty board. Use the unmodified example we provide.

CAUTION: POWER MUST BE TURNED OFF BEFORE REMOVING OR INSERTING BOARDS

3.2 WHERE TO GET HELP

If you continue to have problems, your next step should be to visit the Acromag worldwide web

site at http://www.acromag.com. Our web site contains the most up-to-date product and software

information.

Acromag’s application engineers can also be contacted directly for technical assistance via

telephone or FAX through the numbers listed below. When needed, complete repair services are

also available.

Phone: 248-295-0310

Fax: 248-624-9234

Email: solutions@acromag.com

Tabla de contenidos

Otros manuales de Unidad de control de Acromag

Acromag

Acromag BusWorks 900EN Series Manual de usuario

Acromag

Acromag ACEX4405-LF Manual de usuario

Acromag

Acromag IP440 Series Manual de usuario

Acromag

Acromag AcroPack AP513 Manual de usuario

Acromag

Acromag BusWorks 900EN Series Manual de usuario

Acromag

Acromag AcroPack AP441 Manual de usuario

Acromag

Acromag BusWorks 900EN Series Manual de usuario

Acromag

Acromag BusWorks 900EN Series Manual de usuario

Acromag

Acromag IP511 Series Manual de usuario

Acromag

Acromag IOS-484 Manual de usuario

Acromag

Acromag EtherStax Series Manual de usuario

Acromag

Acromag IOS-440 Manual de usuario

Acromag

Acromag IP236A Series Manual de usuario

Acromag

Acromag BusWorks 900PB Series Manual de usuario

Acromag

Acromag IP236 Series Manual de usuario

Acromag

Acromag BusWorks XT Series Manual de usuario

Acromag

Acromag XMC-6VLX Series Manual de usuario

Acromag

Acromag IP445 Series Manual de usuario

Acromag

Acromag SmartPack Series Manual de usuario

Acromag

Acromag VPX6860 Manual de usuario

Acromag

Acromag BusWorks 900MB Series Manual de usuario

Acromag

Acromag BusWorks XT Series Manual de usuario

Acromag

Acromag BusWorks XT Series Manual de usuario

Acromag

Acromag AcroPack AP471 Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
