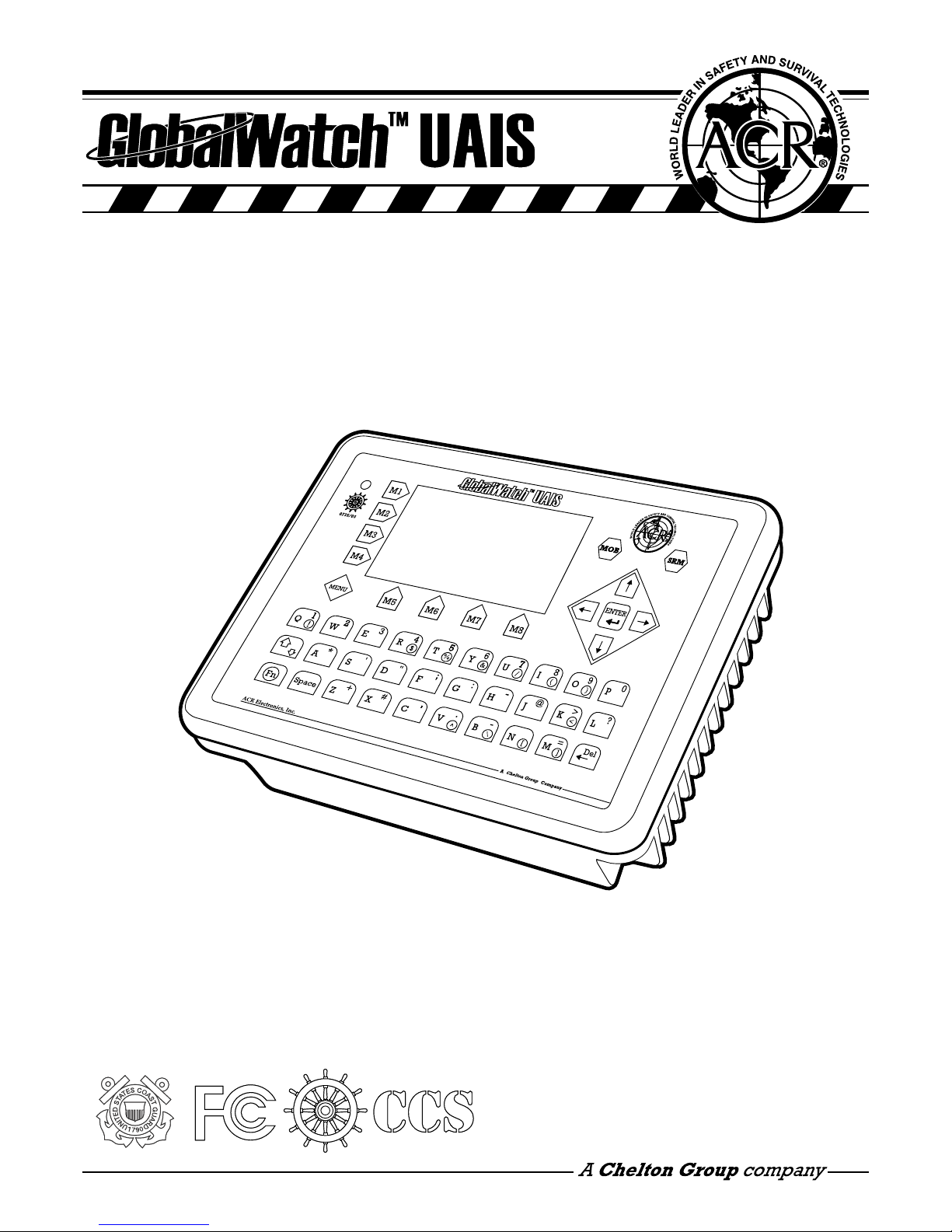

ACR Electronics GLOBALWATCH UAIS - QUICK Manual de usuario

4XLFN8VHU0DQXDO

9HUVLRQ

31<5HY$

GlobalWatchTM UAIS Quick User Manual I

Version 1.0

Please read this first!

Warning:

Although ACR strives for accuracy in all its publications; this material may contain errors or

omissions, and is subject to change without prior notice. ACR shall not be made liable for any

specific, indirect, incidental or consequential damages as a result of its use. ACR components may

only be used in safety of life devices or systems, with the express written approval of ACR, as the

failure of such components could cause the failure of the ACR device or system. If these fail, it is

reasonable to assume that the safety of the user or other persons may be endangered.

Y1-03-0176A

GlobalWatchTM UAIS Quick User Manual II

Version 1.0

1GLOBALWATCHTM UAIS Components and Interfaces........................................................................ 1

2GLOBALWATCHTM UAIS User Interface ............................................................................................... 2

3Navigation Screen................................................................................................................................... 3

4Inputing Voyage Related Data – (User Password Protected)............................................................. 4

5Setting Ship Related Data – (User Password Protected).................................................................... 6

6Configuring the GlobalWatchTM UAIS – (User Password Protected)................................................. 8

7Changing the Service Password – (Service Password Protected) .................................................. 11

8Changing the MMSI / IMO Numbers .................................................................................................... 13

9Writing an Addressed Safety Related Message to an individual Vessel ....................................... 15

10 Writing a Broadcast Safety Related Message to all Vessels........................................................... 17

11 Safety Functions – MOB and SRM Buttons ....................................................................................... 19

12 Display Settings .................................................................................................................................... 22

13 Contact and Support Information........................................................................................................ 23

GlobalWatchTM UAIS Short Operation Manual

Index Page Number

Y1-03-0176A

GlobalWatchTM UAIS Quick User Manual III

Version 1.0

History of Changes

Date

Version

Status

Comments

Responsible

2002-12-04 1.0 Released Latest release amendments A. Lesch

2003-06-30 1.0.1 Released Corrections B. Werner

2004-04-14 1.0.1 Changes upon Customer Requests S. Reinisch

Y1-03-0176A

GlobalWatchTM Quick User Manual 1

Version 1.0

1 GLOBALWATCH

UAIS Components and Interfaces

Y1-03-0176A

GlobalWatchTM Quick User Manual 2

Version 1.0

2 GLOBALWATCH

UAIS User Interface

Display

Soft Keys [M1] – [M8] Safety Keys

Curso

Cross

Keyboard

Enter Key

Navigation Screen

Header (max. 3 lines)

____________________________

Navigation Screen or

MENU Structure

(Content 13 lines)

Y1-03-0176A

GlobalWatchTM Quick User Manual 3

Version 1.0

3 Navigation Screen

Latitude &

Longitude

Own speed over Ground

Own course over Ground

UTC Time

GPS Solution

Received Vessels

(

Vessel Listin

>Indicates further Vessels in Listing

LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002

LON:E 0^21.289'IntCOG:173.0^ 10:52:26

IntGPS: 3D ExtHDT:222^ Reg6 A/

001/021..ShipName....RNG.BRG..SOG..COG..

1>DOREEN-----------> N/A 120 22.2 301.5

2>FINE EAGLE------->0.00 N/A 13.1 359.9

3>SYLVAEPSILON----->0.10 23 32.1 203.2

4>ESSOTOKYO-------->0.43 99 10.0 120.3

5>OLYMPIAHIGHWAY FE>0.59 342 21.2 50.0

6>SANEI------------>0.80 272 32.1 270.1

7>KATOO------------>1.00 321 21.2 200.8

8>OLYMPIA PALACE--->1.34 277 [BASESTAT]

9>MINILOG---------->1.96 201 21.7 102.2

10>ALIBRAHIMYA----->2.66 340 22.1 30.3

11>TITANIC--------->2.75 121 N/A N/A

12>BWRTZ123-------->3.36 66 24.1 2.9>

Y1-03-0176A

GlobalWatchTM Quick User Manual 4

Version 1.0

Note:

The User Password is set to “NAUT” – please reconfigure it immediately after Transponder initial operation

Select “Voyage Settings” from the Main Menu with the cursor button [Up] & [Down] or press Nr. 3 on the

keyboard

The Password Query Field appears. Input User Password and press [Enter].

4 Inputing Voyage Related Data – (User Password

Protected)

N 1^20' E 0^13' |1> N/A|2>0.00|3>0.10nm

|----------------------------------

| Menu

-----| |

| +- 1. Messages

View | +- 2. AIS Status

| +- 3. Voyage Settings

-----| +- 4. Ship Settings

| +- 5. Transponder Configuration

Msg. | +- 6. Service Configuration

| +- 7. Display Settings

-----|

Displ|

----------------------------------------

NUM|Select->| | |<-Back

N 1^31' E 0^24' |1>0.01|2>1.30|3>1.80nm

----------------------------------------

++++++++++++++++++++++++++++++++++++++++

User password protected!

Please enter user password:

++++++++++++++++++++++++++++++++++++++++

----------------------------------------

| Enter | | | Exit

Y1-03-0176A

GlobalWatchTM Quick User Manual 5

Version 1.0

Scroll the Voyage Data Fields with [Enter] and input own vessel data. Select a default Cargo Type and

NavStat Setting with the cursor buttons [Left] & [Right].

Save the new settings by pressing [Save], and return to the Main Menu Screen by pressing [Exit]. Press

[Back] to return to the Main Menu without saving any changes.

N 1^18' E 0^12' |1>0.01|2>1.30|3>1.80nm

*********** Voyage Settings ************

Cargo :<N/A or harmless>

Draught :24.8m

PoB :1

Dest. :CASABLANCA

ETA :10/13 12:31

NavStat.:Engaged in fishing

----------------------------------------

| Save | | | Back

Y1-03-0176A

GlobalWatchTM Quick User Manual 6

Version 1.0

Select “Ship Settings” with cursor button [Up] & [Down] or press Nr. 4 on the keyboard.

Note: The User Password is set to “NAUT” – please reconfigure it immediately after Transponder initial

operation

Input User Password and press [Enter].

5 Setting Ship Related Data – (User Password Protected)

N 1^23' E 0^16' |1>0.01|2>1.30|3>1.80nm

|----------------------------------

| Menu

-----| |

| +- 1. Messages

View | +- 2. AIS Status

| +- 3. Voyage Settings

-----| +- 4. Ship Settings

| +- 5. Transponder Configuration

Msg. | +- 6. Service Configuration

| +- 7. Display Settings

-----|

Displ|

----------------------------------------

NUM| Select->| | |<-Back

N 1^23' E 0^16' |1>0.01|2>1.30|3>1.80nm

----------------------------------------

++++++++++++++++++++++++++++++++++++++++

User password protected!

Please enter user password:

++++++++++++++++++++++++++++++++++++++++

----------------------------------------

| Enter | | | Exit

Y1-03-0176A
