PRODUCT SUPPORT MANUAL ADDENDUM

NAUTICAST™ Portable AIS (SOLAS and Inland AIS) //

Automatic Identification System

Product No.: 2645 (Inland), 2657 (SOLAS)

Y1-03-0243 Rev.D

Portable AIS Manual Addendum 2 Y1-03-0243D

Please read this first!

Warning:

Although ACR strives for accuracy in all its publications; this material may contain errors or omissions,

and is subject to change without prior notice. ACR shall not be made liable for any specific, indirect,

incidental or consequential damages as a result of its use. ACR components may only be used in

safety of life devices or systems, with the express written approval of ACR, as the failure of such

components could cause the failure of the ACR device or system. If these fail, it is reasonable to

assume that the safety of the user or other persons may be endangered.

Copying of this document, and giving it to others and the use or communication of the contents

thereof, are forbidden without express authority. Offenders are liable to the payment of damages.

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung ihres Inhaltes

nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen verpflichten zu

Schadenersatz.

Toute communication ou reproduction de ce document, toute exploitation ou communication de son

contenu sont interdites, sauf autorisation expresse. Tout manquement à cette règle est illicite et

expose son auteur au versement de dommages et intérêts.

Sin nuestra expresa autorización, queda terminantemente prohibida la reproducción total o parcial de

este documento, así como su uso indebido y/o su exhibición o comunicación a terceros. De los

infractores se exigirá el correspondiente resarcimiento de daños y perjuicios.

Portable AIS Manual Addendum 3 Y1-03-0243D

1Introduction 5

2Unpacking the Portable AIS .................................................................................................5

2.1 Options................................................................................................................................... 6

2.2 External connections ............................................................................................................... 6

3First steps............................................................................................................................7

3.1 Pre-charging............................................................................................................................ 7

3.2 Initial configuration................................................................................................................. 7

4Power Supply / Charging .....................................................................................................7

4.1 Portable AIS power switch functions........................................................................................ 7

4.2 Charging the Internal Battery................................................................................................... 7

4.3 Operating from Ship’s DC Power (18 – 36V).............................................................................. 8

4.4 Optional External Power Supply............................................................................................... 8

5Installation..........................................................................................................................8

5.1 USB adapter ............................................................................................................................ 8

5.2 Wi-Fi™ remote AIS connection................................................................................................. 8

5.3 STEP 1: Load Wi-Fi™ Module support software......................................................................... 8

5.4 STEP 2: Enable and connect to the wireless device ................................................................... 9

5.5 STEP 3: Identify your new IP address........................................................................................ 9

5.6 STEP 4: Assign a TCP/IP Address............................................................................................. 10

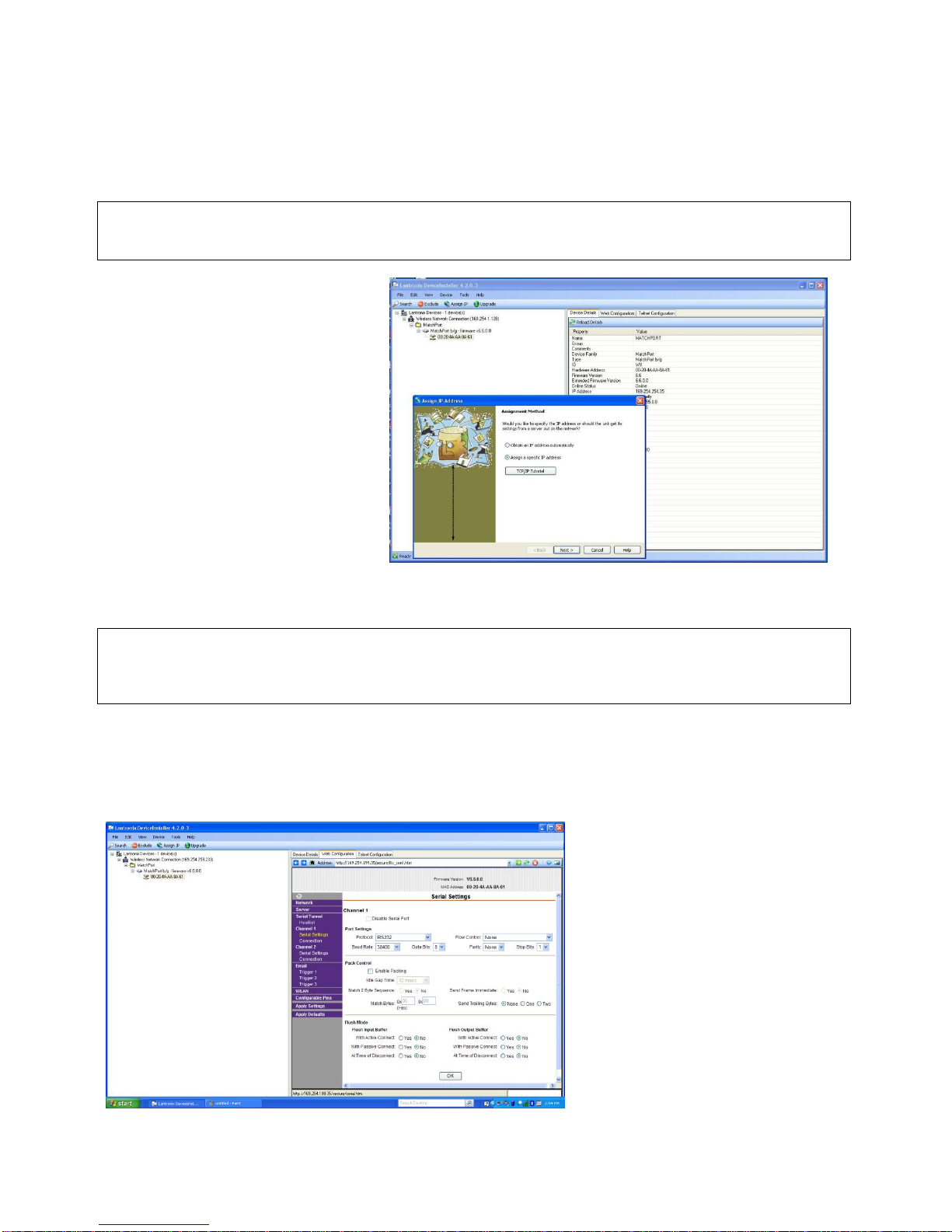

5.7 Step 5: Setting up Wi-Fi™....................................................................................................... 10

5.8 STEP 6: RS232 COM-Port Emulation ....................................................................................... 11

5.9 Antennas .............................................................................................................................. 12

5.9.1 External VHF-Antenna ..........................................................................................................................12

5.9.2 Internal GPS antenna vs. external GPS antenna....................................................................................12

5.9.3 Entering ship’s data ..............................................................................................................................12

6Operation..........................................................................................................................12

6.1 Readying for operation.......................................................................................................... 12

6.2 Mounting strap ..................................................................................................................... 13

6.3 Connector protection brace ................................................................................................... 13

6.4 LED explanation .................................................................................................................... 13

7Support, Warranty, and Notices.........................................................................................14

7.1 Support................................................................................................................................. 14

7.2 Appendix: Drawings .............................................................................................................. 15

NAUTICAST™ Portable AIS Product Support Manual Addendum

Index Page Number

Portable AIS Manual Addendum 4 Y1-03-0243D

History of Changes

Date

Version

Rev.

Status

Comments

Responsible

2009-09-15

1.0.0

Draft

Initial Draft

B. Cox

2009-09-16

1.0.1

Draft

Working Draft

A. Lesch

2009-10-01

1.0.2

Draft

Update

J. Lynam

2009-10-02

1.0.3

Draft

Update

A. Lesch

2009-10-02

1.0.4

Released

Formatting

A. Lesch

2010-02-09

1.0.5

Released

Update battery charging instructions

and Wi-Fi™set up

J. Severson

2010-02-24

1.0.6

Released

New AIS start procedure

B.Werner, B.Cox

2011-10-10

1.0.7

Released

Update Warranty and Service Info

C. Wahler

History of Software Versions

This revision of the manual is valid for the software version (s) below stated and future versions unless

otherwise noted (ref.: www.acrelectronics.com / www.acr-europe.com).

Date

AIS Software

Version

Status

Comments

Responsible

2010-02-24

2.0.S116.XN04

Released

New GPS Module. New way to store

ship dimensions

A. Lesch

2010-02-24

2.0.S121.XN04

Released

New TX and RX LED (Inland AIS)

A. Lesch

Portable AIS Manual Addendum 5 Y1-03-0243D

1 Introduction

The NAUTICAST™ Portable AIS is the right solution for your fully autonomous AIS needs. This

transponder is compliant for Inland and SOLAS applications. With a fully charged internal battery, the

portable system can operate for 4 to 5 hours or indefinitely when connected to ship’s power. Interfacing

with ship’s sensors and ECDIS displays is made easy with external case mounted ports and optional

cables. Built in Wi-Fi™ allows for communication with PC ECS software.

The NAUTICAST™Portable AIS improves shipboard safety by providing information about AIS traffic that

RADAR alone cannot. AIS target name, vessel type, MMSI, position, COG, SOG, to name a few, are

available to ship’s helmsmen on an innovative 3 in 1 display. Choose from Alphanumeric, RADAR, or

Fairway views to display surrounding traffic and their ships’data. Selectable range zoom functions along

with target sorting provide customizable views of surrounding traffic.

The ACR NAUTICAST™ Portable AIS transponder fully complies with the technical specifications for the

Universal Automatic Identification System (UAIS) transponder issued by the International Maritime

Organization (IMO). The NAUTICAST™ Portable AIS makes a significant contribution to maritime

situational awareness.

The NAUTICAST™ Portable AIS is designed for situations where a fixed installation is not required or

practical. This is the perfect solution for mandatory short term carriage compliance or Bridge and Lock

tenders. The hard case can withstand the rigors of the marine environment as well as multiple

deployments. Corrosion resistant IP67 rated connectors enhance the system reliability and connectivity.

This unit is capable of being set up and running within minutes by installing VHF and Wi-Fi™antennas,

supplying power to the transponder and programming the ship’s static data.

Please read all instructions before placing the NAUTICAST™ Portable AIS into service. This

addendum only addresses the Portable AIS case connections and operation. Programming,

interfacing and operation instructions are contained in the Product Support Manual.

2 Unpacking the Portable AIS

The Portable AIS is shipped complete with

the following items:

Built into the floating waterproof housing are

the NAUTICAST™ AIS transponder, GPS

antenna, 24V NiMH rechargeable battery

pack, 24V DC power supply, and a 110V to

240V battery charger.

Stored inside the lid is an 8 inch VHF

antenna and a 4 inch Wi-Fi™ antenna. Also

stored inside the lid are

the Product Support Manual, documentation

CD ROM and this Addendum to the Product

Support Manual. Included but not in the case

are the external 24V power supply cable and

an external 110V to 240V AC cable for

battery charging.

VHF Antenna

WiFi™ Antenna

Internal/External

GPS Antenna

Connection

Fuse Holder

Figure 1

Portable AIS Manual Addendum 6 Y1-03-0243D

2.1 Options

For complex installation situations, the following additional accessories are available as options:

ACR Part Number

Accessory

2639

Secondary remote GPS antenna with 16.4 ft (5m) cable. For use when built-

in antenna will not acquire GPS data due to location

2647

GPS extension cable, 66.6 ft (20m)

2628

Secondary remote VHF antenna with 16.4 ft (5m) cable. For use when

additional range is required

2649

Secondary VHF adapter cable (TNC male-to-SO 239). Required with P/N

2628

2653

RS232 Serial Port male-to-USB adapter. For use when transponder is to be

interfaced with a PC running compatible Electronic Charting Software and the

PC is not WI-FI capable

2654

RS232 Serial cable extension 16.4 ft (5m)

2655

External AC-to-DC power supply. Dry environment only. For use when the

Transponder will not be used on board vessels

2656

External DC power cable, 32.8 ft (10m)

2.2 External connections

Portable AIS Manual Addendum 7 Y1-03-0243D

3 First steps

3.1 Pre-charging

NOTE: Prior to charging your Portable AIS, place the power mode switch in the OFF position and

remove the fuse from plastic bag that is taped to the top cover inside the portable AIS case.

Remove the fuse cap cover as illustrated in Figure 1, page 5 and insert into the fuse holder and

place the fuse holder cap back in place.

CAUTION: Prior to placing your Portable AIS into service, charge the internal batteries for a minimum

of 5 hours. Ensure that the switch is in the “OFF”position when charging. See charging instructions below.

3.2 Initial configuration

To configure the NAUTICAST™ Portable AIS for the first time, open the unit and follow the steps defined in

the Installation Manual (included with purchase). After initial configuration, you may configure the device

over the Wi-Fi™port (see later section in this manual). To start the power for the AIS see chapter. 6.

Operation.

4 Power Supply / Charging

4.1 Portable AIS power switch functions

The Switch on the Portable AIS enables three different functions:

UP position is to supply power to the transponder from the internal battery. This position is to apply

power to the Start switch to power on the unit. Note the Start switch is momentary switch hold on for 1

second and release.

DOWN position is to supply power to the transponder from an external 24V DC power source

CENTER position is to remove power from the transponder and allow for the charging of the internal

battery.

Although battery can be charged while the transponder is on, optimum charging conditions result when

the transponder is powered off.

4.2 Charging the Internal Battery

To properly charge the 24V NiMH internal battery:

Only charge the battery in a dry environment

Confirm that the power switch is in the center OFF position

Confirm that power source wall socket is 100-240V AC, 50-60Hz

Attach the 110V to 240V AC cable first to the battery charger input socket and then to a wall socket

Allow unit to charge for 4 to 5 hours before putting back into service

Transponder operational life on battery power is 4 to 5 hours.

The transponder is protected by an 8 amp, AGC style fuse, between the battery and the transponder.

To access the fuse for replacement, lift the lid on the waterproof housing and unscrew the fuse holder.

AIS

Power

Supply

Wall

Socket

Portable AIS Manual Addendum 8 Y1-03-0243D

4.3 Operating from Ship’s DC Power (18 –36V)

To properly power the transponder from ships power:

Confirm that the power switch is in the center OFF position

Confirm that power source is active

Attach the DC Power Cable to ships DC power supply and then to the External DC Input socket

Move the power switch to the Down position for External DC Power

Red LED should light

NOTE: When the battery is low the AIS switches off automatically. By holding the momentary toggle switch

in position START, you will see the yellow LED as an indication for a low battery. Battery must be charged

now! AIS cannot be used!

4.4 Optional External Power Supply

To properly power the transponder from an AC/DC power supply:

Only use an AC/DC power supply in a dry environment

Confirm that the power switch is in the center OFF position

Confirm that power source wall socket is 100-240V AC, 50-60Hz

Confirm that the power supply is 100-240V AC input and 24V DC and at least 8.3 amps output

Attach the DC Power Cable to 24v power supply and then to the External DC Input socket

Plug the power supply in to a wall socket

Move the power switch to the Down position for External DC Power

Red LED should light

5 Installation

The data from the transponder can be displayed on a shipboard ECDIS or a PC running AIS-capable ECS

software. The optional RS232 serial port-to-USB adapter and serial port extension cable are linked to the

ECDIS port to transfer data. Follow the instructions and download the software included with the adapter

for connectivity.

PCs with Wi-Fi™ capability can load the software included on the CD-ROM and communicate wirelessly

with the transponder. Follow the directions below.

5.1 USB adapter

Your Portable AIS comes with an RS232-to-USB data converter. Load the drivers from the included CD for

your USB adapter prior to plugging in your adapter to your PC. After installing your device, plug in your

adapter to your PC and connect the serial connector to the USB adapter. Find which COM port your PC

(Control Panel/Hardware/device manager/COM ports) assigned to your USB adapter and choose this

COM port.

5.2 Wi-Fi™ remote AIS connection

Wi-Fi™ remote AIS application connection instructions:

Lantronix Matchport bg

Direct connect to your laptop/PC.

5.3 STEP 1: Load Wi-Fi™ Module support software

NOTE: You need to have administrative privileges for your PC to configure this wireless device.

Load Wi-Fi™ Module support software (CDs included in purchase). Software programs are available from

the web as well.

For reference, the versions are:

Device Installer version 4.2.0.3

COM Port redirector version 4.2.0.1

Portable AIS Manual Addendum 9 Y1-03-0243D

Software type

Location on web

Device Installer

http://www.lantronix.com/device-networking/utilities-tools/device-installer.html

COM Port redirector

http://www.lantronix.com/device-networking/utilities-tools/com-port-

redirector.html

5.4 STEP 2: Enable and connect to the wireless device

Power on your wireless device.

Then re-boot your PC.

Ensure your wireless port is enabled. Most laptops

will default to OFF when under battery power or if

not in use for long periods of time.

Go to Network Connection: Select LTRX_IBSS

network from your wireless connection list and

click connect.

When you click on connectivity it may take a few

minutes for the device to timeout from trying to

acquire a new default IP address. Please wait until

it is connected.

If this device is not present in your wireless

connectivity list verify wireless radio is enabled on

your PC and verify wireless device is powered on

(LEDs on).

NOTE: When you do this, your PC will reassign a new IP address/gateway to your computer.

5.5 STEP 3: Identify your new IP address

Using Windows® program

Command Prompt® (DOS window),

type in “IPCONFIG”.

Press ENTER. This will show you

the newly assigned IP address.

Record this information.

WARNING: Your Wi-Fi™ module serial port comes configured and ready to use after you make the

connection and assign a COM port to use with the software tools,

Portable AIS Manual Addendum 10 Y1-03-0243D

5.6 STEP 4: Assign a TCP/IP Address

Assign TCP/IP Address to your Wi-Fi™ device to match your PC.

Open device installer program. Search for device. Software will automatically find Matchport wireless

device and display it in the directory tree.

NOTE: If the Matchport Wi-Fi™ device is not found, please open and close the program and try again. If

you opened the program before the link was established, it will not find the module during the search

routine.

Highlight the Mac address of the

device and click on ASSIGN IP. Select

Assign Specific Address. This will

keep the connection the same every

time you power the unit OFF and ON.

Assign a number that matches your

PC’s new IP address.

EXAMPLE: (From IPCONFIG data)

Auto configuration IP address

169.254.192.95

Set IP address to 169.254.192.035

Assign and verify change in device

installer window. If the first nine

numbers do not match, the device will

not connect. This depends on the

subnet mask settings and nine numbers is not always needed. Verify subnet mask if you want to lower the

key to six numbers.

NOTE: If you do not assign a specific address to the device the IP address of the wireless device will

change every time you power the unit OFF and ON. Setting the IP address with Device installer-

SPECIFIC software will prevent the IP address from changing. If needed you can always go back and

repeat this procedure to re-link your PC to the device.

5.7 Step 5: Setting up Wi-Fi™

Channel 1 serial settings of the Wi-Fi™ device for RS232 communications to the AIS unit.

Using the Web Configuration Tab verify the Channel is set as below and press Ok.

This will store the variables into the module.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de GPS de ACR Electronics

ACR Electronics

ACR Electronics NAUTICAST inland AIS Manual de usuario

ACR Electronics

ACR Electronics ResQLink PLB-375 Manual de usuario

ACR Electronics

ACR Electronics GLOBAL FIX - REV G Instrucciones de instalación

ACR Electronics

ACR Electronics ENGLISH Instrucciones de instalación

ACR Electronics

ACR Electronics VECTA 2 - REV A2 Instrucciones de instalación

ACR Electronics

ACR Electronics NAUTICAST SAR AIS - Manual de usuario

ACR Electronics

ACR Electronics GLOBALWATCH UAIS - QUICK Manual de usuario

ACR Electronics

ACR Electronics GLOBALWATCH UAIS - QUICK Manual de usuario

ACR Electronics

ACR Electronics NAUTICAST SAR AIS - Manual de usuario

ACR Electronics

ACR Electronics 406 EPIRB, NOAA Instrucciones de instalación

ACR Electronics

ACR Electronics TERRAFIX IO406 MHZ PLB Instrucciones de instalación

ACR Electronics

ACR Electronics PLB-350C Instrucciones de instalación

ACR Electronics

ACR Electronics ResQLink Manual de usuario

ACR Electronics

ACR Electronics AIS Link MOB Manual de usuario

ACR Electronics

ACR Electronics ResQLink PLB-400 Manual operacional

ACR Electronics

ACR Electronics GLOBALWATCH2 AIS - V1.0 Manual de usuario

ACR Electronics

ACR Electronics PLB-350C Instrucciones de instalación

ACR Electronics

ACR Electronics LAS TAG Manual de usuario

ACR Electronics

ACR Electronics AEROFIX 406 GPS I P-ELT - REV E Instrucciones de instalación

ACR Electronics

ACR Electronics ELT, NOAA Manual de usuario

ACR Electronics

ACR Electronics RLB-37 2842 Instrucciones de instalación

ACR Electronics

ACR Electronics NAUTICAST SOLAS AIS - Manual de usuario

ACR Electronics

ACR Electronics AQUAFIX 406 Manual de usuario

ACR Electronics

ACR Electronics AEROFIX 406 GPS I P-ELT - REV E Instrucciones de instalación

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
