ACME DOT Manual de usuario

- 1 -

CONTENTS

01/ Safety Instructions.................................................................................................. 2

02/ Technical Specifications ........................................................................................ 4

03/ Control Panel........................................................................................................... 5

04/ Fixture Installation.................................................................................................. 6

05/ Control By Universal DMX Controller................................................................ 8

5.1 DMX512 Connection..................................................................................... 8

5.2 Address Setting................................................................................................ 9

5.3 DMX512 Configuration................................................................................. 9

06/ Error Information .................................................................................................. 12

07/ Troubleshooting ....................................................................................................13

08/ Fixture Cleaning....................................................................................................13

- 2 -

01/ Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be

sure that they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer

will not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before

using the unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of

head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from

adjacent surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃. Do

not operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Unit’s surface temperature may reach up to 65 ℃. DO NOT touch the housing

bare-handed during its operation.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut

Please read the instruction carefully which includes important information

about the installation, usage and maintenance.

- 3 -

off the mains power immediately.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 0.5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any

repairs yourself. Repairs carried out by unskilled people can lead to damage or

malfunction. Please contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have

the damaged parts replaced by an authorized technician at once.

- 4 -

02/ Technical Specifications

Power Voltage

180-240V~ 50/60Hz

Power Consumption

20W

Light Source

1x10W laser module

Color Temperature

6000K-8000K

Beam Angle

87°

Dimmer/Strobe

0-100% smooth dimming; outstanding strobe effect with variable

speed

Control

DMX Channel

5 Channels

Control Mode

DMX512

RDM

Primary/Secondary Mode

Firmware Upgrade

Firmware Upgrade via DMX link

Construction

Data In/Out

RJ45 in/out

Power In/Out

IEC in

Protection Rating

IP20

Features

Excellent starry sky effect

Advanced optical design system

Multiple built-in show modes

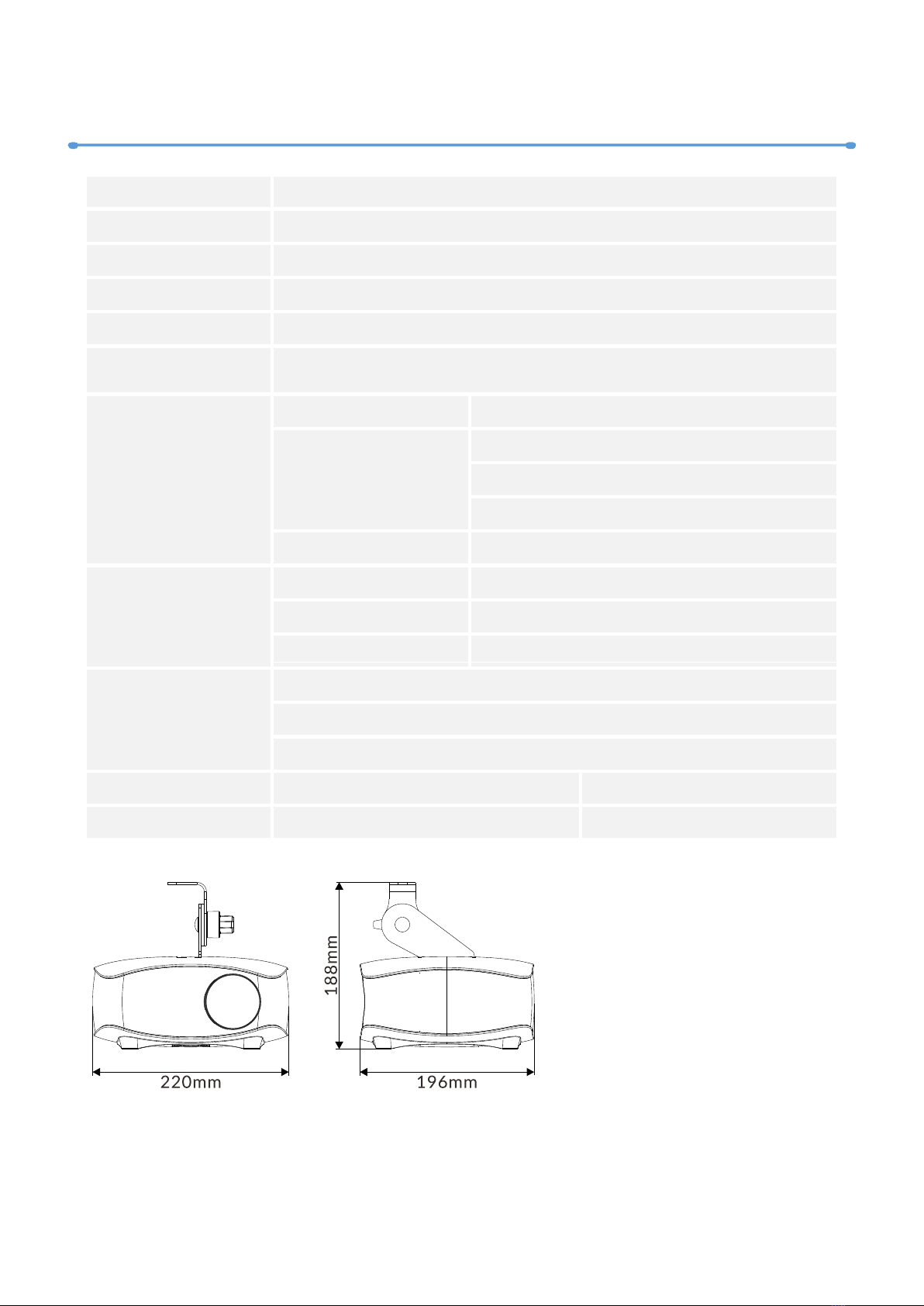

Dimensions

220x196x188mm

8.7"x7.7"x7.4"in

Weight

2kgs

4.4lbs

- 5 -

03/ Control Panel

1. DMX IN

For DMX512 link, use a network cable to link the unit and the DMX

controller

2. DMX OUT

For DMX512 link, use a network cable to link the next units

3. POWER

To connect to supply power

- 6 -

04/ Fixture Installation

DO install and operate by qualified operator. Fixture(s) should be installed in areas

outside walking paths, seating areas, or away from areas were unauthorized personnel

might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,

removing or servicing.

Always ensure that the unit is firmly fixed to avoid vibration and slipping off during

operation. Ensure that the trussing or area of installation must be able to hold 10 times

the weight without any deformation. Always attach a safety cable that can hold at least

12 times the weight of the fixture whenever installing this fixture in a suspended

environment to ensure that the fixture will not fall if the clamp fails.

This fixture is fully operational in two different mounting positions: hanging, or fix on the

ceiling. Always use and install the supplied safety cable as a safety measure to prevent

accidental damage and/or injury in the event the clamp fails.

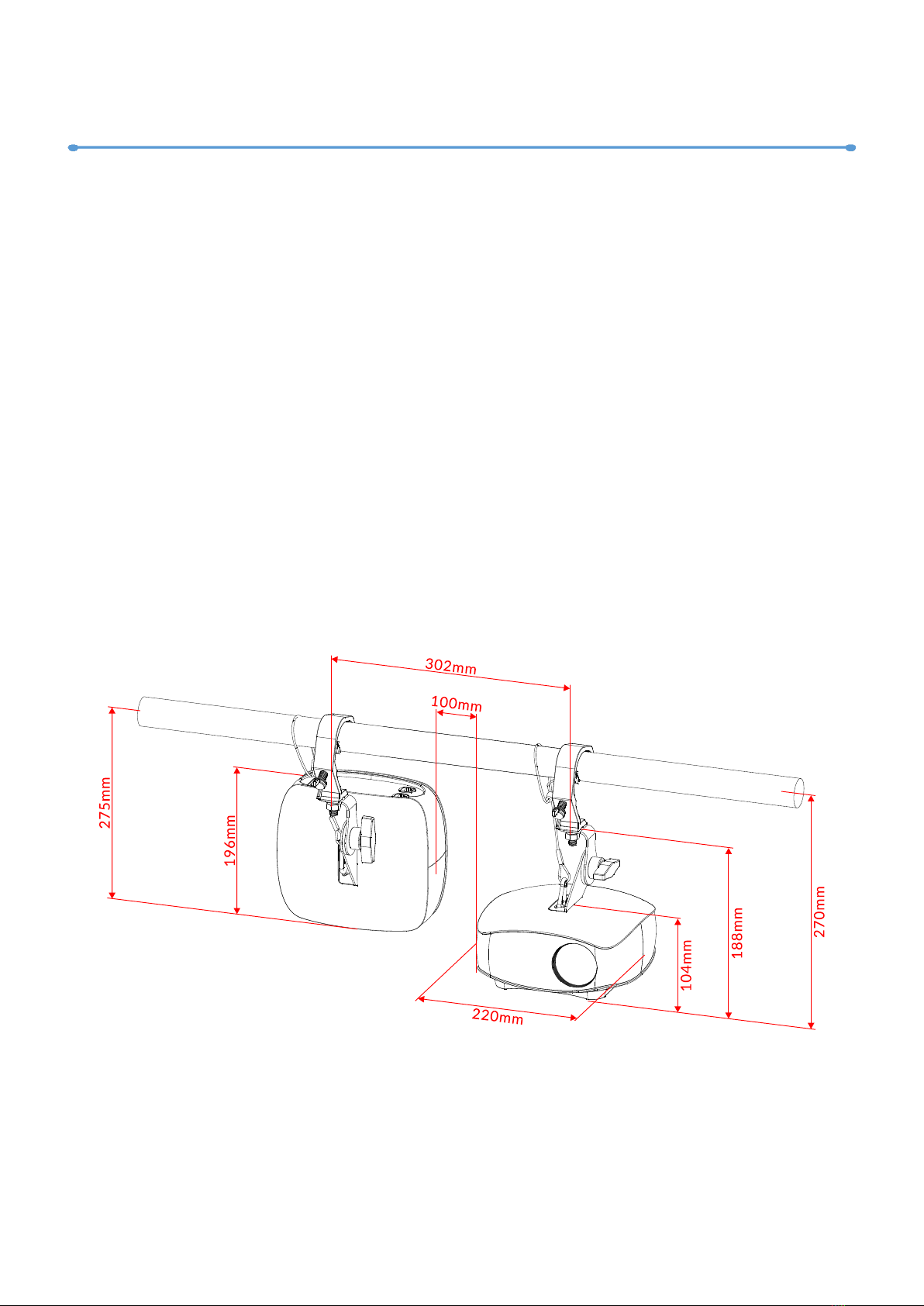

Hanging the fixture:

- 7 -

Fix the fixture on the ceiling:

1. Drill an expansion screw hole (for M12 expansion screw) in the ceiling.

2. Unscrew the washer and nut of the expansion screw, and insert the expansion screw tube

and screw into the drilled screw hole.

3. Align the hole on the bracket of the fixture with the screw, then put the washer and nut of

the expansion screw in turn and tighten it with a wrench.

4. After tightening the nut, check whether the fixture is installed firmly, then adjust the

fixture to the required angle through the bracket knob.

- 8 -

05/ Control By Universal DMX Controller

5.1 DMX512 Connection

1. To avoid erratic behavior, make sure that the output of the last DMX device in the chain

is terminated by a resistor (120-ohm 1/4W) which is connected between RJ45 PIN 1 (XLR

PIN 3) and RJ45 PIN 2 (XLR PIN 2) of a RJ45 connector (a male XLR connector).

2. Connect the unit together in a “daisy chain” by network cable from the output of the

unit to the input of the next unit. The cable can only be used in series and cannot be

connected in parallel. DMX512 is a very high-speed signal. Inadequate or damaged cables,

soldered joints or corroded connectors can easily distort the signal and shut down the

system.

3. The DMX output and input connectors are pass-through to maintain the DMX circuit,

when one of the units’ power is disconnected.

4. Each lighting unit needs to have a DMX address to receive the data by the controller.

The address number is between 1-512.

5. The end of the DMX512 system should be terminated to reduce signal errors.

6. This device transmits DMX512 signal through RJ45 port.

Positive signal: RJ45 (PIN 1) corresponds to XLR (PIN 3)

Negative signal: RJ45 (PIN 2) corresponds to XLR (PIN 2)

GND: RJ45 (PIN 7/PIN 8) corresponds to XLR (PIN 1)

- 9 -

5.2 Address Setting

If you use a universal DMX controller to control the units, you have to set DMX address

between 1 and 512 so that the units can receive DMX signal.

Please refer to the following diagram to address your DMX512 channel for the first 4 units.

Channel mode

Unit 1

Address

Unit 2

Address

Unit 3

Address

Unit 4

Address

5 channels

5.3 DMX512 Configuration

Please control the fixture by referring to the configurations below

5 Channels (Mode 1):

CHANNEL

VALUE

FUNCTION

000-255

DIMMER

0%100%

000-007

008-015

016-131

132-139

140-181

182-189

190-231

232-239

240-247

248-255

STROBE

Open

Strobe from Slow to Fast

Open

Fast Open Slow Close from Slow to Fast

Open

Slow Open Fast Close from Slow to Fast

Open

Random Strobe from Fast to Slow

Open

000-007

008-125

126-129

130-247

248-255

REFLECTOR ROTATION

Standby

Clockwise Rotation, Fast to Slow

Stop

Counter-Clockwise Rotation, Slow to Fast

Stop

Attentions:

The unit will maintain the last condition until reset if you cut-off the DMX signal.

For the channel Function, keep the value for about 3 seconds, then the

corresponding function will take into effect.
