TravelMate Notebook Series Quick Guide

Original Issue: 04/2011

Acer recommends...

Productivity Software

Work Great with Microsoft®Office 2010 - Express your ideas, solve problems and simplify everyday projects

with Office 2010.

Photo editing - Easily edit and print your photos with Windows Live Photo Gallery. Then share them on

Facebook, YouTube or Windows Live.

Search & Decide with Bing - Find and organize the answers you need using Bing™, so you can make faster,

more informed decisions.

First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The TravelMate Generic User Guide contains useful information applying to all

models in the TravelMate product series. It covers basic topics such as using the

keyboard and audio, etc. Please understand that due to its nature, the Generic

User Guide will occasionally refer to functions or features which are only

contained in certain models of the series, but not necessarily in the model you

purchased. Such instances are marked in the text with language such as "only

for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the TravelMate Generic User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start > All Programs > Documentation.

2 Click on TravelMate Generic User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on TravelMate Generic User Guide will

run the Adobe Reader setup program first. Follow the instructions on the

screen to complete the installation. For instructions on how to use Adobe

Reader, access the Help and Support menu.

English

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show

you around your new Acer notebook.

Top view

#Icon Item Description

1Integrated

webcam

Web camera for video communication.

English

2 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output (configuration

may vary by model).

3 Keyboard For entering data into your computer.

4 Caps Lock Lights up when Caps Lock is activated.

5 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

6 Fingerprint reader Fingerprint reader for Acer ProShield

Security Suite.

7 Click buttons (left

and right)

The left and right buttons function like

the left and right mouse buttons.

8Num Lock Lights up when Num Lock is activated.

Acer PowerSmart

key

Puts your computer into power-saving

mode (configuration may vary by model).

P key Programmable key (configuration may

vary by model).

Acer InstantView Opens Acer InstantView.

Backup key Launches Acer Backup Management for

three-step data backup.

Microphone mute Mutes the microphone.

Power button /

indicator

Turns the computer on and off. Indicates

the computer's power status.

10 Microphones Two internal microphones for stereo

sound recording.

#Icon Item Description

English

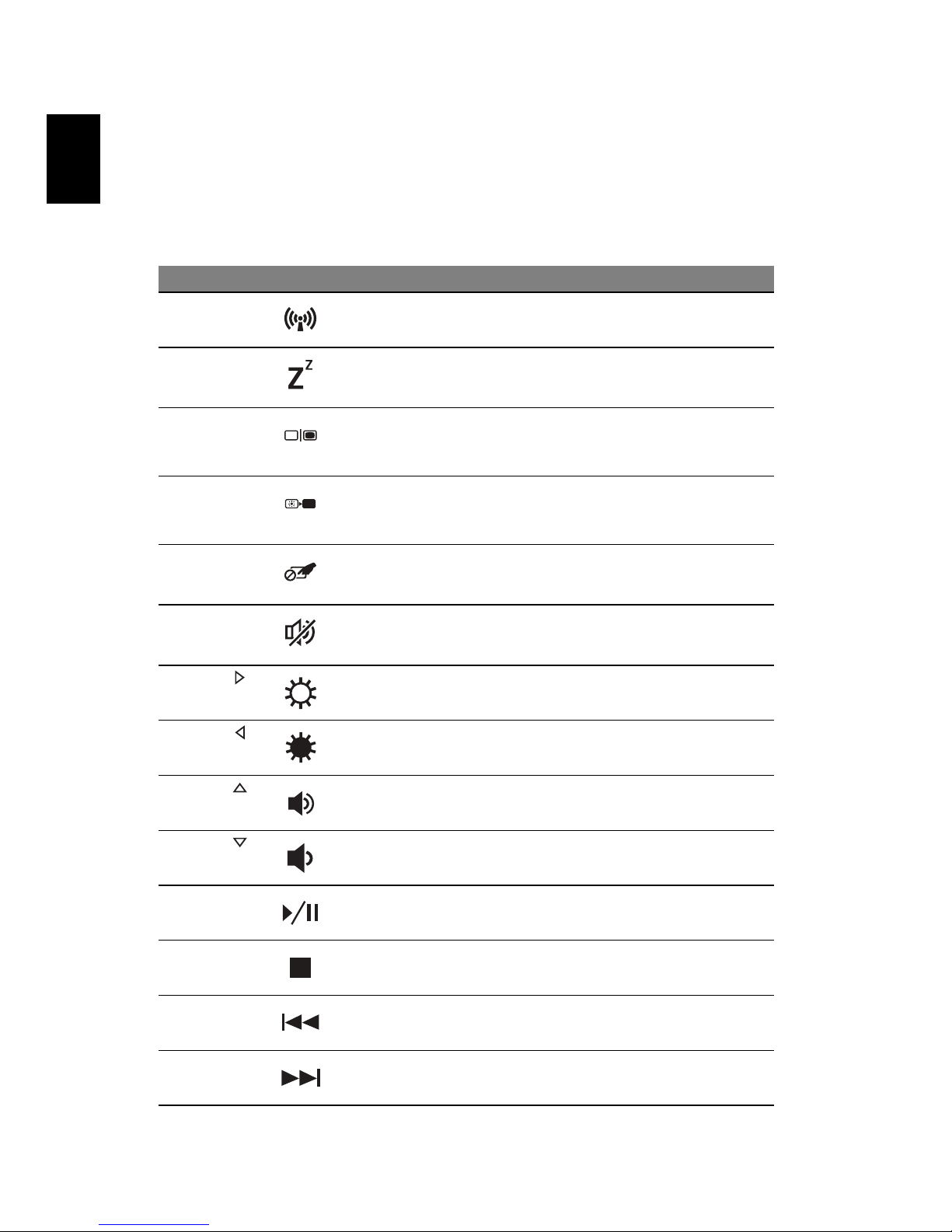

Hotkeys

The computer employs hotkeys or key combinations to access most of the

computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key

in the hotkey combination.

Hotkey Icon Function Description

<Fn> + <F3> Communication Enables/disables the computer’s

communication devices.

<Fn> + <F4> Sleep Puts the computer in Sleep mode.

<Fn> + <F5> Display toggle Switches display output between

the display screen, external monitor

(if connected) and both.

<Fn> + <F6> Screen blank Turns the display screen backlight

off to save power. Press any key to

return.

<Fn> + <F7> Touchpad

toggle

Turns the internal touchpad on and

off.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn> + < > Brightness up Increases the screen brightness.

<Fn> + < > Brightness

down

Decreases the screen brightness.

<Fn> + < > Volume up Increases the sound volume.

<Fn> + < > Volume down Decreases the sound volume.

<Fn> +

<Home>

Play/Pause Play or pause a selected media file.

<Fn> +

<Pg Up>

Stop Stop playing the selected media file.

<Fn> +

<Pg Dn>

Previous Return to the previous media file.

<Fn> +

<End>

Next Jump to the next media file.

English

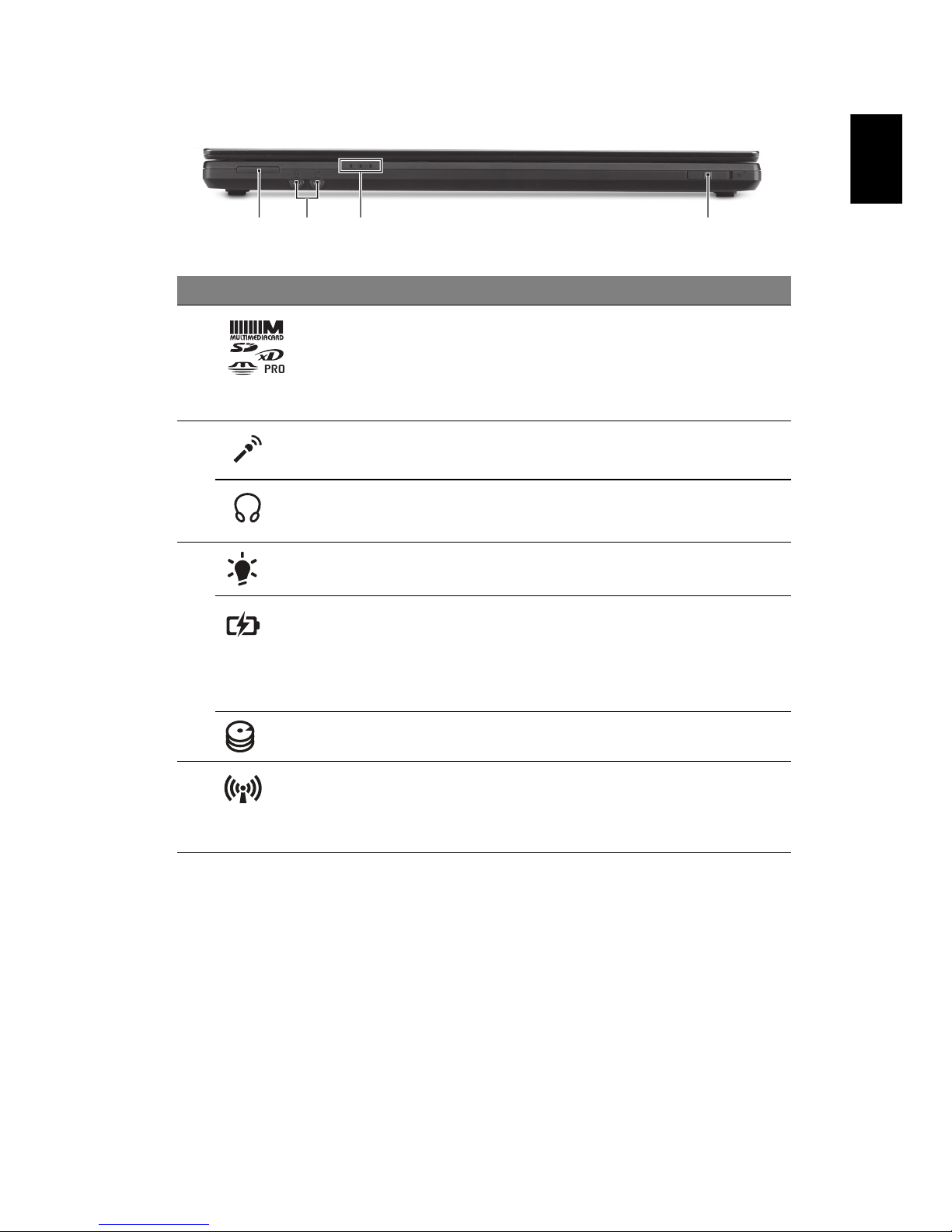

Closed front view

#Icon Item Description

1 Multi-in-1 card reader Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory Stick

PRO (MS PRO), xD-Picture Card (xD).

Note: Push to remove/install the card.

Only one card can operate at any time.

2Microphone jack Accepts inputs from external

microphones.

Headphones/speaker

jack

Connects to audio devices

(e.g., speakers, headphones).

Power indicator Indicates the computer's power status.

Battery indicator Indicates the computer's battery status.

1. Charging: The light shows amber

when the battery is charging.

2. Fully charged: The light shows blue

when in AC mode.

HDD indicator Indicates when the hard disk drive is

active.

4 Communication

switch / indicator

Enables/disables the computer’s

communication devices / indicates the

computer’s wireless connectivity device

status.

23 4

English

Left view

Right view

#Icon Item Description

1 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-

based network.

2 External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

3 HDMI port Supports high-definition digital video

connections.

4 USB 2.0 / e SATA port Connects to USB 2.0 or eSATA devices

(only for certain models).

Note: If you plug in an eSATA device you

will have three USB ports available.

#Icon Item Description

1 USB 3.0 port Connects to USB devices.

A USB 3.0 port can be distinguished by

its blue connector.

2 USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

2134

231456798

English

Information on USB 3.0

•Defined by the USB 3.0 (SuperSpeed USB) specification.

•Devices without USB 3.0 certification may not be compatible.

3 USB 2.0 charge port Connect to USB 2.0 devices.

•Supports power-off USB

charging, allowing you to charge

supported mobile devices while

the notebook is switched off.

3 Optical drive Internal optical drive; accepts CDs or

DVDs.

4 Optical disk access

indicator

Lights up when the optical drive is

active.

5 Optical drive eject

button

Ejects the optical disk from the drive.

6 Emergency eject

hole

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the

emergency eject hole to eject the

optical drive tray when the computer

is off.

7 DC-in jack Connects to an AC adapter.

8 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

Note: Wrap the computer security

lock cable around an immovable

object such as a table or handle of a

locked drawer. Insert the lock into the

notch and turn the key to secure the

lock. Some keyless models are also

available.

#Icon Item Description

English

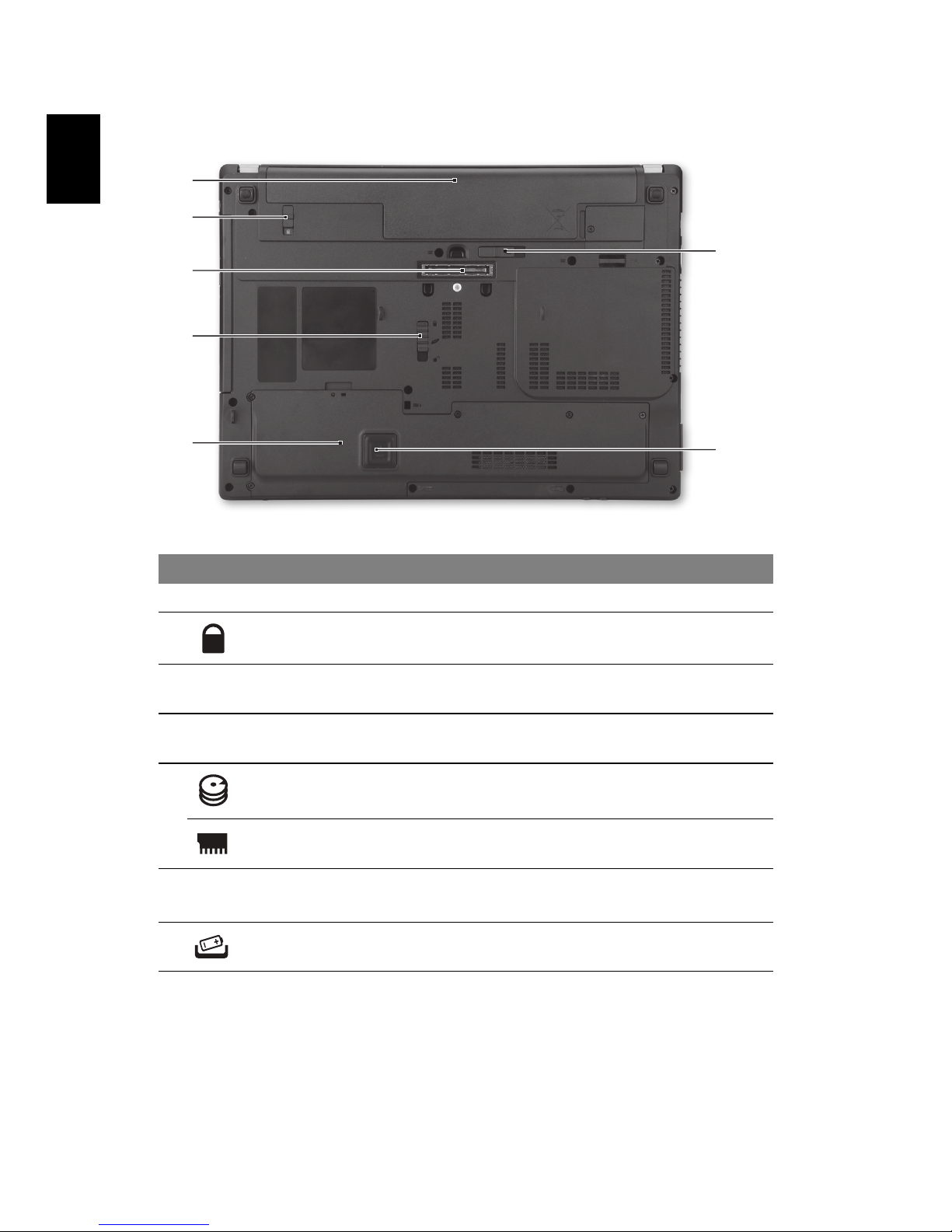

Base view

#Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery lock Locks the battery in position.

3Acer ProDock

connector

Connects to the optional Acer ProDock.

4Acer MediaBay

release latch

Releases the Acer MediaBay module.

Hard disk bay Houses the computer's hard disk (secured

with screws).

Memory

compartment

Houses the computer's main memory.

6 Acer DASP (Disk Anti-

Shock Protection)

Protects the hard disk from shocks and

bumps.

7 Battery release latch Releases the battery for removal.
