Acard ARS-2030L Manual de usuario
ARS-2030L/2032
Copy Smart Plus
Copyright ©2005 ACARD Technology Corp.
Release: April 2005
Attention:
It takes over 5 seconds to
power on after shutdown
otherwise the system may
operate abnorrmally.
CD Duplicator
User’s Manual
Ver: 1.2
Copyright and Trademark
The information in this manual is subject to change without prior notice and does
not represent a commitment on the part of vendor, who assumes no liability or re-
sponsibility for any errors that may appear in this manual.
ACARD and SCSI are the trademarks of ACARD Technology Corp.
This manual contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or tran-
scribed without the expressed written permission of the manufacturer and author of
this manual.
ACARD’s ARS-2030/2032 Copy Smart Plus are merely used for copying and edit-
ing personal audio and video data. Violating Copy Right is a criminal act. ACARD's
Copy Smart Plus only supports legal backup operation.
ACARD Technology Corp. is not responsible for the user’s illegal actions.
Table of Contents
Chapter 1 Introduction ................................................6
1.1 Features ...................................................................... 6
1.2 Specifications .............................................................. 6
Chapter 2 Installation...................................................8
2.1 Copy Smart Plus Only ................................................ 8
2.2 A Whole System.......................................................... 8
2.3 A System without CD Writers ..................................... 8
2.4 How to Install............................................................... 9
Chapter 3 Basic Instructions.....................................13
3.1 Buttons and LCD ...................................................... 13
3.2 About HDD Installation............................................ 14
3.2.1 With an HDD.............................................................................. 14
3.2.2 Without an HDD ........................................................................ 15
Chapter 4 Board Layout ............................................17
Chapter 5 Functions....................................................19
5.1 Copy.......................................................................... 19
5.2 Test............................................................................ 20
5.3 Test & Copy .............................................................. 21
5.4 Verify ........................................................................ 22
5.5 Compare ................................................................... 23
5.6 Prescan...................................................................... 24
5.7 Disc Info .................................................................... 25
5.8 Select Source ............................................................. 26
5.9 Image ........................................................................ 27
5.9.1 Load............................................................................................. 27
5.9.2 Delete Image ............................................................................... 28
5.9.3 Image Info................................................................................... 29
5.9.4 Compare Image .......................................................................... 29
5.9.5 Select Image................................................................................ 31
5.9.6 Select Src Drive .......................................................................... 31
5.10 Edit Track ................................................................32
5.10.1 CD to CD .................................................................................. 33
5.10.2 CD to HDD ............................................................................... 37
5.10.3 Play Audio Track ..................................................................... 42
5.10.4 Close Session ............................................................................ 43
5.11 Setup ........................................................................44
5.11.1 Language................................................................................... 45
5.11.2 Burn Speed............................................................................... 45
5.11.3 Read Speed............................................................................... 46
5.11.4 Auto Start Drive ....................................................................... 46
5.11.5 Startup Menu ........................................................................... 47
5.11.6 Auto Verify................................................................................ 47
5.11.7 Auto Compare .......................................................................... 48
5.11.8 Auto Prescan............................................................................. 48
5.11.9 Eject Disc .................................................................................. 49
5.11.10 Burn On The Fly .................................................................... 49
5.11.11 Burn Mode .............................................................................. 50
5.11.12 Button Sound .......................................................................... 51
5.11.13 Device Info .............................................................................. 51
5.11.14 System Info ............................................................................. 52
5.11.15 Quick Erase ............................................................................ 53
5.11.16 Full Erase................................................................................ 54
5.12 Adv Setup.................................................................55
5.12.1 UnderRun Protect .................................................................... 55
5.12.2 Overburn .................................................................................. 56
5.12.3 Read Error Skip....................................................................... 56
5.12.4 Format HDD ............................................................................ 57
5.12.5 Verify HDD............................................................................... 57
5.12.6 Burn-in...................................................................................... 58
5.12.7 Update Firmware ..................................................................... 59
5.12.8 Compare Firmware ................................................................. 60
5.12.9 H/W Diagnostic ........................................................................ 60
5.12.10 Load Default........................................................................... 61
5.12.11 CD+G ...................................................................................... 62
5.12.12 ISRC & MCN ......................................................................... 62
5.12.13 Switch Link-Host (optional) ................................................. 63
Chapter 6 Troubleshooting........................................64
6.1 About LCD ............................................................... 64
6.2 About ErrorMessages .............................................. 64
6.3 About CD-ROM/CD Writers .................................... 64
6.4 About Buttons ........................................................... 64
6.5 About CD Writer Not Readable................................ 65
6.6 About High Failure Rate........................................... 65
6.7 About Firmware Update ........................................... 65
6.8 About Function 12 and Cancellation ........................ 65
Appendix 1 List of Functions ...................................66
Appendix 2 LCD Messages.......................................68
Technical Support Form ..............................................72
6
ARS-2030L/2032 Manual
Chapter 1 Introduction
ARS-2030L and ARS-2032 are especially designed for copying CD in video, audio
or data form. ARS-2030L is for 3 CD writers while ARS-2032 for 7 writers. These
two duplicators make copying easy and efficient. Professionally mechanical design,
multifunctional LCD and 4 simple buttons on the panel are very helpful in opera-
tion. For any end-user the two models are really cost-effective.
1.1 Features
1.2 Specifications
Power Voltage: 5V±5%
Current: 0.5A Max
Environment Operation: 0°C to 60°C
Storage:-20°C to 85°C
Humidity 15% to 90%
lIDE to IDE Copy Controller.
lBuilt-in SCSIDE technology.
l4 (2030L) /8 (2032) independent IDE channels.
lPower-onselftest.
lSupport HDD.
lAutomatic format detection.
lUser-friendly interface with LCD messages.
lFast copying on high-speed CD writers
lEasy operation without installing software and extra training.
lFirmware update through CD-ROM.
7
ARS-2030L/2032 Manual
Dimension L 200 mm
W 146.2 mm
H 42 mm
Connector 40-pin internal IDE connector
Cable ATA-66 (under 46 cm)
CD Format : CD-ROM (Mode1 & Mode2), CD-ROM/XA (Mode2 form1 &
form2), CD-DA, Mixed-Mode, Video CD, CD-1, Karaoke CD,
Photo CD (Single & Multi-session), CD-Extra, HFS, CD-Bridge,
ISO9660, CD-R and CD-RW
Supported CD-ROM : TEAC
Supported CD-RW : Plextor, TEAC, Sanyo, Nichimen, SONY, RICOH
Please visit the web site of ACARD to get the newest data.
http://www.acard.com
8
ARS-2030L/2032 Manual
Chapter 2 Installation
Before installing your copy smart plus, please note that there are three kinds of
packages: the copy smart plus only, a whole copying system and a system without
CD writers.
lUnpack the package.
lCheck if there is any defect or malfunction.
lBe sure that voltage is set correctly.
lAn HDD (optional).
2.2 A Whole System
lUnpack the package.
lCheck if there is any defect or malfunction.
lPrepare suitable CD writers according to the list given in subsection 1.2.
lAssemble the copy smart plus according to your needs.
lBe sure that voltage is set correctly.
2.3 A System without CD Writers
2.1 Copy Smart Plus Only
lUnpack the package.
lCheck if there is any defect or malfunction.
lPrepare a CD-ROM and CD writers.
lPrepare a 5.25” external case (5~10-bay chassis).
lPrepare an HDD and a mobile rack (optional).
lPrepare switching power supply (300W).
lMake all IDE devices in Master mode.
9
ARS-2030L/2032 Manual

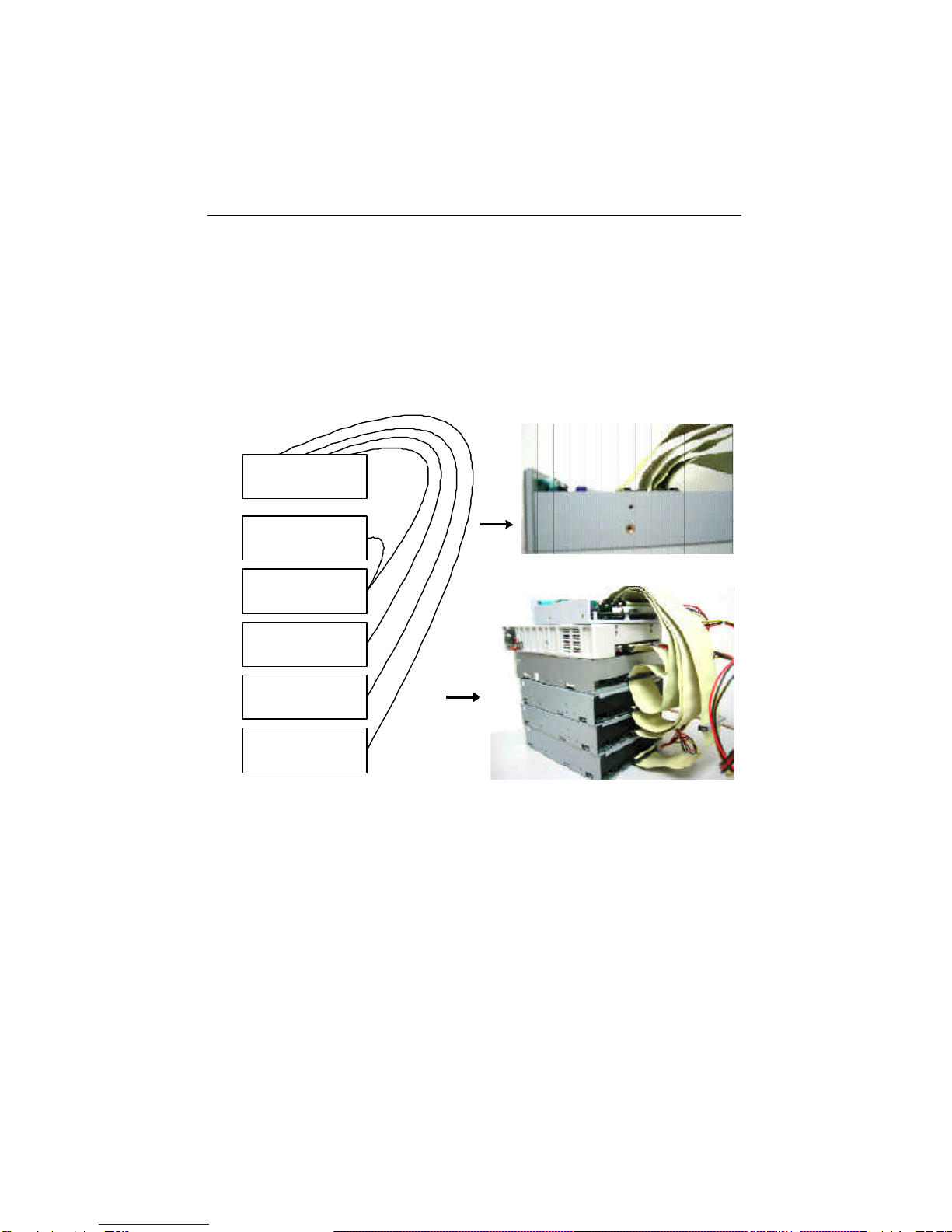

2.4 How to Install
The following diagram and pictures indicate the installation of ARS-2030L copy
controller with a CD-ROM and 3 CD writers.
Copy Controller /
ARS-2030L
CH 1 / CD-ROM
CH 2 / CD Writer
CH 3 / CD Writer
CH 4 / CD Writer
4 3 2 1
LCD
10
ARS-2030L/2032 Manual
The following diagram and pictures indicate the installation of ARS-2030L copy
controller with an HDD, a CD-ROM and 3 CD writers. The second picture shows
that HDD is put inside a tray.
Copy Controller /
ARS-2030L
CH 1 / CD-ROM
(Slave)
CH 2 / CD Writer
CH 3 / CD Writer
CH 4 / CD Writer
4 3 2 1
LCD
CH 1 / HDD
(Master)
