ABB PST30 Manual de usuario

Softstart

Upgrade to Torque control

PST30…300

PSTB370…1050

1SFC132040M0201 RevA Dec-06

Contents

1. ESD Warning...................................................................................................................2

2. Tools................................................................................................................................2

3. PCB information ..............................................................................................................2

4. Step by step.....................................................................................................................3

5. Configuration of the LV board..........................................................................................7

- 2 -

1. ESD Warning

Please note!

The life span of electronics can be affected by damage caused by

electrostatic discharge. This can happen if a charged tool or person

touches a component. Therefore it is very important that all tools and

personnel are discharged by touching an earthed point before the printed

circuit board or any of the components are touched. It is equally important

to discharge the package with the new component before opening it.

A person walking on a carpet can be charged with up to fifteen

thousand volt (15000V). Compare this with the fact that some sensitive

components can be destroyed when discharged on a much lower level

(about 100V). We kindly ask you to pay notice to this, as this is a vital

point in order to ensure the life span of the product.

2. Tools

Torx T15 for removing the Cover from PST30 … PST72

Torx T20 for removing the Printed Circuit Board.

for removing the Cover from PST85…PST300 and PSTB370…PSTB1050

3. PCB information

For upgrade to Torque Control both LV board and HV board needs to be upgrade to following

version:

LV board 1SFB636068D1011

HV board 1SFB636068D1013

- 3 -

4. Step by step

1. Before disconnecting the cables mark them.

2. Disconnect the cables from terminals 1L1,

3L2, and 5L3 (main voltage).

3. Disconnect all cables from the terminals 1 to

20, external keypad, PTC sensor and the

Fieldbus plug.

4. Remove the front cover (four screws).

5. Discharge the tools and yourself by touching

earth (if you are not earthed).

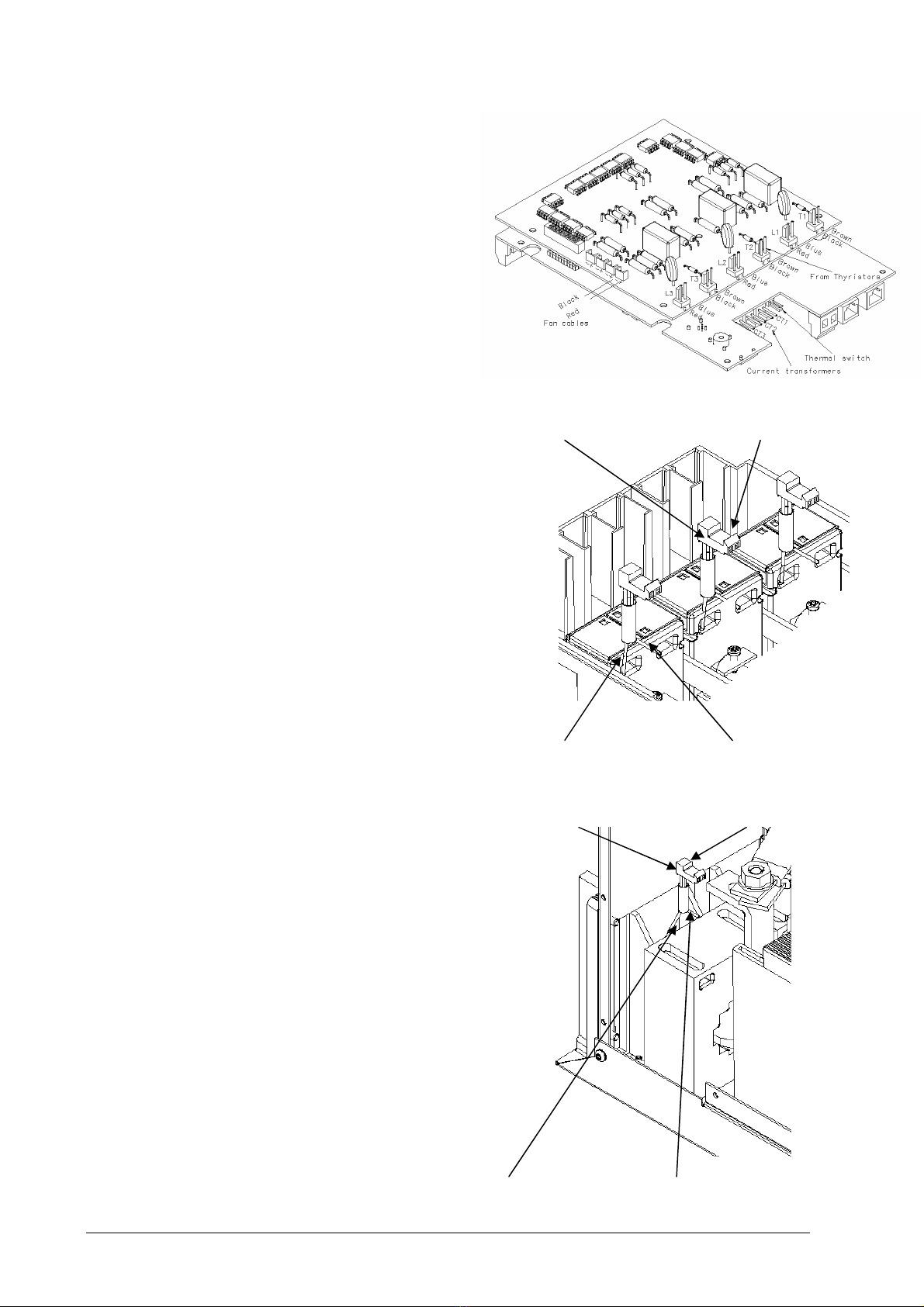

6. Disconnect the cables on the HV-Board from

the thyristors and fans. Mark the cables from

the thyristors with L1, L2 and L3.

7. Remove the five screws.

8. Remove the old HV-Board. Don’t lose the

connector between HV-Board and LV-

Board.

9. Disconnect the cables on the LV-Board from

the thermal switch and current transformers.

Mark the cables from the current transformers

with CT1, CT2 and CT3.

10. Remove the six screws.

- 4 -

11. Remove the old LV-Board and disconnect the

cables from the Display and the Keypad.

12. On PSTB unit remove the cables from the

built in by-pass contactor after marking them.

13. Mount the cables from the Display and the

Keypad on the new LV-Board.

On PSTB units, reconnect the cables from

the built in by-pass contactor. Be careful

how you connect the Red (L) and Brown

(N) cable.

14. Mount the new LV-Board with the six

screws.

15. Mount the connector. Be careful to avoid

damage on the pins.

L N

- 5 -

16. Mount the new HV-Board with the five

screws.

17. Mount the cables from the thermal switch

and current transformers on the LV-Board.

Be careful how you connect the cables

from the current transformers (correct

phase sequence).

18. Mount the cables from the thyristors and

fans on the HV-Board. Be careful how you

connect the cables from the thyristors.

White side PST Black side

19. For upgrade to Torque Control it is

important to check the connection on the

current transformer (see fig below).

20. If the two cables on each current

transformer are black use a multimeter to

detect the right connection. The resistance

of the current transformer are between

0,2-6 ohm.

21. Change the position of the cables on the

current transformers to obtain correct

position if necessary.

Black cable White cable

White side PSTB Black side

Black cable White cable

- 6 -

22. Mount the front cover (four screws).

23. Connect all cables to terminal 1 to 20,

external keypad, PTC sensor, Fieldbusplug

and the cables to 1L1, 3L2 and 5L3.

- 7 -

5. Configuration of the LV board

If only the HV board is changed, the softstarter is ready to start. If the LV board is changed, a

programming of this must be done before the softstarter can be taken in operation. Every softstarter

size has its own parameter values for the LV board according to table 1 or 2 that must be used.

Follow the step by step instruction below to do this set-up.

1. Switch on the power supply (terminal 1 and 2).

2. Enter the menu Service settings using following path:

Menu / SETTINGS / Service Settings / New PCB and press Select

3. Press Yes on the question “Are you sure?”

4. Set the required display language. Press Store to save the value and press Next to continue. If

wrong language was selected press Back for previous level. These commands are valid for

the whole set-up.

5. Set the parameter CT Ratio Ir. (table 1 or 2)

6. Set the parameter Int ByPass. (table 1 or 2)

7. Set the parameter ByPass AC3. (table 1 or 2)

8. Set the 4 parameters SOP1 - SOP4. (table 1 or 2)

9. Set the parameter PST(B). (table 1 or 2)

10. After pressing Next when the parameter PST(B) is set, the programming is complete.

11. Before taking the softstarter in operation, don’t forget to set the rated motor current and

activate the required protections, warnings, input / outputs etc.

12. For set-up of Torque Control during start and stop see separate manual sheet or update

manual.

- 8 -

Table 1 valid for softstarter order code 1SFA894xxxR7000 (600V-version)

Softstarter

size

CT Ratio

Int ByPass ByPass

AC3

SOP1 SOP2 SOP3 SOP4 PST(B)

PST30 30 No 0 0,85 4 0,77 4 30

PST37 40 No 0 0,85 3 0,63 4 37

PST44 50 No 0 0,8 2,2 0,44 4 44

PST50 50 No 0 0,8 2,2 0,44 4 50

PST60 60 No 0 0,8 1,5 0,31 4 60

PST72 75 No 0 0,8 1,2 0,26 4 72

PST85 100 No 0 0,8 1,2 0,26 4 85

PST105 125 No 0 0,9 0,55 0,19 4 105

PST142 150 No 0 0,85 0,45 0,18 4 142

PST175 200 No 0 0,85 0,45 0,18 4 175

PST210 250 No 0 0,85 0,3 0,157 4 210

PST250 250 No 0 0,93 0,27 0,085 4 250

PST300 300 No 0 0,93 0,27 0,085 4 300

PSTB370 400 Yes 305 1,03 0,48 0,05 4 370

PSTB470 500 Yes 305 1 0,35 0,032 4 470

PSTB570 600 Yes 460 1 0,35 0,032 4 570

PSTB720 750 Yes 580 0,98 0,17 0,024 4 720

PSTB840 1000 Yes 750 0,86 0,17 0,024 4 840

PSTB1050 1200 Yes 750 0,88 0,12 0,017 4 1050

Table 2 valid for softstarter order code 1SFA895xxxR7000 (690V-version)

Softstarter

size

CT Ratio

Int ByPass ByPass

AC3

SOP1 SOP2 SOP3 SOP4 PST(B)

PST30 30 No 0 0,85 4 0,77 4 30

PST37 40 No 0 0,85 3 0,63 4 37

PST44 50 No 0 0,8 2,2 0,44 4 44

PST50 50 No 0 0,8 2,2 0,44 4 50

PST60 60 No 0 0,8 1,5 0,31 4 60

PST72 75 No 0 0,8 1,2 0,26 4 72

PST85 100 No 0 0,8 1,2 0,26 4 85

PST105 125 No 0 0,9 0,55 0,19 4 105

PST142 150 No 0 0,85 0,45 0,18 4 142

PST175 200 No 0 0,85 0,45 0,18 4 175

PST210 250 No 0 0,85 0,3 0,157 4 210

PST250 250 No 0 0,93 0,27 0,085 4 250

PST300 300 No 0 0,93 0,27 0,085 4 300

PSTB370 400 Yes 280 1,03 0,48 0,05 4 370

PSTB470 500 Yes 280 1 0,35 0,032 4 470

PSTB570 600 Yes 400 1 0,35 0,032 4 570

PSTB720 750 Yes 500 0,98 0,17 0,024 4 720

PSTB840 1000 Yes 650 0,96 0,15 0,017 4 840

PSTB1050 1200 Yes 650 0,97 0,1 0,011 4 1050

Ready for start!!

- 9 -

- 10 -

ABB Automation Technologies AB, CEWE-Control

S-721 61 Västerås, SWEDEN

Telephone +46 21 32 07 00

TELEFAX +46 21 12 60 01
