ABB FENA-01 Manual de instalación

Safety instructions

WARNING! Obey the safety instructions. If you ignore them, injury or death, or damage to the

equipment can occur. See the user’s manual.

Mechanical installation

Electrical installation

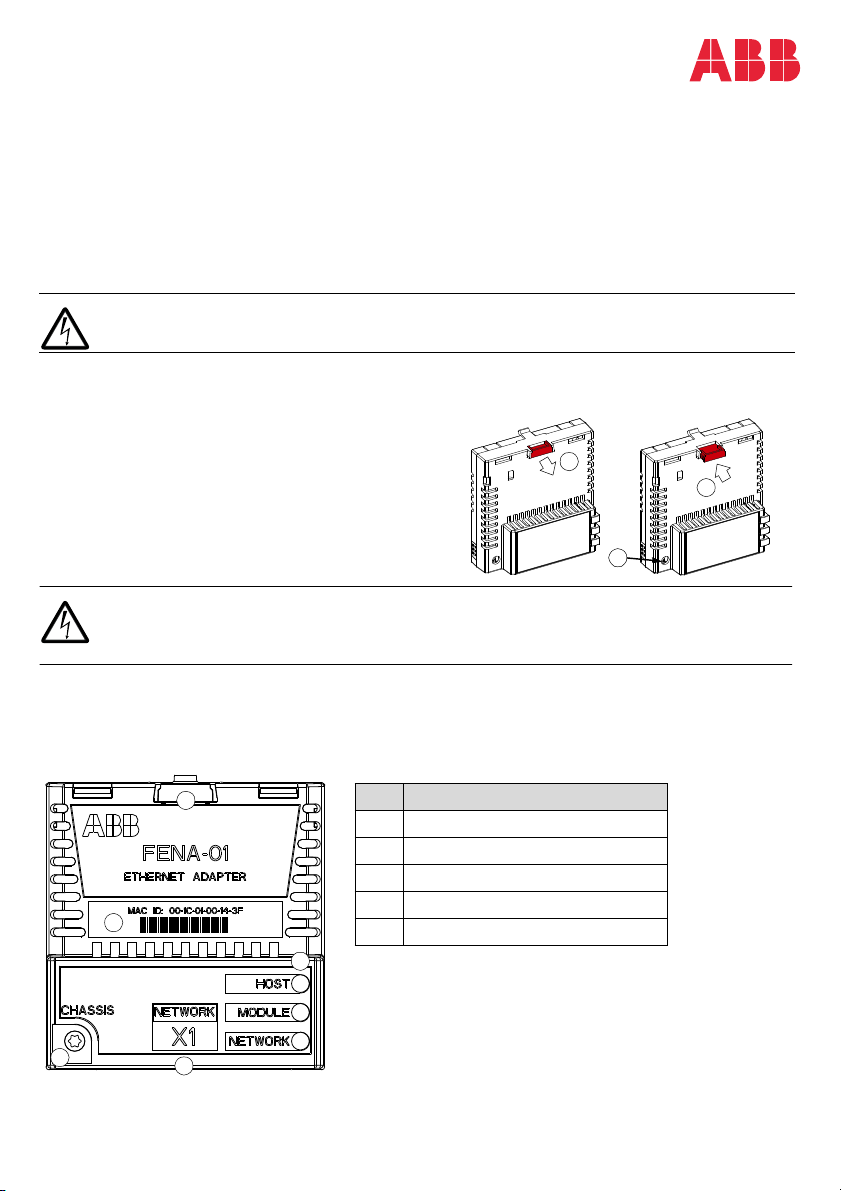

Layout of the module

1. Pull out the lock.

2. Install the module carefully to an option module slot of

the drive. See the drive hardware manual.

3. Push in the lock.

4. Tighten the screw to torque 0.8 N·m using a Torx

TX10 screwdriver.

WARNING! Do not use excessive force, or leave the screw too loose. Over-tightening can damage

the screw or module. A loose screw decreases the EMC performance, and can even cause an

operation failure.

No. Description

1 Lock

2 Mounting and grounding screw

3 RJ-45 connector [X1] to Ethernet

4 Diagnostic LEDs

5MACID

—

OPTIONS FOR ABB DRIVES

FENA-01/-11 Ethernet adapter module

Quick installation and start-up guide

Start-up

When the module is connected to the drive, the drive control program sets the applicable parameters. See

the appropriate drive firmware manual.

Basic parameter settings

Protocol-specific parameter settings

To take the settings into use, validate and refresh the parameters with parameter 51.27 FBA par refresh.

Connectivity configuration

To access the configuration web page:

1. Open a web browser and type the IP address of the adapter module in the address field.

2. Log in with a user name (admin) and a password (The last six digits of the MAC address of the adapter

module, in upper case letters, without hyphens. Eg, if MAC ID is 00-1C-01-00-2F-73, the password is

002F73).

Further information

Index Name Value

20.01 Ext1 commands Fieldbus A

22.11 Speed ref1 source FBA A ref 1

28.11 Frequency ref1 source FBA A ref 1

50.01 FBA A enable Enable (or select the option slot in which the module is installed).

This activates the communication module. The HOST LED becomes green.

50.02 FBA A comm loss func Fault

PROFINET IO Ethernet/IP

Index Name Va lue Index Name Value

51.02 Protocol/Profile PNIO ABB Pro 51.02 Protocol/Profile EIP AC/DC

51.04 IP configuration Static IP 51.04 IP configuration Set the IP address

according your network

configuration.

51.05...08 IP address 0.0.0.0 51.05...08 IP address

51.09 Subnet CIDR 0 51.09 Subnet CIDR

52.01 FBA A data in1 SW 16bit 51.23 Speed scale 128

52.02 FBA A data in2 Act 16bit

53.01 FBA A data out1 CW 16bit Modbus/TCP

53.02 FBA A data out2 Ref1 16bit Index Name Value

51.02 Protocol/Profile Modbus/TCP

51.04 IP configuration Set the IP address

according your network

configuration.

51.05...08 IP address

51.09 Subnet CIDR

See the latest version of FENA-01/-

11/-21 Ethernet adapter module user's

manual (3AUA0000093568 [English])

in ABB library

www.abb.com/drives/documents

FENA-01/-11/-21

manual

For more information on ABB fieldbus

options and protocols, see the field-

bus communications web page

new.abb.com/drives/connectivity/field-

bus-connectivity

Fieldbus communications

3AXD50000551316 Rev A (EN) 2019-11-22

Specifications subject to change without notice.

abb.com/drives
