3One data IES205 Manual

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

IES205

5-port

5-port Entry-level

Entry-level

Entry-level Industrial

Industrial

Industrial Ethernet

Ethernet

Ethernet Switch

Switch

Hardware

Hardware Installation

Installation

Installation Guide

Guide

I ntroduction

ntroduction

ntroduction :

The IES205 series of industrial Ethernet switches are entry-level

industrial 5-port Ethernet switches that provide an economical

solution for your industrial Ethernet connection, support

IEEE802.3/802.3u/802.3x. Dustproof and full close structure and

the IP30 case with LED indicators make the plug-and-play IES205

switches easy to use and reliable. These switches have been

designed for harsh industrial environments

IES205 series s upport 5 ports 10 /100Base-T(X), Full/Half duplex

mode, and auto MDI/MDI-X connection.

Packing

Packing L

L ist

ist

ist :

Th e IES205 switch is shipped with following items.

1. Ethernet switch IES205 (plus terminal block)

2. Hardware Installation Guide

3. Product Warranty Statement

4. DIN-Rail setting fittings(wall mounting for optional)

F eatures:

eatures:

1. IEEE802.3/ 802.3u/ 802.3x

2. Support auto negotiation speed, F/H duplex mode, and auto send

data control

3. P lug-and-play , auto MDI/MDI-X connection

4. Store and Forward 100M

5. S witching process type

6. Broadcast storm protection

7. Network work state LED indicator

8. 12

～

36VDC power input Operating temperature ranges from

-40 to 75 ° C

9. Industry standard design, dustproof and close design IP30,

rugged

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

high-strength metal case

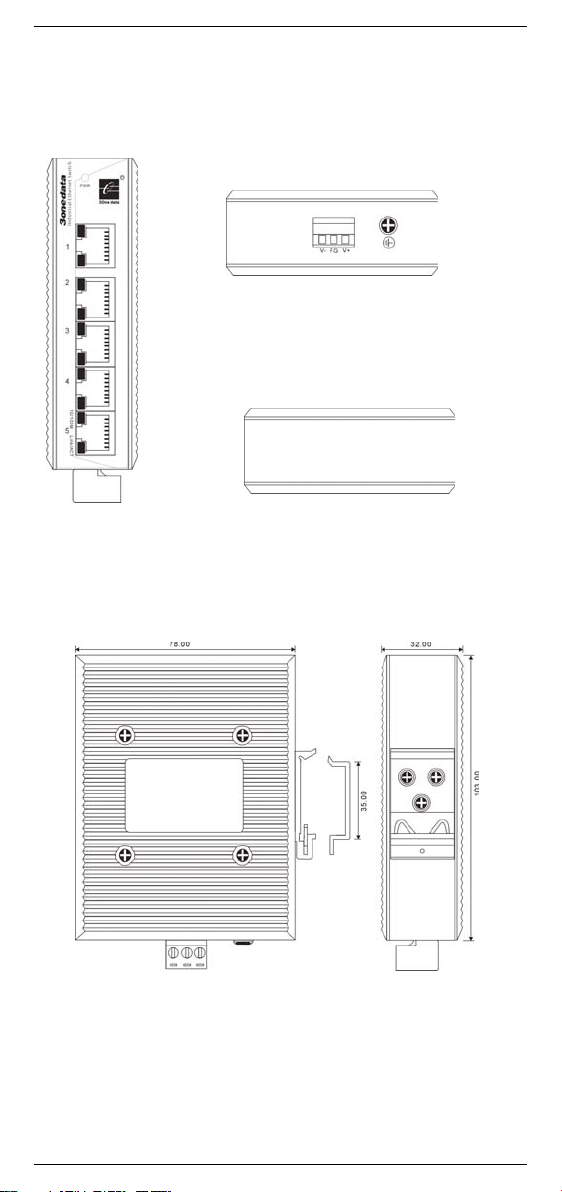

P anel

anel

anel Layout:

Layout:

IES205 series industry Ethernet switches provide 5 TP ports.

Power

Power input(bottom)

input(bottom)

F ront

ront

ront panel

panel

op panel

panel

Units

（

）

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Communication

Communication connector

connector

connector :

IES205 series have 5 10/100BaseT(X) Ethernet ports (RJ45)

10/100BaseT(X)

10/100BaseT(X) Ethernet

Ethernet

Ethernet port

port

The pinout of RJ45 port display as below, connect by UTP or

STP.

The connect distance is no more than 100m. 100Mbps is used

100

of UTP 5 , 10Mbps is used 100

of UTP 3,4,5

。

RJ 45 port support automatic MDI/MDI-X operation. can

connect the PC, Server, Converter and HUB .Pin 1,2,3,6

Corresponding connection in MDI. 1 → 3,2 → 6,3 → 1,6 → 2 are used

as cross wiring in the MDI-X port of Converter and HUB. .

10Base-T/100Base-TX are used in MDI/MDI-X, the define of Pin

in the table as below.

NO.

NO. MDI

MDI

MDI signal

signal

signal MDI-X

MDI-X

MDI-X signal

signal

1 TX+ RX+

2 TX- RX-

3 RX+ TX+

6 RX- TX-

4,5,7,8

— —

Note: “ TX ±” transmit data ±, “ RX ±” receive data ±, “ —” not use

MDI(straight-through

MDI(straight-through cable)

cable)

1 8

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

MDI-X

MDI-X (

(

( Cross

Cross

Cross over

over

over cable

cable

cable )

)

LED

LED Indicator

Indicator

Indicator :

LED indictor light on the front panel of IES205 Series .the

function of each LED is described in the table as below.

S ystem indication LED

LED State Description

POWER

ON P ower is being supplied to

power input POWER1 input

OFF P ower is not being supplied to

power input POWER1 input

OFF abnormality

RJ45 Port have two LED indictor light, yellow light is a port rate

indictor light, green light is a port link indictor light.

10/100M

（yellow ）

O n 100M work mode

（100Base-TX ）

Off 10Mwork mode

（

10Base-T

）

Link/ACT

（

green

）

O n TP port is active

blink ing Data is being transmitted

Off TP port is inactive

(

- )

(

- )

(

- )

(

- )

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Power

Power input

input

input ：

Top

view

view Front

Front

Front view

view

IES205 series Ethernet Switch adopt 3 bits terminal block for power

input(V-,FG,V+),

V-,

V+ for 12VDC~36VDC power input, FG for

connecting device shell.

Installation

Installation ：

Before installation , confirm that the work environment meet the

installation require, including the power needs and abundant space.

whether it is close to the connection equipment and other

equipments are prepared or not.

Installation

Installation require

require

require as

as below

below

1. Avoid in the sunshine, keep away from the heat fountainhead or

the area where in intense EMI.

2. Examine the cables and plugs that installation requirements.

Examine whether the cables be seemly or not (less than 100m)

according to reasonable scheme.

S crew, nut, tool provide by yourself.

Powe r need: 24V DC ( 12VDC~36VDC) power input

6. E nvironment : -40 to 75 ° C

Storage Temperature: -45 ° C to 85 ° C

Relative humidity 10 % to 95%

DIN-Rail

DIN-Rail Installation

Installation

In order to use in industrial environments expediently , IES205

series adopt 35mm DIN-Rail installation, the installation steps as

fellows:

1. Examine the DIN-Rail attachment

2. Examine DIN Rail whether be firm and the position be suitability

or not .

3. Insert the top of the DIN-Rail into the slot just below the stiff

metal spring.

4. The DIN-Rail attachment unit will insert into place as shown

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

below.

Wiring

Wiring Requirements

Requirements

Requirements ：

Be sure to disconnect the power cord before installing and/or wiring

your Ether net Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the maximum

current allowable for each wire size. If the current goes above the

maximum ratings, the wiring could overheat may causing serious

damage to your equipment. You should also pay attention to the

following items:

1. Use separate path to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires

are perpendicular at the intersection point.

2. NOTE: Do not run signal or communications wiring and power

wiring in the same wire conduit. To avoid interference, wires

with different signal characteristics should be routed separately.

3. You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of

thumb is that wiring that shares similar electrical characteristics

can be bundled together.

4. Keep input and output wiring separated. It is strongly advised

that you label wiring to all devices in the system when necessary.

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Specifications:

Interface

RJ45 Ports : 10/100BaseT(X) auto connection, F ull /H alf duplex or

force work mode, and support MDI/MDI-X connection

Technology

Standard

：

IEEE802.3, IEEE802.3x, IEEE802.3u

Forwarding and Filtrate Rate: 148810pps

Transmit type: Store and Forward switching process type

S upport 1K MAC Address

Power

Input V oltage: 12VDC~36VDC,

Overload Current Protection

Connection: 3 bit terminal block

Mechanical

Dimensions (L

H ) :103mm

78mm

32mm

Packaging: IP 30 Protection, Metal case

Installation: DIN-Rail, Wall Mounting

Environmental

Operating Temperature: -40 to 75 ° C

Storage Temperature: -45 to 85 ° C

Ambient Relative Humidity : 10% to 95 % (non-condensing)

Approvals

EMI

：

FCC Part 15, CISPR (EN55022) class

EMS : EN61000-4-2(ESD) ,

EN61000-4-3(RS) ,

EN61000-4-4(EFT) ,

EN61000-4-5 (Surge) ,

EN61000-4-6 (CS) ,

EN61000-4-8 ,

EN61000-4-11

Shock: IEC 60068-2-2 7

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty:

Warranty: 5

5 years

years

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Certifications:

Shenzhen

Shenzhen 3onedata

3onedata

3onedata Technology

Technology

Technology Co.,Ltd

Co.,Ltd

Tel: +86-755-26702688 Fax: +86-755-26703485

www.3onedata.com

Your Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd
