IES2008

Unmanaged Industrial Ethernet

Switch Quick Installation Guide

3onedata Co., Ltd.

Address:

3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Xili, Nanshan District,

Shenzhen

Website:

www.3onedata.com

Tel:

+86 0755-26702688

Fax:

+86 0755-26703485

【Package checklist】

Please check whether the package and accessories are intact

while using the switch for the first time.

Industrial Ethernet switch

Certification

Quick installation guide

Warranty card

DIN-Rail mounting attachment

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it ASAP.

【Product Overview】

This product is full 100M unmanaged DIN-Rail industrial

Ethernet switch. The model is IES2008 (8 100M copper ports

+ 1 12~48VDC/24VAC power supply)

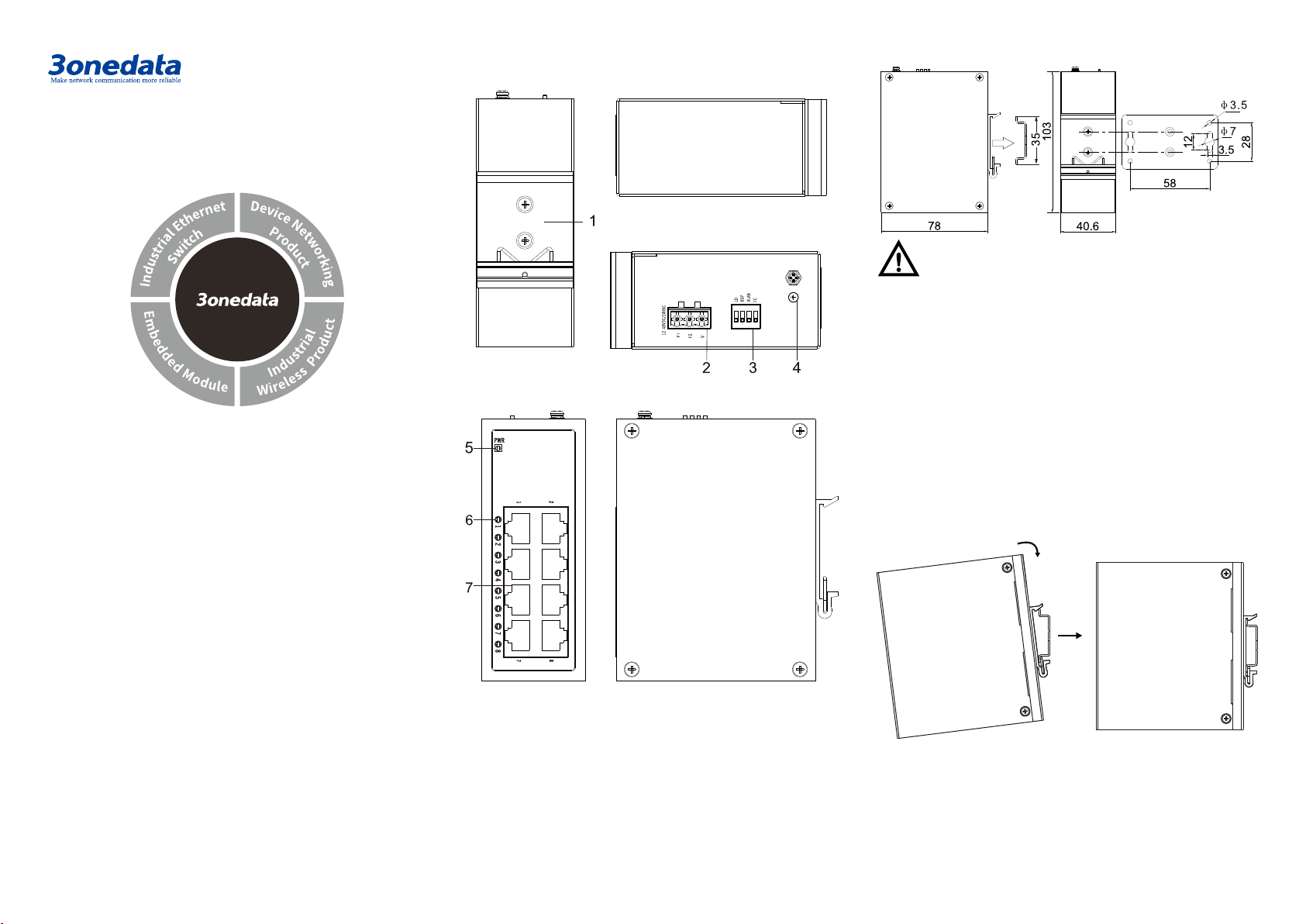

【Panel design】

Rear view, bottom view and top view

Front view and side view

1. DIN-Rail mounting kit

2. Power supply input terminal block

3. DIP switch

4. Grounding screw

5. Power supply input status indicator PWR

6. Copper port connection indicator

7. 100M Ethernet copper port

【Mounting Dimension】

Unit: mm

Attention before mounting:

Don't place or install the device in area near water or

moist, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【DIN-Rail Mounting】

For convenient usage in industrial environments, the product

adopts 35mm DIN-Rail mounting, mounting steps as below:

Check whether the DIN-Rail mounting kit that

Step 1

comes with the device is installed firmly.

Insert the bottom of DIN-Rail mounting kit (one side

Step 2

with spring support) into DIN-Rail, and then insert

the top into DIN-Rail.

Tips:

Insert a little to the bottom, lift upward and then insert

to the top.

Check and confirm the product is firmly installed on

Step 3

DIN-Rail, and then mounting ends.

【Disassembling DIN-Rail】

Power off the device.

Step 1

After lift the device upward slightly, first shift out the

Step 2

top of DIN-Rail mounting kit, and then shift out the

bottom of DIN-Rail, disassembling ends.

Attention before powering on:

Power ON operation: first connect power line to the

connection terminal of device power supply, and then

power on.

Power OFF operation: first unpin the power plug, and

then remove the power line, please note the operation

order above.

【Power Supply Connection】

DC power supply

This series provide 3-pin 5.08 pitch power

input terminal blocks. Power supply range:

12~48VDC/24VAC

【DIP Switch Settings】

It provides 4-pin DIP switch for function settings,

among which “ON” is enable valid end.

The definitions of DIP switch are as follows:

DIP

Definition

Operation

Loop detection

Set the DIP switch to ON to

enable the loop detection

function.

Storm suppression

Set the DIP switch to ON to

enable the storm

suppression function.

One-key VLAN

Set the DIP switch to ON to

enable VLAN function, port

1 can communicate with

DIP

Definition

Operation

other ports, while other ports

are isolated from each

other.

Flow control

Set the switch to ON to

enable the flow control

function

【Checking LED Indicator】

The function of each LED is described in the table as below:

LED

Status

Description

PWR

Power supply is connected and

running normally

OFF

Power supply is disconnected

and running abnormally.

Link/ACT

(1-8)

Ethernet port connection is

active.

Blinking

Data transmitted

OFF

Ethernet port connection is

inactive.

【Specification】

Panel

100M copper port

10/100Base-T(X) self-adapting

RJ45 port, full/half duplex

self-adaption, support

MDI/MDI-X self-adaption

Indicator

Power indicator, interface

indicator

Exchange attributes

Backplane bandwidth

1.6G

MAC table size

Power supply

Input power supply

12~48VDC/24VAC

Access terminal

3 pins 5.08mm pitch terminal

blocks

Support anti-reverse connection

and over-current protection

Consumption

No-load

0.5W@24VDC

Full-load

1.4W@24VDC

Environmental Limits

Working temperature

-40~75℃

Storage temperature

-40~85℃

Working humidity

5%~95% (no condensation)

Protection grade

IP40 (metal shell)

MTBF

540249 hrs
