3One data ES1016 Manual de usuario

ES1016

Unmanaged Ethernet Switch

Quick Installation Guide

3onedata Co., Ltd.

Address:

3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Song Bai Road, Nanshan

District, Shenzhen, 518108, China

Website:

www.3onedata.com

Tel:

+86 0755-26702688

Fax:

+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while

first using the switch.

Industrial Ethernet switch X 1

Terminal block

Power line

Certification

Quick installation guide

Warranty card

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it ASAP.

【Product Overview】

This series of products are 16-port 100M rack-mounted

unmanaged Ethernet switches. Model is: ES1016 (16 100M

copper ports)

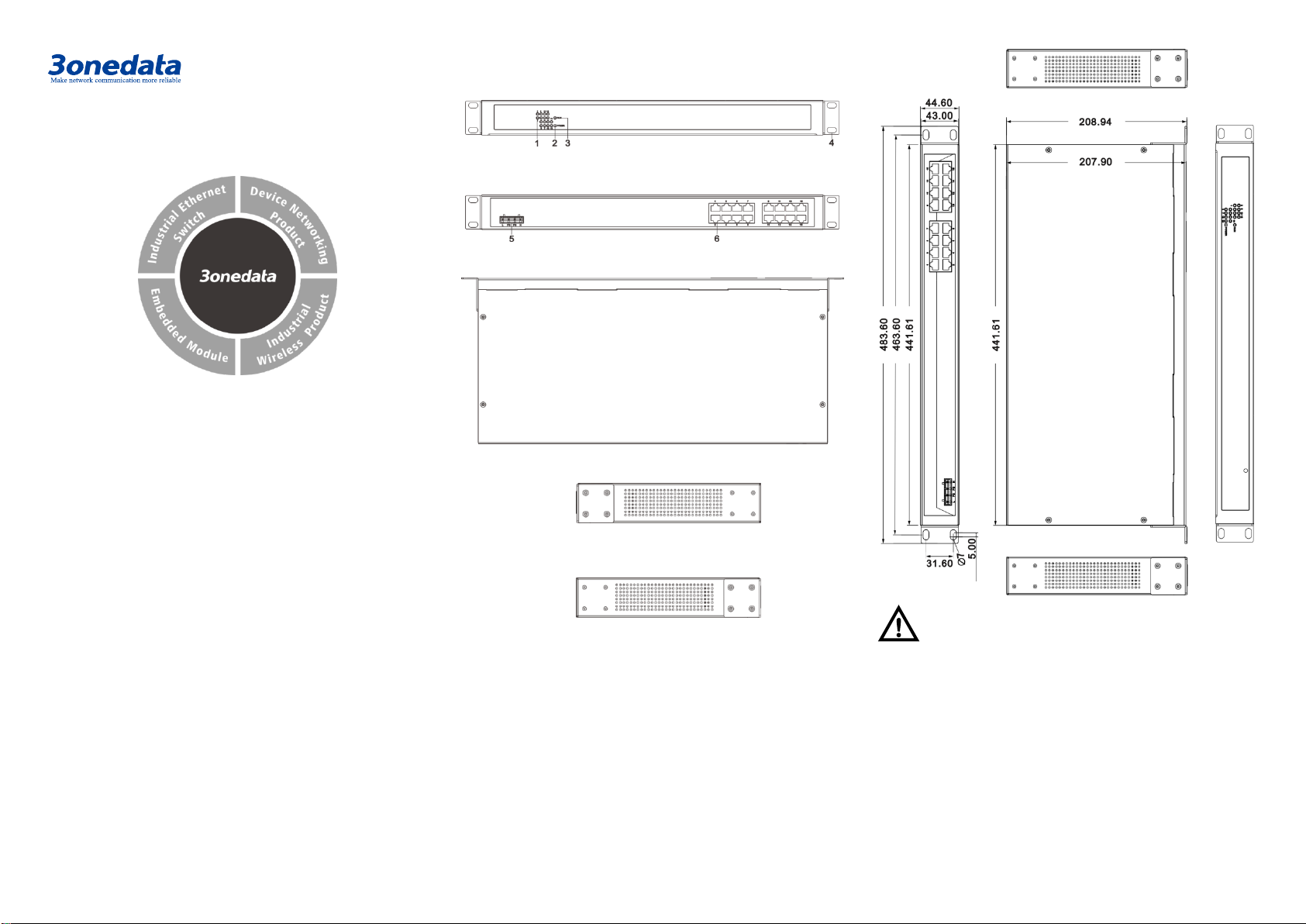

【Panel Design】

Front view

Rear view

Top view

Left view

Right view

1. Port indicator

2. Power supply input status indicator PWR

3. Device running status indicator RUN

4. Rack mounting lug

5. Power input terminal block

6. 100M copper port

【Mounting Dimension】

Unit: mm

Attention before mounting:

Don't place or install the device in moist area or near

water, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

The device surface temperature is high after running,

please don't directly contact to avoid scalding.

【Installation of Rack-mounted Device】

Step 1 Select the device installation location to reserve

sufficient size.

Step 2 Adopt screws to install the mounting lugs in the

device position as figure below.

Step 3 Place the device in the rack, adopt 4 screws to

install the mounting lugs on the left and right side in

the rack.

Step 4 Check and confirm the product is firmly installed on

the rack, then mounting ends.

【Rack-mounting Device Disassembling】

Step 1 Power off the device.

Step 2 Unscrew the fixing screw of mounting lug on the

rack.

Step 3 Remove the device from the rack, disassembling

ends.

Attention before power on:

Power ON operation: First insert the power supply

terminal block into the device power supply interface,

and then plug the power supply plug contact and power

on.

Power OFF operation: First unpin the power plug, and

then remove the wiring part of terminal block, please

pay attention to the operation order above.

【Power Supply Connection】

AC power supply

This series of devices provide 4-pin

terminal blocks. The pins of terminal from

the left to the right are L, FG, FG, N. The

power supply range: 100~240VAC/DC.

【Checking LED Indicator】

The device provides LED indicators to monitor the device

working status with a comprehensive and simplified

troubleshooting; the function of each LED is described in the

table as below:

LED

Status

Description

POWER

Power supply is connected and

running normally

OFF

Power supply is disconnected or

running abnormally.

RUN

The device is powering on or

abnormal

OFF

The device isn't powered on or is

abnormal

Blinking

Flash 1 time per second, the device

is running normally.

Link/Act

(1-16)

Ethernet port connection is active.

Blinking

Ethernet port is in network active

status

OFF

Ethernet port connection is inactive

【Specification】

Panel

100M copper port

10/100Base-T(X), RJ45 port,

automatic flow control, half/full

duplex self-adaption,

MDI/MDI-X self-adaption

Indicator

Power supply indicator, run

indicator, interface indicator

Exchange Attributes

Backplane bandwidth

12.8G

Packet buffer size

2.5Mbit

MAC table size

Power supply

Input power supply

100~240VAC/DC

Access terminal

4-pin terminal blocks

Consumption

No-load

4.2W@220VAC

Full-load

6.7W@220VAC

Environmental Limits

Working temperature

0~70℃

Storage temperature

-40~75℃

Working humidity

5%~95% (no condensation)

Protection grade

IP30 (metal shell)
