3M™Ladder Kit 3M710/MS2-TMK-LK

Instructions

1.0 Summary

The 3M™Ladder Kit 3M710/MS2-TMK-LK is intended for mounting a communication line splicing system to a fiberglass

extension ladder.

2.0 Kit Contents

2.1 3M™Clamp Assembly Spare Rigs/CA (qty. 2)

Clamp Assembly includes 6 mm hex key

2.2 3M™Extended Tube A6L with Swivel/Knob

3M710/MS2-TMK-A6L 36" (91.4 cm)

2.3 3M™Ladder Bar 3M710/MS2-TMK-LB 47.75" (121.3 cm) 2.4 3M™ Ladder Kit Carrying Case 3M710/MS2-TMK-LC



July 2009

78-8140-2008-3-B

3.0 Safety Statements

Read, understand, and follow all safety information contained in these user instructions prior to use of the 3M™Ladder Kit

3M710/MS2-TMK-LK. Retain these user instructions for future reference.

Intended Use: The 3M710/MS2-TMK-LK ladder kit is intended for mounting a communication line splicing system to a

ﬁberglass extension ladder for communication line work at line working height on that ladder.

The product must be setup as speciﬁed in the 3M710/MS2-TMK-LK ladder kit user instructions. It is intended for mounting

3M™Splicing Rigs only. The mounting system has not been evaluated for other uses.

EXPLANATION OF SIGNAL WORD CONSEQUENCES

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or

property damage.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or

property damage.

 CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in property damage.

WARNING

To reduce the risks associated with hazardous voltage, falling and impact:

• Read, understand, follow and retain for future reference all safety, assembly and mounting information contained in these user

instructions prior to use;

• Always know, understand and follow Company, OSHA and all applicable equipment safety instructions for communication line

work at extended ladder heights;

• Allow only properly trained professionals to use this product;

• Never modify any part of this product;

• Use only 3M approved replacement parts.

To reduce the risks associated with hazardous voltage:

• Verify communication line voltage prior to work and avoid all contact with high voltage electrical lines at all times.

To reduce the risks associated with impact:

• Make sure that the area below the work location is kept clear of all individuals;

• Verify that both mounting clamps and web straps are properly attached to the ladder;

• Do not use this product if any component is damaged or missing.

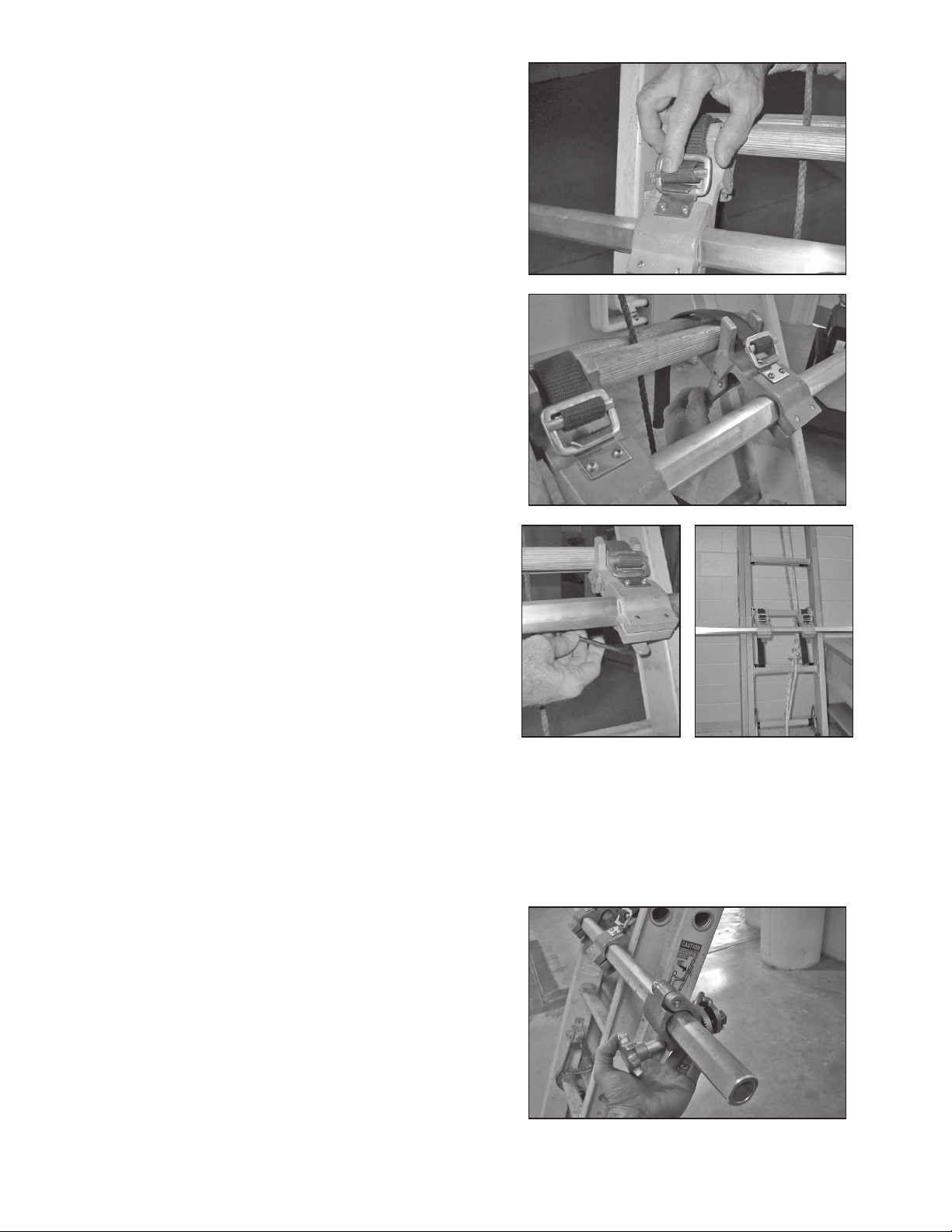

4.0 Initial Set-up (preferred at ground-level)

4.1 Slide both clamp assemblies on to the ladder bar and

lightly tighten clamp assembly allen head screws with

6 mm hex key (provided). Snug in place to fit inside

of ladder rails on rungs.

78-8140-2008-3-B

4.2 With buckle hooks facing away from ladder, wrap

clamp assembly straps around ladder rung and attach

buckles to buckle hooks with handle on the inside of

the ladder in the open position.

4.3 Snug up clamp assembly straps, and push handles

down to lock clamp assemblies and straps in place.

4.4 Loosen allen head screws and rotate ladder bar to

position flat side of ladder bar to the flat side of the

ladder rail. Tighten allen head screws with 6 mm hex

key to lock into position. Set-up is complete. Remove

3M™Ladder Kit and place into carrying case.

5.0 Working Against the Strand

5.1 Follow company practice to set up and secure ladder

against the strand. Lift carrying case up to work area

and hang on messenger strand. Remove ladder kit

from carrying case and mount to the ladder rung of

choice as stated in section 4.2–4.3.

5.2 Attach the 3M™Tube/Tool Clamp A7 to the ladder

bar.

378-8140-2008-3-B

5.3 Place 3M™Splicing Rig with support rod into the

3M™ Tube/Tool Clamp A7 and tighten securely in

desired position to begin splicing.

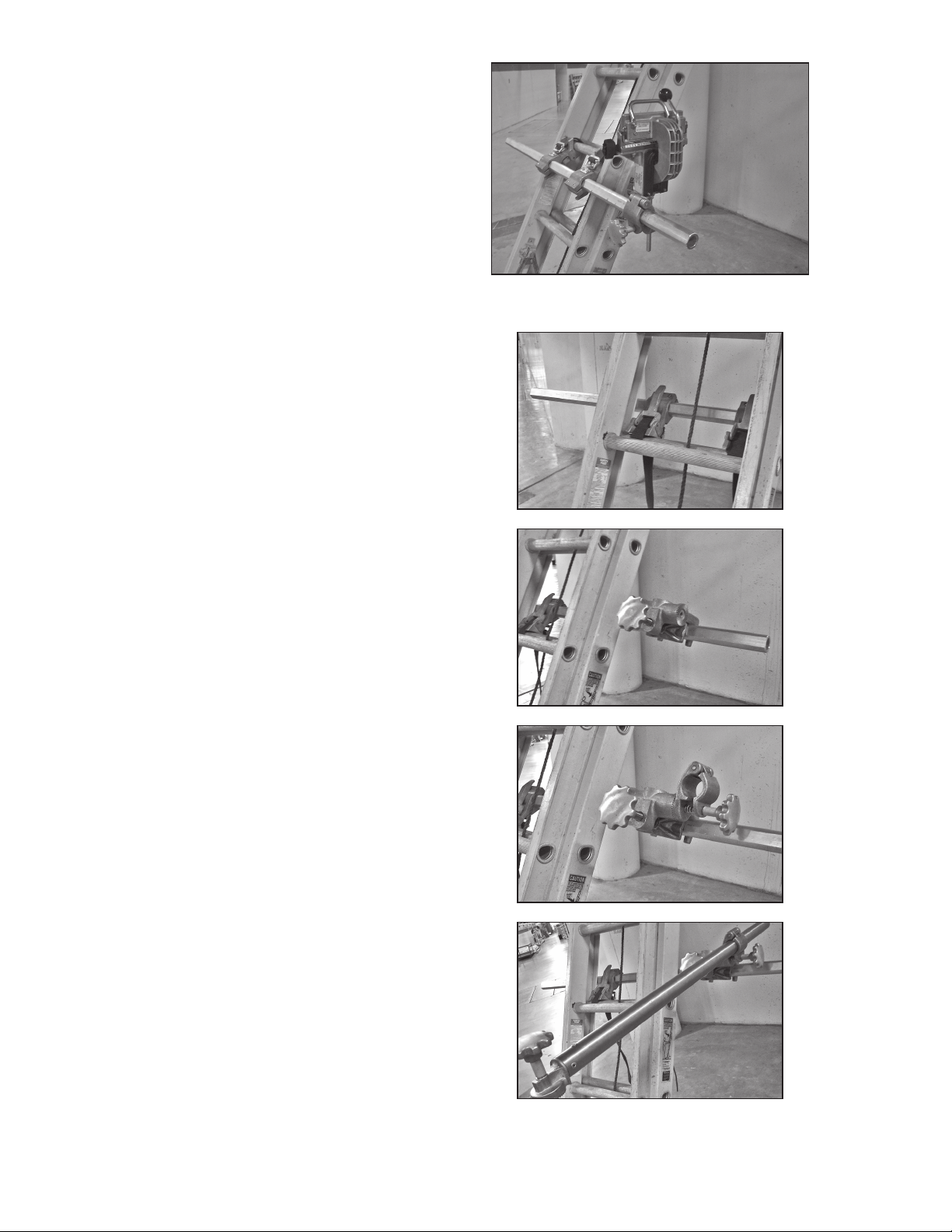

6.0 Working With a Ladder Sling

6.1 Follow company practice to set up ladder in the ladder

sling. Lift carrying case up to work area and hang

on messenger strand. Remove 3M™Ladder Kit from

carrying case and mount to the ladder rung of choice

on the side opposite the technician. Position the 3M™

Ladder Bar above the rung as shown.

6.2 Attach the 3M™Vise A5 to the ladder bar on the

desired side of the ladder.

6.3 Add the 3M™ Tube Clamp A4 to the A5 Vise.

6.4 Place the 3M™Extended Tube A6L with Swivel/Knob

into the A4 Tube Clamp and tighten snugly.

78-8140-2008-3-B

6.5 The 3M™ Tube A3 attaches to the end of the 3M™

Extended Tube with Swivel/Knob A6L.

6.6 Attach the 3M™ Tube/Tool Clamp A7 to the 3M™

Tube A3. Place 3M™Splicing Rig with support rod

into the A7 Tube/Tool Clamp and tightly secure in

desired position to begin splicing. When splicing is

completed reverse the process to disassemble, return

parts to carrying case, and lower carrying case to the

ground.

7.0 Additional Components Needed

7.1 Working against the strand:

Splicing System Description 3M Part Number UPC Code

3M 710 Splicing

System

3M710-UT25A Splicing Rig

80611148687 05113878291

3M710-TMK10-A7 Tube/Tool Clamp

80611148687 05113878488

578-8140-2008-3-B

Splicing System Description 3M Part Number UPC Code

3M™MS2™

Splicing System

MS2 Hand Crimper 4036-25

80610845507 05400792843

4041-P Splicing Head w/ T-Bar Pedestal

80610026462 05400730266

SPARE-RIGS/HKCA Head Clamp

78800408375 05400726284

SPARE-RIGS/TC-L Traverse Clamp with Bar

78811463922 05113857923

7.2 Working with a ladder sling:

3M 710

Splicing System

3M710-UT25A Splicing Rig

80611148687 05113878291

3M710-TMK10-A7 Tube/Tool Clamp

80611148687 05113878488

78-8140-2008-3-B

Splicing System Description 3M Part Number UPC Code

3M™710

Splicing System

3M710-TMK10-A3 Swivel Bar

80611048408 05113878484

3M710-TMK10-A4 Tube Clamp

80611048416 05113878485

3M710-TMK10-A5 Vise

80611048424 05113878486

3M MS2™

Splicing System

MS2 Hand Crimper 4036-25

80610845507 05400792843

4041-P Splicing Head w/ T-Bar Pedestal

80610026462 05400730266

SPARE-RIGS/HKCA Head Clamp

78800408375 05400726284

778-8140-2008-3-B
