Published June 1998

I-MODEM INF README FILE

New Features The MDMUSRIM information file now allows the selection of the 230,400 bps DTE

speed from Windows if you have an external I-Modem and a serial card that

supports the 230,400 bps DTE rate. If you use the 230,400 bps speed selection

from Windows without meeting the previous two conditions, your modem will

not function.

Most PCs do not support the 230,400 bps DTE rate. Consult the documentation

that came with your PC or serial interface card to determine if the 230,400 bps

DTE rate is supported.

Profiles Windows 95/98 users now have the ability to install preset "Profiles” for the

I-Modem using the MDMUSRIM information file. Multiple profiles can be installed

on the same communications port which allows you to change the type of

connection you make with your I-Modem without modifying initialization strings.

For detailed information on installing profiles please see section Installing

Profiles under Windows 95.

Unimodem Driver The release of the I-Modem includes a new Unimodem driver for Windows 95 and

Windows N.T. 4.0. The Unimodem driver for the I-Modem and Total Control

products is MDMUSRIM.INF.

Follow these steps to determine what you will need to do next in order to upgrade

your modem information file to support V.90.

4I-MODEM INF README FILE

Go to Start--> Settings--> Control Panel

Double click Modems

If your modem is already listed in your Control panel, Modems list, you will need

to update your information file to support your V.90 modem. Skip to section

Updating your I-Modem information file to support V.90.

If your modem is not listed in Control Panel Modems, skip to section Installing

your I-Modem information file to support V.90.

Updating your I-Modem Information file to support V.90 5

Updating your

I-Modem Information

file to support V.90

If your modem is already listed in your Control Panel, Modems list.

For Windows 95 : First copy the MDMUSRIM.INF file to a disk. Next, follow the steps below.

1Go to Start--> Settings--> Control Panel

2Double click System.

3Select the Device Manager tab.

4Double click Modems.

6I-MODEM INF README FILE

5Select your Courier and choose Properties.

If there is a tab labeled Driver, select it.

If there is no driver present, skip to section Installing your Courier information

file to support V.90.

6Click the Update Driver button.

A prompt will appear to search for the driver. Insert the disk containing the

information files into your floppy drive.

7Select Yes and click next.

Windows will report that it found an updated driver and list Courier I-Modem

(V.90&x2).

8Click on finish. Your modem will now be listed in Control Panel Modems as a

Courier I-Modem (V.90&x2).

The process of updating your information file is complete.

Installing Your I-Modem Information File to Support V.90 7

Windows 98 First copy the MDMUSRIM.INF file to a floppy disk and follow the steps below.

1Go to Start -->Settings --> Control Panel

2Double click System.

3Select the Device Manager tab.

4Double click Modems.

5Select your Courier and choose Properties.

6Select the Driver tab.

7Click the Update button (This will start the Update Device Wizard).

8Click Next.

9Choose "Search for a better driver than the one your device is using right now"

and click Next.

10 Check the box for "floppy drive." Insert the disk containing the INF file into your

floppy drive and click Next.

Windows will report that it found an updated driver and list "Courier I-Modem

(V.90&X2)".

11 Click on finish. Your modem will now be listed in Control Panel Modems as a

"Courier I-Modem (V.90&x2)".

The process of updating your information file is complete.

For Windows NT Skip to Installing your information file to support V.90.

Installing Your

I-Modem Information

File to Support V.90

First copy the MDMUSRIM.INF file to a floppy disk. Next, follow the steps below.

Windows 95 or

Windows 98

1On your Desktop, double-click My Computer.

2Double-click the disk drive where you have installed Windows (usually C:)

3Double-click the Windows folder (or the folder where you have installed

Windows).

4Go to the View menu and select options. Choose the view tab and select “show

all files”. Click OK.

5Double-click the INF folder.

6Insert the disk containing the INF files into your floppy drive.

7Double-click My Computer. Double-click the floppy drive (usually A:).

8I-MODEM INF README FILE

8From the floppy drive, select MDMUSRIM.INF and drag it into the folder. If you are

prompted with a “Confirm File Replace” dialog box, choose Yes.

9Search in the INF folder for these files: DRVDATA.BIN and DRVIDX.BIN

Select both files by holding the <Ctrl> key and left clicking on each file.

Go to the File menu-->Delete

10 In the INF folder, look for a file named CR230K.INF. If the file is not present

proceed to the next step. If the file exists, select it, go to File menu--> Delete.

11 Close all open windows.

12 Go to Start--> Settings--> Control Panel.

13 Double-click Modems.

14 Highlight any Courier modems you have listed in that screen and choose Remove.

15 Reboot your computer.

16 Windows should find new hardware and install your Courier as a Courier I-Modem

(V.90&x2).

The process of updating your information file is complete.

Installing Your I-Modem Information File to Support V.90 9

For Windows NT Copy the MDMUSRIM.INF file to a floppy disk and follow the steps below.

1Go to Start--> Settings--> Control Panel

2Double-click Modems.

3Select any Courier modems that are installed and click Remove.

4Click Add. The Install New Modem window will appear.

5Check the box that says, “Don’t detect my modem; I will select it from a list” and

click Next.

10 I-MODEM INF README FILE

6Insert the disk containing the INF files into your floppy drive and choose “Have

disk.” You will be prompted for the letter of your floppy drive (usually A:). Click

OK.

7If you have an external Courier select “Courier I-Modem EXT (V.90&x2)”.

If you have an internal Courier select “Courier I-Modem INT (V.90&x2)”.

Click Next.

8Select the COM port your modem is installed on and click Next.

9Click OK to close Control Panel Modems.

Installing Profiles Under Windows 95/98 11

10 Windows may inform you that the list of installed modems has changed and that

Dial-up Networking needs to be reconfigured. You can reconfigure Dial-up

Networking now.

11 Reboot your computer.

The process of updating your information file is complete.

Installing Profiles

Under Windows 95/98 The profile feature of the MDMUSRIM information file allows you to install

multiple instances of your Courier I-Modem on the same communications port.

This will allow you to change the type of connection you make with your I-Modem

without modifying initialization strings.

You can choose the connection you would like to make by choosing a different

modem profile in the "connect using" dialog box of Windows 95/98 Dial-Up

Networking.

In addition to the standard I-Modem driver the MDMUSRIM information file allows

Windows 95 users to install the following modem profiles.

■I-Modem EXT (V.120 Profile)

■I-Modem EXT (TurboPPP 128K Profile)

■I-Modem EXT (TurboPPP DBA Profile)

■I-Modem EXT (Forced Analog Profile)

■I-Modem INT (V.120 Profile)

■I-Modem INT (TurboPPP 128K Profile)

■I-Modem INT (TurboPPP DBA Profile)

■I-Modem INT (Forced Analog Profile)

For your modem to Use this Profile These I-Modems

Autodetect 56/64K, V.120, or Analog

type connections (Initializes modem

with *V2=0)

V.120 Profile Internal (INT)

and

External (EXT)

Use MultilinkPPP connectionswhen you

want Both B channels to always be

connected (Initializes modem with

*v2=5*D0=1)

TurboPPP 128K

Profile Internal (INT)

and

External (EXT)

Use MultilinkPPP connectionswhen you

want only the second B channel active

when it is needed (Initializes modem

with *V2=5*D0=0)

TurboPPP DBA Profile Internal (INT)

and

External (EXT)

Force an analog type connection.

(Initializes modem with *V2=3) Forced Analog Profile Internal (INT)

and

External (EXT)

12 I-MODEM INF README FILE

To install a profile under

Windows 95/98

1Go to Start--> Control Panel

2Double-click Modems.

3Click Add.

4Check the box that says “Don’t detect my modem; I will select from a list” and

click Next.

5Select U.S. Robotics Access Corp from the manufacturers list.

6From the Models list, choose the profile you want to install.

If you have an internal I-Modem use the “I-Modem INT” profiles.

If you have an external I-Modem, use the “I-modem EXT” profiles.

Click Next.

Este manual sirve para los siguientes modelos

Otros manuales de Módem de 3Com

3Com

3Com OfficeConnect 3CR29210 Manual de usuario

3Com

3Com OfficeConnect Manual de usuario

3Com

3Com CMX 3CR292-DE56 Manual de usuario

3Com

3Com 2940, 2941 Manual de usuario

3Com

3Com 3C16720 Manual de usuario

3Com

3Com DIGITAL MODEM Manual de usuario

3Com

3Com 3C892 - OfficeConnect ISDN Lan Modem Router Manual de usuario

3Com

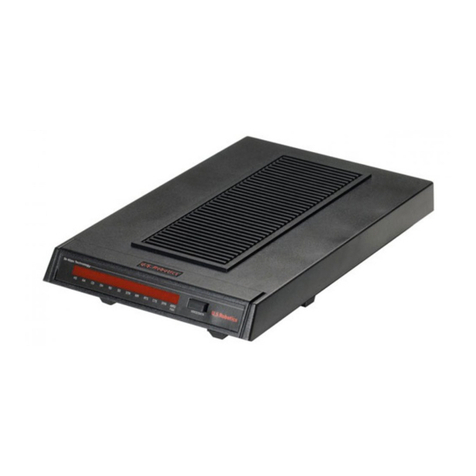

3Com Courier Manual de servicio
