ZyXEL Communications PRESTIGE 334W Manual de usuario

Prestige 334W

802.11g Wireless Broadband Router with Firewall

Version 3.60

May 2004

Quick Start Guide

Prestige 334W Quick Start Guide

1 Introducing the Prestige

The Prestige is a broadband sharing gateway with a built-in wireless LAN access point and four-port 10/100

Mbps switch that makes it easy for people to set up a small home/office network and share Internet access via

a broadband (cable/DSL) modem. Key features of the Prestige include media bandwidth management, an

embedded 802.11g wireless LAN security, firewall, VPN, content filtering, NAT and UPnP. See your User’s

Guide for more details on all Prestige features.

You should have an Internet account already set up and have been given most of the following information.

Internet Account Information

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): First ______________, Second ______________, Third ______________

Encapsulation: (select one below):

 Ethernet Service Type: _______________________

User Name: ____________ Password: ____________

 PPTP User Name: ____________ Password: ____________

Your WAN IP Address: ____________ PPTP Server IP Address: ___________

Connection ID (if required): ____________

 PPPoE (PPPoE) Service Name: ____________

User Name: ____________ Password: ____________

Procedure to View a Product’s Certification(s)

1. Go to www.zyxel.com.

2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.

3. Select the certification you wish to view from this page.

Prestige 334W Quick Start Guide

2 Hardware Installation

2.1 Rear Panel

LABEL DESCRIPTION

LAN 10/100M Use an Ethernet cable to connect at least one computer for initial Prestige configuration. These

ports are auto-negotiating (can connect at 10 or 100Mbps) and auto-sensing (automatically

adjust to the type of Ethernet cable you use (straight-through or crossover)).

WAN 10/100M Connect your cable/DSL modem to this port with the cable that came with your modem.

POWER 9 VAC Connect the end of the included power adaptor (use only this adapter) to this power socket.

After you’ve made the connections, connect the power cable to a power supply and look at the front panel LEDs.

RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the

Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1. See your User’s

Guide for details).

Prestige 334W Quick Start Guide

2.2 Front Panel LEDs

The PWR LED blinks while performing system testing and then stays on if the testing is successful. The

LAN, and WAN LEDs turn on if they are properly connected.

LED STATUS COLOR DESCRIPTION

Off The Prestige is not receiving power.

Amber On Power to the Prestige is too low

On The Prestige is receiving power.

PWR

Green

Blinking The Prestige is performing testing.

Off The LAN is not connected.

On The Prestige has a successful 10Mb Ethernet connection.Green

Blinking The Prestige is sending/receiving data

On The Prestige has a successful 100Mb Ethernet connection.

LAN 1- 4

Amber

Blinking The Prestige is sending/receiving data

Off The WAN connection is not ready, or has failed.

On The Prestige has a successful 10Mb WAN connection.Green

Blinking The Prestige is sending/receiving data

On The Prestige has a successful 100Mb Ethernet connection.

WAN

Amber

Blinking The Prestige is sending/receiving data

Prestige 334W Quick Start Guide

LED STATUS COLOR DESCRIPTION

Off The WLAN connection is not ready, or has failed.

Green On The Prestige has a successful WLAN connection.

WLAN

Blinking The Prestige is sending/receiving data

Prestige 334W Quick Start Guide

3 Preparing Your Computer

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The Prestige is already set up to assign your computer an IP address. Use this section to set up your computer

to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range with a

subnet mask of 255.255.255.0. This is necessary to ensure that your computer can communicate with your

Prestige.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed on

computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

3.1 Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

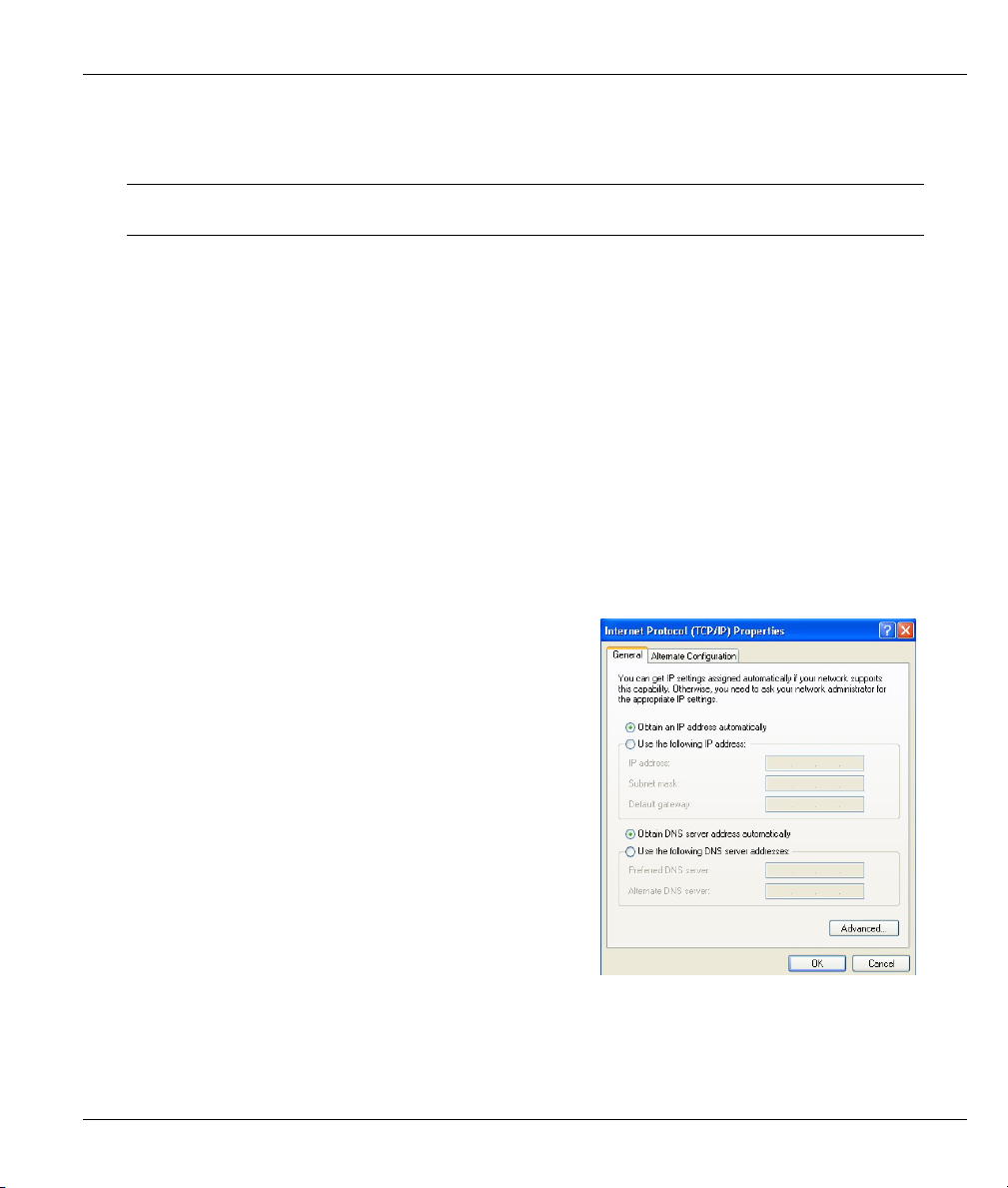

The Internet Protocol TCP/IP Properties screen opens (the

General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click

Obtain an IP address automatically.

-To configure a static IP address, click Use the following IP

Address and fill in the IP address (choose one

from192.168.1.2 to 192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway (192.168.1.1) fields.

Click Advanced. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to the Internet

Protocol TCP/IP Properties screen.

Prestige 334W Quick Start Guide

7. Click Obtain DNS server address automatically if you do

not know your DNS server IP address(es).

If you know your DNS server IP address(es), click Use the

following DNS server addresses, and type them in the

Preferred DNS server and Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the

DNS tab and then configure them using Add.

8. Click OK to close the Internet Protocol (TCP/IP) Properties

window.

9. Click OK to close the Local Area Connection Properties

window.

Checking Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER.Your computer’s IP address must be in

the correct range (192.168.1.2 to 192.168.1.254) with subnet mask 255.255.255.0 in order to communicate with

the Prestige.

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh computer

operating systems.

Prestige 334W Quick Start Guide

4 Configuring Your Prestige

Choose one of these methods to access and configure the Prestige. This Quick

Start Guide shows you how to use the web configurator setup wizard and

bandwidth management wizard only. See your User’s Guide for background

information on all Prestige features and SMT configuration. Click the web

configurator online help for screen-specific web help.

 Web Configurator

 SMT (System Management Terminal). Access the SMT via LAN or WAN using Telnet.

4.1 Accessing Your Prestige Via Web Configurator

Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.

Step 2. The default password (“1234”) is already in the password field (in non-readable format). Click

default password in the password field.

Web site address.

Prestige 334W Quick Start Guide

Step 3. It is highly recommended you change the default password! Enter a new password, retype it to

confirm and click Apply; alternatively click Ignore to proceed to the main menu if you do not

want to change the password now.

Default password.

Prestige 334W Quick Start Guide

Step 4. You should now see the web configurator MAIN MENU screen.

 Click WIZARD to begin a series of screens to help you configure your Prestige for the first time.

 Click the BM SETUP to begin a series of screens to help you configure media bandwidth

management on your Prestige.

 Click a link under MAIN MENU in the navigation panel to configure that Prestige feature.

 Click MAINTENANCE in the navigation panel to see Prestige performance statistics, upload

firmware and back up, restore or upload a configuration file.

 Click LOGOUT when you have finished a Prestige management session. The Prestige

automatically logs you out if it is left idle for five minutes; press ENTER to display the Login

screen again and then log back in. This idle timeout timer is one of the many Prestige features that

you may edit using the web configurator.

Change default password.
