ZyXEL Communications NWA5160N Manual de usuario

www.zyxel.com

802.11a/g/n Wireless LAN

Managed Access Point

Version 1.00

Edition 2, 09/2010

NWA5160N

ZyXEL Communications Corporation

USER’S GUIDE

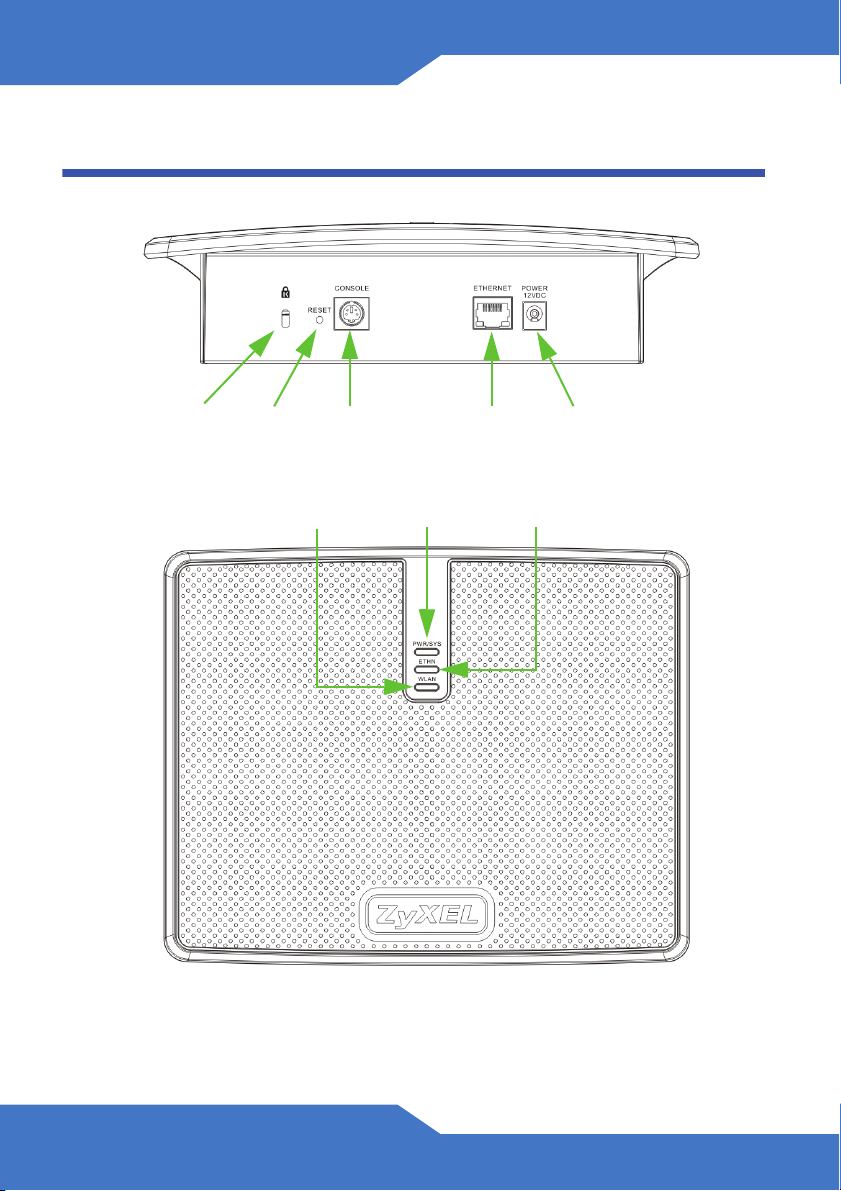

Device Panels

RESET CONSOLE

PORT

ETHERNET

PORT

POWER

JACK

POWER

/ SYS ETHERNETWLAN

KENSINGTON

LOCK

LEDs

The following table describes your NWA5160N’s LEDs.

LED Color STATE DESCRIPTION

Power /

Sys

Green On The NWA5160N is powered on.

Off The NWA5160N is powered off.

Red Off The NWA5160N has succesfully booted.

Flashing The NWA5160N has encountered a system

failure and cannot boot.

Ethernet Green Flashing /

The NWA5160N has an active 10M/100M

connection.

Yellow Flashing /

The NWA5160N has an active 1000M

connection.

Dark The NWA5160N does not have any active

connections.

WLAN Green On The NWA5160N’s wireless module is active.

Off The NWA5160N’s wireless module is inactive or

disconnected from the network.

Flashing The NWA5160N is transmitting and receiving

data to and from wireless clients.

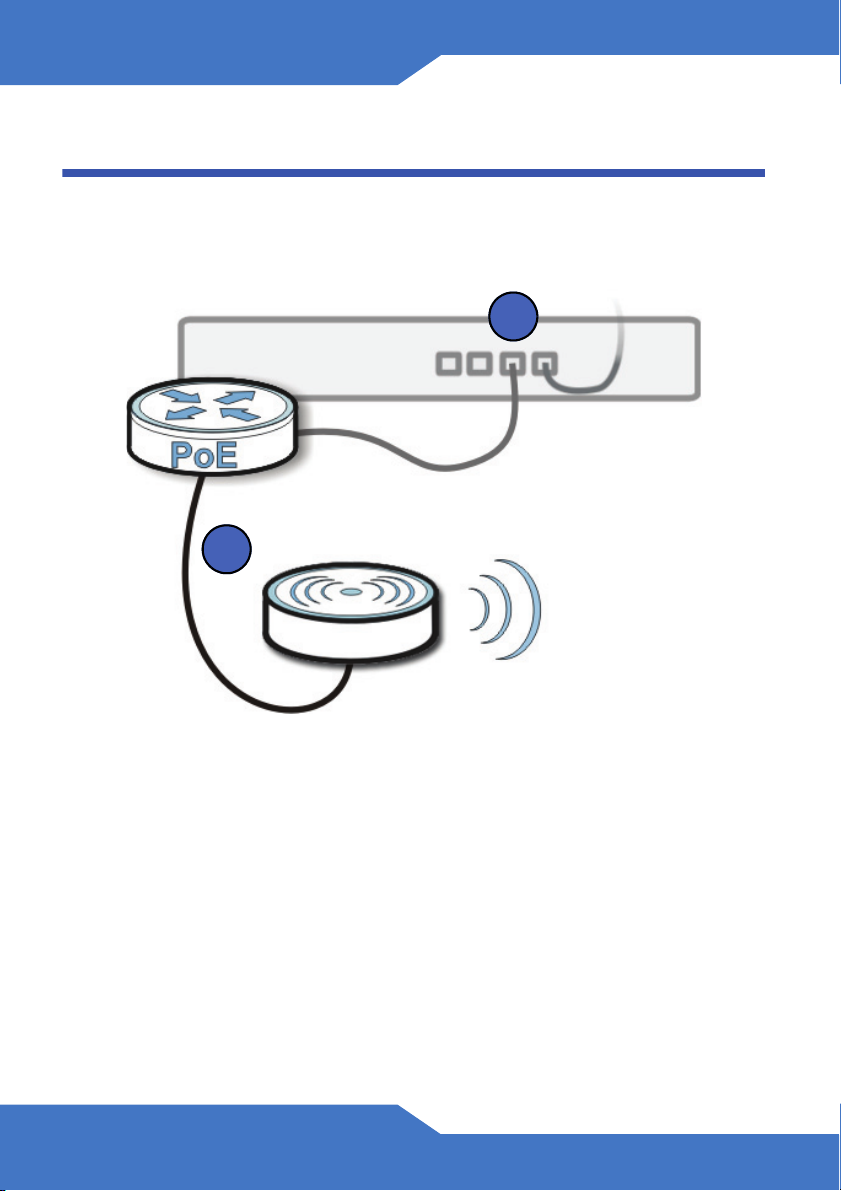

Hardware Connections

The following shows you how to make the NWA5160N’s hardware

connections.

1. Connect the NWA5160N to a PoE device with an 8-pin CAT5e cable.

2. Connect the PoE device to an upstream switch or directly to the NXC-

5200 Wireless LAN Controller.

The NWA5160N is a DHCP client that requires an upstream DHCP

server in order to retrieve an IP address.

Specifications

Specifications are accurate at the time of writing.

Feature Specification

Ethernet Port 10/100/1000 BASE-T RJ-45 (x1)

Console Port Hardware Console (PS-2)

Antenna Embedded 3 * 3 MIMO antenna

Power over

Ethernet

IEEE 802.3af

Power

Requirement

12VDC @ 1.5 A Maximum

Temp eratu re Operating: 0~40 degrees Celsius

Storage: -30~60 degrees Celsius

Humidity Operating: 20~95%

Storage: 20~95%

Standards

Compliance

IEEE 802.3 & 802.3u 10Base-T & 100Base-TX physical layer

specification

IEEE 802.3ab (1000BASE-T)

IEEE 802.3z (1000Base-SX/ 1000Base-LX)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Management

Access

Managed though the NXC5200 Web-based user interface, access

over HTTP & HTTPS.

CLI access using SSH & console port.

IP & DHCP Static IP address assignment

DHCP client

Data Rate Up to 300 Mbps

2.4 GHz RF

Frequency

Range

North America: 2.412~2.462 GHz

Japan: 2.412 MHz~2.472 GHz

Europe ETSI : 2.412-2.472 GHz

IEEE 802.11g/n

• USA (FCC): 2.422 GHz ~ 2.452 GHz

• Europe (ETSI): 2.422 GHz ~ 2.462 GHz

• Japan (TELEC) : 2.422 GHz ~ 2.462 GHz

5 GHz RF

Frequency

Range

North America: 5.15 GHz~5.35 GHz ; 5.47 GHz~5.7 GHz; 5.725

GHz ~ 5.850 GHz

Europe ETSI: 5.15 GHz ~ 5.35 GHz ; 5.47 GHz ~ 5.725 GHz

Japan: 5.15 GHz ~ 5.35 GHz ; 5.47 GHz ~ 5.725 GHz

Output Power 2.4GHz

• IEEE 802.11b/g 17dBm max.

• IEEE 802.11b/g/n (HT20 only) 17dBm max

5GHz

• IEEE 802.11a 18dBm max.

• IEEE 802.11a/n HT20 7dBm max

• IEEE 802.11a/n HT40 13dBm max

Safety

Approvals

European Union

• EN 60950-1

EMI Approvals European Union (CE Mark)

• EN 301 489-1 V1.8.1

• EN 301 489-17 V2.1.1

North America

• FCC Part 15 (Class B)

Canada

• ICES-003

Feature Specification

Wireless

Approvals

European Union

• ETSI EN 300 328 V1.7

• EN 301 893 V1.5.1

North America

• FCC Part15C 15.247

• FCC Part 15E

Canada

• Industry Canada RSS-210

Australia (C-Tick)

•CISPR22

Ta i w a n ( D G T )

• LP0002

Medical

Approvals

European Union

• EN 60601-1-2 : 2002

Feature Specification

Wall Mounting Instructions

Do not install the NWA5160N in an inverted horizontal position under a

desk or tabletop.

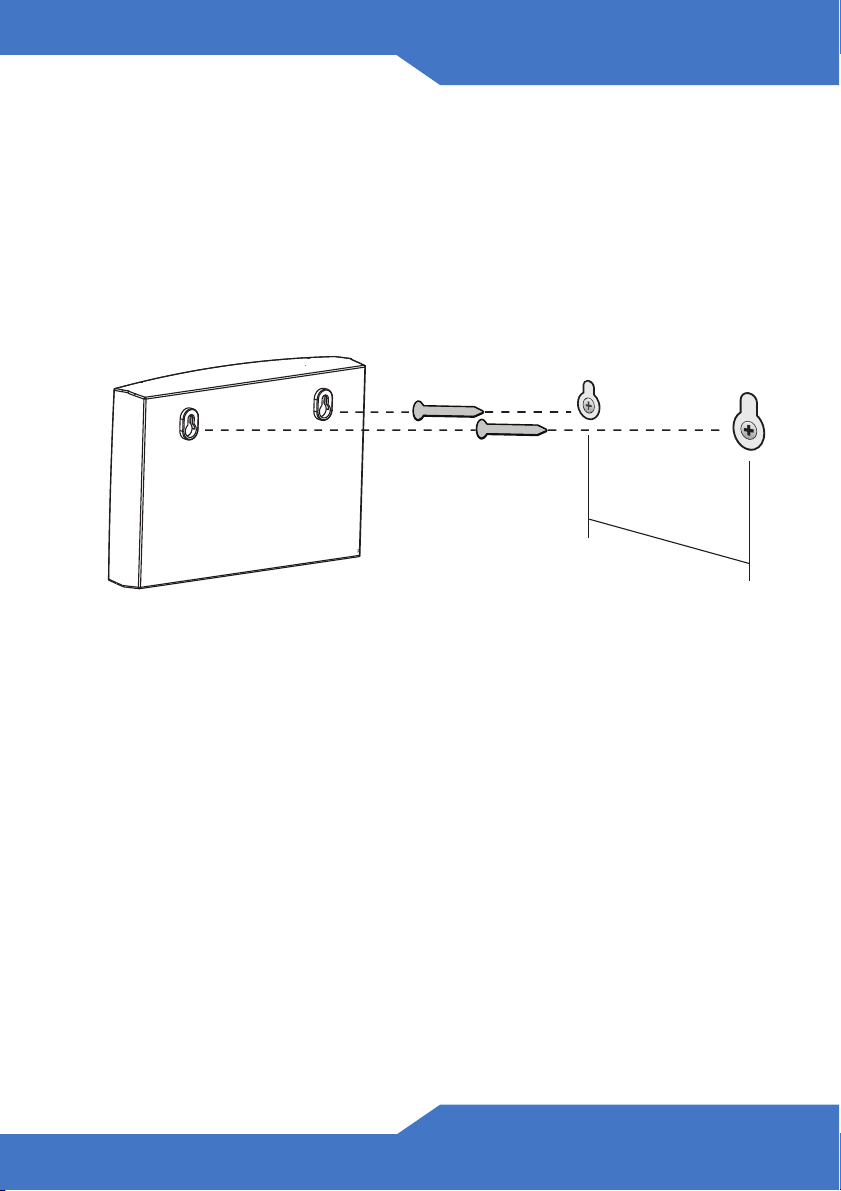

To hang your NWA5160N on a wall:

1. Select a position free of obstructions on a sturdy wall.

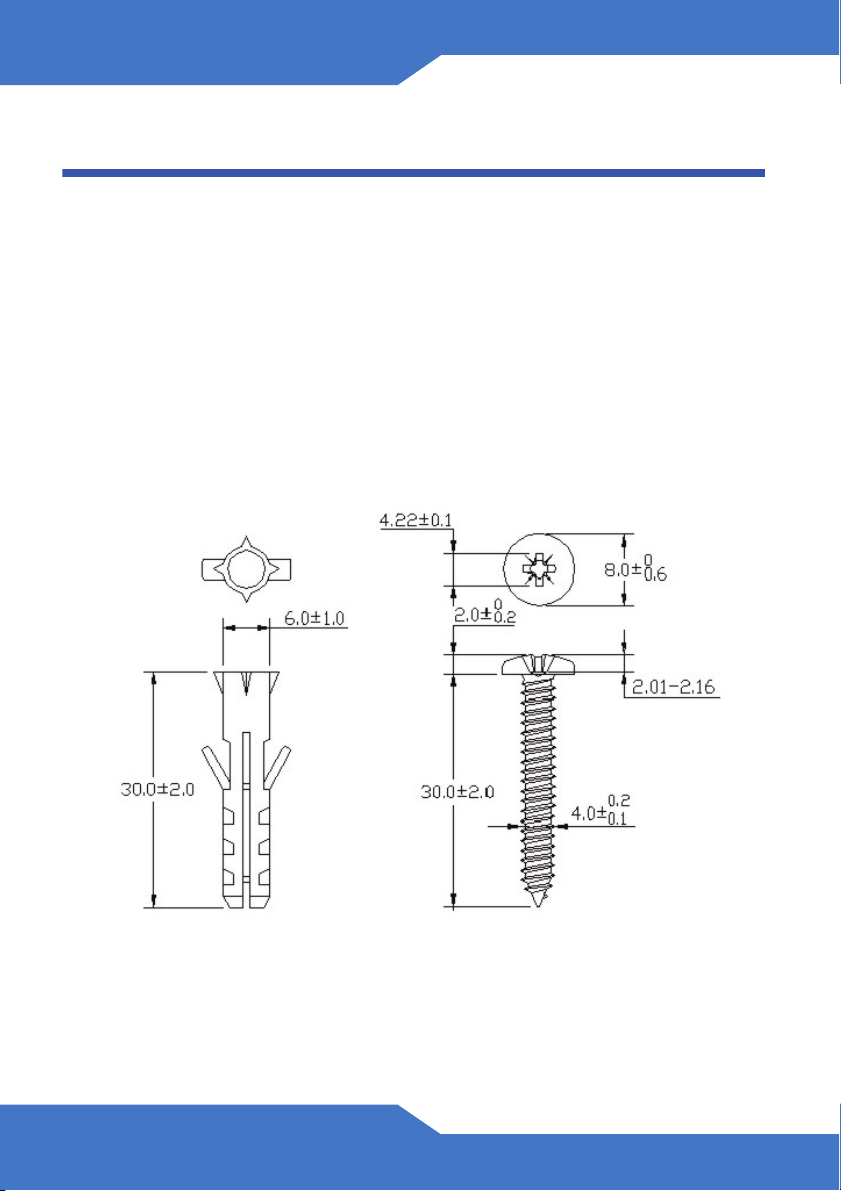

2. Drill two pilot holes for the screws. Make sure the distance between

the centers of the holes and the size of screws match the

specifications below.

Be careful to avoid damaging pipes or cables located inside the wall

when drilling holes for the screws.

3. Do not screw the screws all the way into the wall. Leave a small gap

of about 0.5 cm between the heads of the screws and the wall.

4. Make sure the screws are snugly fastened to the wall. They need to

hold the weight of the NWA5160N with the connection cables.

5. Align the holes on the back of the NWA5160N with the screws on the

wall. Hang the NWA5160N on the screws.

You can also use the optional Ceiling Mounting Kit (sold separately) to

mount the NWA5160N on a ceiling instead of a wall.

Legal

Open Source Announcements

This product uses Open Source software. To view the Open Source licenses associated with this product, see

the Open Source Announcements appendix in the NXC5200 User’s Guide.

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from

lightning.

• Connect ONLY suitable accessories to the device.

• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage

points or other risks. ONLY qualified service personnel should service or disassemble this device. Please con-

tact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Use ONLY an appropriate power adaptor or cord for your device. Connect it to the right supply voltage (for

example, 110V AC in North America or 230V AC in Europe).

• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can

walk on the power adaptor or cord.

• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.

• If the power adaptor or cord is damaged, remove it from the device and the power source.

• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of elec-

tric shock from lightning.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.

• The POE (Power over Ethernet) devices that supply or receive power and their connected Ethernet cables

must all be completely indoors.

This product is recyclable. Dispose of it properly.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

• Reorient or relocate the receiving antenna.
