Benefits

802.11a/g Outdoor

Business WLAN

Access Point

NWA3550

ˍġConfigurable Dual-radio with a

Variety External Antenna

Solutions

ˍġFeatured with WDS Function for

Bridging Separate LAN Areas

Together

ˍġIP-66 Compliant Casing and Able

to Protect from UV Exposure

ˍġAlong with Packaged PSE for

Easy nstallation to

Administrators

ˍġWEP/WPA/WPA2 Supported to

Ensure Complete Network

Protection

Extending Coverage to the Outdoor World

The ZyXEL NWA3550 is an ideal solution for business seeking to deploy WLAN services in a variety of

outdoor environments for extended dual-band wireless signal coverage and increased aggregated

bandwith.The durable waterproof, dust-sealed and UV-resistant casing, as well as ZyXEL’s full options

of accessories including antennas,cables and surge resisters enable NWA3550 to offers network

planners with a solid and efficient outdoor system.

Bridging Discrete Networks

In addition to wider bandwidths, the NWA3550 also provides practical applications to bridge

separate networks.One of the two radio bands can be used as the connection backbone while the

other serves WLAN clients at the same time.This is highly beneficial for businesses to connect

different buildings quickly without expensive cable deployments.

Durable Casing for All Weathers

The exterior of the NWA3550 is designed to comply with the IP-66 standard, which guarantees

protection against dusts and even powerful water jets. Furthermore, the device is equipped with a

built-in heater monitored by the temperature sensor for NWA3550 to endure harsh outdoor

environments.

Abundant Kits for Snap Installation

The NWA3550 has Power over Ethernet (PoE) support that allows administrators to install the device

in areas where power outlets are not available. In order to fully supply the electrical power required

and to relieve technicians from the hassle finding a suitable PSE, the shipment package includes a

ZyXEL-certified PSE unit; and a well-designed mounting kit is also enclosed to facilitate both wall-

mount and pole-mount installations.

Enterprise Class Security

ZyXEL delivers enterprise-class security features to small and medium businesses.To shield wireless

communication at the source,WPA2 with TKIP/AES encryption provides the latest and toughest

standard-based security while WEP encryption supports legacy wireless clients. Additionally,WPA2

ensures the compatibility with all Wi-Fi-certified wireless clients.

Extend the Secured WLAN Service to

Outdoor Environments

Specifications

System Specifications

Standard Compliance

• Ethernet

- IEEE 802.3

- IEEE 802.3u

• WLAN

- IEEE 802.11a

- IEEE 802.11b/g

Radio

• Output Power

- 11b/g: 17 dBm

- 11a: 14 dBm

• Modulation Type

- 802.11b: DBQSK, DQPSK, CCK

- 802.11g: BQSK, QPSK, 16-QAM, 64-QAM

- 802.11a: BQSK, QPSK, 16-QAM, 64-QAM

• Frequency Band

- 2.4 GHz Bands

USA: 2.412 to 2.462 GHz

ETSI: 2.412 to 2.472 GHz

Taiwan: 2.412 to 2.462 GHz

- 5 GHz Bands

USA: 5.15 to 5.25,5.725 to 5.825 GHz

ETSI: 5.15 to 5.725 GHz

Taiwan: 5.25 to 5.35, 5.725 to 5.825 GHz

Coverage Range

(Reference with antenna of 2 dBi)

• 11g

- Indoor: up to 100 m

- Outdoor: up to 400 m

• 11a

- Indoor: 80 m

- Outdoor: 200 m

Antenna

• 2 x N-type connector ports for external

antennas

Performance

• Wired Data Rates:10/100 Mbps Auto-sensing

(full-duplex switch)

• Wireless Data Rates

- IEEE 802.11b (auto-fallback)

CCK: 11/5.5 Mbps

DQPSK: 2 Mbps

DBPSK: 1 Mbps

- IEEE 802.11g (auto-fallback)

64-QAM: 54/48 Mbps

16-QAM: 36/24 Mbps

QPSK: 18/12 Mbps

BPSK: 9/6 Mbps

- IEEE 802.11a (auto-fallback)

64-QAM: 54/48 Mbps

16-QAM: 36/24 Mbps

QPSK: 18/12 Mbps

BPSK: 9/6 Mbps

Security

• WLAN Access Control List

• WEP 64/128/152

• WPA-PSK,WPA2-PSK

• WPA-Enterprise,WPA2-Enterprise

• EAP-TLS,TTLS, PEAP, SIM

Hardware Specifications

Ports

• Ethernet: 10/100Base-T full duplex RJ-45 x 1

• Power over Ethernet:Yes (Must use the packaged

PSE device)

• Antenna: N-type x 2

• Vent

• Ground

Physical Specifications

• Dimensions: 256 (W) x 246 (D) x 82 (H) mm

• Weight: 2,000 g

Environmental Specifications

Operating Environment

• Temperature: -40ºC ~ 60ºC

• Humidity: 10% ~ 90% (non-condensing)

Storage Environment

• Temperature: -40ºC ~ 70ºC

• Humidity: 5% ~ 95%

Certification

Radio

• FCC Part 15C 15.247

• FCC Part 15E 15.407

• ETSI EN 300 328 V1.7.1

• ETSI EN 301893 V1.2.4

• DGT LP0002

• Industry Canada RSS-210

• AS/NZS 4268

EMC

• FCC Part 15B

• EN 301 489-17 V1.2.1:08-2002

• EN 301 489-1 V1.5.1:11-2004

• EN 55022: 2006

• ICES-003

• AS/NZS CISPR22

Safety

• EN 60950-1

Package Contents

• RJ-45 Cable 1M

• Product CD

• QSG

• Mounting Kit

• PSE Device

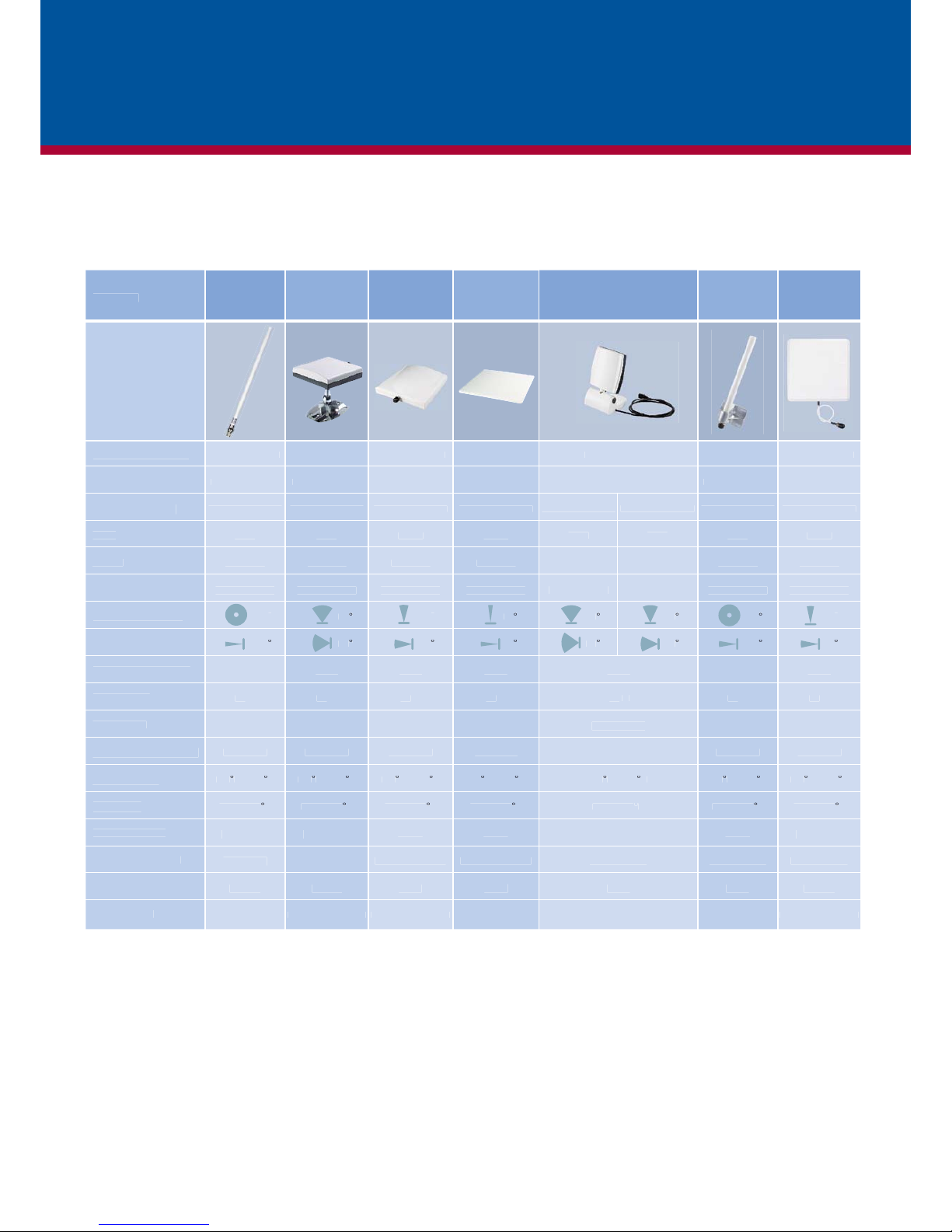

Antenna Accessories

oduct

Gra

art Num

(

STD

)

Code

requency Band

VSWR

ation

PBW

Horizontal

PBW/Vert

cal

k R

anc

nne

cto

urv

val W

nd S

eed

emperature

umidit

Rado

Colo

Rado

me M

eri

ght

imen

EXT-108

91-005-047001

893

500

400 ~ 2500 MHz

2.0:1 Ma

Linear

vertica

emal

216

-4

at 25

Gra

-w

Fiber glas

337

x 2

EXT-109

1-005-048001

471

893

2400 ~ 2500 MH

1.5:1 Max

inear

vertica

emale

at 5

-w

ite

107

14 x 114 x 4

EXT-114

1-005-049001

893

500

741

400 ~ 2500 MH

1.5:1 Max

Linear

vertica

50 Ω

emal

at 5

ABS

UV resistant

200

EXT-118

1-005-050001

893

141

400 ~ 2500 MH

1.5:1 Ma

Linear

vertica

0Ω

emal

180

-4

at 55

ABS

UV resistant

1.6

360

x 1

ANT2206

1-005-231001

893

5080

P SMA Plug

-1

at 5

ite

ABS

UV resist

x 11

ANT3108

1-005-233001

471

893

508037

150 ~ 5875 MH

2.0:1 Max

Linear

vertica

50 Ω

emale

at 5

ABS

UV resist

206

x 2

ANT3218

1-005-232001

893

508020

900 ~ 5875 MH

2.0:1 Max

Linear

vertica

50 Ω

emal

at 5

-w

UV resist

x 7

~ 2

500

MHz

2.0:1

inear

vertical

4900 ~ 5875

MHz

2.0:1

Linear

vertica

18°

Cable Accessories

LMR-400

N Lengt

1-005-075001

MR 400 N-PLUG to N-PLUG,

or 6

005

500

MR 400 N-PLUG to N-PLUG

for 9

1-005-075003

MR 400 N-PLUG to N-PLUG,

or 12M

005

500

MR 400 N-PLUG to N-PLUG

or 1

LMR-200

N Lengt

005

MR 200 N-PLUG to RP-SMA PLUG

or 3M

1-005-074002G

MR 200 N-PLUG to RP-SMA PLUG, for 6M

1-005-074003

MR 200 N-PLUG to RP-SMA PLUG,

or 9M

EXT-300

N Lengt

1-005-082001B Z

AIR EXT-300, Jumper Cable, Surge Arrstor

For more product information, visit us on the web at www.ZyXEL.com

65-100-355001B 03/08

product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.
