GS-1510

Web Smart+ GbE Switch

Quick Installation and

Initial Configuration

電波障害について

お問い合わせ先：

データコントロルズ株式会社

[email protected]

www.dci.jp



Contents
Chapter 1 Introduction.................................................... 1
Overview .........................................................................................1
Front View of the Switch...........................................................1
Rear View of the Switch.............................................................1
LED Descriptions..........................................................................2
Reset Button..................................................................................3
Chapter 2 Installing the Switch .................................... 4
Package Contents........................................................................4
Mounting the Switch on Wall .................................................4
Mounting the Switch on Desk or Shelf................................5
Connecting the AC Power Cord .............................................6
Installing SFP Modules ..............................................................6
Chapter 3 Initial Configuration of Switch................. 8
Initial Switch Configuration Using Web Browsers ...........8
Initial Switch Configuration Procedure................................8
Chapter 4 Troubleshooting..........................................11


1 rev.1.0a

Chapter 1 Introduction

Overview

This user guide describes how to install, configure, and troubleshoot the

GS-1510, 10 Ports Web Smart+ GbE Switch.

By reading this user guide, users can perform the following tasks:

•To check the switch status by reading the LED behavior

•To reset the switch or to restore the switch to factory defaults

•To install the switch

•To use a Web browser to initially configure the switch

•To troubleshoot the switch

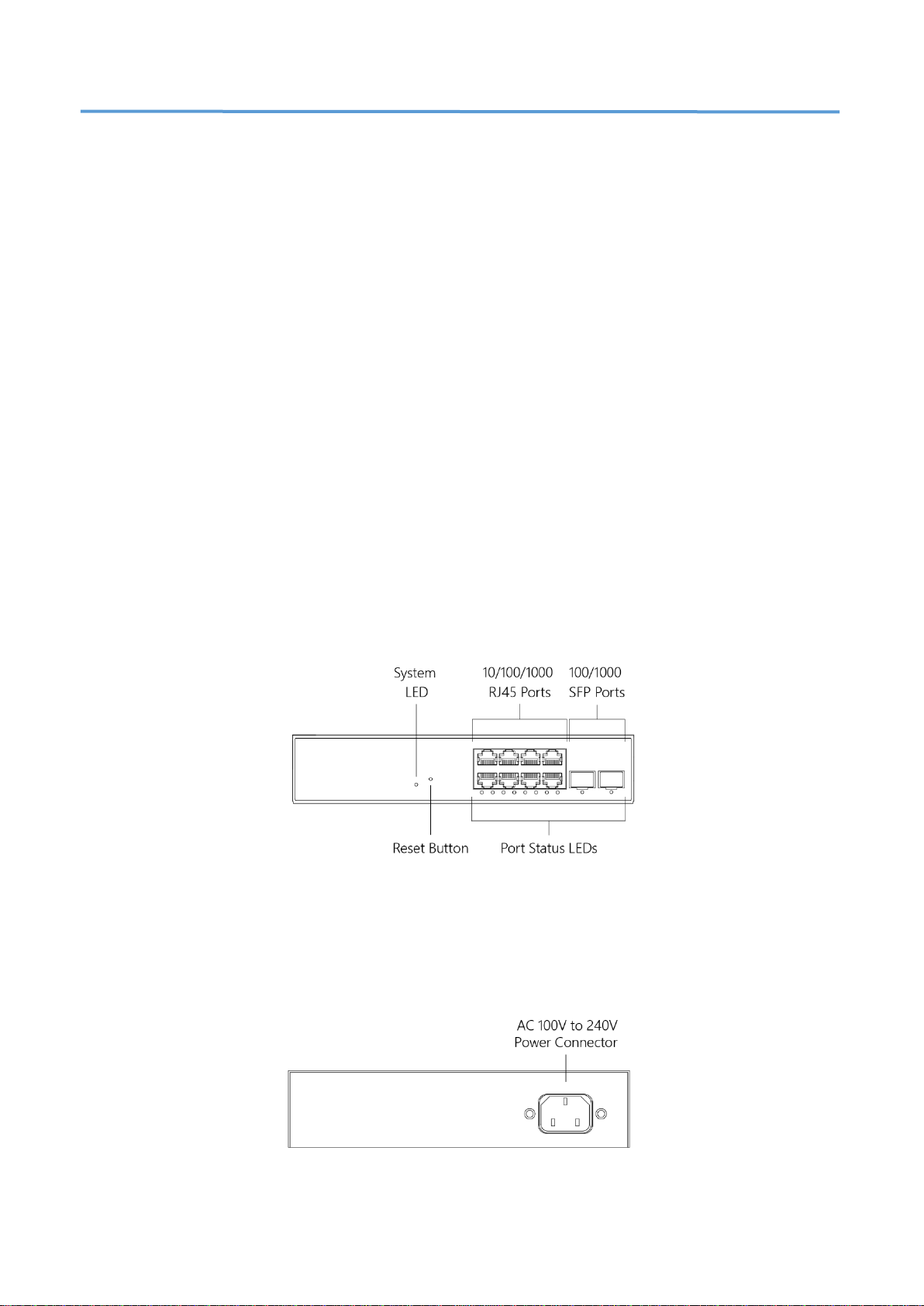

Front View of the Switch

Figure 1: Front panel of the switch

Rear View of the Switch

Figure 2: Rear panel of the switch

2 rev.1.0a

LED Descriptions

The LEDs on the front panel provide users with switch status checking and

monitoring. There are three types of LEDs as follows:

•System LED

indicates if the switch is powered up correctly or not.

•Port Status LEDs

indicates the current status of each port. Users can check these LEDs

to understand the port status.

The following table details the functions and descriptions of various LED

indicators.

Table 1: System LED

LED

Color

State

Description

System

Green

The switch is powered ON correctly.

Off

The switch is not receiving power.

Users can check the port status by reading the LED behaviors per the

table below.

Table 2: Port Status LEDs

LED

Color

State

Description

RJ45

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 10/100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 10/100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

SFP

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

3 rev.1.0a

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

Reset Button

By pressing the Reset Button for certain period of time, users can perform

the following tasks.

•Reset the Switch

to reboot and get the switch back to the previous configuration

settings saved.

•Restore the Switch to Factory Defaults

to restore the original factory default settings back to the switch.

Note:

According to the table below, users can easily judge which task is being

performed by reading the LED behaviors while pressing the Reset button.

Once the LED behaviors are correctly displayed, users may just

release the button.

Table 3: Mode/Reset Button Descriptions

Task to be

Performed

Time Period of

Pressing Button

SYS LED

Behavior

Port Status LED

Behavior

Reset the Switch

2 ~ 7 seconds

Blinking

Green

ALL LEDs Light OFF

Restore to Defaults

7 ~ 12 seconds

Blinking

Green

ALL LEDs Stay ON

4 rev.1.0a

Chapter 2 Installing the Switch

Package Contents

•The Switch

•AC Power cord (Option)

•Four adhesive rubber feet

•Installation Guide

Note:

The switch is an indoor device. If it is to be used with outdoor devices

such as outdoor IP cameras or outdoor WiFi APs, then users are strongly

suggested to install a surge protector or surge suppressor in order to

protect the switch.

Mounting the Switch on Wall

Step 1: stall user-supplied screws on the appropriate location on the all,

and be aware of the dimensional limitation of the screws.

Figure 3: Install screws to the wall

5 rev.1.0a

Step 2: make sure that the switch is attached securely to wall.

Figure 4: Attaching switch to the wall

Mounting the Switch on Desk or Shelf

Step 1: Verify that the workbench is sturdy and reliably grounded.

Step 2: Attach the four adhesive rubber feet to the bottom of the

switch.

Figure 5: Attaching the Rubber Feet

6 rev.1.0a

Connecting the AC Power Cord

Step 1: Connect the AC power cord to the AC power receptacle of

switch.

Step 2: Connect the other end of the AC power cord to the AC power

outlet.

Step 3: Check the SYS LED. If it is ON, the power connection is correct.

Figure 6: Connecting AC power cord

Installing SFP Modules

You can install or remove a mini-GBIC SFP module from a SFP port

without having to power off the switch.

Step 1: Insert the module into the SFP port.

Step 2: Press firmly to ensure that the module seats into the connector.

7 rev.1.0a

Figure 7: Installing a SFP Module into a SFP Port

Note:

The SFP ports should use UL Listed Optional Transceiver product, Rated

3.3Vdc, Laser Class 1.

8 rev.1.0a

Chapter 3 Initial Configuration of Switch

Initial Switch Configuration Using Web Browsers

After powering up the switch for the first time, you can perform the initial

switch configuration using a web browser. For managing other switch

features, please refer to the Web interface user guide for details.

To begin with the initial configuration stage, you need to reconfigure your

PC’s IP address and subnet mask so as to make sure the PC can

communicate with the switch. After changing PC’s IP address (for

example, 192.168.1.250), then you can access the Web interface of the

switch using the switch’s default IP address as shown below.

The initial switch configuration procedure is as follows:

Note:

The factory default IP address of the switch is 192.168.1.1

The factory default Subnet Mask of switch is 255.255.255.0

Initial Switch Configuration Procedure

The initial switch configuration procedure is as follows:

1. Power up the PC that you will use for the initial configuration. Please

make sure the PC has the Ethernet RJ45 connector to be connected to

the switch via standard Ethernet LAN cable.

2. Reconfigure the PC’s IP address and Subnet Mask as below, so that it

can communicate with the switch. The method to change the PC’s IP

address, for example, for a PC running Windows® 7/8.x/10, is as

follows:

Step 1: Type “network and sharing“into the Search box in the Start
