ZyXEL Communications Dimension Ethernet Switches Manual de usuario

Ethernet Switches

Quick Start Guide

5/2006

Edition 2

Table of Contents

ENGLISH 1

DEUTSCH 7

ESPAÑOL 13

FRANÇAIS 19

ITALIANO 25

РУССКИЙ 31

繁體中文 37

ENGLISH

1 Introduction

This Quick Start Guide is for use with all ZyXEL Ethernet

switches. Your device may differ from the illustrations below.

2 Installation

All switches can be used as a standalone device while some

can alternatively be mounted on standard EIA racks.

Note: For proper ventilation, allow at least 4 inches

(10 cm) of clearance at the front and 3.4 inches

(8 cm) at the back of the switch. Leave space

between switches if stacking.

2.1 Desktop Installation

1Set the switch on a smooth, level surface.

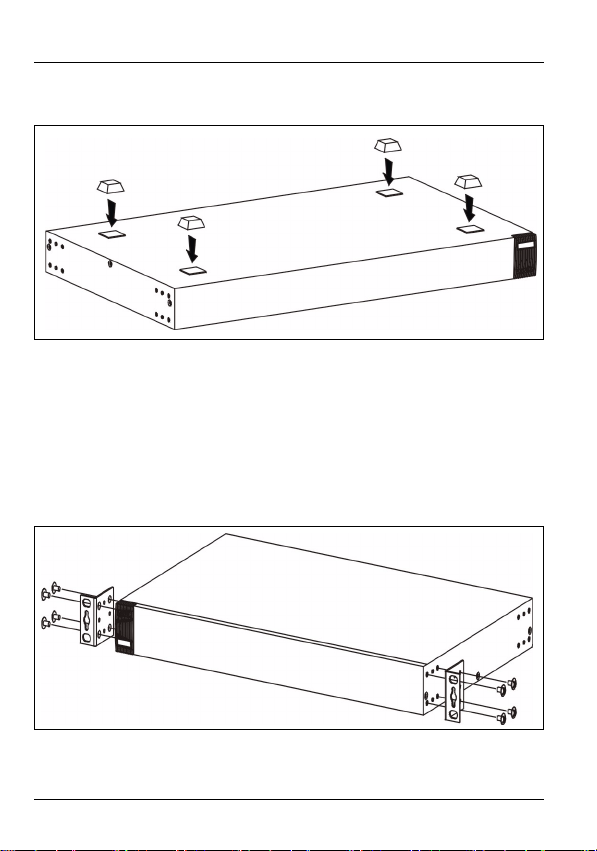

2If your switch comes with unattached rubber feet, attach

them to each corner on the bottom of the switch. These

ENGLISH

rubber feet help protect the switch from shock or vibration

and ensure space between devices when stacking.

2.2 Rack-mounted Installation

1Align one bracket with the holes on one side of the switch

and secure it with bracket screws smaller than the rack-

mounting screws. Similarly, attach the other bracket.

2After attaching both mounting brackets, position the switch

in the rack by lining up the holes in the brackets with the

ENGLISH

appropriate holes on the rack. Secure the switch to the

rack with the rack-mounting screws.

3 Hardware Connections

3.1 Auto-negotiating and Auto-crossover RJ-

45 ports

Your switch comes with auto-negotiating, auto-crossover

ports. Depending on the model, these ports are either fast

Ethernet (10/100 Mbps) or Gigabit (10/100/1000 Mbps) ports.

Auto-negotiating ports can detect the speed of incoming

transmissions and allow either half duplex transfer mode (10/

100 Mbps only) or full duplex mode. Auto-crossover means

that you can connect the switch to a computer or hub using

either a straight-through or a crossover Ethernet cable.

ENGLISH

3.2 Network Cables

You can use unshielded twisted pair (UTP) or shielded

twisted-pair (STP) Ethernet cables for RJ-45 ports. Make sure

the cable length between connections does not exceed 100

meters (328 feet). The following table describes the types of

network cable used for different connection speeds.

Table 1 Network Cable Types

The LNK/ACT LED should flash when data is being sent

between your switch and a connected device.

3.3 Power Connection

Connect one end of the supplied power cable or power

adaptor to the power receptacle on the switch and the other

end to the appropriate power source. The PWR LED should

turn steady on if the switch is receiving power.

SPEED NETWORK CABLE TYPE

10Mbps 100 Ω2-pair UTP/STP Category 3,4 or 5

100Mbps 100 Ω2-pair UTP/STP Category 5

1000Mbps 100 Ω4-pair UTP/STP Category 5

ENGLISH

3.4 Console Port (Managed Switches Only)

If your switch has a console port, you can use a terminal

emulator for local management. Connect the male 9-pin end

of a console cable to the console port of the switch. Connect

the female end to a serial port (COM1, COM2 or other COM

port) of your computer. Configure the computer with terminal

emulation software to the following parameters:

• VT100 terminal emulation

• 9600 bps

• No parity, 8 data bits, 1 stop bit

• No flow control

4 Troubleshooting

PROBLEM CORRECTIVE ACTION

None of the

LEDs are on

when the power

is connected.

Verify that the included power or cable

adaptor is connected to the switch's power

receptacle and appropriate power source.

If the error persists, you may have a

hardware problem and should contact your

vendor.

The LNK/ACT

LED does not

light up or flash

when a device

is connected.

Verify that the attached device(s) is turned on

and properly connected to your switch. Also

make sure the Ethernet cards are working on

the attached devices. Verify that the network

cable does not exceed 100 meters.

ENGLISH

DEUTSCH

1 Einleitung

Diese Kurzanleitung dient der Verwendung aller ZyXEL

Ethernet-Switche. Das Aussehen ihres Gerätes kann von den

unten gezeigten Abbildungen abweichen.

2 Installation

Note: Alle Switche können als Einzelgeräte verwendet

werden, wobei einige alternativ in 19 Zoll

Standardracks montiert werden können. Für eine

ausreichende Belüftung sollte vor dem Switch ein

Freiraum von mindestens 10 cm und hinter dem

Switch ein Freiraum von mindestens 8 cm gelassen

werden. Wenn Sie Switche übereinander

anordnen, lassen Sie einen Freiraum zwischen den

Geräten.

2.1 Tisch-Montage

1Legen Sie den Switch auf eine glatte, ebene Unterlage.

2Sollte Ihr Switch mit nicht montierten Gummifüßen

geliefert worden sein, bringen Sie diese an jeder Ecke der

Geräteunterseite an. Diese Gummifüße dienen dem

Schutz vor Stößen und Vibrationen und gewährleisten den

DEUTSCH

Freiraum zwischen den Geräten wenn diese übereinander

angeordnet werden.

2.2 Rack-Montage

1Richten Sie die Bügel an den seitlich angeordneten

Löchern des Switch aus und sichern Sie diese mit den

dafür vorgesehenen Schrauben, die kleiner sind, als die

Schrauben die dafür verwendet werden, um das Gerät im

Rack zu befestigen. Gehen Sie analog dazu mit dem

anderen Bügel vor.
