ZyXEL Communications Prestige 623 series Manual de usuario

Prestige 623 Series

Dual-link ADSL Router

Quick Start Guide

Version 1.38

April 2003

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

Introducing the Prestige

The Prestige 623 series Dual-link ADSL Router is the ideal all-in-one device for small networks connecting

to the Internet via DSL. See your User’s Guide for more details on Prestige features.

You should have an Internet account already set up and have been given most of the following information

from your ISP. You don’t have to fill in all the fields.

REQUIRED INFORMATION

Your device’s WAN IP Address :__________________ Subnet Mask: ________________

Multiplexing (VC-based or LLC-based):  VC LLC

DNS Server IP Address Primary: _________________ Secondary: _________________

Virtual Path Identifier (VPI): ____________

Virtual Channel Identifier (VCI): ____________

Gateway IP Address: _________________

PPPoE

PPPoA

Username: ______________

Password: _______________

RFC 1483

Encapsulation:

RFC 1483 (1577)

Hardware Connection

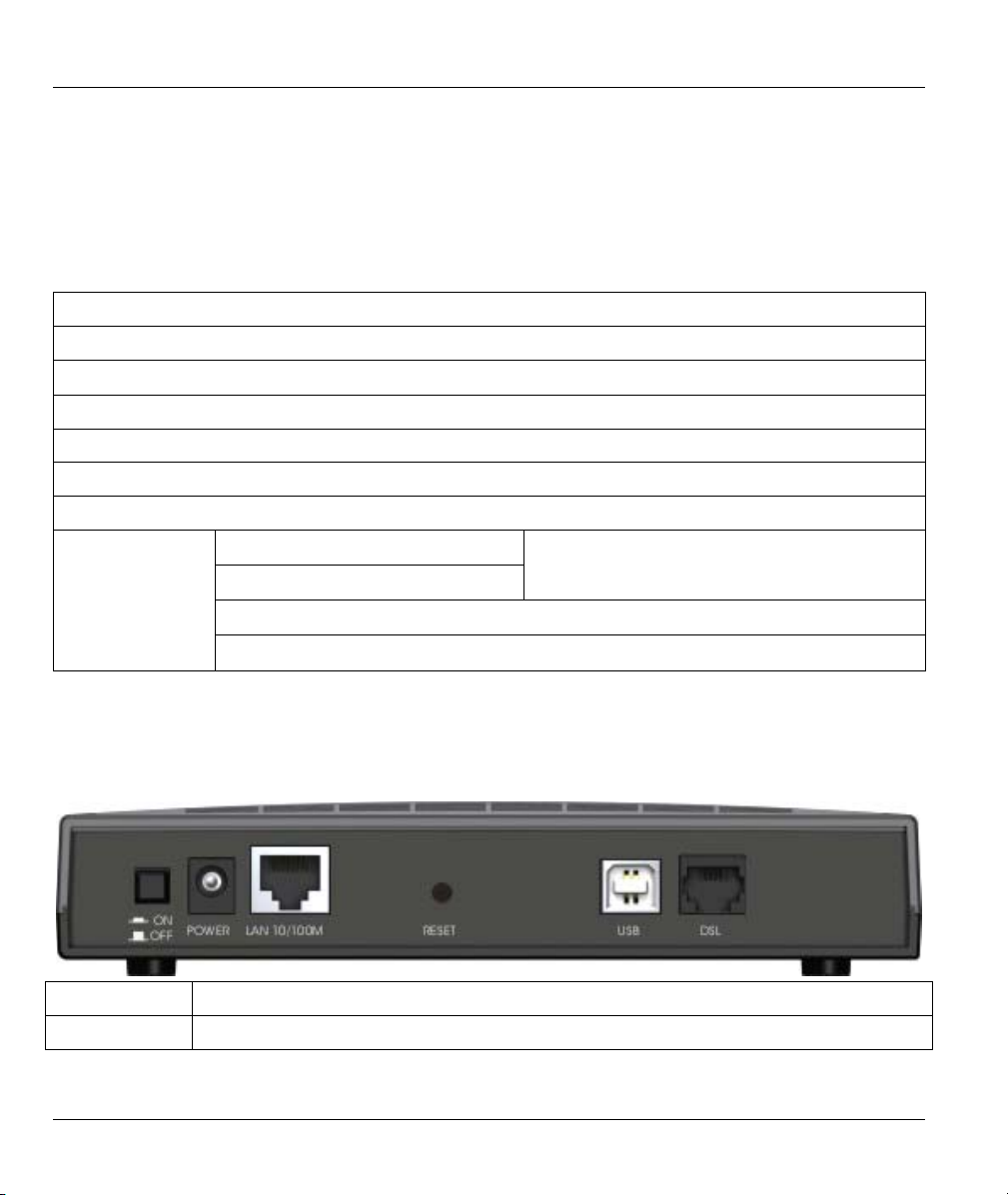

Rear Panel

PORT CONNECTION

1. DSL Connect to a telephone jack using a telephone cable.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

PORT CONNECTION

2. LAN

10/100M

Connect to a computer using a crossover Ethernet cable or to a hub using a straight-

through Ethernet cable.

3. POWER Do this last. Connect to a power source using the supplied power adapter.

After you’ve made the connections, connect the power adapter to a power supply and push in the power

button to turn on the Prestige. Look at the front panel LEDs.

Proceed to install the USB driver if you want to connect the Prestige to the USB port on the computer. Refer

to the Installing USB Driver section.

USB The USB port is useful when a computer does not have a network card. Connect the USB port

during the USB driver installation.

RESET You only need to use this button if you’ve forgotten the Prestige’s administrative account

password or IP addresses. It returns the Prestige to the factory defaults (see your User’s Guide

for details).

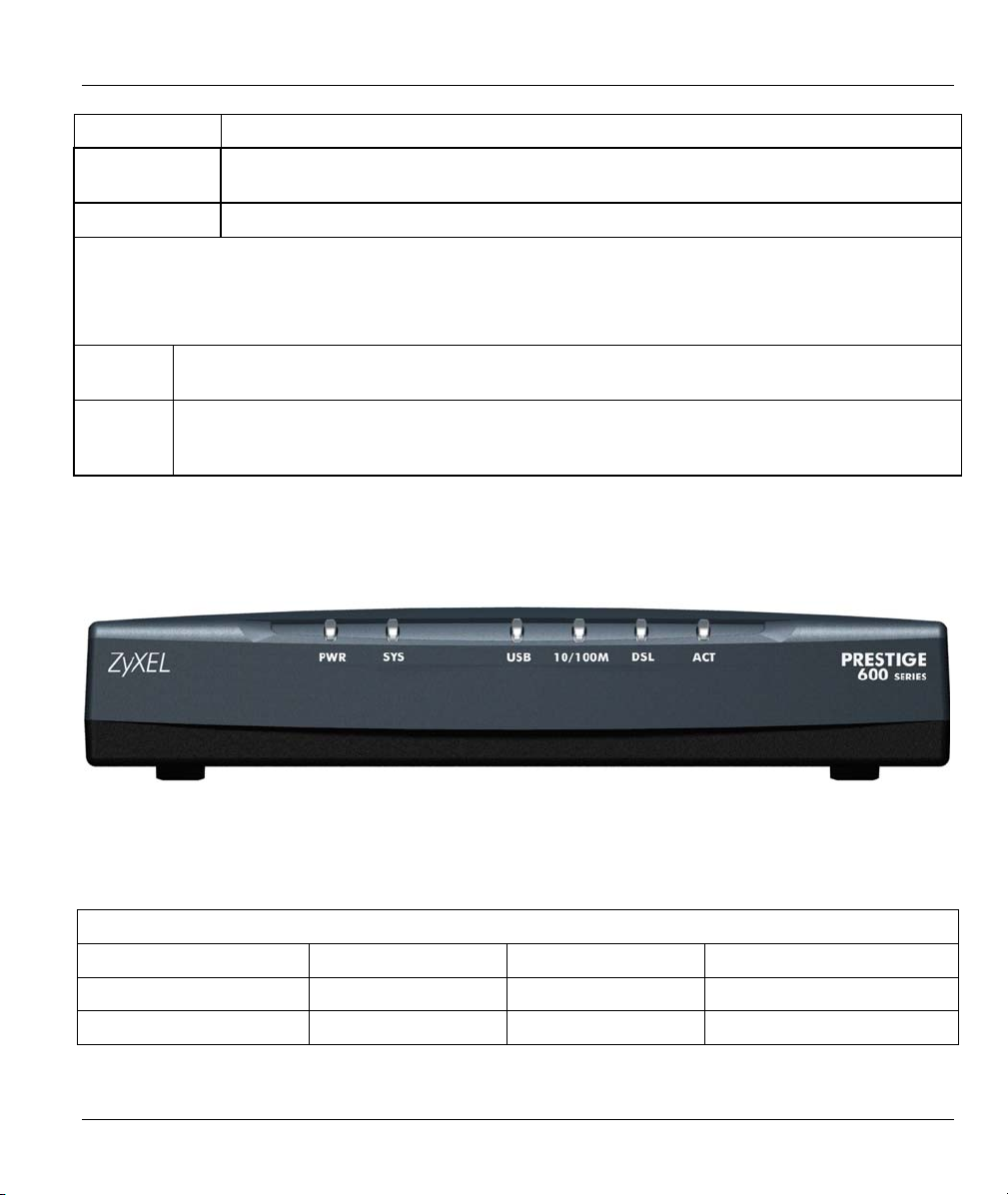

Front Panel LED

When the Prestige is turned on, the PWR LED turns on. The SYS LED turns steady on if the system self-

test is successful. The appropriate LAN and/or USB LEDs turn on if they are properly connected.

Prestige Factory Defaults

This Quick Start Guide provides a default configuration that should be compatible with your home or small

office network setup. Refer to the User’s Guide for additional configuration instructions.

PRESTIGE FACTORY DEFAULTS

LAN IP Address 192.168.1.1 Default User name admin

USB IP Address 192.168.1.2 Default Password 1234

Subnet Mask 255.255.255.0 DHCP IP Pool 192.168.1.3 – 192.168.1.34

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

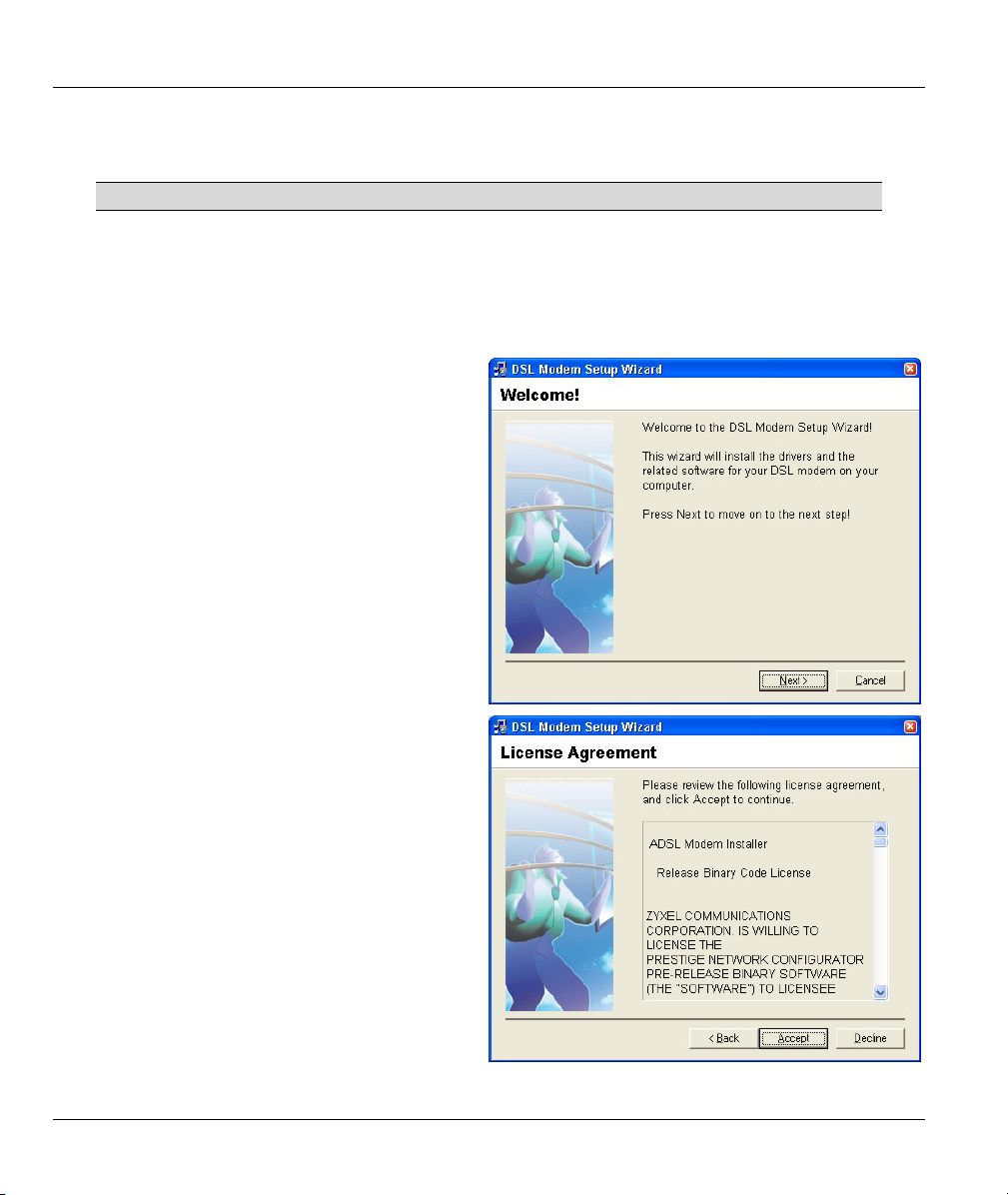

Installing the USB Driver

DO NOT connect the USB port at this point.

Installation steps and screens are similar for all Windows systems. Screen shots for Windows XP are shown

unless otherwise specified.

Step 1. Save your work and close all other Windows applications.

Step 2. Insert the included CD and copy the USB installation file onto the computer.

Step 3. Double-click setup.exe in the folder

where you copied the files.

A Welcome dialog box displays, click

Next.

Step 4. Click Accept to agree to the license

agreement.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

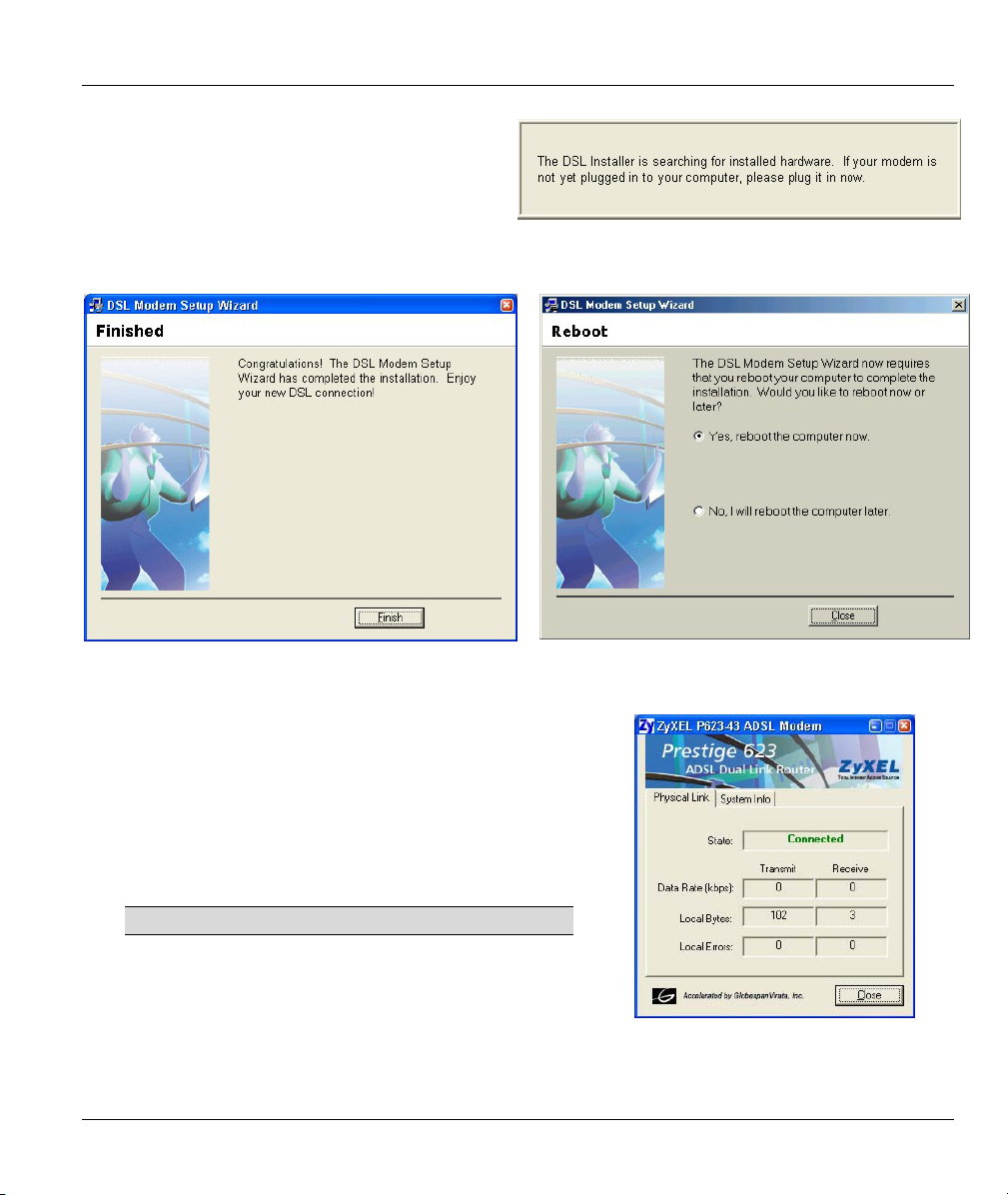

Step 5. Connect the USB port to the computer

when prompted. A window displays

briefly, indicating that the system has

found a new hardware.

Step 6. For Windows 2000/XP: Click Finish to complete the driver installation.

For Windows 98/98 SE/Me: Reboot the computer when prompted.

Verifying Your USB Installation

After you have completed the USB driver installation, click

Start, (all)Programs,ZyXEL Prestige 623-43 (or ZyXEL

Prestige 623-41) and ADSL Status.

A ZyXEL P623-43 ADSL Modem (or ZyXEL P623-41 ADSL

Modem) screen displays. In the Physical Link screen, the Stat

should display Connected if a computer is connected to the

Prestige via the USB port.

This utility is for USB connection only.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

Setting Up Your Computer’s IP Address

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The Prestige is already set up to assign your computer an IP address. Use this section to set up your

computer to receive an IP address or assign it a static IP address in the 192.168.1.3 to 192.168.1.254 range

with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can communicate with

your Prestige.

Your computer must have a network card and TCP/IP installed. TCP/IP should already be installed on

computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control

Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

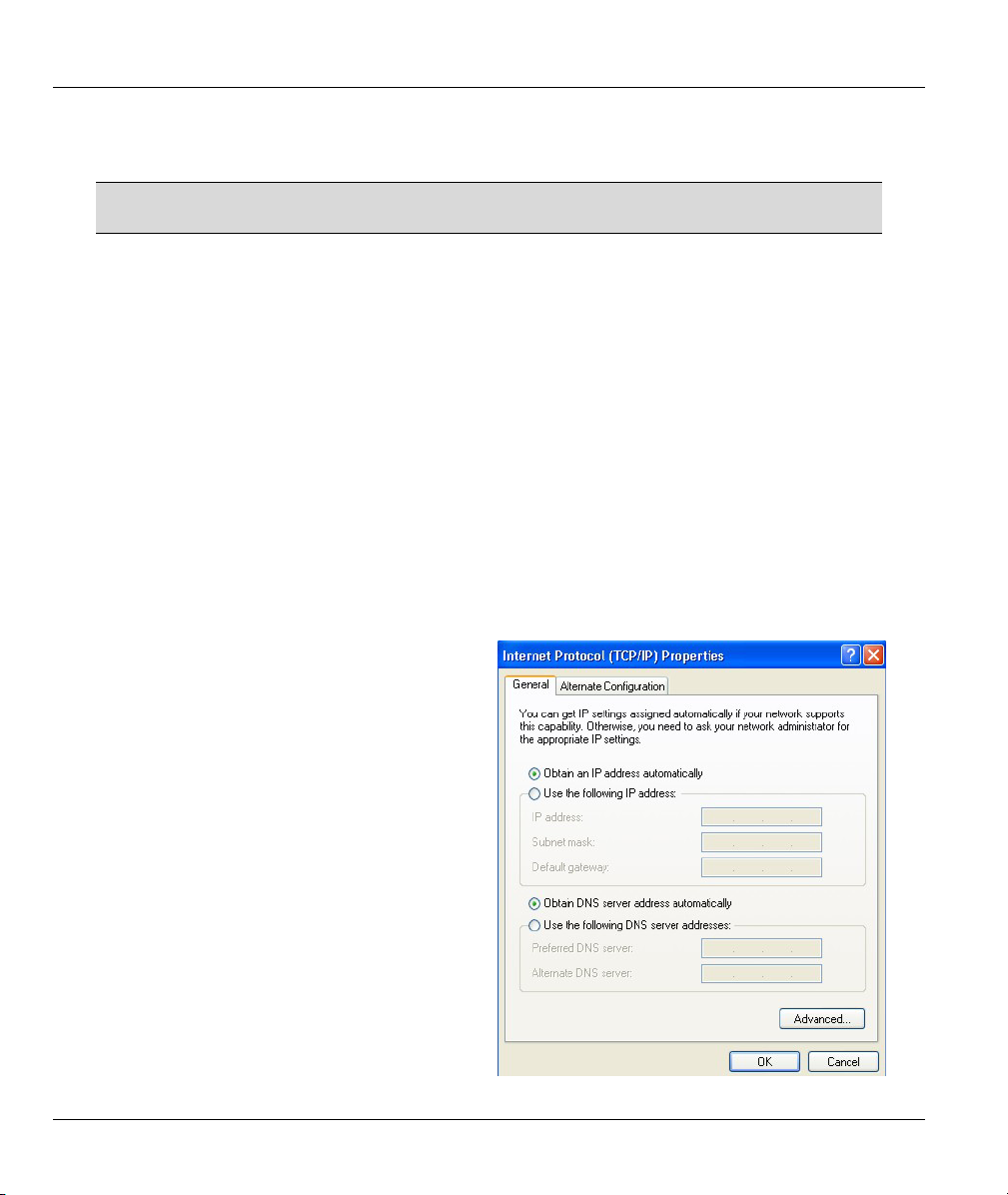

5. The Internet Protocol TCP/IP Properties

screen opens (the General tab in Windows

XP).

-To have your computer accept a dynamic IP

address, click Obtain an IP address

automatically.

-If you want a static IP address, click Use the

following IP Address and fill in the IP

address (use one between192.168.1.3 and

192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway

(192.168.1.1 or 192.168.1.2) fields.

Click Advanced.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

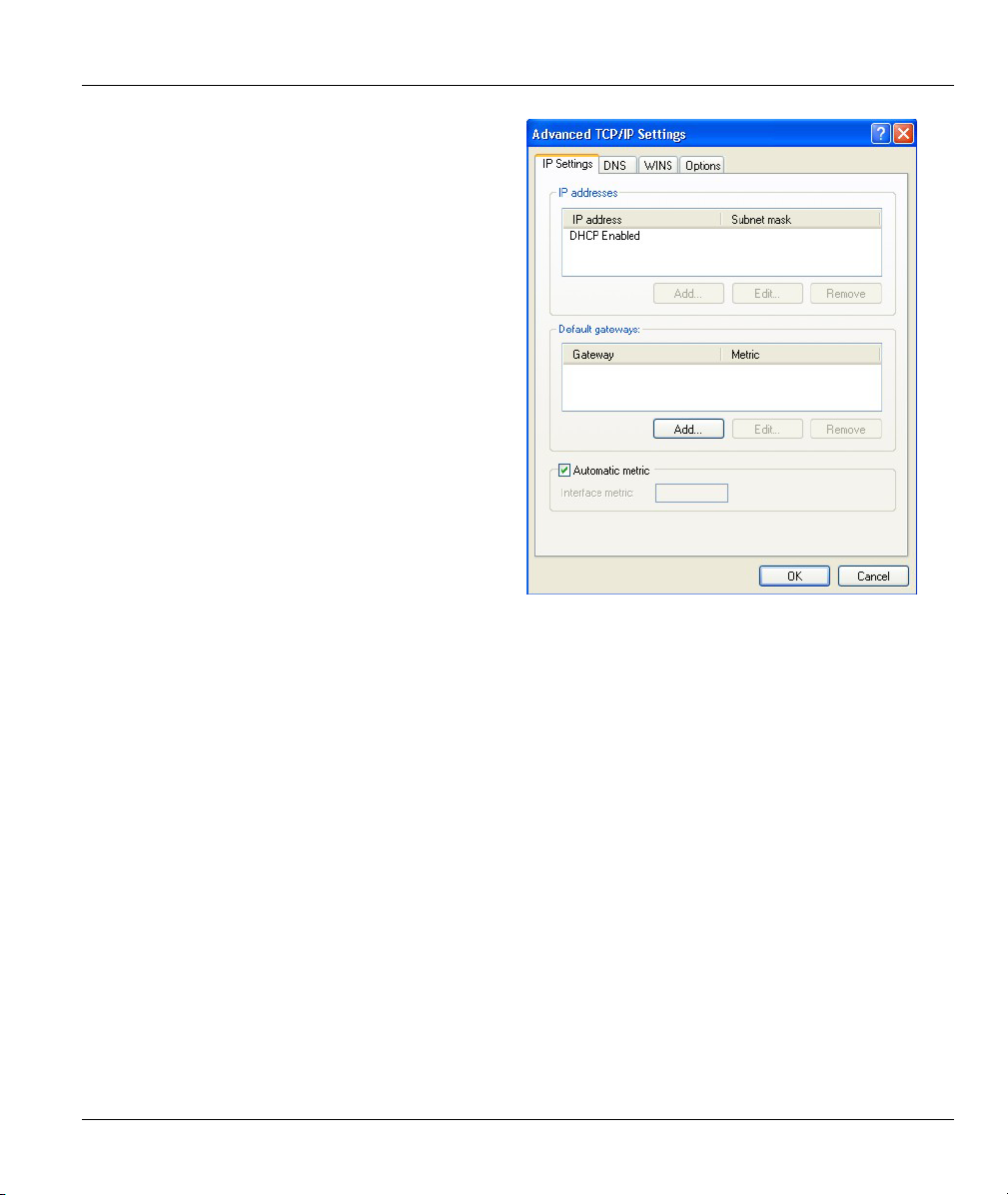

6. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to

the Internet Protocol TCP/IP Properties

screen.

7. Click Obtain DNS server address

automatically if you do not know your DNS

server IP address(es).

If you know your DNS server IP address(es),

click Use the following DNS server

addresses, and type them in the Preferred

DNS server and Alternate DNS server fields.

If you have previously configured DNS

servers, click Advanced and then the DNS

tab to order them.

8. Click OK to close the Internet Protocol

(TCP/IP) Properties window.

9. Click OK to close the Local Area Connection

Properties window.

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh

computer operating systems.

Checking/Updating Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER to verify that your

computer’s static IP address is in the correct subnet (in the range between 192.168.1.3 and

192.168.1.254 if using the default Prestige LAN IP address). Alternatively, to have the Prestige assign

your computer a new IP address (from the IP pool), make sure your Prestige is turned on, type

"ipconfig /renew" and then press ENTER.

Testing the Connection to the Prestige

1. Click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ping” followed by a space and the IP address of the Prestige

(192.168.1.1 is the default for the LAN port and 192.168.1.2 is the default for the USB port. You may

enter either one).

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

3. Press ENTER. You should see the reply messages displayed as shown. Your computer can now

communicate with the Prestige using the LAN or the USB port.

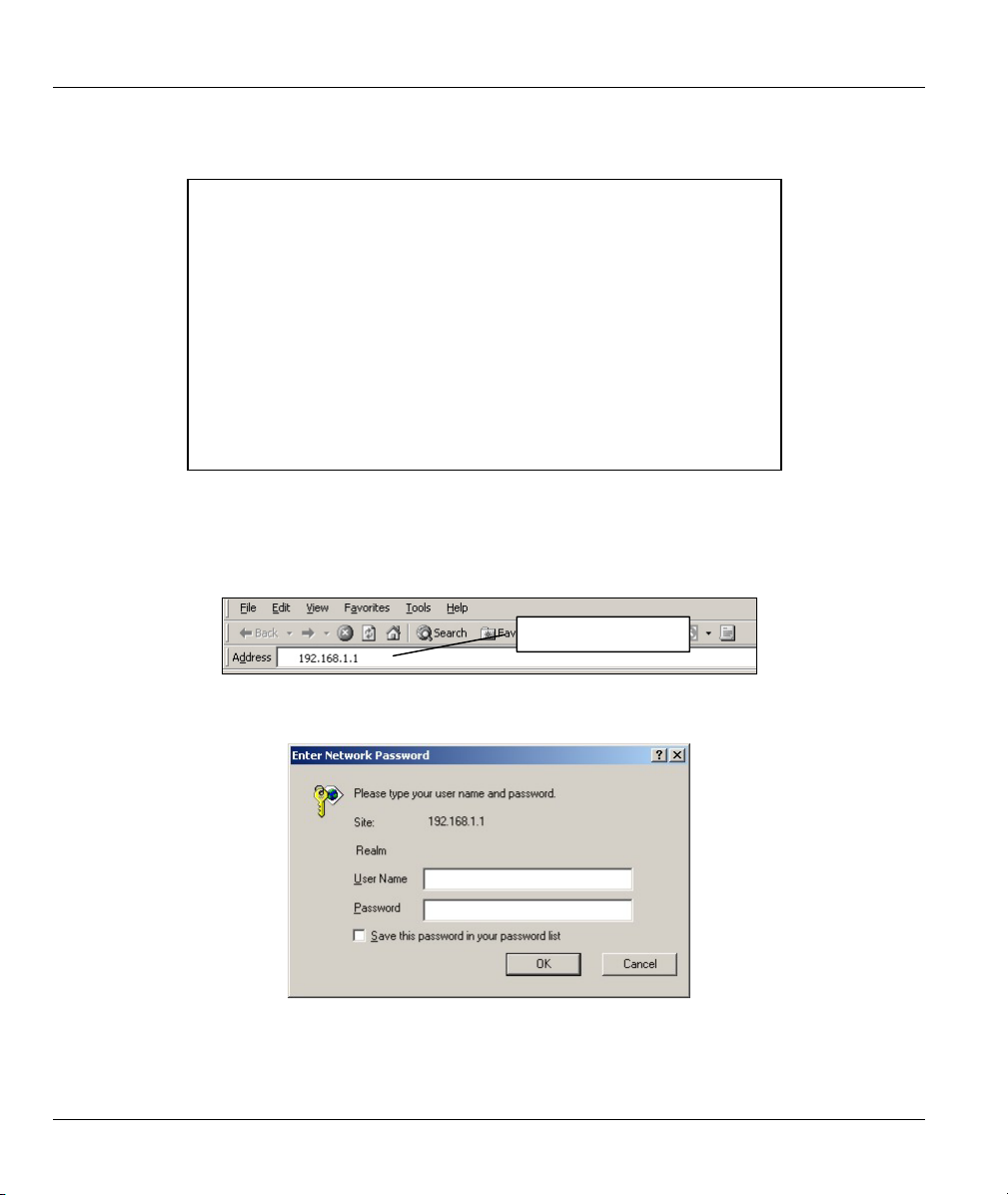

Accessing the Prestige

Step 1. Launch your web browser. Enter either “192.168.1.1” or “192.168.1.2” as the web site address.

Step 2. An Enter Network Password window displays. Enter the user name (“admin” is the default),

password (“1234” is the default) and click OK.

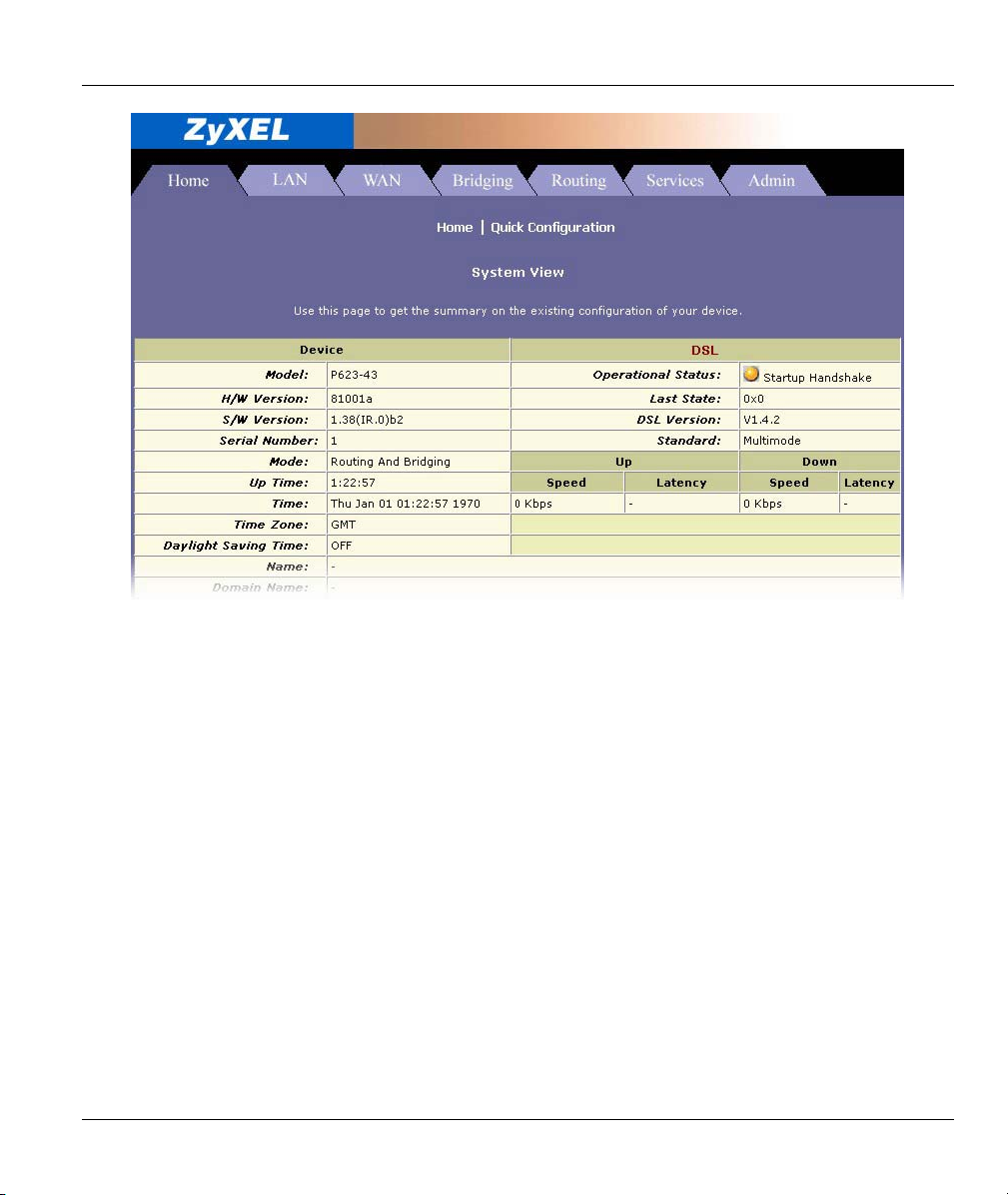

Step 3. You should now see the System View screen as shown next. This is the first screen that displays

every time you access the web configurator.

C:\>ping 192.168.1.1

Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 time=10ms TTL=254

Reply from 192.168.1.1: bytes=32 time<10ms TTL=254

Ping statistics for 192.168.1.1:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 10ms, Average = 2ms

C:\>

Web site address.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

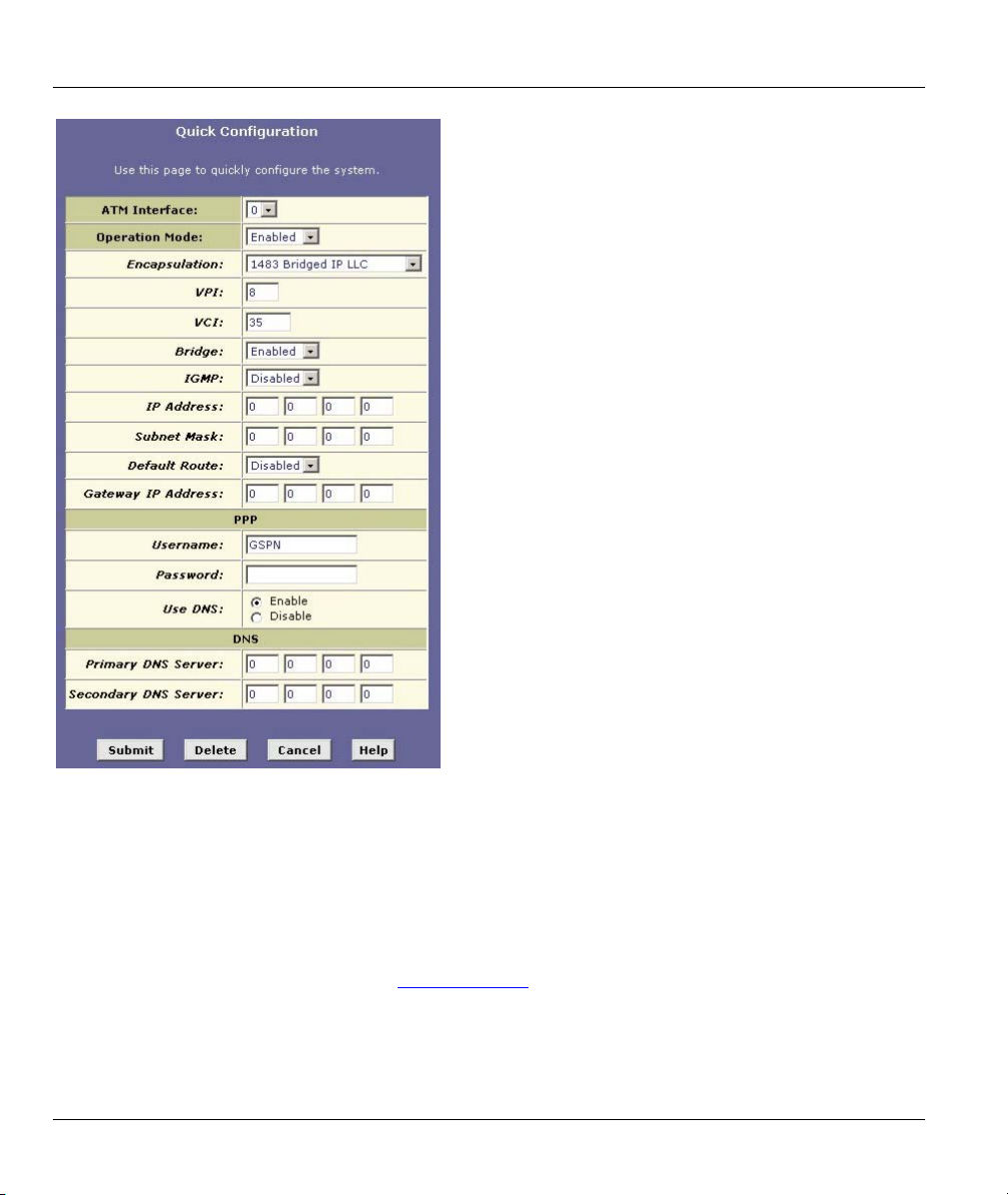

Quick Configuration for Internet Access

Use the Quick Configuration screen to configure your system for Internet access.

In the System View screen, click Quick Configuration to display the screen as shown. Fill in the fields

with the information in the Required Information table.

Prestige 623 Series Dual-link ADSL Router Quick Start Guide

Select an interface number from the ATM Interface

drop-down list menu.

From the Operation Mode drop-down list menu, select

Enabled to set the Prestige to act as an Internet

gateway for your LAN.

Select the encapsulation type your ISP uses from the

Encapsulation drop-down list menu.

Enter the correct Virtual Path Identifier (VPI) and Virtual

Channel Identifier (VCI) numbers supplied by your ISP

in the VPI and VCI fields.

Set the Bridge and IGMP fields depending on your ISP.

If given by your ISP, enter the IP address and the

subnet mask in the IP Address and Subnet Mask

fields.

From the Default Route drop-down list menu, select

Enabled to use the IP address specified above as the

default route. Otherwise select Disabled.

Enter the IP address of the default gateway (or your ISP

server) through which your Internet connection will be

routed in the Gateway IP Address field.

Enter the Internet account username and password

provided by your ISP in the Username and Password

fields. (This is not the same as the user name and

password you used to log in to web configurator.)

In the Use DNS field, select Enable if your ISP provides

you with DNS (Domain Name Service) information.

Otherwise, select Disable.

If you enable DNS, enter the IP address(es) of the DNS

server(s) provided by your ISP in the Primary DNS

Server and/or Secondary DNS Server fields.

Click Submit. Then click the Admin tab, Commit & Reboot and Commit to save your changes.

Test Your Internet Connection

Launch your web browser and navigate to www.zyxel.com. Internet access is just the beginning. Refer to

the User’s Guide for more detailed information on all Prestige features. If you cannot access the Internet,

open the web configurator again to confirm that the Internet settings you configured in the Quick

Configuration screen are correct.

Otros manuales para Prestige 623 series

Tabla de contenidos

Otros manuales de Enrutador de red de ZyXEL Communications

ZyXEL Communications

ZyXEL Communications Prestige 971M Manual de usuario

ZyXEL Communications

ZyXEL Communications P-645R-A1 Manual

ZyXEL Communications

ZyXEL Communications AES-100 Manual de usuario

ZyXEL Communications

ZyXEL Communications PMG2005-T20B Manual de usuario

ZyXEL Communications

ZyXEL Communications ZyWALL 10 Manual de usuario

ZyXEL Communications

ZyXEL Communications NBG-419N v2 Manual de usuario

ZyXEL Communications

ZyXEL Communications P-660R-T1 Manual de usuario

ZyXEL Communications

ZyXEL Communications P-2812HNU-51c Manual de usuario

ZyXEL Communications

ZyXEL Communications MES3500-24F Manual de usuario

ZyXEL Communications

ZyXEL Communications Nebula NR7101 Manual de usuario

ZyXEL Communications

ZyXEL Communications B-6010 Manual de usuario

ZyXEL Communications

ZyXEL Communications IES-5000 Series Manual

ZyXEL Communications

ZyXEL Communications P-660HN-T1H Manual de usuario

ZyXEL Communications

ZyXEL Communications Prestige 100L Manual de usuario

ZyXEL Communications

ZyXEL Communications P-660RU-T1 v3 Manual de usuario

ZyXEL Communications

ZyXEL Communications NBG4604 Manual de usuario

ZyXEL Communications

ZyXEL Communications P-2612HNU-Fx Series Manual de usuario

ZyXEL Communications

ZyXEL Communications NBG4615 v2 Manual de usuario

ZyXEL Communications

ZyXEL Communications ETHERNET SWITCHES ES-1016 Manual de usuario

ZyXEL Communications

ZyXEL Communications AMG1202-T10A Manual de usuario

ZyXEL Communications

ZyXEL Communications P-660RU-T1 v3 Manual de usuario

ZyXEL Communications

ZyXEL Communications P-2812HNU-51c Manual de usuario

ZyXEL Communications

ZyXEL Communications MAX-306 Manual de usuario

ZyXEL Communications

ZyXEL Communications ES-2024A Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
