ZyXEL Communications P-873HNU(B)-51B Manual de usuario

www.zyxel.com

Wireless N VDSL2 Bonding Combo

WAN Gateway with USB

Firmware Version 1.10

Edition 2, 4/2012

P-873HNU(P)-51B

DEFAULT LOGIN DETAILS

IP Address: http://192.168.1.1

User Name: admin

Password: 1234

ZyXEL Communications Corporation

Device Panels

POWER

ETHERNET 1-4

USB

WLAN/WPS

ETHERNET WAN

INTERNET

DSL 1

HPNA

POWER

ETHERNET 1-4

USB

ETHERNET WAN

HPNA

RESET

DSL 2

DSL 1

DSL 2

(P-873HNUP-51B only)

P-873HNU(P)-51B

Requirements

Make sure you have the following things before you start:

• INTERNET ACCESS: You need an Internet account with an ISP (Internet

Service Provider) and information such as your user name, password, and

so on.

• WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript

enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later

versions. The browser will be used to access the Internet and/or access

the P-873HNU(P)-51B’s Web Configurator.

Hardware Setup

Place the P-873HNU(P)-51B flat on a desk or table or on the stand for a vertical

installation.

Remove the P-873HNU(P)-51B’s clear plastic covers before using it.

To connect the stand, line up the arrow on the stand with the arrow on the

bottom of the device as shown.

To connect your P-873HNU(P)-51B:

(P-873HNUP-51B only)

P-873HNU(P)-51B

1. Attach the antenna and point it up.

2. Do one of the following for your Internet connection:

a. DSL 1,2: Use a telephone cable to connect your P-873HNU(P)-51B’s

DSL1 port to a telephone jack (or the DSL or modem jack on a splitter if

you have one).

b. If the DSLAM at your ISP supports DSL bonding function, you can

connect DSL1 and DSL2 to two seperate telephone jacks. This provides

increased throughput at longer distances. You will need to access the

Web Configurator and enable the DSL Bonding function in the

Broadband > DSL screen. See the User’s Guide for more information.

c. ETHERNET WAN: If you already have a broadband router or modem, use

an Ethernet cable to connect the ETHERNET WAN port to it for Internet

access.

3. ETHERNET: Use an Ethernet cable to connect a computer to an Ethernet

port for initial configuration and/or Internet access.

4. HPNA: (P-873HNUP-51B only) Use a coaxial cable to connect to a coaxial

outlet and relay Internet traffic throughout your house through coaxial

cabling.

5. USB: Connect a USB (version 2.0 or lower) memory stick or a USB hard

drive for file sharing. Use a USB extension cable if the stick is too big to fit.

6. POWER: Use the provided power adaptor to connect the POWER socket to

an appropriate power source. Make sure the power at the outlet is on. After

connecting the power adaptor, look at the lights on the front panel.

• The POWER light blinks while your P-873HNU(P)-51B starts up and then

stays on once it is ready.

• Each LAN light stays on if the corresponding Ethernet port is properly

connected and blinks when there is traffic.

• The ETHERNET WAN light stays on if the ETHERNET WAN port is

properly connected and blinks when there is traffic.

• The USB light turns on when your P-873HNU(P)-51B detects a connected

USB device.

• The HPNA light (P-873HNUP-51B only) stays on if the HPNA port is

properly connected and blinks when there is traffic.

• The DSL1,2 lights are green when your P-873HNU(P)-51B has an ADSL

connection. They are orange when you have a VDSL connection. If you

are not using DSL bonding function, only DSL1 light will be on.

• The WLAN / WPS light flashes green when WLAN is activated and orange

while WPS is in process. It stays on green when the wireless LAN is ready

and blinks when there is traffic.

• The INTERNET light turns on when the gateway is able to access the

Internet and will blink when your P-873HNU(P)-51B is sending or

receiving data.

If the lights do not come on, check your connections and inspect your cables for

damage. If the lights are still off, contact technical support.

Set Up a Wireless Network

You can set up a wireless network using the following methods:

Using Wireless Protected Setup (WPS)

Press the WPS button on the P-873HNU(P)-51B’s front panel for more than 5

seconds to turn the WPS function on.

P-873HNU(P)-51B

Follow these steps to add a WPS-enabled device to the wireless network using

the WPS/WLAN button.

Set Up a Wireless Network Manually

The wireless LAN on your P-873HNU(P)-51B is enabled by default. To add a

wireless client to the network, use the settings found on the side panel of your

P-873HNU(P)-51B, which will look similar to the following example:

Configure wireless devices that you want to connect to the wireless network to

use the same wireless settings as the P-873HNU(P)-51B.

The default wireless settings vary for each P-873HNU(P)-51B. Refer to the

side panel of your device and use the provided information.

Place the devices you want to connect near one

another.

Press the WPS button on the P-873HNU(P)-

51B.

The WPS light blinks green and orange.

Press the WPS button on a compatible device

within 2 minutes of pressing the button on the P-

873HNU(P)-51B.

The WPS light on the P-873HNU(P)-51B shines

steadily when connected.

SSID: ZyXEL00561

Security Mode: WPA-PSK

Pre-Shared Key: FB373BD356

The Web Configurator

The Web Configurator is a web browser tool that allows you to configure the P-

873HNU(P)-51B. The computer and the P-873HNU(P)-51B need to be in the

same IP address range to use this tool.

1. Open your browser and enter http://192.168.1.1 (the P-873HNU(P)-51B’s

default IP address) as the address.

2. Enter the default user name admin and password 1234. Click Login.

If the login screen does not open, make sure you allow web browser

pop-up windows, JavaScript and Java permissions. Your computer

should be also set to get an IP address automatically from a DHCP

server. See the appendices in your User’s Guide for more

information.

P-873HNU(P)-51B

3. A welcome screen appears with details about your last login. Select Show

this page next time to see the welcome screen on your next login.

Otherwise, clear it. Click Continue.

4. The Network Map page appears. This shows whether the P-873HNU(P)-

51B and computers/devices connected to it have Internet access.

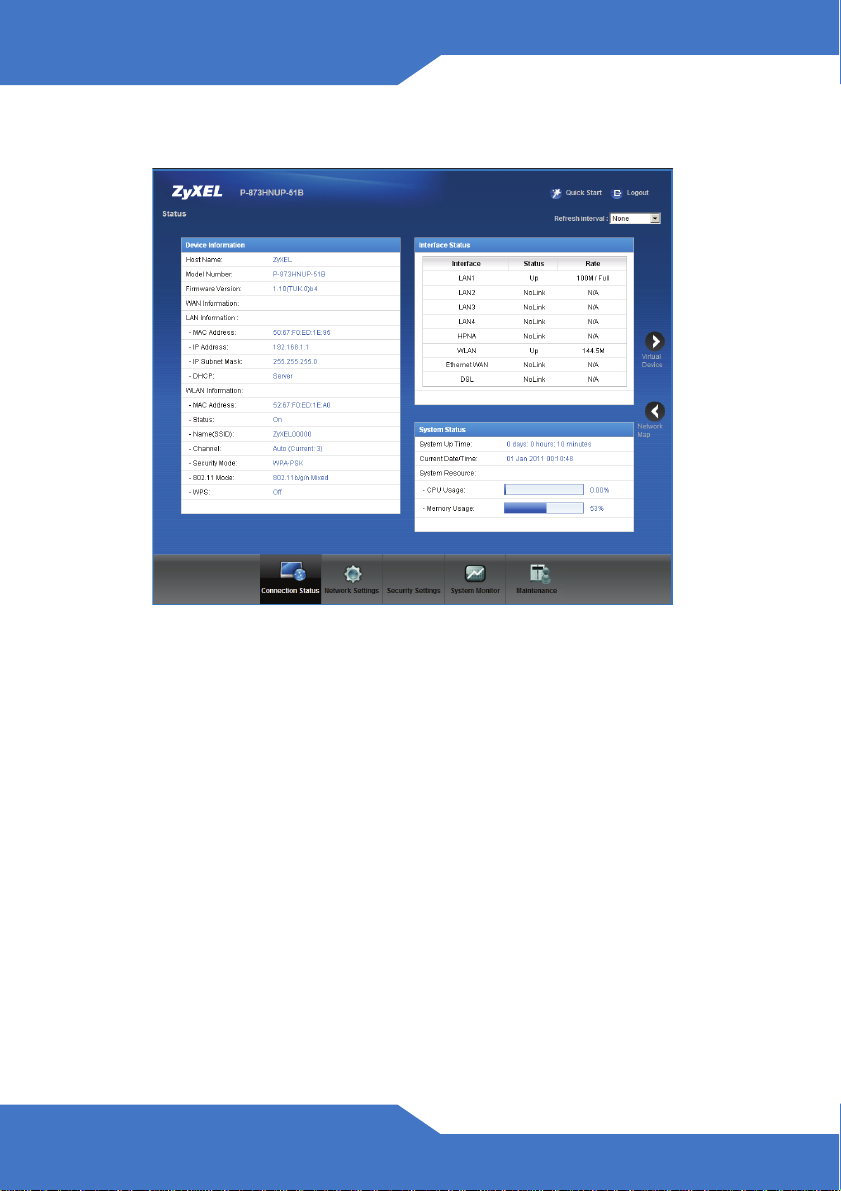

5. Click Status to display the following screen, where you can view the P-

873HNU(P)-51B’s device, interface, and system information.
