ZyXEL Communications NBG-510S Manual de usuario

NBG-510S

802.11g Wireless Remote Access Broadband

Gateway

Quick Start Guide

Version 1.00

7/2007

Edition 1

DEFAULT LOGIN

IP Address http://192.168.1.1

User Name admin

Password 1234

CONTENTS

ENGLISH 2

DEUTSCH 16

ESPAÑOL 31

FRANÇAIS 46

ITALIANO 61

РУССКИЙ 75

SVENSKA 90

ENGLISH

This guide shows you how to connect and configure the NBG-510S for shared Internet

access and wireless connectivity. It also covers how to give remote user (A) secured

access to photo files on computer (B).

See the User’s Guide on the included CD for details on all of the NBG-510S’s features.

VIf a screen does not pop-up when you insert the included CD, use Windows

Explorer (My Computer) to go to the CD-ROM (commonly drive D) and

browse for the User’s Guide.

Configuration Steps

1Initial Hardware Connections

2Access the Web Configurator

3Use the Setup Wizard

4Configure Wireless Settings

5Setup the Wireless Network

6Configure File Sharing

7Test Remote User Login

https://

Internet

NBG-510S

ENGLISH

1 Initial Hardware Connections

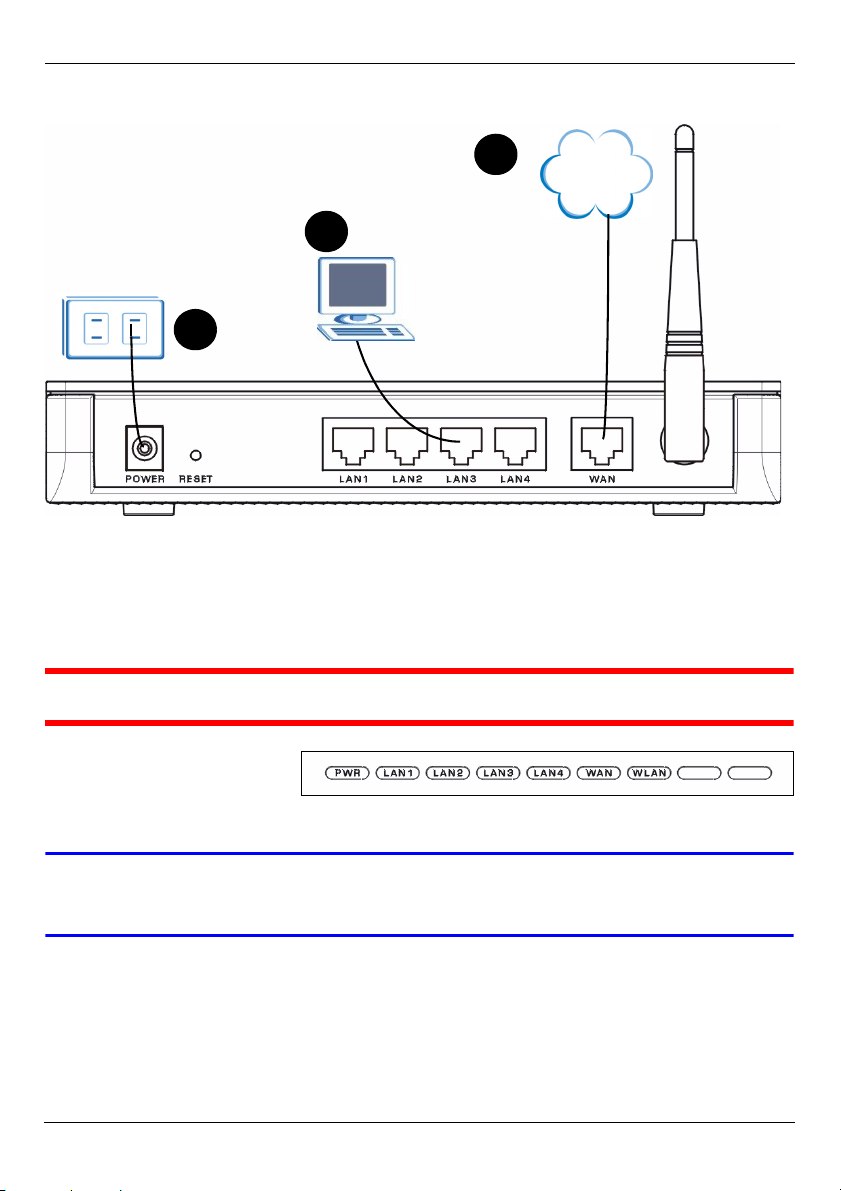

1Use the yellow (Ethernet) cable to connect the WAN port to your Internet connection

(this could be through a broadband modem or gateway).

2Use another Ethernet cable to connect a computer to a LAN port.

3Use the included power adaptor to connect the POWER socket to an appropriate power

source.

1Use ONLY the included power adaptor.

4Check the front panel

lights. PWR turns on first

followed by WAN and

LAN.

VIf no lights turn on when the power is connected, check the port

connections and make sure the power source is turned on.

2 Access the Web Configurator

1On the computer connected to a LAN port, open Internet Explorer (or see page 15 for

other supported web browser).

Internet

ENGLISH

2Enter “http://192.168.1.1”(the NBG-510S’s

default LAN IP address) and press [Enter] or

click Go.

3If nothing

appears at first,

click your

browser’srefresh

button. If you see

a security or

warning screen,

click OK or Yes

to continue.

4The login screen

displays. Enter admin as the user name and

1234 as the password and click Login. The

user name and password are case-sensitive.

• Select I am connecting via public com-

puter to have the NBG-510S automati-

cally clean your web browser cache once

you terminate the connection.

• If another certificate screen displays, click

Yes to continue.

VIf the login screen does not display,

make sure your computer is set to get a dynamic IP address. See the

Setting up Your Computer’s IP Address appendix in the User’s Guide

for details.

VIf you cannot access the web configurator using Internet Explorer in

Windows XP or Windows Server 2003, check your web browser’s security

settings (see the Pop-up Windows, JavaScripts and Java Permissions

appendix in the User’s Guide).

ENGLISH

3 Setup Wizard

Use the setup wizard to

configure the administrator

password, date and time,

MAC cloning, and Internet

access settings.

1Follow the steps to

configure the wizard

screens. Click Next > in each wizard screen to continue.

2Create a new

administrator password.

Enter a unique password

(up to 31 characters using

“0-9”, “a-z” and “A-Z”).

The password is case-

sensitive.

5Click Setup Wizard and continue with

the next section.

ENGLISH

3Select the NBG-510S’s

time zone and whether

or not you use Daylight

Saving Time. You can

select a time server

from the list or select

Custom and enter

another time server.

4If your Internet Service

Provider (ISP) checks

for your computer’s

hardware (MAC)

address, enable MAC

cloning and enter your

computer’s MAC

address.

"If you are unsure

about this, leave

it disabled.

ENGLISH

5Use DHCP client if your

ISP did not give you any

Internet access settings.

Otherwise select the

mode that your ISP uses

and enter the Internet

access settings exactly as

the ISP provided them.

6Click Next after the blue

bar is solid.

7Click Close in the final

wizard screen.

Congratulations. You have

configured the NBG-510S to

provide shared Internet

access for the computers

connected to the LAN

(Ethernet) ports. Continue

with the next section to

configure your wireless

settings.

ENGLISH

4 Configure NBG-510S Wireless Settings

2Click Network > Wireless LAN in the navigation panel.

3Configure the following.

•Name: Enter a descriptive name (up to

32 printable, English keyboard charac-

ters) for your wireless network.

•Server Type: Select WPA-PSK.

•Pre-Shared Key: Type a pre-shared key.

It is case-sensitive and you can use

spaces. Write this down to use in your

wireless clients so they can connect to

the NBG-510S.

"Write down the name and pre-

shared key to use in the wireless

clients later.

4Click Apply.

1Go to the Advanced Setup web

configurator screens. To do this, click

Advanced Setup in the screen that

displays after you login.

ENGLISH

5 Wireless Network Setup

Do the following to set up a wireless network with computers with wireless network cards

or adapters. You will need the network name and security settings that you configured in

section 4.

1Open your wireless

adapter’s utility (yours

may be different from the

one shown here).

2Select your network’s

name (SSID) and click

Connect to add your

computer to the wireless

network.

3Follow the instructions on

your wireless utility. When

finished, open an Internet browser such as Internet Explorer to surf the Internet.

For more information see the User’s Guide for a tutorial on adding a computer to your

wireless network.

6 Configure File Sharing

This example allows remote user A to securely access photo files on a computer on the

(wired or wireless) local network (see the figure on page 2). You can also share videos,

music, and other files.

6.1 Share a Windows Folder

First you need to share access to the folder of photos on your computer. In this example,

you share a folder named Birthdays.

1Click the My Documents icon on your computer’s desktop to open

Windows Explorer.

ENGLISH

2Click My Pictures. Right-click the folder you want to share and select Sharing and

Security.

3Select Share this folder on the network. Click OK.

6.2 Create A User Account

Create a user account for remote user A. Remote user A logs in using this account to

access the shared files.

1Go to the Advanced Setup web configurator screens. To do this, click Advanced Setup

in the screen that displays after you login (see page 3).

2Click User Portal > User Info and

the Add icon.
