ZyXEL Communications LTE3301 Series Manual de usuario

www.zyxel.com

LTE3301 Series

LTE Indoor Gateway

Version 1.00

Edition 1, 03/2015

Default Login Details

LAN IP Address http://192.168.1.1

User Name admin

Password 1234

Quick Start Guide

Panels

DC POWER IN

LAN

PORTS 1-4

USIM/SIM

ON/OFF

BUTTON

WLAN

ANTENNA

CONNECTOR1

ANTENNA

CONNECTOR2

POWER

ON/OFF

BUTTON

RESET

BUTTON

CARD SLOT

WPS ON/OFF

BUTTON

Requirements

Make sure you have the following before you start:

•INTERNET ACCESS: You need a SIM card from an LTE ISP

(Internet Service Provider). You may also need a PIN code, APN, or

IP address to use the SIM card.

•WEB BROWSER: Use one of the following browsers with

JavaScript enabled to access the Internet and/or access the

LTE3301’s Web Configurator:

• IE 8 and later versions

• Firefox 33.0.2 and later versions

• Chrome 38.0.2125.111 and later versions

• Opera 25.0 and later versions

• Safari 5.1.7 and later versions

Hardware Connections

Make sure the LTE3301 is off and follow the steps listed below for the

hardware connections.

1. Install the antennas.

2. SIM CARD: Insert your SIM card to the SIM card slot for the LTE

network access.

3. LAN: Use an Ethernet cable to connect a computer to one of these

ports for initial configuration and/or Internet access.

4. POWER: Use the power adaptor provided with your LTE3301 to

connect an appropriate power source to this socket.

5. Push in the power button to turn the power on.

Look at the LEDs (lights) on the front panel.

•ThePOWER light is green when the LTE3301 is receiving power

and functioning properly. It blinks when the LTE3301 is in the

process of starting up.

•TheINTERNET light is green when Internet access is available and

it is off when Internet access is unavailable. It blinks when

transmitting data.

•TheLTE light is green when the LTE3301 is connected to the LTE

network. It blinks slowly when the LTE3301 is attached to a 2G/3G

network. It blinks fast when the LTE3301 is searching for a channel.

•TheLTE SIGNAL STRENGTH light displays the LTE connection’s

signal quality. Green, orange and red colors mean different signal

quality from the best to the lowest. It blinks red light when the

LTE3301 cannot detect any LTE signal.

•TheWLAN/WPS light stays on and green when the 2.4GHz band

wireless LAN is ready. The light will not turn on if the wireless

connection is not activated. It blinks green per 0.5 seconds after you

press the WPS button. The process takes up to 2 minutes within

which you can add a WPS-enabled device to the wireless network.

See the User’s Guide for more information.

•TheLAN light stays on if a physical Ethernet connection.

If the POWER light does not turn on during start up, disconnect the LTE3301’s

power, check the connections, wait a few seconds and connect it again. If the

problem persists, you may have a hardware problem and you need to contact your

vendor.

POWER INTERNET LTE WLAN/ LAN

LTE SIGNAL

STRENGTH WPS

Set Up a Wireless Connection

The LTE3301’s wireless LAN is enabled by default. Use the wireless

SSID (network name) and encryption key on the back panel to manually

add a wireless client to the network. Refer to the User’s Guide if you

wish to use WPS (Wi-Fi Protected Setup) instead.

1. Right-click the wireless connection icon in the bottom right of your

computer monitor. Click View Available Wireless Networks.

WiFi SSID: ZyXEL_xxxx (xxxx is the last 4 digits of the

WiFi Key: xxxxxxxxxxxxx (13 random alphanumeric

MAC address)

characters.)

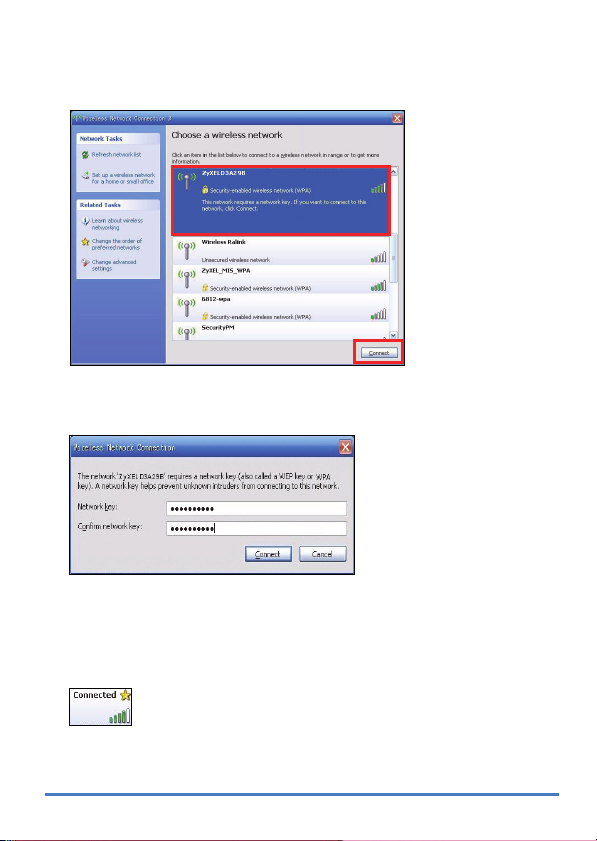

2. Select the LTE3301’s SSID name and click Connect (A). The SSID

“SecureWirelessNetwork” is given here as an example.

3. When prompted for a password, enter the (WPA2-PSK) encryption

key from the back panel of the LTE3301 and click Connect.

4. You may have to wait several moments while your computer connects

to the wireless network.

5. You should now be securely connected wirelessly to the LTE3301.

If you cannot connect wirelessly to the LTE3301, check that you selected the

correct SSID and entered the correct security key. Make sure the LTE3301’s

WLAN is enabled and the WLAN/WPS LED is on.

Connect to the Internet

1. Open your browser and go to http://192.168.1.1.

• If your service provider’s LTE login page appears instead of

your default Home page then all you need to do is enter the

screen instructions. The LTE3301 should then automatically

update itself with the settings that you need to connect to

the Internet.

• If your service provider’s LTE login page does not appear, do

the following:

2. Enter the default username “admin” and password “1234”. Click

If the login screen does not open, make sure you allow web browser pop-up

windows, JavaScript and Java permissions. Your computer should also be

set to get an IP address automatically from a DHCP server. See your User’s

Guide for more information.

1010

3. Change a new password.

4. If the INTERNET light is off, manually configure the Internet

connection. Click Configuration > Network > WAN and then the

Modify icon.

The APN identifies the LTE network to which your LTE Modem connects.

5. Check the APN string and change it if it is different than what you got

from your ISP vendor. Change other settings on this page also if

necessary. Click Apply.
