How to enter APN settings into your new ZTE MC801A Router:

1) Place your Sim Card into your device & plug your device into the mains.

Note: Please be sure to use the correct Sim card size for this device, which is a Nano-Sized Sim.

This is not the middle-sized sim (Micro), nor is it the full size (Mini). It is the smallest -sized sim of the

3 options.

Please also be sure that the Sim Card is inserted the correct way round. A small icon is shown on the

bottom of the router to show you which way round the small cut-out/notch of your sim should be

facing. We have also placed a red line on the sim image below to help show which way round the

sim cut-out/notch should be facing when inserting.

2) On the device that you wish to connect to (eg your phone/tablet/laptop etc), search for the ZTE

router under Wireless Connections/Wi-Fi. Once your device has found the ZTE router, enter the Wi-Fi

Password and click connect. The Wi-Fi Password is printed on the sticker on the bottom of the ZTE

MC801A and is called: KEY. This is not to be confused with the option on the same sticker called :

Password. (That is not for connecting devices via Wi-Fi).

Note: If for any reason the KEY does not work, please press, and hold the Reset button until all the

lights on the front of the router blink off and back on again, then try the KEYagain. (The Reset button

is located underneath the flap on the bottom of the router).

3) Now that your device is connected to the ZTE MC801A it should automatically open the ZTE

Admin Page and ask you to login. If it does not load this page automatically, please open your

browser on your phone/tablet/laptop etc and type the ZTE Web Admin page address and press

enter/go.

The web address/URL for the ZTE Admin Page is: http://192.168.0.1 and can be found on the sticker

on the bottom of your router. It will be referred to as: Device Manager Website.

4) You will then be asked to enter a password.

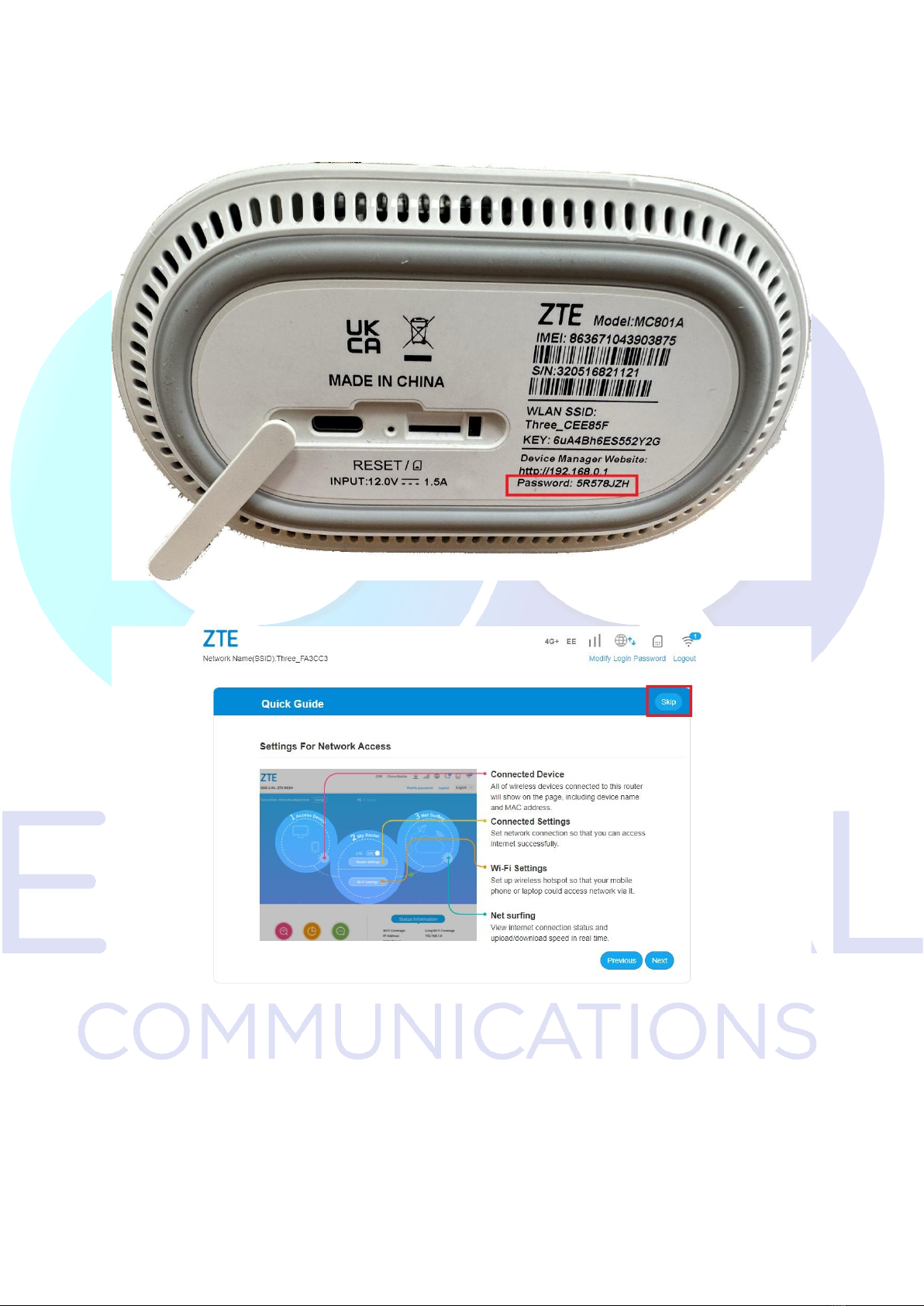

5) This Password is also found on the sticker on the bottom of the router. (Not to be confused with

the KEY as previously mentioned).

6) This first time you login you may see the following page. Click SKIP

7) From the Home Screen you will now see 3 large circles named:

a) Access device

b) My router

c) Net surfing

7) Inside of the circle named 2. My Router, click Settings

8) Click on the APN arrow

9) Next to Mode click Manual and then the blue coloured Add New tab.

10) Now enter the APN Settings for your sim card (provided by email) and click Apply.

11) You will now see a message and a green tick saying: Success

12) Click the blue coloured Set as default tab.

13) Now click on the blue coloured ZTE icon.

14) Now make sure the LTE toggle is in the ON position. You will also see a green tick between

circles 2. My router and 3. Net surfing.

15) All done 

If you have any further questions, please feel free to contact us directly:

Tel: 01707 902737

Email: help@eternalcomms.co.uk
