Zoom F3 Manual de usuario

You must read the Usage and Safety Precautions before use.

Quick Tour

The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/f3).

This page has les in PDF and HTML formats.

The PDF le format is suitable for printing on paper and reading on a computer.

The HTML le format is suitable for smartphones and tablets and can be read with web browsers.

Copying or reprinting this manual in part or in whole without permission is prohibited.

You might need this manual in the future. Always keep it in a place where you can access it easily.

The contents of this manual and the specifications of the product could be changed without notice.

Inserting microSD cards

• Supported recording media: microSDHC,

microSDXC

• Always turn the power off before inserting or

removing a microSD card.

• To remove a microSD card, push it further

into the slot and then pull it out.

Turning the power on

Power can also be supplied through

the USB (Type-C) port by connecting a

commercially-available mobile battery

or a dedicated AC adapter (AD-17).

2 AA batteries

Press and hold to turn the power on.

Making settings when rst turned on

Setting the language

Setting the date and time

Select an item, and press

to conrm.

Change the number, and press

to conrm.

After setting all the items, select “OK”

and press to complete setting

the date and time.

• If power is not supplied by an AC adapter or batteries for a long time, date and time settings will be

reset.

• If the date and time setting screen appears during startup, set them again.

Formatting microSD cards

After purchasing a new microSD card, always format it to maximize performance.

All data previously saved on a

microSD card will be deleted when it

is formatted.

Press to return to the Home

Screen.

Connecting input and output devices

Wireless

mic

Shotgun

mic

When disconnecting a mic,

pull the XLR plug while

pushing the connector lock

release button.

Wireless

mic

Adjust the headphone

volume.

Headphones Camera

Making input and recording settings

■Home Screen overview

The waveforms and settings for each input are shown on the left and right of the screen.

Waveform display

(Input 1)

Input 1 settings

Waveform display

(Input 2)

Input 2 settings

■Selecting input sources for connected equipment

An unused input will not be recorded

if “On/Off” is set to “Off”.

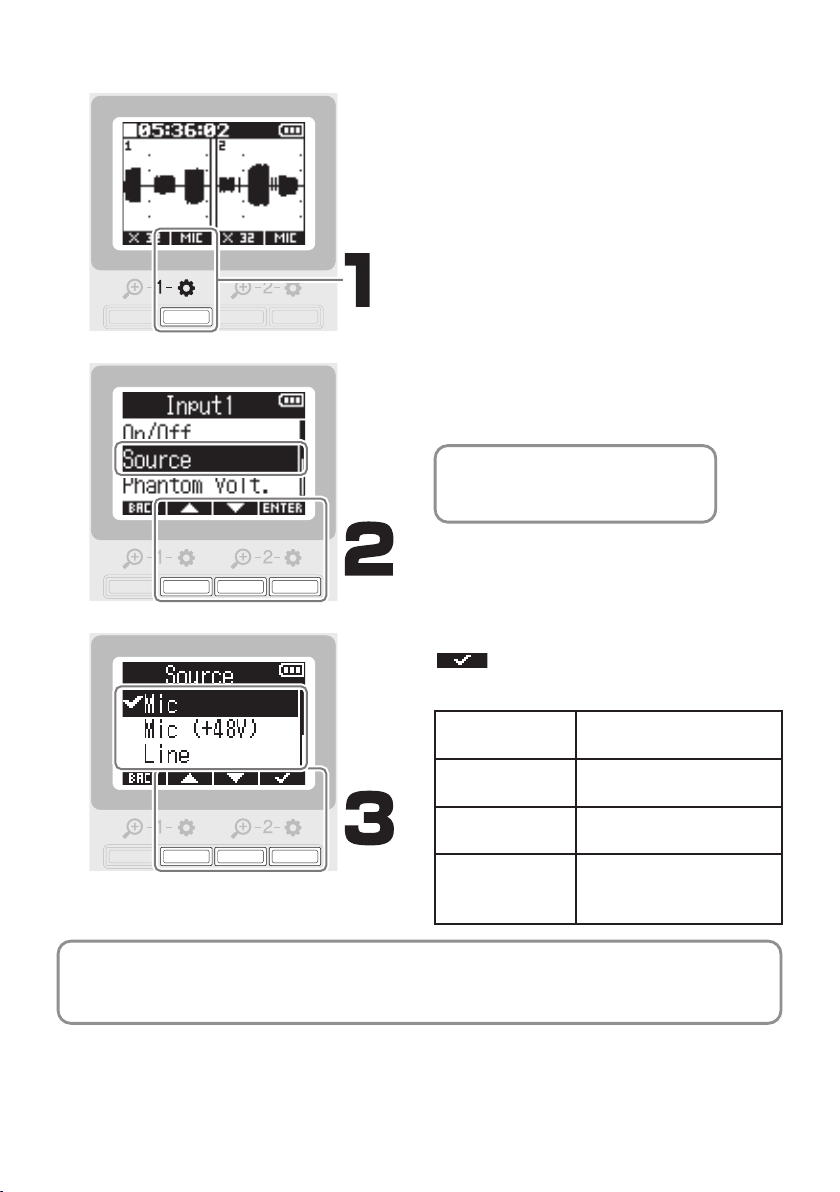

Select the input source, and press

to conrm. Set Input 2 also.

Mic Use when connecting

dynamic mics

Mic (+48V) Use when connecting

condenser mics

Line Use when connecting line

level equipment

Line (+48V)

Use when connecting

line level equipment that

requires phantom power

• Phantom power will be supplied if Mic (+48V) or Line (+48V) is selected.

• Do not supply phantom power to devices that are not compatible with it. Doing so could damage

the device.

Adjusting waveform amplication

Use to adjust the

waveform display size.

• Changing the amplication will

change the volume and be applied to

the recording data.

• Since the F3 records using 32-bit

oat WAV format, if monitored audio

sounds distorted, lowering the volume

of the recording le can restore the

waveform to a state without clipping.

Recording

• The indicator will light red.

• Slide toward HOLD when recording

to prevent misoperation.

Stop recording.

Recording can also be stopped by

sliding toward REC.

Playing recordings

■Operations during playback

Play/Pause

Stop

Select next le/

search forward

(press and hold)

Delete le

Select previous le/

search backward

(press and hold)

Check le information

Functions of parts

■Top ■Bottom

①PLAY button

This starts and pauses playback.

②STOP button

This stops recording and playback.

③MENU button

This opens the Menu Screen and returns

to the Home Screen.

④Display

This shows the recorder status and the

Menu Screen.

⑤REC/HOLD switch

Use this to start recording and to

disable button operation.

⑥REC LED

This lights during recording.

⑦1 button

This adjusts the amplication of the

Input 1 waveform.

⑧1 button

This is used when making Input 1

settings.

⑨2 button

This adjusts the amplication of the

Input 2 waveform.

⑩2 button

This is used when making Input 2

settings.

⑪Tripod mounting threads

This can be used to attach the F3 to a

tripod, for example.

⑫Battery cover

Open this when installing or removing

AA batteries.
