802.11n ireless USB Adapter

Table of Content

Chapter 1. Introduction……………………………………………………………2

1.1 Welcome…………………………………………….…………………………2

1.2 Product Feature…………………………………………………………………2

1.3 Content of Package……………….…………………….……………………2

Chapter 2. Installation…………………………………………………………………3

Chapter 3. Configuration………………………………………………………..……

3.1 Station Mode…….………………………………………………………..……

3.1.1 Link Status…….……………………………………………………..……7

3.1.2 Site Survey...………………………………………………………………7

3.1.3 Profile………………………………………………………………..…...8

3.1.3.1 Add/Edit Profile…………………………………………......……9

3.1.4 Statistics……………..……….…………………………………………10

3.1.5 WPS Setting………………........………………..………………11

3.2 AP Mode………………..…....……………………………….…………..12

3.2.1 Basic Setting…………..…………………………………………….….12

3.2.2 Security Setting……………..………………………...………..……13

3.2.3 Access Control…………..…………………………....………………14

3.2.4 About…......…..…..………….…………………………………………14

Chapter 4. How to connect with PSP………………………………………….15

4.1 Configure PSP with Ad-Hoc mode……………………………….………15

4.2 Configure Xlink Kai…………………………………………………………17

Chapter 5. Product Specifications………….........................……………….18

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

Chapter 1 Introduction

1.1 Welcome

Thank you for purchasing Zonet ZE 2545-802.11n wireless USB adapter.

ZE 2545 connects you with IEEE802.11n(Draft 2.0) networks at receiving rate

up to an incredible 150Mbps! By using the reflection signal, 802.11n's “Multiple

In, Multiple Out” (MIMO) technology increases the range and reduces “dead

spots” in the wireless coverage area.

Soft AP supported by ZE 2545 can help you establish wireless LAN networking

with lowest cost. Besides, PS ( i-Fi Protected Setup) simplify the security

setup and management of i-Fi networks. Supports MM for Multimedia

Applications with Quality of Service in i-Fi® Networks. Especially supporting

PS3, PSP, Nintendo DS and ii connections with Xlink Kai will be your best choice

to enjoy on-line gaming.

1.2 Product Feature

Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g and IEEE 802.11b

standards

Provides USB2.0 port

Provides 150Mbps receiving rate and 150Mbps sending rate

Supports 20MHz/40MHz frequency width

Auto-

detects and changes the network transmission rate

Provides two work modes: Infrastructure and Ad-Hoc

Supports Soft AP to establish your wireless LAN networking

supports PS3, PSP, ii and Nintendo DS connecting with Internet and

Xlink Kai to enjoy on-line gaming

Supports 64/128-bit EP, PA, PA2 encryption methods and 802.1x

security authentication standard

PS ( i-Fi Protected Setup) simplify the security setup and management

of i-Fi networks.

Supports MM for Multimedia Applications with Quality of Service in

i-Fi® Networks

1.3 Contents of Package

One ZE 2545

One Installation CD w/User Manual

One Quick Installation Guide

Contact your local authorized reseller or the store purchased from for any items

damaged and/or missing.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

Chapter 2 Installation

NOTE:

Snap-shot screens of the following installation procedure are based on Windows

XP. Installation procedures will be similar for other windows operating systems.

1. Insert ZE 2545 into a USB slot of your computer.

2. Select Cancel when “Found New Hardware” window appears.

3. Insert Installation CD to your CD-ROM drive. B

owse CD and double-click

setup.exe

in Driver folder to execute it. The wizard will run and install all

necessary files to your computer automatically.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

4. Click

to start installation.

5. Click Change… to select the path, or click Next to continue.

All manuals and user guides at all-guides.com

all-guides.com

802.11n ireless USB Adapter

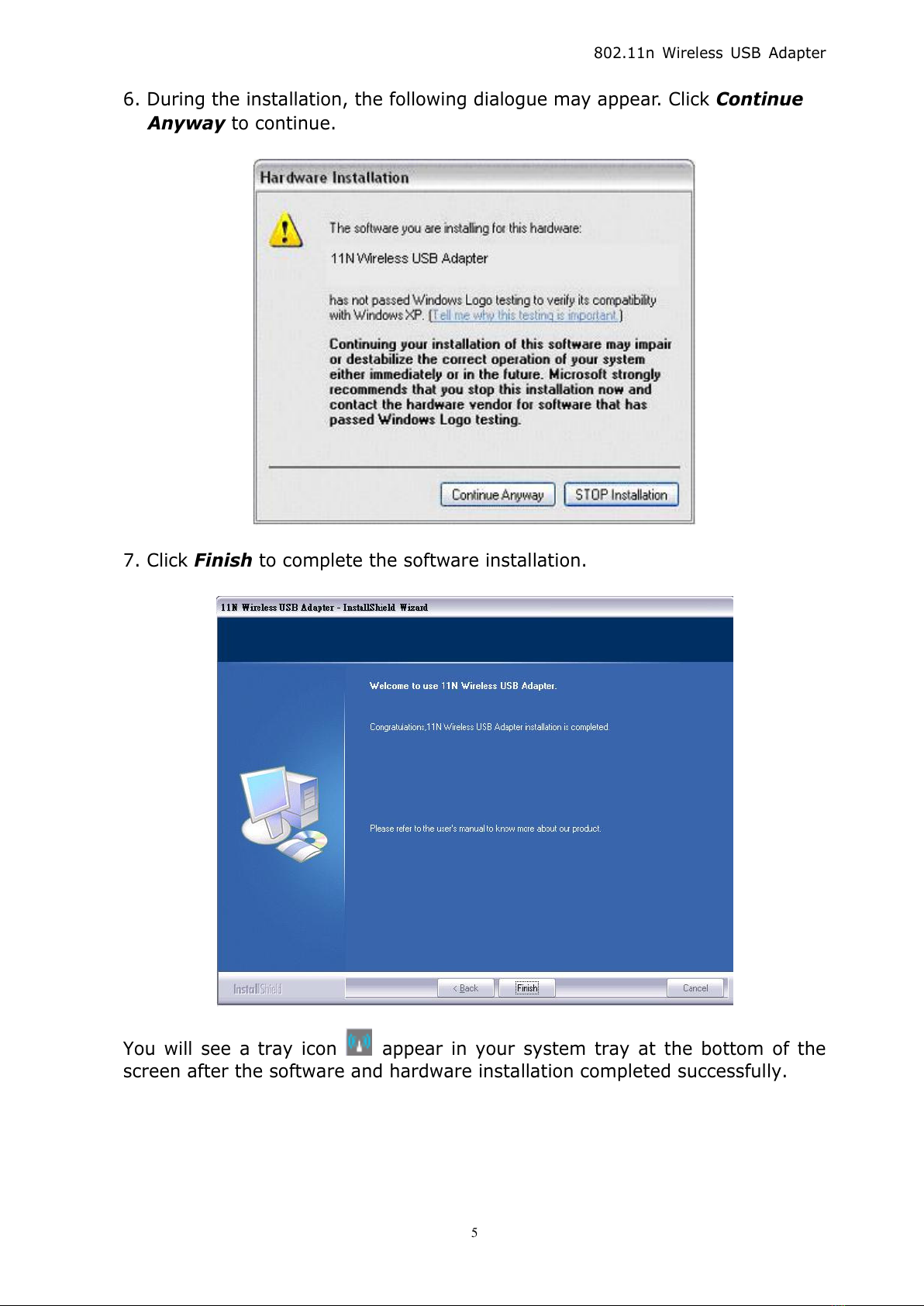

6. During the installation, the following dialogue may appear. Click Continue

Anyway to continue.

7. Click Finish to complete the software installation.

You will see a tray icon appear in your system tray at the bottom of the

screen after the software and hardware installation completed successfully.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

Chapter 3 Configuration

Double-click the tray icon to launch the configuration utility.

3.1 Station Mode

Station Mode is the default access mode for ZE 2545.

In this mode, ZE 2545 serves as a client to receive the wireless signals to access

the Internet.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

3.1.1 Status

Status tab shows detail information about the current connection.

3.1.2 Site Survey

Under Site Survey tab, you will know information of all surrounding wireless

networks from the last scan.

Click

Refresh

to update and refresh.

All manuals and user guides at all-guides.com

802.11n ireless USB Adapter

3.1.3 Profile

Profile can keep your favorite wireless setting among your home, office, and

other public hotspot. You may save multiple profiles and activate the one at your

preference.



Connect:

to make an existing profile become active and to connect



New:

to create a new profile



Modify:

to edit/modify/change parameter of an existing profile



Delete:

to delete an existing profile

All manuals and user guides at all-guides.com
