ZMODO Pan and Tilt Camera Manual de usuario

Pan & Tilt Camera

Quick Start Guide

Conn ect with

Camera

Light Sensor

Microphone

LED Light Indicator

PIR Motion Sensor

Speaker

Power Port

What’s in the box :

PT Camer a

Quick S ta rt G ui de

Connect with

Quick Start Guide

Power Adapter

PT Camera

Door / Window

Sensors

1Getting to know your Camera

Make sure that you have a strong WiFi connection at the

location of your camera. Visit www.zmodo.com/support

for advice on improving your WiFi signal range.

Download and install the “Zmodo” app from Google

TM M ®

Play or the App StoreT (compatibility: iOS 9.0+ or

Android 4.0+). Launch the app and sign up for a free

Zmodo account. All of your devices will be bound to this

account.

We are constantly working to improve our product and app. Please visit

www.zmodo.com/support for updated instructions, manuals, and more.

This quick start guide will help you configure your PT

Camera for initial use. For detailed instructions and

troubleshooting, please visit:

www.zmodo.com/support

Before you begin:

Mobile Setup

Power on your PT camera with the supplied power adapter.

Make sure you know the SSID (WiFi network name) and

password of the 2.4GHz WPA-PSK/WPA2-PSK WiFi

network that you want your camera to connect to. Your

network cannot be hidden.

Zmodo

Make sure your network has at least 2Mbps upload speed

to view and 4Mbps upload speed when using the Zmodo

Cloud Service for each camera.

Select the “Zink” connection method

to connect your PT camera. Your PT

camera will be added to your Zmodo

account.

Connect with

Beam

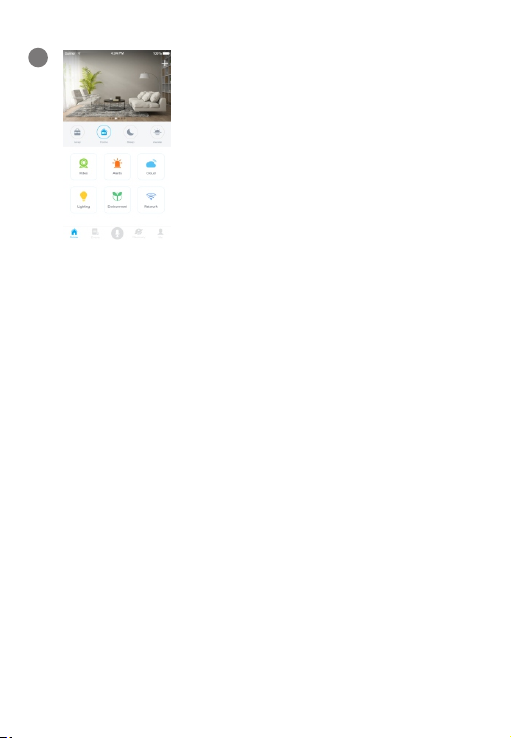

right corner. Select "Add Device".

This device can be set up with a Zmodo Beam. If you own a

Beam, please follow the instructions in your Beam quick guide to

connect your device instead.

5Select the network named “ZMD_SAP”

and connect to it.

Note: If you see a "No Internet Connection" error

message, please ignore it and connect anyway.

Follow the on-screen instructions and

select “Tap here to begin setup” to go

to the WiFi settings page on your

smartphone.

Note: If you are using an iOS device, you will need to

manually go to the WiFi settings page on your

smartphone.

3Tap to proceed (If you’re setting

up multiple PT cameras at once, tap

to add additional units).

√

7If you see this screen, the app will

connect your PT camera to your WiFi

network. This may take a few minutes.

Once it’s completed, please skip to

step 11.

If you do not see this screen, please

proceed to step 8.

Note: If you are connecting multiple devices, you

will need to wait for the app to find and connect all

devices.

8If this app interface appears, please

press “Tap here to select WiFi”.

Note: If you are using an iOS device, you will need to

manually go to the WiFi settings page on your

smartphone.

Return to the Zmodo app page and

select or enter the SSID and password

of the WiFi network that you want your

PT camera to connect to.

Note: The WiFi name and password are case-

sensitive.

Tap to proceed.

√

9Select the WiFi network that your PT

camera will connect to, and connect to

it. Return to the Zmodo app once your

mobile device is connected to the WiFi

network.

10 The app will automatically search for

your PT camera and connect it to the

WiFi network. This may take a few

minutes.

Note: If you are connecting multiple devices, you

will need to wait for the app to find and connect

all devices.

11 Name your PT camera and set a

password for it. Tap to proceed.

√

Note: The password provides an additional layer

of security for your devices. You will not need to

use this password when accessing your devices

from the Zmodo app. It is not required, but it is

highly recommended.

Your PT camera has been successfully

configured! You can now share or view

your PT camera.

Remove the film to expose the adhesive on the bracket,

and install sensors as shown below. Please make sure

that the two portions of the sensor are no more than

2cm apart when closed.

Window Sensor

Position

Connect your door / window sensors

Tap the gear icon in the upper right corner to access

your PT camera's Device Settings, and select the

"Accessories" option. Select the icon to add an +

accessory. Remove the plastic tab from your sensor,

and follow the in-app instructions to complete pairing.

Monitor your doors and windows

When a door or window is opened, your PT camera

can automatically turn to see what happened and alert

you. Follow the instructions to configure your door /

window sensor and set a preset location for your PT

camera to turn to whenever a sensor is triggered.

Door Sensor

Position

Make the Preset Settings

When the door / window sensor has been successfully

added, tap the gear icon in the upper right corner to

access your PT camera's Device Settings, select the

"Preset Setting" page and press the option.+

Select the door / window sensor that you want to

configure. Using the preview image, rotate the PT

camera to the desired position, and complete the rest of

the steps. Name the preset, and press "Save" to save

the settings.
