ZKTeco ZK-LPR Car ID Manual de usuario
ZKTeco
ZK-LPR Car ID
User Manual
User Manual - ZK-LPR Car ID
Page 2 of 79
Index
History:..............................................................................................................................3
1. Overview ................................................................................................................4
2. Installation Requirements......................................................................................5
2.1. Camera requirements........................................................................................................5
2.2. Storage requirement .........................................................................................................6
2.3. License Plate Character size...............................................................................................7
2.4. Camera Positioning............................................................................................................8
3. Access to ZKTeco....................................................................................................9
3.1. First access (selection country)..........................................................................................9
4. Web View.............................................................................................................11
4.1. Tab ...................................................................................................................................11
4.2. Live Tab............................................................................................................................12
4.3. Review Tab.......................................................................................................................16
4.4. List Tab.............................................................................................................................19
4.4.1 Configure Milestone...........................................................................................................48
4.5. SETUP...............................................................................................................................49
4.6. Evidence...........................................................................................................................56
4.7. LPR MAIN .........................................................................................................................57
4.8. Audit Tab..........................................................................................................................61
4.9. DEBUG..............................................................................................................................64
5. Camera list synchronization.................................................................................65
5.1. Architecture 1 ..................................................................................................................65
5.1.1. Master configuration.......................................................................................................65
5.1.2. Slave configuration ..........................................................................................................66
5.2. Architecture 2 ..................................................................................................................68
5.2.1. Master configuration.......................................................................................................68
5.2.2. Slave configuration ..........................................................................................................70
6Troubleshooting...................................................................................................72
6.1 Mode: NO LICENSE ...................................................................................................................72
6.2 Mode: STOPPED........................................................................................................................72
6.3 Not enough space at Camera or SD..........................................................................................73
6.4 The system does not recognize license plates .........................................................................73
6.5 Problem with ACTIONS .............................................................................................................74
6.5.1 Socket client .......................................................................................................................76
6.5.2 Socket server / Trigger server ............................................................................................77
6.5.3 IO ........................................................................................................................................77
6.5.4 FTP......................................................................................................................................78
6.5.5 HTTP/MILESTONE/WIEGAND.............................................................................................79
6.5.5 MILESTONE.........................................................................................................................79
User Manual - ZK-LPR Car ID
Page 3 of 79
History:
Date
Creator
Details
11.03.2020
Luis Rodríguez
Initial Document
16.03.2020
Samuel Muñoz
Audit
User Manual - ZK-LPR Car ID
Page 4 of 79
1.Overview
ZKTeco is a powerful LPR application developed, embedded in the cameras.
ZKTeco is the all in one product to plug and play, ready to read plates just out of the box.
It Includes an interface web application that allows you to manage different scenarios, avoiding
extra hardware and software installations.
User Manual - ZK-LPR Car ID
Page 5 of 79
2.Installation Requirements
2.1. Camera requirements
LPR ZK Camera support a 64GB Micro SD recommended quality Q10
The micro SD should be formatted in EXT4 format.
List of compatible cameras:
•BL-852Q38A –LP
•DL-852Q28B-LP
Minimum firmware XXXX
General compatibility: Cameras with processor Hisilicon Hi3519 and Linux System
User Manual - ZK-LPR Car ID
Page 6 of 79
2.2. Storage requirement
The preset values suppose a 40% of JPEG compression (default system value)
In the following table we can find estimation of size requirements:
Size/Registers
1
1000
5000
10000
100000
640x480
13KB
12.7 MB
63.5 MB
127 MB
1.24 GB
800x600
20KB
19.5 MB
97.7 MB
195.3 MB
1.9 GB
1280x720
25KB
24.4 MB
122 MB
244.14 MB
2.38 GB
1600x904
70KB
68.35 MB
341.8 MB
683.6 MB
6.68 GB
1920x1080
110KB
107.4 MB
537,1 MB
1.05 GB
10.5 GB
Estimation with an affluence of 100 cars per day.
Size/GB
2
8
16
32
64
640x480
4.4 years
17.6 years
30.53 years
70 years
140 years
800x600
2.8 years
11.5 years
20.3 years
40.5 years
90 years
1280x720
2.27 years
9.1 years
10.8 years
30.7 years
70.3 years
1600x904
290 days
3.2 years
6.5 years
10.3 years
20.6 years
1920x1080
190 days
2 years
4.16 years
8.3 years
10.6 years
Estimation with an affluence of 1000 cars per day.
Size/GB
2
8
16
32
64
640x480
161 days
645 days
3.53 years
7 years
14 years
800x600
105 days
420 days
2.3 years
4.5 years
9 years
1280x720
83 days
335 days
1.8 years
3.7 years
7.3 years
1600x904
29 days
119 days
239 days
1.3 years
2.6 years
1920x1080
19 days
76 days
152 days
305 days
1.6 years
Estimation with an affluence of 10000 cars per day.
Size/GB
2
8
16
32
64
640x480
16 days
64 days
128 days
256 days
512 days
800x600
10 days
42 days
84 days
168 days
336 days
1280x720
8 days
33 days
66 days
132 days
264 days
1600x904
2 days
11 days
23 days
46 days
92 days
1920x1080
1 days
7 days
15 days
30 days
60 days
User Manual - ZK-LPR Car ID
Page 7 of 79
2.3. License Plate Character size
Characters in license plates must have an average height between 20 to 80 pixels, being 25 pixels a good
reference value. Less resolution may lead character confusion in some countries. In addition, camera
sensitivity affects too. For countries in which there are different character sizes on their license plates, this
fact must be kept in mind, so the small characters are included in the detection range.
User Manual - ZK-LPR Car ID
Page 8 of 79
2.4. Camera Positioning
Recommended vertical angles are approximately 20o. The maximum recommended value is 35o.
Recommended horizontal angles are approximately 20o. The maximum recommended value is 35o.
The angle between the plates and the X axis of the scene must be inferior to 25o.
Recommended Parametrization
It should be mentioned that the following recommendations and specifications, are general and may vary
depending on the brand and model of the selected camera and the country they are to be installed.
Common Scenario
Common scenario: 1 lane
Sensor size: VGA o 1 MP
Height of camera on pole: 1 - 1.5 metros
User Manual - ZK-LPR Car ID
Page 9 of 79
3.Access to ZKTeco
3.1. First access (selection country)

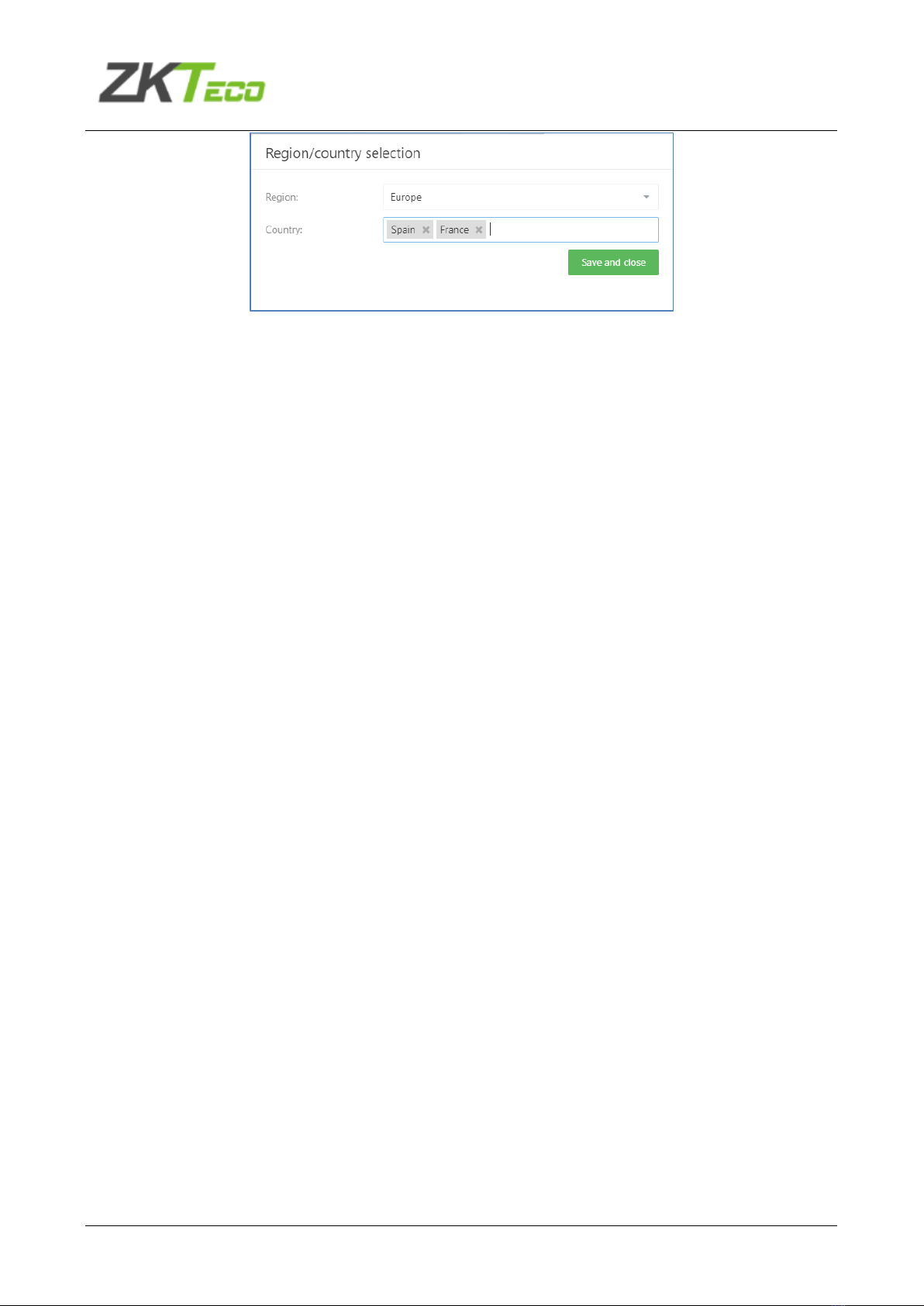

Upon the first access to the web ZKTeco the system will ask us for the region and country.
The country selection is mandatory to define the country(s) of license plate to read.
First select the Region:
Now select the countries in the region. Multiple selection is available.
