ZKTeco PL10D Manual de usuario

Installation Instruction

Version: 1.0

Date: Nov., 2014

PL10D/ML10D

Before Installation

Diagram

64mm 7 2mm

35mm 40mm

30mm 35mm

Mounting Hardware Package Mounting Hardware Package

39-46mm door thickness 47-54mm door thickness

Packing List

Door Preparation

Note: The standard lock includes 2 mounting hardware package only, which is used for the door

thickness of 39-46mm and 47-54 mm separately.

Note: Please refer the above picture to adjust the direction of strike plate F and latch D.

1. Check door thickness and prepare the mounting hardware

package.

2. Check door open direction.

30~38 56 20 10 25

39~46 64 30 10 35

47~54 72 35 10 40

55~60 80 45 10 50

H Spindle Length

(mm)

J Screw Length

(mm)

M Screw Length

(mm)

L Screw Length

(mm)

Door Thickness

(mm)

Left inward Right inward

Left outward Right outward

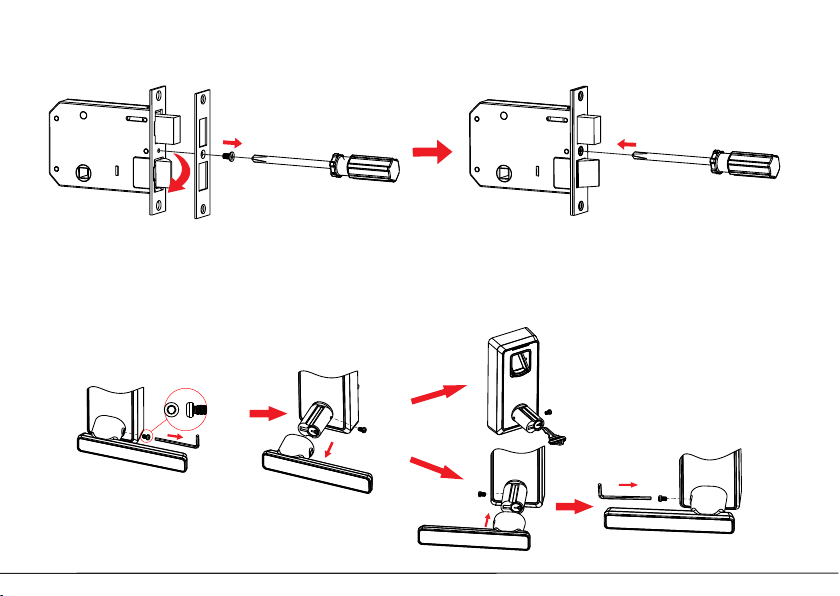

3. Change Latch (D) Direction.

Fix the latch trim panel by using screw.

Remove screw from the latch trim panel with a

screwdriver and rotate the latch bolt at 180°.

Hexagon Screw

How To Use Mechanical Key And Change Handle Direction?

Cautions

1. New lock is configured to grant ANY fingerprint access to unlock.

2. The lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the

package and keep them in a safe place.

3. To power on the lock, four alkaline AA batteries (not included) are required. Non-alkaline and

rechargeable batteries ARE NOT RECOMMENDED.

4. Please avoid strong light direct to the fingerprint holder, otherwise the infrared sensor might be

disturbed.

5. The operation of setting lock has a stand-by time limit of 10 seconds; Without any activity, lock will shut

off after 10 seconds.

6. Keep your fingers clean when using this lock.

Note1: Align the template along the vertical center line of

the latch(D) at the desired handle height, and tape it

to the door.

Note2: Mark the holes first, then star t drilling.

1.Drilling holes on the door. 2.Install the latch (D).

center line of the

handle

desired handle

height

Installation

70mm

Correct Position: T he small triangle

must be vertically upward.

This position is W rong !

3.Install outdoor unit(B) with gasket(C) and spindle(H) on the

door.

4.Install mounting plate (I) with gasket (C) on the door.

5.Install indoor unit (K).

Note : Push cable into the hole .

6.Install the battery.

7.Mark and drill holes for strike.

8. Testing the lock by rotating back handle and using mechanical

key(A).

Note :

1) W hen the door is locked, the clutch is in idle position, the front handle will be

turned. However, the door will remain locked.

2) At home, turn the handle upward to lock the deadbolt for more security. W hen

you go out, verify your fingerprint first, then turn the handle up to lock the

door for the safety of your property.

28.5mm

[1 1/8"]

[4 19/64"]

21mm

[53/64"]

18mm

[45/64"]

18mm

[45/64"]

22mm

[55/64"]

3.5mm

[9/64"]

13mm

[33/64"]

109mm
