INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to for

proper hook-

up of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your setup. First, find the line

below that best describes what you want to do, then go to that page number.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

206-3369-A

INSTALLATION STANDARDPAGE 4

Connect an

antenna

to your

Entertainment

Machine.

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an

inch long with two screws on one end and a round opening with a wire sticking out on the other end.

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

Cable

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter is not

included with your Zenith

Entertainment Machine.

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Flat wire antenna to TV

Antenna to TV Coaxial wire

206-3369-A

INSTALLATION STANDARD PAGE 5

Connect

cable to your

Entertainment

Machine.

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

If you’re using a cable box, leave your TV on chan-

nel 3 or 4 and use your cable box to change chan-

nels.

Remember, when screwing RF cables onto jacks,

clockwise tightens, and counterclockwise loosens.

If you’re using a cable box, Auto- Program might

only find the channel your cable service is on (usu-

ally channel 3 or 4). Don’t worry, that’s all you

need!

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Cable to TV

Cable with Cable Box to TV

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3369-A

INSTALLATION STANDARDPAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Antenna and VCR to the TV

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Out Audio

Video

3 4

VCR back

VCR back AV panel

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300ohm)

Antenna

300/75 ohm

Adapter

RF coaxial wire (75 ohm)

not included with TV

Antenna

RF coaxial wire (75ohm)

not included with TV

RF coaxial wire (75 ohm)

not included with TV

Output

switch

Output

switch

back of remote

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

No A/V cables are included

with your Zenith Entertainment

Machine.

Without A/V cables, most VCRs will

not play videocassettes in stereo

sound.

Flat wire Antenna to TV with VCR

Coaxial wire Antenna to TV with VCR

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3369-A

INSTALLATION STANDARD PAGE 7

Connect

your VCR and

Cable to your

Entertainment

Machine.

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included with

your Zenith Entertainment

Machine. Without A/V cables, most

VCRs will not play videocassettes

in stereo sound.

Cable TV

wall jack

Cable TV

wall jack

RF coaxial cable (75ohm)

Cable box

Out

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Out Audio

Video

3 4

VCR back

VCR back AV panel

TV back panel

(expanded view)

Antenna

Cable

TV back

RF coaxial cable (75ohm)

not included with TV

RFcoaxial cable (75ohm)

not included with TV

output

switch

3 4

output

switch

output

switch

back of remote

Cable with Cable

Box to TV with

VCR

Cable to TV with VCR

206-3369-A

INSTALLATION QUICK STARTPAGE 8

Use Auto

Program to

automatically

find and

store all of

the stations

available in

your area.

Auto Program

With the remote control in hand,

press the POWER key to turn on

your Entertainment Machine.

Press the MENU key so the Setup

menu appears.

Using the UP/DOWN arrows on

the remote control, select Auto

Program on your screen.

Press a RIGHT or LEFT arrow to

reach the Auto Program screen.

Using the UP/DOWN arrows,

choose either Cable TV or Off-Air

Antenna on your screen.

Press a RIGHT or LEFT arrow to

begin Auto Program.

Press ENTER to return to

TV viewing.

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

3/5

4/6

Mini glossary

AUTO PROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them into memory.

206-3369-A

OPERATION BUTTON FUNCTIONS PAGE 9

A quick list

of all the

buttons on

your remote

and what

they do.

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

Power

Turns controlled

device on and off.

Timer

Displays Sleep Timer

menu. See “Timer

Setup” on page 15 for

more information.

Selects closed captions.

Flashback

Returns to last channel

viewed.

Mute

Turns sound off and on.

Volume(Up/Down)

Adjusts the sound on

your Entertainment

Machine.

Channel(Up/Down)

Cycles through available

channels.

Number Key Pad

Use for direct channel

entry or for on-screen

programming.

Enter

Displays current TV

channel and time, removes

on-screen menus. Press

after channel numbers for

instant selection.

Displays on-screen

menus available.

Select Up/Down Arrows

Selects on–screen

menu options.

Adj Left/Right Arrows

Adjust on-screen

menu options.

remote control part number

SC3492

The Buttons on Your Remote

206-3369-A

OPERATION BUTTON FUNCTIONSPAGE 10

How to use

your six-

button panel

to operate

the menus.

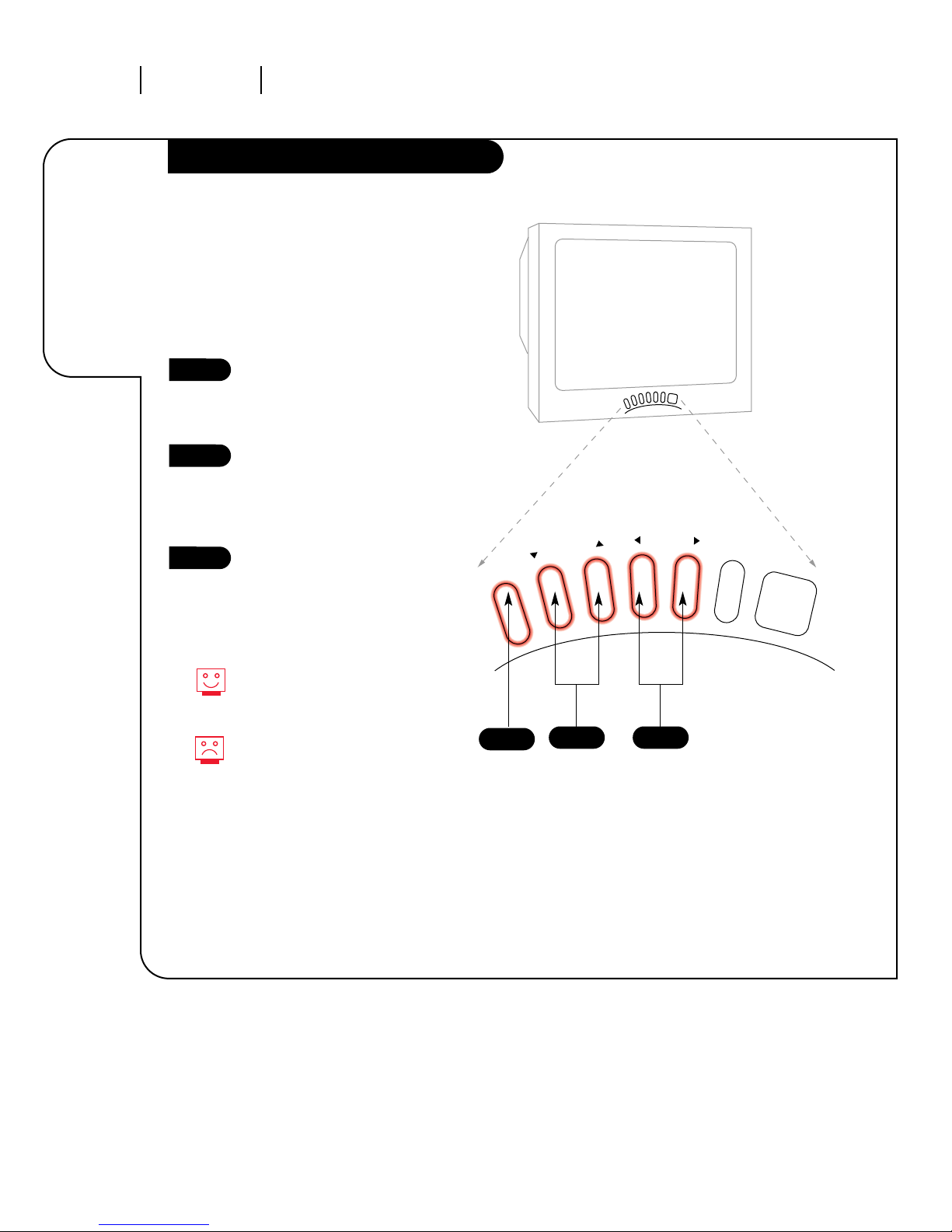

Front Panel Diagram

POWER

VOLUME

CHANNEL

To access the Setup menus, press

the MENU button once; to get the

Video menus, press the MENU

button twice.

Choose the function you wish to

change using the CHANNEL

UP/DOWN buttons. The Channel

buttons act as a “select”

(Up/Down) function.

The VOLUME buttons act as an

“adjustment” (Left/Right) func-

tion. Use the VOLUME buttons to

make changes or adjustments.

Menus disappear after five seconds.

To get them back, push the MENU

button again.

You’ll want to get a new remote;

call 1-800-255-6790 to purchase a

replacement.

132

When using the on-screen menus, the buttons on

the front panel correspond to the remote control

buttons as follows:

VOLUME = Adjust Left/Right

CHANNEL = Select Up/Down

Otros manuales para A19A02D

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Zenith

Zenith

Zenith Presentation H27E46DT Manual de operación y mantenimiento

Zenith

Zenith H27F56DT Guía de instalación

Zenith

Zenith P42W46X - 42" Flat Panel Plasma ED-Ready TV Guía de instalación

Zenith

Zenith SENTRY 2 SL2518RK Manual de operación y mantenimiento

Zenith

Zenith PVR5269 Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SLS8549Y5 Manual de operación y mantenimiento

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SR1941 Manual de operación y mantenimiento

Zenith

Zenith Z36H32 Manual de operación y mantenimiento

Zenith

Zenith Concierge H20C35DT Manual de operación y mantenimiento

Zenith

Zenith ZLD15A1 Manual de operación y mantenimiento

Zenith

Zenith Sentry 2 Series Manual de operación y mantenimiento

Zenith

Zenith A27B41 Manual de usuario

Zenith

Zenith SL3583ST8 Manual de operación y mantenimiento

Zenith

Zenith B09A02X Manual de operación y mantenimiento

Zenith

Zenith A2221YI Instrucciones de instalación

Zenith

Zenith Presentation H25E46DT Manual de operación y mantenimiento

Zenith

Zenith A25B33W Manual de usuario

Zenith

Zenith Concierge H27D35DT Guía de solución de problemas

Zenith

Zenith L23W36 - 23" Widescreen Flat-Panel HD-Ready LCD... Manual de usuario

Zenith

Zenith Direct-View Concierge H27H38DT Manual de usuario

Zenith

Zenith H2546DT Manual de operación y mantenimiento

Zenith

Zenith SENTRY 2 SLS1931S Manual de operación y mantenimiento

Zenith

Zenith Presentation H27E44DT Guía de solución de problemas

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
