Zenith A25B33W Manual de usuario

machine numbers A25B33 A27B33

operating guide / warranty

Thanks for

choosing Zenith!

hookup directory

index

your on-screen menus

page47

page 16

page 3

RECORD YOUR MODEL NUMBER

(Now, while you can see it)

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that your record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, Match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

3374-O

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to for

proper hook-

up of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your setup. First, find the line

below that best describes what you want to do, then go to that page number.

Note: Design and specifications are subject to change without prior notification.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

Other If you have a Super VHS VCR, DVD Player, or Audio equipment, go to . . . . . . . . . . . .pages 8-9

Hook up your Entertainment

Machine, see diagrams at right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 10 to Auto Program

your Entertainment Machine.

3374-O

INSTALLATION STANDARDPAGE 4

Connect an

antenna

to your

Entertainment

Machine.

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an

inch long with two screws on one end and a round opening with a wire sticking out on the other end.

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

Antenna

/ Cable

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

/ Cable

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter is not

included with your Zenith

Entertainment Machine.

back of

remote

Hook up your Entertainment

Machine, see diagrams at right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 10 to Auto Program

your Entertainment Machine.

3374-O

INSTALLATION STANDARD PAGE 5

Connect

cable to your

Entertainment

Machine.

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

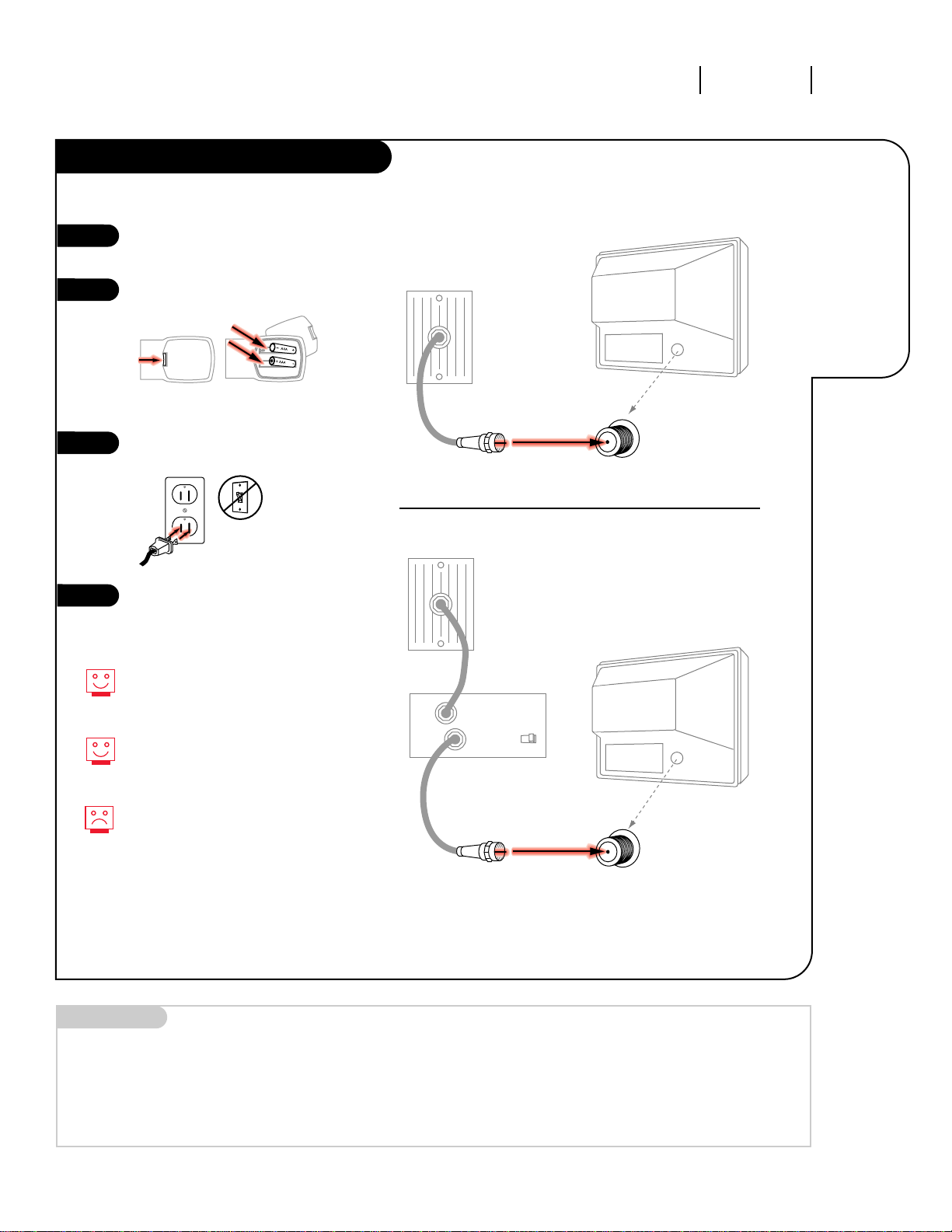

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

Antenna

/ Cable

TV back

TV back panel

(expanded view)

Antenna

/ Cable

TV back

If you’re using a cable box, leave your

TV on channel 3 or 4 and use your

cable box to change channels.

Remember, when screwing RF cables

onto jacks, clockwise tightens, and

counterclockwise loosens.

If you’re using a cable box, Auto-

Program (page 10) might only find the

channel your cable service is on

(usually channel 3 or 4). Don’t worry,

that’s all you need!

back of

remote

(Without Cable Box)

(With Cable Box)

3374-O

INSTALLATION STANDARDPAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Antenna and VCR to the TV

TV back panel

(expanded view)

TV back RF coaxial wire

(75ohm)

not included

with TV

Out Audio

R-L Out Video

Out

3 4

VCR back

VCR back AV panel

Out

3 4

VCR back

VCR back AV panel

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

Round wire (75ohm)

Antenna

output

switch

output

switch

A/V cables

not included

with TV

A/V cables

not included

with TV

TV back panel

(expanded view)

TV back RF coaxial wire

(75ohm)

not included

with TV

Audio

R-L Out Video

Out

back of

remote

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

Use video sources for better pic-

ture and sound.

Without A/V cables, VCRs will not

play videocassettes in stereo

sound.

Hook up your Entertainment

Machine, see diagrams at right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 10 to Auto Program

your Entertainment Machine.

(VCR with Round Antenna Wire)

(VCR with Flat Wire Antenna Adapter)

3374-O

INSTALLATION STANDARD PAGE 7

Connect

your VCR and

Cable to your

Entertainment

Machine.

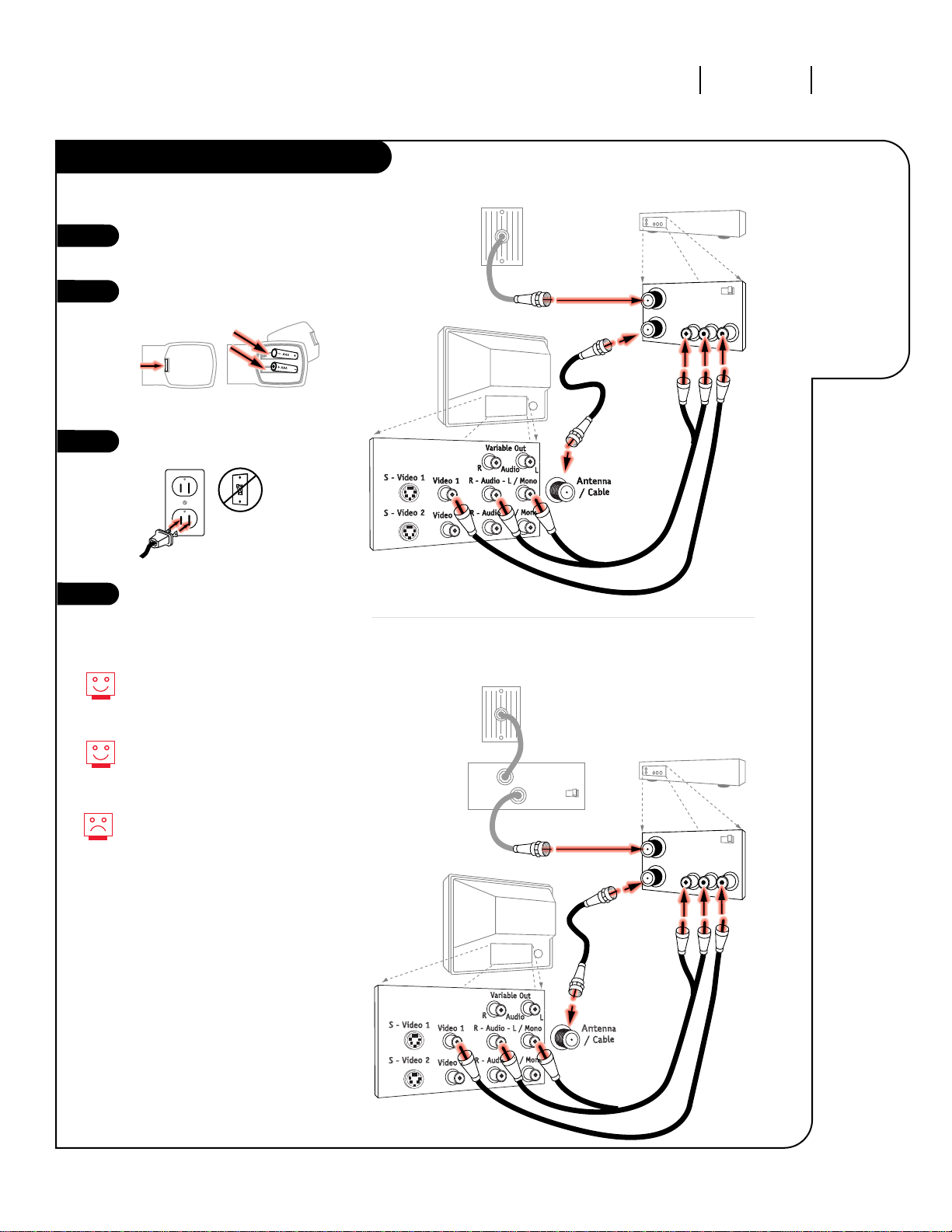

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included with

your Zenith Entertainment

Machine. Without A/V cables, most

VCRs will not play videocassettes

in stereo sound.

TV back panel

(expanded view)

TV back RF coaxial wire

(75ohm)

not included

with TV

TV back panel

(expanded view)

TV back RF coaxial wire

(75ohm)

not included

with TV

Cable TV

wall jack

Cable TV

wall jack

Round wire (75ohm)

Cable box

Out

3 4

VCR back

VCR back AV panel

Out

3 4

VCR back

VCR back AV panel

A/V cables

not included

with TV

output

switch

output

switch

3 4

output

switch

A/V cables

not included

with TV

Audio

R-L Out Video

Out

Audio

R-L Out Video

Out

back of

remote

Hook up your Entertainment

Machine, see diagrams at right.

Remove the back of the remote

and put in two AAA batteries.

Plug in your TV. Do not plug it

into a switched outlet.

Go to page 10 to Auto Program

your Entertainment Machine.

(Without Cable Box)

(With Cable Box)

INSTALLATION S-VHS VCR/DVD PLAYER

DVD* Player

Simply connect the S-Video/Audio out on

the DVD to the S-VHS 1, R-L Audio or

S-VHS 2, R-L Audio In on the TV.

3374-O

PAGE 8

Super VHS VCR/DVD Player

3374-O

Locate the Ant In jack on the

back of your S-VHS VCR.

Connect the cable line coming

from your wall directly to

this jack.

Now locate the Out to TV

jack. Connect a cable from

the Out to TV jack to the

Antenna/Cable jack on

the back of your TV.

Find the audio and S-Video

jacks on the back of your DVD

or S-VHS player, and connect

them following the instructions

provided with your equipment.

Use Video sources for better pic-

ture and sound.

To use with PIP: go to the

Source Menu (page 30) and

choose the jack you’ve connected

your S-VHS or DVD player

(S-VHS 1,-2) as the Main

or PIP source.

TV back

Out

3 4

Super VHS VCR

Back AV panel

Cables

not included

with TV

Audio

R-L Out

S-Video

Out

Attach to

cable wall jack,

cable box, or

antenna

Connecting a

S-VHS VCR

or DVD Player

to your

Entertainment

Machine.

Super VHS VCR

DVD Player

Jacks

* Digital Video Disk Player

3369-o

INSTALLATION STEREO SYSTEM PAGE 9

Get the

best sound

possible

from your

Entertainment

Machine.

Audio Hook-ups

A/V cables

not included

with TV

TV back

R-L Audio

Input

Stereo

System

Locate the jacks marked

Variable Out. These are for the

stereo system. Connect the

stereo system’s cables, accord-

ing to their color (red is the

right channel, white the left)

to these jacks.

These wires should be included

with your speakers

Before you begin plugging in your stereo sys-

tem, it’s a good idea to put it in its

approximate place first. That way you know

how much wire you have or will need.

PAGE 10

3474-O

INSTALLATION QUICK START

Mini glossary

AUTO PROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them in memory.

Use Auto

Program to

automatically

find and

store all of

the stations

available in

your area in

the TV’s

memory.

Auto Program

With the remote control in hand,

press the POWER key to turn on

your Entertainment Machine.

Press the MENU key so the Setup

menu appears.

Using the UP/DOWN arrows on

the remote control, select Auto

Program on your screen.

Press a RIGHT or LEFT arrow to

reach the Auto Program screen.

Using the UP/DOWN arrows,

choose either Cable TV or Off-Air

Antenna on your screen.

Note: The option that is blinking

and appears in white is selected.

Press a RIGHT or LEFT arrow to

begin Auto Program.

Press ENTER or QUIT to return to

TV viewing.

PRG

CABLE VCR AUX TV

ENTER

FLASHBK

CHANNEL

123

456

REWIND

RECORD

PIP

SWAP

FREEZ

PAUSE TIMER

PLAY

STOP

SURF MUTE

POWER

VOLUME VOLUME

QUIT

FFWD

TV/VCR

SOURCE

4/6

3/5

Note: Auto Program finds channels

being received by the TV Tuner. See

information on page 14 for using

the Cable Box or VCR Tuners.

To customize your channel

selection, see page 18.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Zenith

Zenith

Zenith SM2571BT Manual de operación y mantenimiento

Zenith

Zenith PV4663RK Manual de operación y mantenimiento

Zenith

Zenith Z42PT320 Instrucciones de funcionamiento

Zenith

Zenith IQB42P97G Manual de operación y mantenimiento

Zenith

Zenith B13A03D Manual de operación y mantenimiento

Zenith

Zenith System 3 Z36X31 Manual de operación y mantenimiento

Zenith

Zenith A32B43 Manual de operación y mantenimiento

Zenith

Zenith IQB27B44 Manual de operación y mantenimiento

Zenith

Zenith B25A02Z Manual de usuario

Zenith

Zenith SYSTEM 3 Series Manual de operación y mantenimiento

Zenith

Zenith A09A02X Manual de operación y mantenimiento

Zenith

Zenith HealthView H20E50DT Manual de operación y mantenimiento

Zenith

Zenith L23W36 - 23" Widescreen Flat-Panel HD-Ready LCD... Manual de usuario

Zenith

Zenith C34W37 Series Manual de usuario

Zenith

Zenith A50M84W Series Manual de usuario

Zenith

Zenith D27D53T Manual de operación y mantenimiento

Zenith

Zenith SR2745 Manual de operación y mantenimiento

Zenith

Zenith A20A22D Manual de usuario

Zenith

Zenith C27V46 Manual de operación y mantenimiento

Zenith

Zenith SR1324 Manual de operación y mantenimiento

Zenith

Zenith R56W36 Manual de usuario

Zenith

Zenith SENTRY 2 SLS25495S and warranty Manual de operación y mantenimiento

Zenith

Zenith PVR5269 Manual de operación y mantenimiento

Zenith

Zenith A25A22BT Manual de operación y mantenimiento

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
