Zeiss LSM800-6 vertical-2 + Airyscan confocal microscope 2019-03-15

I. System description:

Inverted (vertical) confocal microscope with Airyscan module

Motorized stage for multiple position imaging

Objectives:

Objective Plan-Apochromat 10x / NA 0.45 Air (WD=2.1mm)

Objective Plan-Apochromat 20x / NA 0.8 Air

Objective W-Plan-Apochromat 40x / NA 1.0 water dipping DIC VIS-IR

Objective C-Apochromat 63x / NA 1.2 W Korr

Laser lines: 405, 488, 561, 640 nm

Detectors:

2 PMT detectors with free choice of the spectral range. (PMT 1: tunable short pass and various

bandpass filters in front of the PMT, PMT 2: tunable long pass and various bandpass filters in

front of detector)

1 GaASP PMT for the Airyscan detector that can function as a normal detector in confocal mode

(detection range adjustable by a tunable short pass and a tunable long pass filter, no bandpass

filters)

An ESID detector for transmitted light.

Simultaneous detection of only two dyes possible, more than two have to be acquired sequentially.

II. Starting up:

1. Switch on the multiple socket (1). Provides power to microscope controllers

2. Switch on the system(2) and Components (3)

3. Switch on the computer (4)

4. Login: BIF-User (Useme!11)

5. Open ZEN Blue Software and press “Start System” (“Image Processing” is for offline analysis of

your images)

6. If Pop-up appears about stage calibration, press “calibrate now”

III. Visual examination of the sample

1. Press “Locate” in the main microscope menu and “Online”

2. You can change objectives automatically on the small touch screen attached on the right side

of the microscope by selecting “microscope” menu and “objectives”

3. Please make sure the chosen objective corresponds to the one shown in the software. If this is

not the case please restart the system. (Otherwise your pinhole and pixel sizes as well as the

sectioning thickness are all incorrect.)

4. If you wish to view your sample in brightfield, press the TL button in the “Locate” menu

5. For visual examination of fluorescence, press the buttons DAPI, GFP, RFP or FarRed

6. If sample appears too dim, increase light intensity by pressing the ‘Colibri 5/7’ button and

adjust the LED intensity slider.

7. Before switching to acquisition mode, close transmitted and reflected light shutters by

pressing ‘off’ and turn off the LED light source by clicking on ‘Colibri 5/7’ and pressing

‘Deactivate all LEDs’.

IV. Acquiring confocal images

•Select the ‘Acquisition’ tab in the main menu of Zen blue

•Go to “Smart Setup” choose your dyes (set the LUT) and configuration, you can choose

between simultaneous (fastest), Best compromise line scanning mode (Smart) and sequential

(best signal) scan, press ”Apply”.

•If you use ‘Smart setup’, please make sure that you DO NOT have any track using “Ch2”,

which is the Airyscan GaASP detector! You’ll have to manually switch the channels that are

assigned to it to a different detector: low wavelengths to ‘Ch1’ and high wavelengths (from

mCherry on) to ‘Ch3’. Due to the arrangement of dichroic mirrors in the scanhead, it won’t

work the other way round!

•If you are using the detector for transmitted light (ESID): activate (ESID) represented in the

light path scheme. Adjust intensity in the ESID Gain, then adjust digital offset and digital gain

of the ESID detector in order to “stretch” the histogram and use the whole dynamic range of

the detector.

•

Make sure Köhler illumination is set properly if you intend to use the ESID detector

(for bright field images)!

•Press the “AF” (Autofocus) button to find your focus, alternatively go to “Live” acquisition

modus and find it manually

•Set pinhole to Airy Unit (AU) 1 in the channel dialog to achieve confocality. Note, that activating

the ‘1AU’ button by clicking on it once (gets light blue background color) fixes the pinhole to

1AU. In this case, the match pinhole function in the Z-stack setup will not change pinhole sizes.

•In the ‘Channels’ dialog you can adjust the pinhole, gain and laser power manually

•Press the “Auto exposure” button and the software will adjust the gain of the PMTs but not the

laser power, according to the brightness of your dyes.

•What Auto exposure does, is to increase the PMT voltages until about 1% of all pixels are

overexposed. If the resulting gain is below 400 V, decrease the laser power. If the gain is above

900 V, increase the laser power.

•To zoom in your image, go to ‘Acquisition mode’ and agjust the slider accordingly. With “Crop”,

you can select the desired area of your image, then press “Live” or “Snap” to apply. “Reset all”

will remove the zoom again. Depending on the scan speed, the lowest zoom is 0.5 and not 1.0.

•Before taking an image, press ‘optimal’in the ‘acquisition mode’tab to adjust optimal number

of pixels and the pixel size according to Nyquist sampling criteria.

Note: More pixel than suggested by the software as ‘optimal’ almost never make sense. On the

other hand, feel free to decrease the pixel number to increase acquisition speed at the cost of

resolution.

•To capture single images, click on ‘Snap’

1. Setting up Z-stack:

Enable Z-Stack and the Z-Stack dialog will appear

Press “Live” and set your first and last slice

The software will suggest optimal slice number and interval which you can change manually

Activate the ‘Optimize sectioning and step’ checkbox to see slice overlapping. Here you can

again set an optimal interval to ensure ~50% overlap between sections.

If you wish to use the match pinhole function, make sure that the ‘1AU’ button in the

‘Channels’ menu is deactivated on all tracks (no blue background of button). This function will

match pinhole sizes to the optimal pinhole size of the lowest wavelength of your imaging setup

and ensure that all sections have the same thickness.

Press “Start experiment”

2. Setting up time series:

Enable “time series”

Time series dialog will open

Set cycle number and interval time

Press “start experiment”

3. Tile Scan and (in this mode you have: Tiles, Multipositions):

Enable “tile scan”

Tile scan dialog will open

Set desired number of horizontal and vertical tiles

You can choose different regions to scan. Choose regions and press button “+” to add it.

Press “start experiment”

Advanced Set up allows you to do preview scan of region of interest.

You can also add multipositions in this tab:

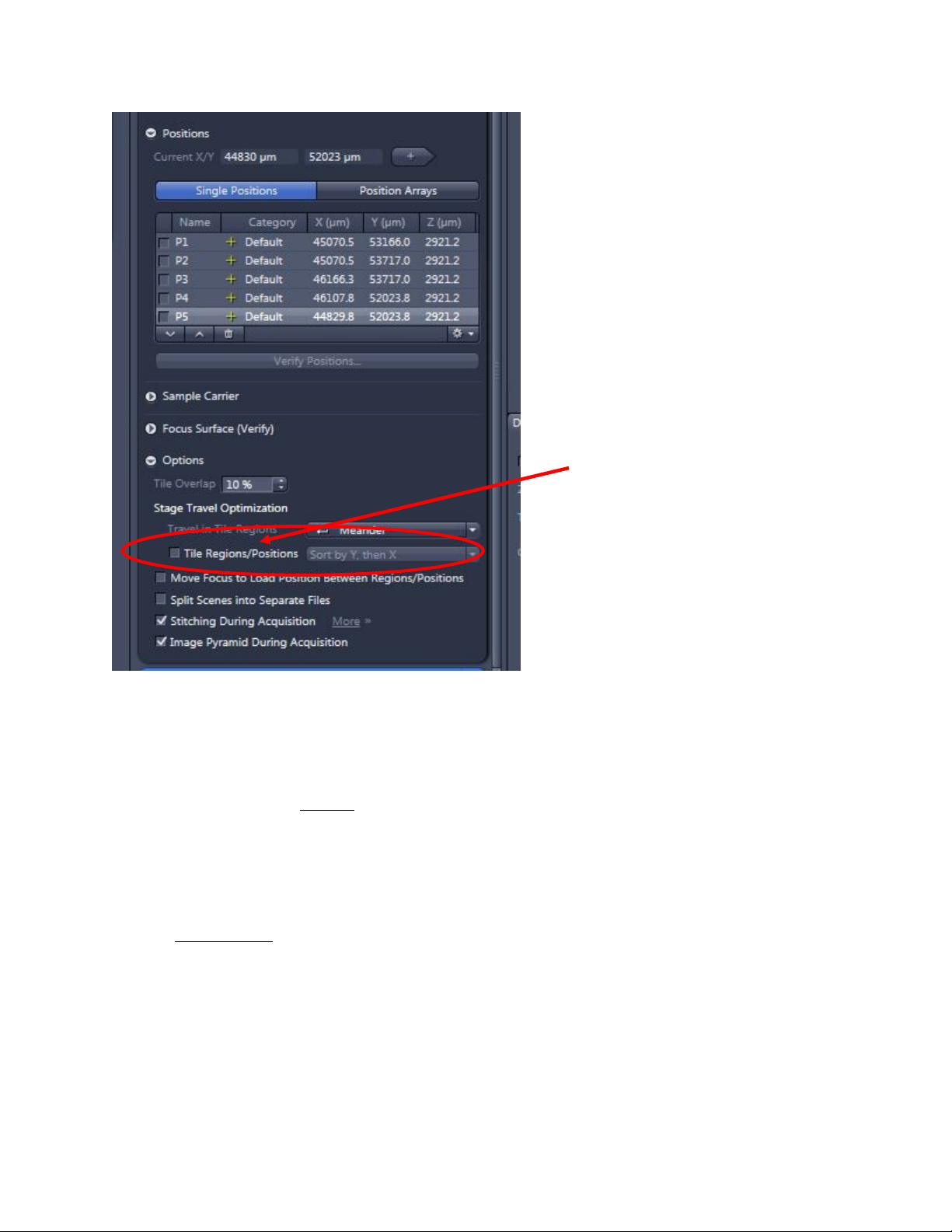

Important: to make sure that the software images the positions in the order you added them,

make sure that you DISABLE the feature “tile regions/positions” in the options menu of the

Tiles bar (see picture on the next page)

4. Data Saving:

Save your data to D: data folder. Note that this computer is not backed up. Please move your

data as soon as possible using portable storage devices. Since this is a Demo instrument it’s not

being connected to our network. You can also use “Auto save”, your experiment will go directly

to your folder.

V. Switching off:

1. Close the ZEN Blue software

2. Switch off fluorescent lamp (5)

3. Shut down the computer (4)

4. Switch of the components (3) and system(2)

5. Switch off multiple socket (1)

Disable this option to keep

the order of positions during

imaging!

Laser Safety Instructions

During operation of class 3B and class 4 lasers red warning lights have to be switched on manually

Red warning light at the door of the room, containing laser-based equipment, prohibits the

entrance

Optical path of the laser beam at all setups has to stay intact and should never be disassembled

by a user. Users are never permitted to disconnect optical connections (pipes, fibers etc), remove

protective coveringsor disassemble any parts of the setups, especially those parts that are labeled

with laser-warning signs.

User has to make sure, that objectives mounts are blocked by objectives or light- blocking plugs,

before switching the system on or starting the work

Any cleaning activities (objectives, stage cleanings) as well as changing of objectives or filters have

to be performed only after blocking of the laser light is ensured. This can be ensured by closing

the scanhead shutter or switching off the laser.

Laser class-specific warnings at each setup have to be observed and considered

Eye contact with direct beam of Class 3B laser, or eye contact with mirror reflection from class 3B

laser, should be avoided at all times

Eye or skin contact with direct or diffuse light of Class 4 laser, should be avoided at all times

Laser safety goggles are situated at all workspaces and should be used in any situation where

potential contact of eyes with Laser light of the classes 3B or 4 is possible, according to the

previous two points

Laser safety goggles have to be worn at all times of operation of Laser Class 4

Laser safety goggles have to be worn at all times of operation laser Class 3 at the optogenetic

setups

Laser safety goggles are assigned to each setup and matched to the corresponding laser

wavelengths. Matching laser safety goggles should be used at all times, and should not be carried

over between the setups

Only one person is allowed to be in the corresponding compartment during Laser Class 4

operation and optogenetic setup operation

Users are not allowed to wear any reflective objects (rings, watches etc) during laser operation

Using of the equipment is only allowed after the introduction from a laser safety officer of IST

Austria. Introduction has to be done individually for each setup.

Changing experimental conditions, that involves changes in the laser application, have to be

reported to the laser safety officer prior to the start of experiment

Users have to understand that any violations against the instructed rules and also withholding information

leading to safety hazards will ultimately result in denial of admission to all laser equipped instruments at

the IST Austria.
