Zebra-Tech MEASURING BOARD Manual de usuario

MEASURING BOARD

OPERATION MANUAL

H/S

Drw Number

3.2 Ra UNLESS SPECIFIED

Part / Assem Description

Rev

DATE

Material

TOLERANCE UNLESS SPECIFIED

Part Number

*DO NOT SCALE / IF IN DOUBT ASK*

DRW

Sheet

SURFACE FINISH

*BREAK ALL EDGES UNLESS SPECIFIED*

DESCRIPTION Scale

REV

*ALL UNITS IN MM/DEGREES UNLESS SPECIFIED*

CHK

Linear

Angular

0.000

`0.005 `0.005

0.00

`0.01 `0.01

0.0

`0.1 `0.1

`0.5 `0.5

English. 11/2016.V1.20

TABLE OF CONTENTS

1. Introduction.......................................................................... 3

2. Operation............................................................................. 4

Overview...................................................................................................... 4

Mode options...............................................................................................5

3. Menu.................................................................................... 7

Menu system................................................................................................7

Delete last entry........................................................................................... 7

Tare...............................................................................................................7

Enable bluetooth..........................................................................................8

Clear storage................................................................................................8

Status...........................................................................................................8

Config...........................................................................................................9

4. Data recording.....................................................................10

5. Maintenance........................................................................11

6. Battery replacement............................................................12

Logger batteries..........................................................................................12

Button battery............................................................................................. 12

7. Specifications......................................................................13

8. Mobile application...............................................................14

Overview..................................................................................................... 14

Mobile configuration................................................................................... 15

9. Overall dimensions..............................................................16

10. Further assistance.............................................................17

The Zebra-Tech Measuring Board is a tough portable battery

powered device that is designed to take measurements of objects

and organisms in harsh environments.

The measurements are logged internally and then downloaded to a

mobile device using the Zebra-Tech app. The measurement can

also be transmitted wirelessly to the Zebra-Tech Deck Logger for

logging in real time.

The Measuring Board has been specifically designed to operate in

wet and muddy conditions. It is ideal for field measurements of

shellfish, fish and other organisms.

A range of user select operating modes are available which enables

a variety of measurement methods. For example; logging 2 distinct

species, or making length and width measurements.

1. INTRODUCTION

OVERVIEW

The Measuring Board is fully splash proof but it should not be

completely submerged underwater.

To switch on simply slide the moving jaw. The Measuring Board will

automatically shut down after 1 minute of inactivity (no jaw

movement or button press).

There are two buttons which each have a different function

depending on the operating mode.

If the wireless link with the Zebra-Tech Deck Logger is to be used,

the Deck Logger needs to be configured so that it will pair with

your unique Measuring Board. Please refer to your "Deck Logger

Custom Application Manual" for details on how to do this.

2. OPERATION

Item Number Quantity Description Part Number Comment

1 1 MB Bed P-00380-M201 Machined

2 1 MB Base P-003 0-M000 Machined

4 2 MB Rail P-00388-M100 Machined

5 1 MB Rail Plate Floating P-00404-M100 Machined

6 1 MB Bed Plate P-00386-M100 Laser cut

7 1 Measuring Board Fixed Jaw Assembly MB-04 Approved for construction

8 1 MB Moving Jaw Assembly MB-050 Approved for construction

4 M8 X 25 316 CHEESE SLOT M/SCREW Slot / SMCHM608025 / 316SS Anzor

11 2 M4 X 20 316 DOWEL PIN Dowel / DPM604020 / 316SS Anzor

12 2 M5 X 8 316 CSK SOCKET SCREW CSK / SSHCKM605008 / 316SS Anzor

13 1 M8 X 30 316 BUTTON SOCKET SCREW Button / SSHBM608030 / 316SS Anzor

14 2 M6 X 12 316 BUTTON SOCKET SCREW

Button Head / SSHBM606012 / 316SS

Anzor

15 4 4 guage by quarter 316 Pan Pozi Self Tap Not on Anzor ?????

16 1 O ring 4. 7 x 1.78 044 N70 Seal Imports

17 1 300mm Magneto Pot MP1-L-0300-103-5%-RH DigiKey

18 1 Battery Holder 2xAA Add Part # Keystone

1 1 MB Battery Sticker P-00603-M000 Sportswise S&G

20 1 MB Rope Handle P-00383-M000 Burnsco

21 12 M5 X 16 316 PAN SLOT M/SCREW Slot / SMPM605016 / 316SS Anzor

22 1 MB Tube Handle P-003 7-M000 Fluid Power Solutions

23 1 MB Rail Plate Fixed P-00403-M100 Machined

SURFACE FINISH

Part / Assem Description

Part Number

CHK

3.2 Ra UNLESS SPECIFIED

Material

Scale

H/S

Sheet

Drw Number

DATE

*DO NOT SCALE / IF IN DOUBT ASK*

TOLERANCE UNLESS SPECIFIED

*ALL UNITS IN MM/DEGREES UNLESS SPECIFIED*

DESCRIPTION DRW

Rev

*BREAK ALL EDGES UNLESS SPECIFIED*

REV

MB-038

MB-038-C

Measuring Board General Assembly

Approved for construction

9/08/2016

Various improvements

09/08/2016

H/J/S/Z

Stainless Mounts added 05/05/2016

H H/J/S/Z

Linear

Angular

0.000

`0.005 `0.005

0.00

`0.01 `0.01

0.0

`0.1 `0.1

`0.5 `0.5

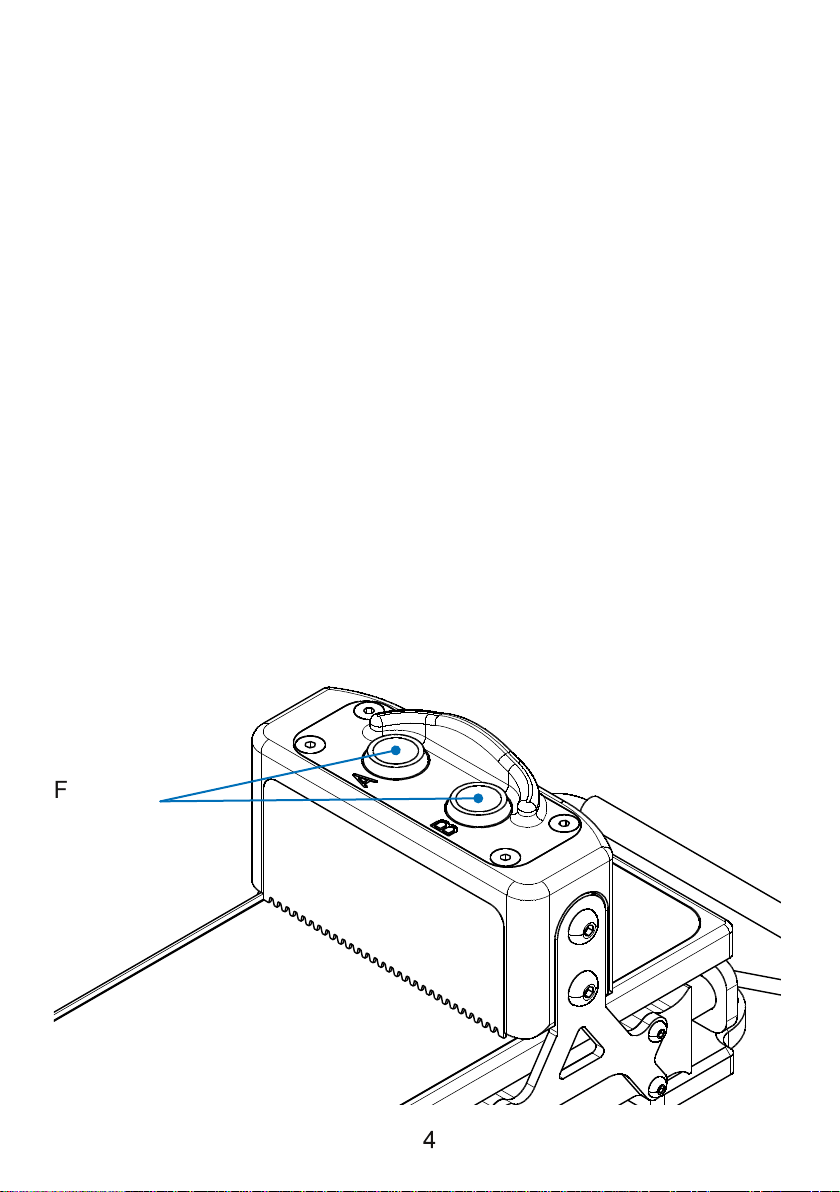

Function

buttons

MODE OPTIONS

•Mode 1

This is for logging the measurement made by each single A or B

button press. The button ID associated with the measurement is

recorded in the data file.

Example: Two species of shellfish could be measured with a button

assigned to each species.

•Mode 2

This requires 2 button presses to occur in a fixed sequence –A

followed by B. The data is not logged or transmitted until both

measurements have been made.

Example: The length and width of a shellfish could be measured

with length assigned to button A and width assigned to button B.

•Mode 3

This requires 3 button presses to occur in an A,B,B sequence. The

data is not logged or transmitted until all 3 measurements have

been made.

Example: The length,width and height of a shellfish could be

measured with length assigned to button A , width assigned to

button B first press and height assigned to button B second press.

•Mode 4

This mode enables button presses to be used to increment a

secondary manual measurement following the jaw measurement. It

can be used in 2 ways;

1) If no additional secondary measurement is required, simply press

button A.

2) If a secondary measurement is required, button B is pressed (jaw

measurement is logged) and then subsequent button B presses

increment the secondary measurement. Pressing A then logs both

measurements.

Example: The length of mussels are being measured by pressing

button B, which saves the measurement. The visual quality of the

mussels are being rated on a scale of 1 to 3. Pressing button B

again will increment the value required. Pressing button A will then

log the initial length measurement and the number chosen to

represent visual quality. Note that the manually chosen value is

arbitary. It could represent a measurement such as an estimation of

Abalone hump size or a general value such as in the above

example.

MENU SYSTEM

To enter the menu system both buttons must be pressed

simultaneously while the Measuring Board is turned on.

The menu is navigated by pressing the A button if the current menu

option is required, or the B button to advance onto the next menu

option.

DELETE LAST ENTRY

Selecting this causes the last logged measurement to be deleted

from the on-board data storage.

Note that the measurement is not deleted if it has

already been transmitted to a nearby Zebra-Tech Deck

Logger.

TARE

This zero’s the sliding jaw measurement. Before selecting Tare,

ensure that the jaws are pushed together.

3. MENU

ENABLE BLUETOOTH

Data stored on the Measuring Board can be offloaded to an

Android device using the Zebra-Tech app. Please refer to the

Mobile application section for details. Select "Enable Bluetooth"

whenever data is to be offloaded using the app.

CLEAR STORAGE

This deletes all the data in the on-board storage.

STATUS

•SN: The Measuring Board’s individual serial number which will

match the serial number etched on the bed.

•Store: Amount of available data storage.

•Ver: Current firmware version number.

•Batt: Internal battery voltage.

CONFIG

Selecting this enables the configuration setup menu to be

accessed.

•Measuring mode

Mode 1 to 4 can be selected –refer to description above.

•Set time

When selected, the internal clock time and date can be set. This is

done by pressing button A to select the field to adjust, then sliding

the movable jaw until the correct value is displayed, then setting by

pressing button A. Fields can be skipped by pressing button B.

•Units

The units displayed can be set to mm, inch or raw. Note that

regardless of the selected units, the logged data is always mm.

•Exit

Return to normal operation.

The Measuring Board logs all measurements in its internal

non-volatile data storage. This data is retained even if the battery

goes flat. There is sufficient capacity to store 10,000 single

measurements or 5,000 double measurements.

Each measurement is logged with the time and date and also the

button number that was pressed to trigger the measurement.

The user is alerted if the data memory becomes full. No further

measurements are possible until the data is deleted.

Data can be offloaded using the Zebra-Tech mobile application –

available for Android. See Mobile application section.

Measurement data is also wirelessly transmitted every time a

measurement is made. If a Zebra-Tech Deck Logger is nearby it will

display and log the Measuring Board data if it has been configured

to pair with the Measuring Board.

1 0

4. DATA RECORDING
