Zebex Z-5112 Manual de usuario



Z‐5212



2DIma

eScanEn

ine

ii 2DImageScanEngine

RevisionHistory

Changestotheoriginalmanualarelistedbelow:

VersionDateDescriptionofVersion

1.02020/05/20Initialrelease

iii

ImportantNotice

Nowarrantyofanykindismadeinregardtothismaterial,including,butnotlimitedto,

impliedwarrantiesofmerchantabilityorfitnessforaparticularpurpose.Wearenot

liableforanyerrorscontainedhereinorincidentalorconsequentialdamagesin

connectionwithfurnishing,performanceoruseofthismaterial.

Nopartofthisdocumentmaybereproduced,transmitted,storedinaretrievalsystem,

transcribed,ortranslatedintoanylanguageorcomputerlanguageinanyformorbyany

meanselectronic,mechanical,magnetic,optical,chemical,manualorotherwise,without

expresswrittenconsentandauthorization.

Wereservetherighttomakechangesinproductdesignwithoutreservationandwithout

notification.Thematerialinthisguideisforinformationonlyandissubjecttochange

withoutnotice.

Alltrademarksmentionedherein,registeredorotherwise,arethepropertiesoftheir

variousrespectiveowners.



ForCE‐countries

ThisscannerisinconformitywithCEstandards.Pleasenotethatanapproved,

CE‐markedpowersupplyunitshouldbeusedinordertomaintainCEconformance.



GuidanceforPrinting

1. ThismanualisinA5size.Pleasedoublecheckyourprintersettingbeforeprintingit

out.

2. Whenprintingbarcodesforprogramming,theuseofahigh‐resolutionlaserprinter

isstronglysuggestedforthebestscanresult.



iv 2DImageScanEngine

TableofContents



ImportantNotice....................................................................................iii

Introduction.............................................................................................1

Overview ...............................................................................................2

Components......................................................................................2

ScannerOperation...................................................................................3

Precautions ...........................................................................................3

MaintainingtheScanner .......................................................................3

ESD ....................................................................................................3

ScanAngles ...........................................................................................4

ScanZone ..............................................................................................5

Installation...............................................................................................6

FFCCable...............................................................................................6

Z‐5112C&MTypePinDefinition .........................................................7

Mounting...............................................................................................9

TechnicalSpecification ......................................................................... 13

2DImageScanEngine1



USER’SMANUAL

Introduction

Highscanningspeedwithoutcompromisingperformance,thedeviceisapowerful2D

imagescanenginethateasilydecodesmost1Dand2Dbarcodeswithintuitiveaiming

accuracy.Italsosupportsstandardserial,USBinterfacethatcanbeeasilyintegratedwith

mosthardwareplatform.Thecompactdimensionmakesinstallationeffortlessevenin

themostspace‐constrainedproducts,includingmobilecomputers,kiosks,lottery

machineandmore.Thedeviceistheperfectsolutionformanyindustries.



•Ultrasmallsize

•Noseparatedecoderboardrequired

•Flexibleinterfacecommunications

•Outstanding1Dand2Dscanningperformance

•Capturesbarcodesonmobilephone,tablet,orcomputerscreens



2 2DImageScanEngine

USER’SMANUAL

Overview





Good read LED

Trigger KeyIR Emitter

Light Source

Lens



Aiming



Components

DescriptionFunction

LightSourceReinforcedlightbrightness

AimingProduceeasytoseescanline

LensCapturesimagefordecoding

TriggerKeyUsedtostartadecodeasession

GoodreadLEDGoodreadLEDindicated

IREmitterInfraredemitterdiode



2DImageScanEngine3

USER’SMANUAL

ScannerOperation

Precautions

Toensurethescannerreachesitsbestperformance,thefollowingpointsneedtobe

noticedwhenmountingthescanner:

a. Donotplacethescannerunderdirectsunlightoranyotherbrightlightsource

illuminating.

b. Whenplacingthebarcodelabel,onemustbecarefulnottoovertilt,skewand/or

pitchthebarcode.

c. Donotplacethedeviceatspeculareflectionposition.TheLEDlightofthescanner

reflectsdirectlybackonthescannerifitisplacedatspeculareflectionposition.

AstothenatureofCMOSsensor,itwillnotbeabletoreadanybarcodes.

d. Thebarcodelabelmustbeplacedwithintheeffectivedepthoffield(D.O.F.)since

itistheeffectivereadingdistanceforthebarcodefromthescanner.Forthebest

placingposition,pleaserefertotheDecodeDepthofFielddrawing.



MaintainingtheScanner

Handlingwithcare!Thescanenginesareelectrostaticsensitivedevice;donothandle

withbarehands.Storetheenginesawayfromdustandhumidityplaces.



ESD

ThescanenginesareprotectedfromESDeventsthatmayoccurinanESD‐controlled

environment.Alwaysexercisecarewhenhandlingthemodule.Usegroundingwrist

strapsandhandleinaproperlygroundedworkarea.



4 2DImageScanEngine

USER’SMANUAL

ScanAngles

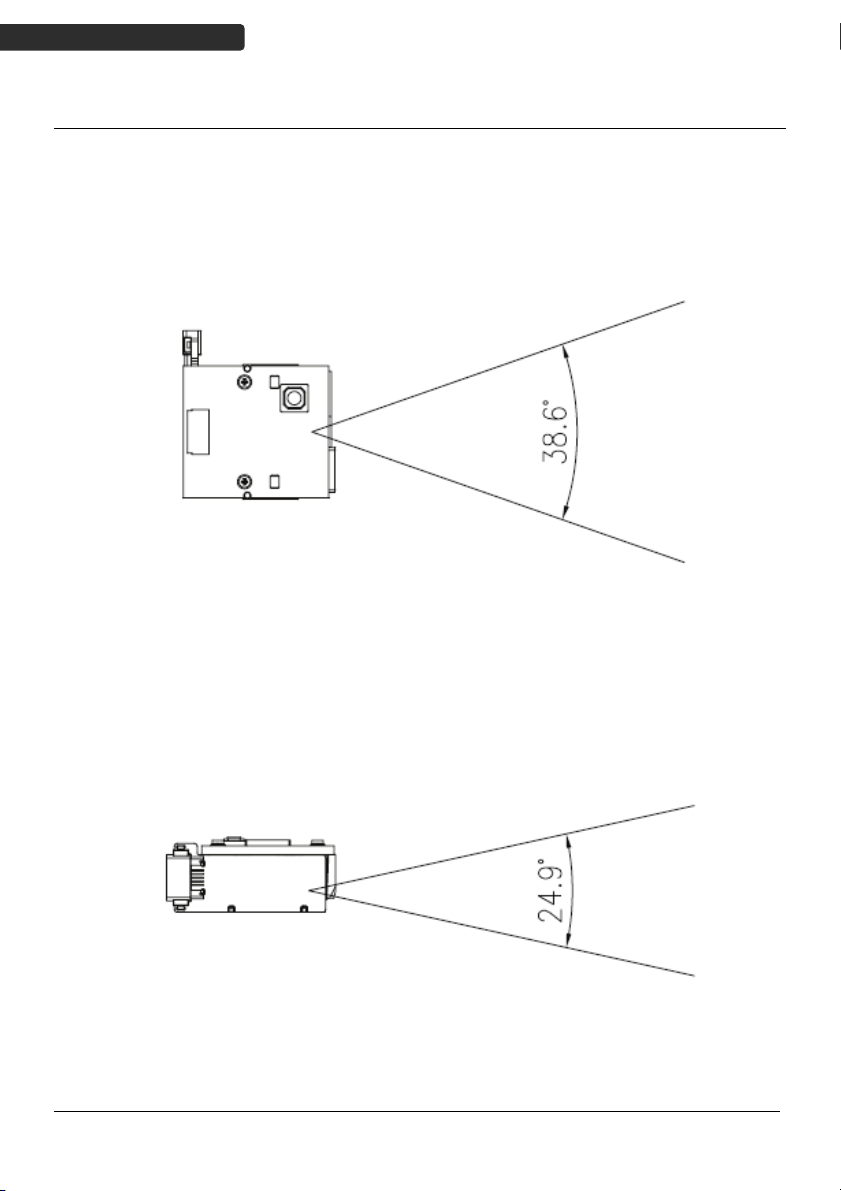

Seethefollowingillustrationsfortheeffectivebarcodereadingangles.



2DImageScanEngine5

USER’SMANUAL

ScanZone

Theeffectivereadingdistanceforthescannerisillustratedasbelow.



Differentqualityanddensityofabarcodecouldeffectitsdecodedepth

offield.Usuallywhenabarcodehaspoorprintingqualityorhigh

density,thedepthoffieldwouldbeshorter.Itishighlysuggestednot

placethebarcodelabelattheextremesofdepthoffieldasitisoften

easytomoveoutfromthereadingrange.



6 2DImageScanEngine

USER’SMANUAL

Installation

FFCCable

Aflexstripcableisneededtoconnectthescanenginetoyourhostterminal,and

differentdecodemodeusesdifferentFFCcable.

Decodedmodescanengine:12PinZIFPinconfiguredFFCcable



ThefollowingfigureshowstheFFCcabledimensionanditspin‐outconfiguration.



FFCCableDimension


