Zanussi ZMBN2S Manual de usuario

GETTING

STARTED?

EASY.

User Manual

 

Microwave Oven

ZMBN2S

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 1

2www.zanussi.com

 SAFETY INFORMATION....................................................................................................3

 INSTALLATION ...................................................................................................................7

 PRODUCT DESCRIPTION...............................................................................................11

 BEFORE FIRST USE........................................................................................................12

 OPERATION......................................................................................................................13

 COOKING CHARTS .........................................................................................................16

 HINTS AND TIPS ..............................................................................................................22

 TROUBLESHOOTING......................................................................................................24

 TECHNICAL INFORMATION ...........................................................................................25

 ENVIRONMENT CONCERNS .........................................................................................25

CONTENTS

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 2

www.zanussi.com

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children should be supervised to ensure

that they do not play with the appliance. Cleaning and user

maintenance shall not be made by children unless they

are aged from 8 years and above and supervised.

This appliance is not intended for use at altitudes above

2000m.

IMPORTANT SAFETY

INSTRUCTIONS: READ CAREFULLY AND KEEP

FOR FUTURE REFERENCE.



If the door or door seals are damaged, the oven

must not be operated until it has been repaired by a

competent person.



It is hazardous for anyone other than a competent

person to carry out any service or repair operation

that involves the removal of a cover which gives

protection against exposure to microwave energy.



Liquids and other foods must not be heated in

sealed containers since they are liable to explode.

This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops,

offices and other working environments; farm houses; by

SAFETY INFORMATION

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 3

4www.zanussi.com

clients in hotels, motels and other residential

environments; bed and breakfast type environments.

Only use microwave-safe containers and utensils.

Metallic containers for food and beverages are not allowed

during microwave cooking.

Do not leave the oven unattended when using disposable

plastic, paper or other combustible food containers.

The microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of

warming pads, slippers, sponges, damp cloth and similar

may lead to risk of injury, ignition or fire.

If food being heated begins to smoke, DO NOT OPEN

THE DOOR. Turn off and unplug the oven and wait until

the food has stopped smoking. Opening the door while

food is smoking may cause a fire.

Microwave heating of beverages can result in delayed

eruptive boiling, therefore care has to be taken when

handling the container.

The contents of feeding bottles and baby food jars shall be

stirred or shaken and the temperature checked before

consumption, in order to avoid burns.

Do not cook eggs in their shells and whole hard boiled

eggs should not be heated in microwave ovens since they

may explode even after microwave cooking has ended.



Door:

To remove all trace of dirt, regularly clean both sides of

the door, the door seals and sealing surfaces with a soft,

damp cloth. Do not use harsh abrasive cleaners or sharp

metal scrapers to clean the oven door glass since they

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 4

www.zanussi.com

can scratch the surface, which may result in shattering of

the glass.

Oven interior:

For cleaning, wipe any splatters or spills with a soft damp

cloth or sponge after each use while the oven is still

warm. For heavier spills, use a mild soap and wipe

several times with a damp cloth until all residues are

removed. Do not remove the waveguide cover. Make

sure that mild soap or water does not penetrate the small

vents in the walls which may cause damage to the oven.

Do not use spray type cleaners on the oven interior.

Clean the waveguide cover, the oven cavity, the turntable

and turntable support after use. These must be dry and

free from grease. Built-up grease may overheat and begin

to smoke or catch fire.

Oven exterior:

The outside of your oven can be cleaned easily with mild

soap and water. Make sure the soap is wiped off with a

moist cloth, and dry the exterior with a soft towel.

Control panel:

Open the door before cleaning to de-activate the control

panel. Care should be taken when cleaning the control

panel. Using a cloth dampened with water only, gently

wipe the panel until it becomes clean. Avoid using

excessive amounts of water. Do not use any sort of

chemical or abrasive cleaner.

Turntable and turntable support:

Remove the turntable and turntable support from the

oven. Wash the turntable and turntable support in mild

soapy water. Dry with a soft cloth. Both the turntable and

the turntable support are dishwasher safe.

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 5

6www.zanussi.com



Clean the oven at regular intervals and remove any

food deposits. Failure to maintain the oven in a

clean condition could lead to a deterioration of the

surface that could adversely affect the life of the

appliance and possibly result in a hazardous

situation.

Care should be taken not to displace the turntable

when removing containers from the appliance.



A steam cleaner should not be used.

The microwave oven is intended to be used built-in.

The appliance and its accessible parts become hot during

use.



Keep children away from the door to prevent them

burning themselves.



Do not use commercial oven cleaners, steam

cleaners, abrasive, harsh cleaners, any that contain

sodium hydroxide or scouring pads on any part of

your microwave oven.

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 6

www.zanussi.com



If fitting the microwave in position B or C:

• The cupboard must be a minimum of

500 mm (E) above the worktop and

must not be installed directly above a

hob.

• This appliance has been tested and

approved for use near domestic gas,

electric and induction hobs only.

• Sufficient space between hob and

microwave should be allowed to

prevent overheating of microwave

oven, surrounding cupboard and

accessories.

• Do not operate the hob without pans

when the microwave oven is operating.

• Care should be taken when attending to

the microwave oven while the hob is

on.

The microwave can be fitted in position

A, B, C or D:







 



A562 x 550 x 360

B+C 562 x 300 x 350

562 x 300 x 360

D562 x 500 x 350

562 x 500 x 360

Measurements in (mm)

Conventional oven

ϰϵϱϱϵϱ







DŝŶ

ϴϱϬ

INSTALLATION

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 7

8www.zanussi.com



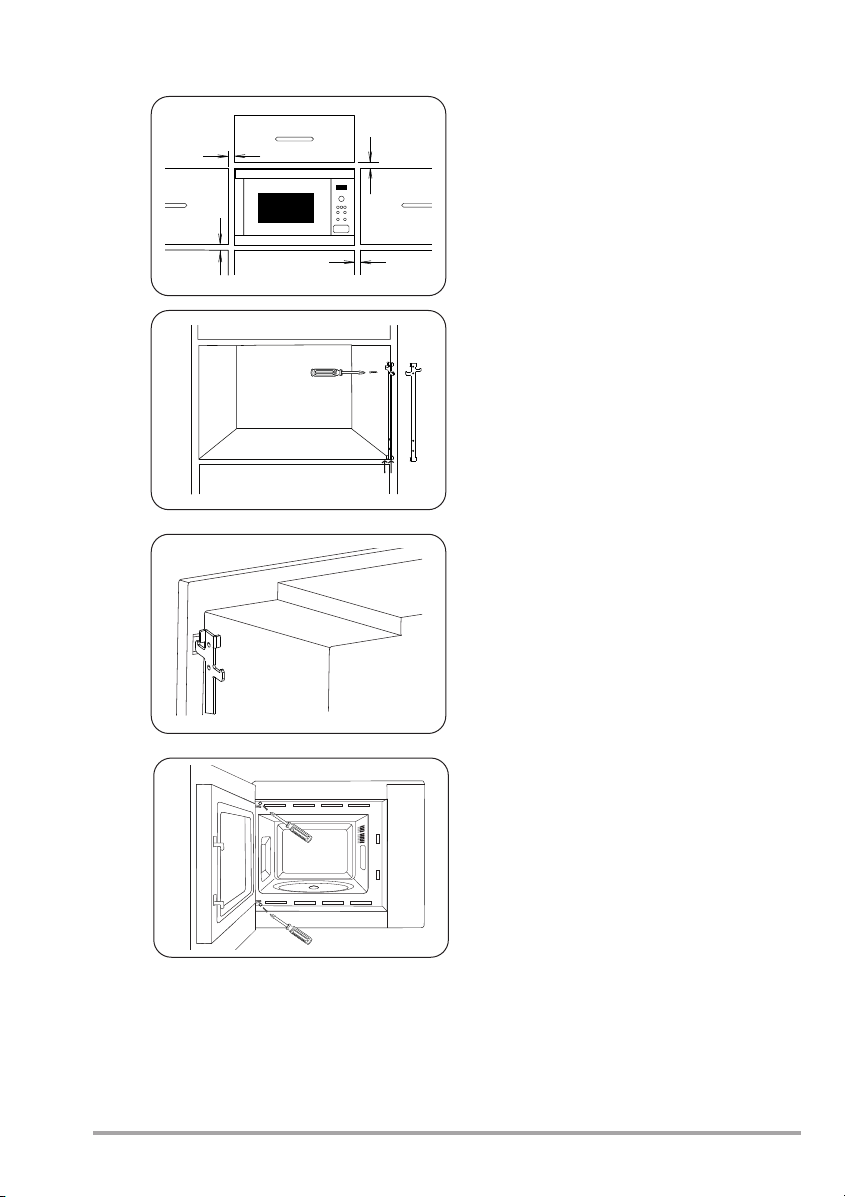

 Remove all packaging and check

carefully for any signs of damage.

 This oven is designed to fit into a

350 mm high cupboard as standard.

When fitting into a 360 mm high

cupboard:- Unscrew and remove the

4 feet from the bottom of the oven.

Rotate the feet 90 degrees and refit with

the long side to the front of the oven.

. Fit the fixing hook to the right hand side

of the kitchen cupboard using the

instruction sheet supplied.

. Fit the appliance into the kitchen

cupboard slowly, and without force. The

appliance should be lifted onto the fixing

hook and then lowered into place. Fix the

oven on the left hand side using the two

screws provided.

. Ensure the appliance is stable and not

leaning. Ensure that a 2.5 mm gap is

kept between the cupboard door above

and the top of the frame (see diagram).

2.5 mm

2.5 mm 4 mm

4 mm

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 8

www.zanussi.com





(A)

• The electrical outlet should be readily

accessible so that the unit can be

unplugged easily in an emergency. Or

it should be possible to isolate the oven

from the supply by incorporating a

switch in the fixed wiring in accordance

with the wiring rules.

• The power supply cord may only be

replaced by an electrician.

• If the supply cord is damaged it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

• The socket should not be positioned

behind the cupboard.

• The best position is above the

cupboard, see (A).

• Connect the appliance to a single

phase 220-240 V/50 Hz alternating

current via a correctly rated earth

socket.

• If the appliance is to be operated in a

non-European country, the supply

voltage, current type and frequency of

the appliance indicated on the rating

plate must correspond with the

specification of your power supply. The

rating plate can be found on the inside

face of the control panel.

• Before installing, tie a piece of string to

the power supply cord to facilitate

connection to point (A) when the

appliance is being installed.

• When inserting the appliance into the

high-sided cupboard, DO NOT crush

the power supply cord.

• Do not immerse the power supply cord

or plug in water or any other liquid.

• Do not allow the power supply cord to

run over any hot or sharp surfaces,

such as the hot air vent area at the top

rear of the oven.

ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 9

10 www.zanussi.com

Do not use the microwave oven to heat oil

for deep frying. The temperature cannot be

controlled and the oil may catch fire. To

make popcorn, only use special

microwave popcorn makers.

Individuals with PACEMAKERS should

check with their doctor or the manufacturer

of the pacemaker for precautions

regarding microwave ovens.

Never spill or insert any objects into the

door lock openings or ventilation openings.

In the event of a spill, turn off and unplug

the oven immediately and call an

authorised ELECTROLUX service agent.

Never modify the oven in any way.

Only use the turntable and the turntable

support designed for this oven. Do not

operate the oven without the turntable.

To prevent the turntable from breaking:

• Before cleaning the turntable with

water, leave the turntable to cool.

• Do not put hot foods or hot utensils on a

cold turntable.

• Do not put cold foods or cold utensils

on a hot turntable.

Neither the manufacturer nor the dealer

can accept any liability for damage to the

oven or personal injury resulting from

failure to observe the correct electrical

connection procedure. Water vapour or

drops may occasionally form on the oven

walls or around the door seals and sealing

surfaces. This is a normal occurrence and

is not an indication of microwave leakage

or a malfunction.



ZANUSSI_EN240_CS_BASE_AE25UICTO_SAFETYMAY19_Layout 1 27/08/2019 14:00 Pa e 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microondas de Zanussi

Zanussi

Zanussi ZKC44500X Manual de usuario

Zanussi

Zanussi ZM700 Instrucciones de montaje

Zanussi

Zanussi ZSC25225 Manual de usuario

Zanussi

Zanussi ZKC44500 Manual de usuario

Zanussi

Zanussi ZFM15100SA Manual de usuario

Zanussi

Zanussi MW732M Instrucciones de funcionamiento y seguridad

Zanussi

Zanussi ZM176 Manual de usuario

Zanussi

Zanussi MW1776 Guía de referencia rápida

Zanussi

Zanussi ZM700 Instrucciones de montaje

Zanussi

Zanussi ZMSN4C Manual de usuario

Zanussi

Zanussi ZM175ST Manual de usuario

Zanussi

Zanussi ZKG44500X Manual de usuario

Zanussi

Zanussi ZM17TG Manual de usuario

Zanussi

Zanussi ZFG21110WA Manual de usuario

Zanussi

Zanussi MW500 Guía de referencia rápida

Zanussi

Zanussi ZSG25224XA Manual de usuario

Zanussi

Zanussi MGE1255B Instrucciones de funcionamiento y seguridad

Zanussi

Zanussi ZVEEM6X3 Manual de usuario

Zanussi

Zanussi ZM 600 Manual de usuario

Zanussi

Zanussi ZBG26642 Manual de usuario

Zanussi

Zanussi ZKG44500X Manual de usuario

Zanussi

Zanussi ZMC19ML Manual de usuario

Zanussi

Zanussi MW 1135 Instrucciones de montaje

Zanussi

Zanussi ZBC40440XA Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
