ZALMAN ZM-HE135 Manual de usuario

Quick Guide

ZM-HE135

www.ZALMAN.com

Ver. 1.1

Please read this Manual before use

WWW.ZALMAN.COM

1. Precautions

2. Specications

3. System Requirements

■ We are not responsible for any damages due to improper use.

■ Product design and specications may be revised to improve

quality and performance.

■ Avoid inserting any foreign objects into the device.

■ Keep device away from heat sources, direct sunlight, oil, and

humid environment.

■ Do not let the device be wet. It will not be covered by Warranty.

■ It may have problem if used near magnetic objects.

■ Exterior damage during use is not covered by Warranty.

■ CPU: Intel Pentium / 350 Mhz or above

■ O.S: Windows XP SP3 or above / Mac OS X 10.0 or above

Model

Spec. ZM-HE135

Case Material Aluminum Alloy, Acryl, Poly Carbonate

Weight 79g

Dimensions 146(L) × 80.8(W) × 14(H) mm

Interface USB 3.0

Quick Guide

ZM-HE135 Pouch Screw Driver & Bolts 2pcs

USB 3.0 Cable

4. Components

Quick Guide

ZM-HE135

WWW.ZALMAN.COM

5. Mounting a 2.5” HDD

6. Connect to / Disconnect from PC

7. Button Description

Connect device to PC’s USB port using enclosed USB cable.

When disconnecting, please use “Hardware Safety Removal” on tray.

1. Press “Backup” button to run backup application.

2. Press “Backup” button more than 5 sec to run “Safety Removal”

3. When 10min are passed without data access, it goes to “Sleep mode*”.

4. In case of USB2.0 connection to PC, White color LED is shown

5. In case of USB3.0 connection to PC, Blue color LED is shown

Backup Button

LED Indicator

USB3.0 Port

WWW.ZALMAN.COM

8. Function description

Public Disk and CD-ROM disk image will appeared when

connected to PC.

Start the Secure Tool by clicking on the application program.

This program will run automatically if the PC supports Autorun

CD-ROM function.

Password tool

You can type or click in your password and the password hint.

WWW.ZALMAN.COM

According to user’s preference, encryption options can be set.

When user clicks Lock / Unlock button on the left, it goes to the

menu shown below, and the device will be locked manually.

After setting the password, user can set encryption time which

locks the secured disk automatically.

WWW.ZALMAN.COM

Secure disk will appear after inputting the password.

After it is locked, PC will only show the public area.

WWW.ZALMAN.COM

Separate Partition

User can set the size of the hard disk capacity by typing exact

size or moving the size bar.

And this could be done only in no-password status, as the

warning picture shown below:

WWW.ZALMAN.COM

Disk formatter

There are more functions on the Disk formatting and Renaming,

User can choose target disk to format and give a new volume

label.

When the password is lost, the user has to “Reset” encrypt

production, and all the data will be destroyed.

Because it is AES encrypt and there is no back-door left; as

picture shown below:

WWW.ZALMAN.COM

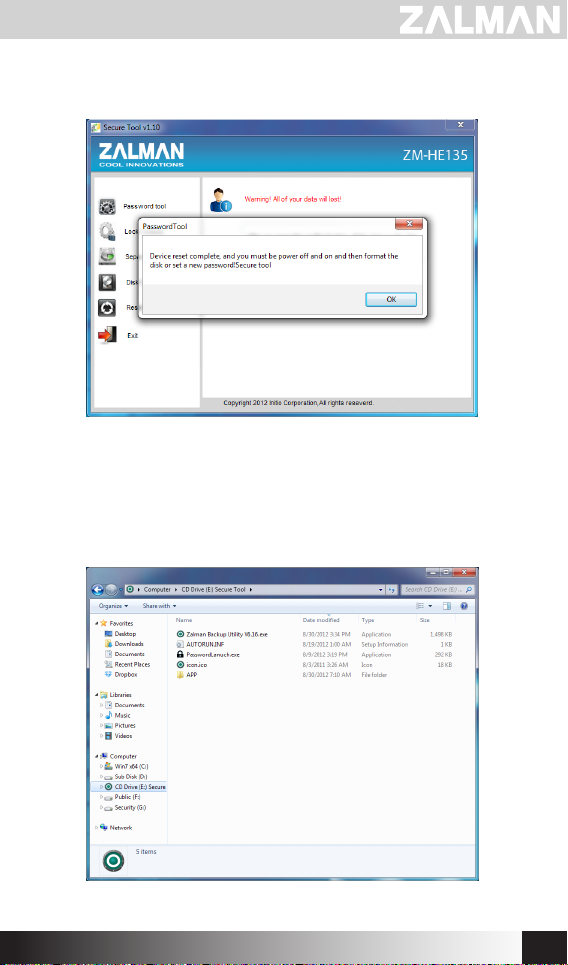

All the data will be gone.

Then set a new password to use this device securely

Backup tool

Right click on the Secure Tool, and you will see the ies as

shown below.

Reset Device

Used encrypted device will be reset to a new one as Factory

default.

WWW.ZALMAN.COM

When the installation is done, you will see the backup main

window as shown below.

Then double click on “Zalman Backup Utility V6.14.exe to

install the backup program, and run the program at the “Start”
