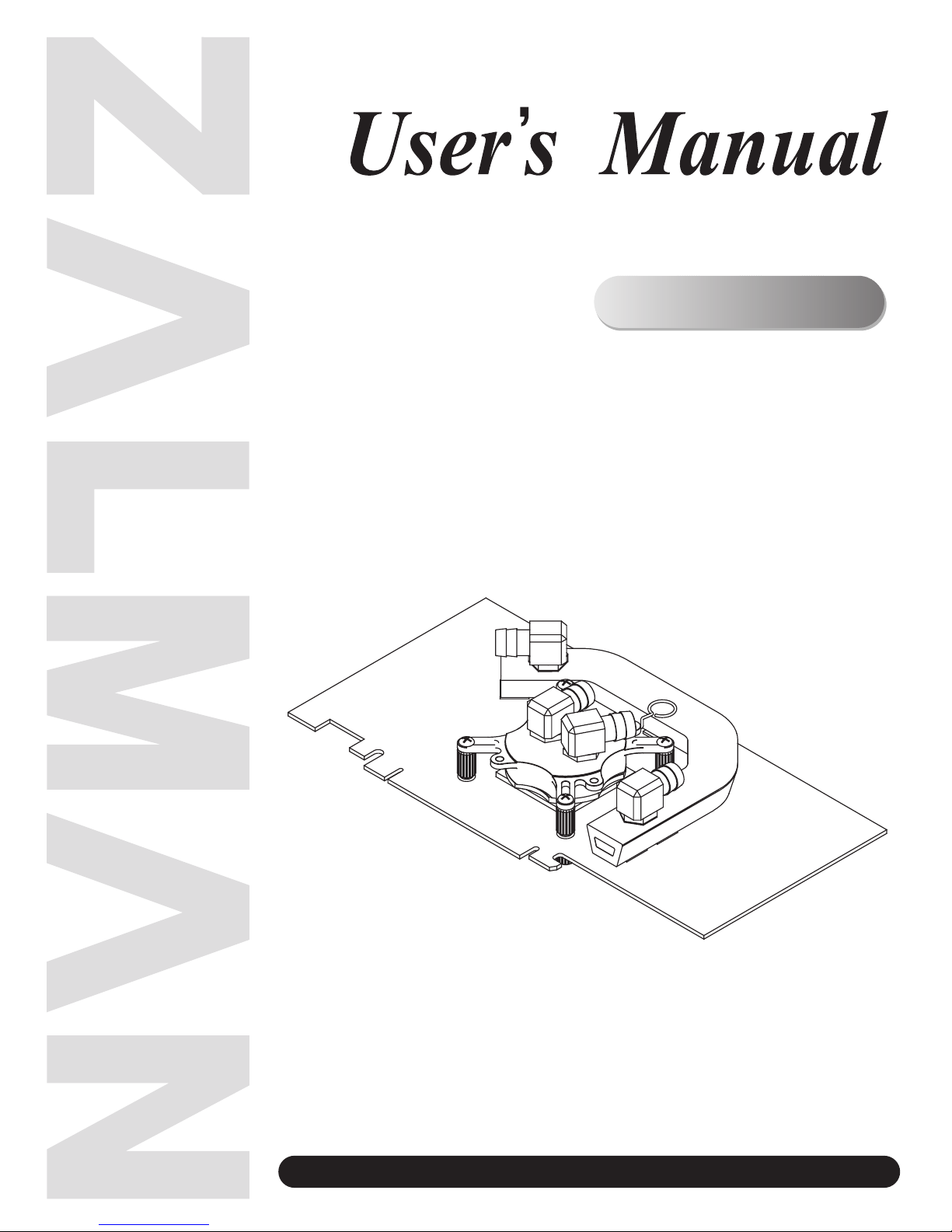

ZALMAN ZM-RWB1 Manual de usuario
Please visit our website www.zalman.co.kr and watch the ZM-RWB1 installation
video for easy installation.
※Please read this manual thoroughly before installation.
※The s ecifications of this roduct and its com onents may change without rior notice to
im rove erformance.
http://www.zalman.co.kr http://www.zalmanusa.com
ZM-RWB1
(English version)
VGA RAM WATER BLOCK
for Higher Water Cooling Performan e
※
The specifications of any product may change without prior notice to improve performance.
1
1) Test the roduct for leakage outside and away from the system before installing it on the system.
After confirming no leakage, roceed with installation and use.
2) Use a roved coolant mixed with distilled water or refined water to revent corrosion.
3) Use coolant tubes listed under the com atibility list.
4) Com atible with Geforce 7800/7900 series and ATI 1800/1900 series.
5) If interference with com onents of the VGA card is encountered, then do not install this roduct.
6) Familiarize yourself with this manual.
7) Use of an exhaust fan for the back of the case is recommended for enhancing roduct erformance.
8) For ast GWB3 users, coolant must be com letely drained, and the GWB3 must first be removed and
be reinstalled.
Pre autions
1) Weight : 100g
2) Material : Pure aluminum
3) Dimensions : 19(W) X 122(L) X 12(H)mm
4) Com atible Tubes (Outer x Inner) : 13 x 9mm, 12 x 8mm, 11 x 8mm, 10 x 8mm
5) Com atible VGA Cards : Geforce 7800/7900 series and ATI 1800/1900 series
2. Spe ifi ations
1) Zalman’s innovative manufacturing technology rovides lightness in weight and excellent cooling erformance.
2) Pure aluminum-base material water block rovides excellent heat transfer, and anodized base revents
corrosion.
3) New mounting structure allows easy installation and wide com atibility range.
Zalman Tech Co., Ltd. is not res onsible for any damages due to external causes, including but not limited
to, im ro er use, roblems with electrical ower, accident, neglect, alteration, re air, im ro er installation,
or im ro er testing.
1. Features
Dis laimer
※
The specifications of any product may change without prior notice to improve performance.
2
3. Components
4. Exploded View
1) Common Components
①One (1) VGA RAM Water Block Assembly
②Eight (8) Thermal Ta es
③One (1) Cli
④Two (2) Tube Clam s
⑤One (1) User’s Manual
❶❷
❸❹❺
Cli
VGA Water Block (GWB3)
VGA RAM Water Block
Thermal Ta e
VGA RAM
VGA Card
※
The specifications of any product may change without prior notice to improve performance.
3
5. Installation
1) Install VGA RAM Water Block
Place the Thermal Ta es on to of the VGA RAM, remove the film of the Thermal Ta es, and install the ZM-RWB1
on to of these Thermal Ta es by exerting a downward force as shown in the diagram.
ote 1) If Thermal Grease or other residue remains on the
VGA RAM, then the Thermal Ta es will not stick.
Clean the VGA RAM surface with acetone or alcohol
before attaching.
ote 2) The bonding strength of the Thermal Ta es reaches
90% after 24 hours of curing. Press down once again
after two hours of initial attachment.
ote 3) Thermal Ta es are not reusable because they lose
adhesiveness after their initial attachment.
Purchase new Thermal Ta es if you need to make
reattachments.
2) Attach Clip
Attach the Cli by ushing it u into GWB3’s ATI hole as
shown in the diagram.
3) Connect with GWB3
Install GWB3 with the Cli hooked into the ATI hole as
shown in the diagram.
ote 1) Hooking the RWB1 Cli into the ATI hole ositioned
on the u er region of the VGA water block will
create tension. Now hook the other side of the
RWB1 Cli on to the u er art of the RWB1 in
order to effectively install the RWB1.
ote 2) For more information on GWB3 installation, lease
visit www.zalman.co.kr to view the installation video.
Thermal
Ta e
VGA RAM
ATI Hole
Cli
Cli
※
The specifications of any product may change without prior notice to improve performance.
4
4) Install Tubes
Connect the tubes with the VGA water block and VGA RAM water block’s fittings, and install the Tube Clam s.
ote 1) Hold the VGA water block and VGA RAM water block with one hand to kee them from moving
when installing the tubes.
ote 2) Cutting the tubes to adequate length beforehand will sim lify the rocess of connecting the tubes
with the VGA water block and RWB1.
5) Check Installation
Connect the tubes to the VGA water block and VGA RAM water block’s fittings as shown in the diagram, and
install the Tube Clam s.
ote 1) Check to see if the tubes are connected
as shown in the icture on the right, and
check if the tubes are ro erly connected
by ulling on them.
ote 2) After confirming connection, ress onto the
VGA RAM water block one more time after
two hours, check for leakage, and start the
system.
Inlet Outlet
※
The specifications of any product may change without prior notice to improve performance.
5
Stable erformance and noiseless liquid cooling system can both be achieved with the use of
Zalman’s Noiseless Power Su ly, Heat i e Hard Disk Cooler, Noiseless Case Fan and Northbridge
Water Block.
Zalman Noise Prevention System
TNN(Totally No Noise) Computer Case
Home Theatre PC En losures
TNN Com uter Enclosures are the world’s first environment-friendly noiseless com uter enclosures
that o erate without the use of a fan. TNN Com uter Enclosures use the aluminum enclosure itself
as a heatsink. They are ideal for environments that require silence, as well as for home theatre
systems and multi-media systems.
The HD160 is designed for ultra quiet home theatre
PC o eration, utilizing o timized ventilation and
anti-vibration reinforcements, making it ideal for
environments that require silence such as living
rooms, bedrooms, educational facilities, and offices.
For more information, please visit our website.
HD160
TNN 300 TNN 500AF
oiseless Power Supply Heatpipe HDD Cooler oiseless Case Fan orthbridge Water Block
