TECHNICAL GUIDE

HORIZONTAL DISCHARGE

SPLIT SYSTEM

AIR CONDITIONERS

14 SEER – R-410A – 1 PHASE

2, 3, 4 NOMINAL TONS

MODELS: TCHE24, 36, 48

Due to continuous product improvement, specifications

are subject to change without notice.

Visit us on the web at

www.simplygettingthejobdone.com and

www.york.com

Additional rating information can be found at

www.ahridirectory.org

WARRANTY SUMMARY*

Extended 10-Years limited parts warranty.

Standard 10-Years limited compressor warranty.

Extended 10-Years limited parts warranty when product is

registered online within 90 days of purchase for replacement

or closing for new home construction.

*Does not apply to 3-Phase models, or Internet sales.

See Limited Warranty certificate in User's Information Manual for details.

FOR INSTALLATION IN ALL US REGIONS AND CANADA

Installation Allowed

5371951-YTG-C-0919

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

The 14 SEER TCHE Series condensing unit is the outdoor part

of a versatile system of air conditioning. Optimized for the new

14 SEER Regional Minimum Efficiency and the high EER

required in the Southwest US, these outdoor units are specifi-

cally designed to be matched with York indoor coils, furnaces,

and air handlers to provide a complete system solution.

These remarkably compact units require only minimal service

and airflow clearances, allowing them to be positioned as close

as six inches (6") from the wall. This design allows the unit to be

located virtually anywhere – on the ground, roof, balcony, or

mounted to an outside wall. When installation footprint is lim-

ited, these units can be stacked two-high using the approved

stacking kit.

FEATURES

•Performance - Optimized for the US DOE Southwest

Region and valid for installation in all US DOE Regions.

•Small Footprint - Compact “slim-line” design allows for easy

installation in tight spaces. Units can be stacked two-high

with approved stacking kit.

•QuietDrive™ System - The combination of a swept-wing

fan, rigid base pan, isolated compressor compartment, and

quiet scroll compressor reduce sound to as low as 70 dBA.

•Low Operating Sound Levels - The swept-wing condenser

fan in blow-through configuration provides for whisper-quiet

operation by allowing air to flow smoothly and efficiently

across the fan blades.

•Quality Condenser Coils - The coil is constructed of alumi-

num microchannel tubing and enhanced aluminum fins for

compact size and increased efficiency.

•Environmentally Friendly Refrigerant - The next genera-

tion refrigerant R-410A delivers environmentally friendly per-

formance with zero ozone depletion.

•Durable Cabinet - Heavy-gauge steel cabinet and tubular

base rails provide added support.

•Aesthetic Appearance - Powder paint “Champagne” color

provides an attractive retail finish.

•Agency Listed - Safety certified by CSA to UL 1995 / CSA

22.2. Performance certified to ANSI/AHRI Standard 210/240

in accordance with the Unitary Small Equipment certification

program.

• Other Features:

– Factory installed filter drier

– High pressure and low pressure switches

– Accumulator and crankcase heater in all sizes

– Up to 200’ line set out of the box

– Zero lot line - only 6” minimum clearance from structure

5371951-YTG-C-0919

2 Johnson Controls Ducted Systems

LIST OF SECTIONS

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3

SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4

COOLING CAPACITY - With Air Handler Coils . . . . . . . . . . . . . . . 5

COOLING CAPACITY - Upflow, Downflow &

Horizontal Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . 6

COOLING CAPACITY - With High Efficiency Motor Furnaces . . . 6

APPLICATIONS AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 19

SOUND POWER RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 20

TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

MOUNTING HOLE GRAPHIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 28

PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 30

NOMENCLATURE

BRAND TT= Factory Branded

PRODUCT TYPE CC= Air Conditioner

(US Northern or Southeast Region)

AIRFLOW HH= Horizontal Discharge

NOMINAL

SERIES EFFICIENCY

AND STAGING EE= 14 SEER High EER

(US DOE Southwest Region)

NOMINAL

UNIT CAPACITY

(MBH) 36 24 = 2 Ton

36 = 3 Ton

48 = 4 Ton

STAGING SS = Single Stage Compressor

REFRIGERANT 44 = R-410A Refrigerant

VOLTAGE

(Voltage-Phase-Hertz) 11= 208/230-1-60

CONNECTION TYPE SS = Sweat Connect

GENERATION

(MAJOR REVISION) 11= 1st Gen

2= 2nd Gen

etc

STYLE LETTER

(MINOR REVISION)

NOT USED

FOR ORDERING

A= Style A

B= Style B

etc

5371951-YTG-C-0919

Johnson Controls Ducted Systems 3

.All dimensions are in inches and are subject to change without notice.

Overall height is from bottom of mounting feet to top of unit.

Overall length and width include mounting feet and screw heads.

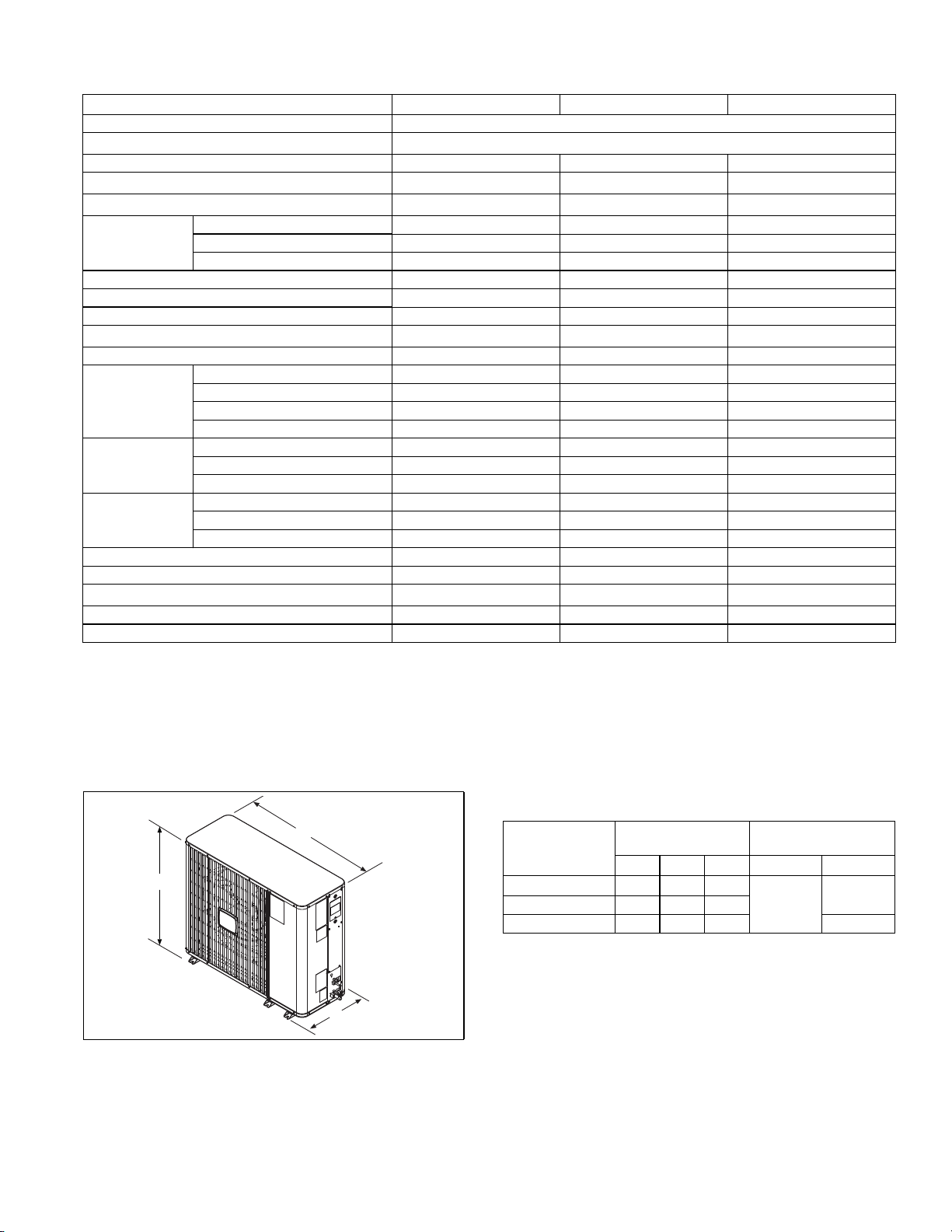

PHYSICAL AND ELECTRICAL DATA

MODEL TCHE24S41S1 TCHE36S41S1 TCHE48S41S1

Unit Supply Voltage 208-230V, 1 60Hz

Normal Voltage Range 1

1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.

187 to 252

Minimum Circuit Ampacity 18.3 19.1 24.6

Max. Overcurrent Device Amps 2

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

30 30 40

Min. Overcurrent Device Amps 3

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

20 20 25

Compressor Amps Type Scroll Scroll Scroll

Rated Load 13.5 14.1 18.5

Locked Rotor 58.3 72.2 124.0

Crankcase Heater Yes Yes Yes

Factory External Discharge Muffler No No No

Factory External Check Valve No No No

HS Kit Required with TXV 4

4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.

No No No

Fan Diameter Inches 23 23 23

Fan Motor

Rated HP 1/4 1/4 1/4

Rated Load Amps 1.3 1.3 1.3

Nominal RPM 850 850 850

Nominal CFM 3200 3200 3050

Coil Face Area Sq. Ft. 11.96 11.96 13.96

Rows Deep 1 1 1

Fins / Inch 23 23 23

Refrigerant Lines5

5. When more than 50 feet of interconnecting tubing and more than 30 feet of vertical lift is used, consult the Application Data (part number 247077).

For long-line applications, interconnecting lines over 100 feet must be installed with liquid line solenoid.

Max. Length 200 200 200

Max. Lift 65 65 65

Max. Drop 150 150 150

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 3/4 3/4 7/8

Unit Charge (Lbs. - Oz.) 6

6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,

add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

5 - 0 6 - 6 7 - 4

Charge Per Foot, Oz. 0.62 0.62 0.67

Operating Weight Lbs. 195 215 240

DIMENSIONS

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

A B C Liquid Vapor

TCHE24S41S1 37-1/4 20 45 3/8 3/4

TCHE36S41S1 37-1/4 20 45

TCHE48S41S1 43-1/4 20 45 7/8

5371951-YTG-C-0919

4 Johnson Controls Ducted Systems

PROCEDURES:

1. Check the Factory Unit Charge listed on the unit nameplate to verify the refrigerant charge for the outdoor unit, the smallest matched indoor unit, and

the 15 feet of interconnecting lineset.

2. Verify the indoor metering device and additional charge required for the specific matched indoor unit in the system using the above table.

3. Add additional charge for the amount of interconnecting lineset greater than 15 feet at the rate specified in the Physical and Electrical Table.

4. For installations requiring additional charge, weigh in refrigerant for the specific matching indoor unit and actual lineset length.

5. Once the charge adders for matched indoor unit and for lineset have been weighed in, verify the system operation against the temperatures and pressures in the

Charging Chart for the outdoor unit. Locate Charging Charts on the outdoor unit and also in the Service Data Application Guide on

www.simplygettingthejobdone.com. Follow the Subcool or Superheat charging procedure in the Installation Manual according to the type of indoor metering device

in the system, and allow ten minutes after each charge adjustment for the system operation to stabilize. Record the charge adjustment made to match the Charging

Chart.

6. Permanently stamp the unit data plate with the TOTAL SYSTEM CHARGE defined as follows: TOTAL SYSTEM CHARGE = Base Charge (as shipped) + charge

adder for matched indoor unit + charge adder for actual lineset length + charge adjustments to match the Charging Chart.

SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS

System Charge for Various Matched Systems

Outdoor Unit TCHE24S41S1 TCHE36S41S1 TCHE48S41S1

Required TXV 1,2 BA1 BA2 BA2

Indoor Unit 3,4,5Additional Charge, Oz

CF/CM/CU30(B,C,D) 0 – –

CF/CM/CU36(A,B,C,D) 7 – –

FC38C – 0 –

FC49D – – 0

AP30B 0 – –

AP36C 7 – –

AE30B 0 – –

AE36(B,C) 7 – –

AVC30B 0 – –

AVC36(B,C) 7 – –

Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil

only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.

FOOTNOTES:

1. For applications requiring a TXV use S1-1TVM*** series kit.

2. ATXV kit must be used with these indoor units to obtain system performance.

3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require 60 second time delay.

4. CF and FC coils cannot be used in horizontal applications.

5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for

specified system matches. Obtain certified system ratings from www.ahridirectory.org.

5371951-YTG-C-0919

Johnson Controls Ducted Systems 5

— = Not applicable.

MP ModularAir Handlers use Coil Only Ratings.

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

TCHE24S41S1 AE30BX21 17.5 – 900 24.00 19.50 16.00 13.00

TCHE24S41S1 AE36BX21 17.5 – 850 24.00 19.40 16.00 13.00

TCHE24S41S1 AE36CX21 21.0 – 800 24.00 18.90 16.00 13.00

TCHE24S41S1 AHE30B3X(H,T)21 17.5 – 795 24.00 18.30 15.50 12.75

TCHE24S41S1 AHE36C3X(H,T)21 21.0 – 855 24.00 18.80 15.75 13.00

TCHE24S41S1 AHV30B3X(H,T)21 17.5 – 775 24.00 18.20 15.50 12.75

TCHE24S41S1 AHV36C3X(H,T)21 21.0 – 760 24.00 17.90 15.75 13.00

TCHE24S41S1 AP30BX21 17.5 – 850 24.00 19.40 14.00 12.25

TCHE24S41S1 AVC30BX21 17.5 – 750 24.00 18.30 16.00 13.00

TCHE24S41S1 AVC36BX21 17.5 – 750 24.00 18.30 16.00 13.00

TCHE24S41S1 AVC36CX21 21.0 – 875 24.00 19.70 16.00 13.00

TCHE24S41S1 ME08BN21 17.5 CF/CM30B 800 24.00 18.70 16.00 13.00

TCHE24S41S1 ME08BN21 17.5 CF/CM36B 800 24.00 18.90 16.00 13.00

TCHE24S41S1 ME12BN21 17.5 CF/CM30B 875 24.00 19.20 16.00 13.00

TCHE24S41S1 ME12BN21 17.5 CF/CM36B 875 24.00 19.70 16.00 13.00

TCHE24S41S1 ME12CN21 21.0 CF/CM30C 850 24.00 19.30 16.00 13.00

TCHE24S41S1 ME12CN21 21.0 CF/CM36C 850 24.00 19.40 16.00 13.00

TCHE24S41S1 ME14DN21 24.5 CF/CM36D 875 24.00 19.70 16.00 13.00

TCHE24S41S1 ME16CN21 21.0 CF/CM30C 925 24.00 19.80 16.00 13.00

TCHE24S41S1 ME16CN21 21.0 CF/CM36C 925 24.00 19.80 16.00 13.00

TCHE24S41S1 MV12BN21 17.5 FC/MC35B 800 24.00 18.40 15.75 13.00

TCHE24S41S1 MV12BN21 17.5 FC/MC36B 800 24.00 18.20 15.75 13.00

TCHE24S41S1 MV12BN21 17.5 FC/MC42B 800 24.00 18.00 15.75 13.00

TCHE24S41S1 MV12BN21 17.5 FC/MC43B 800 24.00 18.20 15.75 13.00

TCHE24S41S1 MVC08BN21 17.5 CF/CM30B 800 24.00 18.70 16.00 13.00

TCHE24S41S1 MVC08BN21 17.5 CF/CM36B 800 24.00 18.90 16.00 13.00

TCHE24S41S1 MVC12BN21 17.5 CF/CM30B 875 24.00 19.20 16.00 13.00

TCHE24S41S1 MVC12BN21 17.5 CF/CM36B 875 24.00 19.60 16.00 13.00

TCHE24S41S1 MVC12CN21 21.0 CF/CM30C 875 24.00 19.30 16.00 13.00

TCHE24S41S1 MVC12CN21 21.0 CF/CM36C 875 24.00 19.70 16.00 13.00

TCHE24S41S1 MVC16CN21 21.0 CF/CM30C 925 24.00 19.80 16.00 13.00

TCHE24S41S1 MVC16CN21 21.0 CF/CM36C 925 24.00 19.80 16.00 13.00

TCHE24S41S1 MX12BN21 17.5 FC/MC35B 800 24.00 18.40 15.50 12.75

TCHE24S41S1 MX12BN21 17.5 FC/MC36B 800 24.00 18.20 15.75 13.00

TCHE24S41S1 MX12BN21 17.5 FC/MC43B 800 24.00 18.20 15.50 12.75

TCHE24S41S1 MX16CN21 21.0 FC/MC35C 800 24.00 18.40 15.25 12.75

TCHE24S41S1 MX16CN21 21.0 FC/MC36C 800 24.00 18.20 15.25 12.75

TCHE24S41S1 MX16CN21 21.0 FC/MC43C 800 24.00 18.20 15.25 12.75

TCHE36S41S1 ME16CN21 21.0 FC38C 1200 36.00 27.20 16.00 13.00

TCHE36S41S1 MVC16CN21 21.0 FC38C 1200 35.80 27.20 15.50 12.75

TCHE48S41S1 ME14DN21 24.5 FC49D 1425 46.50 34.60 15.10 12.50

TCHE48S41S1 ME20DN21 24.5 FC49D 1425 46.50 34.60 15.50 12.50

TCHE48S41S1 MVC14DN21 24.5 FC49D 1175 45.50 31.80 15.50 12.75

TCHE48S41S1 MVC20DN21 24.5 FC49D 1375 46.50 34.20 15.50 12.75

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.

Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.

EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total

electric power input in watt-hours during the same period.

1. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.

5371951-YTG-C-0919

6 Johnson Controls Ducted Systems

— = Not Applicable.

MP ModularAir Handlers use Coil Only Ratings.

PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)

UNIT MODEL

COIL CFM RANGE

(MIN.-MAX.)

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER 1EER

TOTAL SENS.

TCHE24S41S1 CF/CM/CU30A 14.5 600 - 1000 800 24.0 18.6 14.00 12.20

TCHE24S41S1 CF/CM/CU30B 17.5 600 - 1000 800 24.0 17.5 14.00 12.20

TCHE24S41S1 CF/CM/CU36B 17.5 600 - 1000 800 24.0 18.9 14.00 12.20

TCHE24S41S1 CF/CM/CU36C 21.0 600 - 1000 800 24.0 18.9 14.00 12.20

TCHE24S41S1 CF/CM30C 21.0 600 - 1000 800 24.0 18.6 14.00 12.20

TCHE24S41S1 CF/CM36A 14.5 600 - 1000 800 24.0 18.9 14.00 12.20

TCHE24S41S1 CF/CM36D 24.5 600 - 1000 800 24.0 18.9 14.00 12.20

TCHE36S41S1 FC38C 21.0 1000 - 1400 1200 35.6 27.2 14.00 12.20

TCHE48S41S1 FC49D 21.0 1400 - 1800 1425 46.0 33.8 14.00 12.15

For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.

1. Systems matched with furnaces or air handlers not equipped with blower-off delays may require 60 second time delay.

COOLING CAPACITY - With High Efficiency Motor Furnaces1

UNIT

MODEL

FURNACE COIL

MODEL2

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

TCHE24S41S1 TL8E060A12UH11 14.5 CF/CM/CU30A 650 24.0 17.4 15.50 12.75

TCHE24S41S1 TL8E060A12UH11 14.5 CF/CM/CU30B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TL8E060A12UH11 14.5 CF/CM/CU36B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TL8E060A12UH11 14.5 CF/CM36A 625 24.0 17.2 15.75 13.00

TCHE24S41S1 TL8E060A12UH11 14.5 CF42B 675 24.0 17.6 15.75 13.00

TCHE24S41S1 TL8E080C16UH11 21.0 CF/CM30C 950 24.0 20.0 16.00 13.00

TCHE24S41S1 TL9E060B12UH11 17.5 CF/CM/CU30B 675 24.0 17.7 15.50 12.75

TCHE24S41S1 TL9E060B12UH11 17.5 CF/CM/CU36B 650 24.0 17.6 15.75 13.00

TCHE24S41S1 TL9E060B12UH11 17.5 CF/CM/CU36C 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TL9E060B12UH11 17.5 CF/CM/CU42C 700 24.0 17.8 15.75 13.00

TCHE24S41S1 TL9E060B12UH11 17.5 CF/CM30C 700 24.0 17.9 15.50 12.75

TCHE24S41S1 TL9E060B12UH11 17.5 CF42B 675 24.0 17.7 15.75 13.00

TCHE24S41S1 TL9E080C16UH11 21.0 CF/CM/CU36C 925 24.0 19.8 16.00 13.00

TCHE24S41S1 TL9E080C16UH11 21.0 CF/CM/CU42C 925 24.0 19.7 16.00 13.00

TCHE24S41S1 TL9E080C16UH11 21.0 CF/CM30C 925 24.0 19.8 16.00 13.00

TCHE24S41S1 TL9E080C16UH11 21.0 CF/CM36D 925 24.0 19.8 16.00 13.00

TCHE24S41S1 TL9E080C16UH11 21.0 CF/CM42D 925 24.0 19.7 16.00 13.00

TCHE24S41S1 TM8E040A12MP11 14.5 CF/CM/CU30A 725 24.0 18.2 15.50 12.75

TCHE24S41S1 TM8E040A12MP11 14.5 CF/CM/CU30B 775 24.0 18.5 15.75 13.00

TCHE24S41S1 TM8E040A12MP11 14.5 CF/CM/CU36B 775 24.0 18.8 16.00 13.00

TCHE24S41S1 TM8E040A12MP11 14.5 CF/CM36A 725 24.0 18.3 15.75 13.00

TCHE24S41S1 TM8E040A12MP11 14.5 CF42B 775 24.0 18.7 16.00 13.00

TCHE24S41S1 TM8E060A12MP11 14.5 CF/CM/CU30A 725 24.0 18.2 15.50 12.75

TCHE24S41S1 TM8E060A12MP11 14.5 CF/CM/CU30B 750 24.0 18.3 15.75 13.00

TCHE24S41S1 TM8E060A12MP11 14.5 CF/CM/CU36B 825 24.0 19.1 15.75 13.00

TCHE24S41S1 TM8E060A12MP11 14.5 CF/CM36A 725 24.0 18.3 15.75 13.00

TCHE24S41S1 TM8E060A12MP11 14.5 CF42B 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF/CM/CU30B 725 24.0 18.1 15.75 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF/CM/CU36B 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF/CM/CU36C 750 24.0 18.3 15.75 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF/CM/CU42C 750 24.0 18.4 16.00 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF/CM30C 750 24.0 18.3 15.75 13.00

TCHE24S41S1 TM8E080B12MP11 17.5 CF42B 725 24.0 18.0 16.00 13.00

TCHE24S41S1 TM8E080C16MP11 21.0 CF/CM/CU36C 825 24.0 19.1 16.00 13.00

5371951-YTG-C-0919

Johnson Controls Ducted Systems 7

TCHE24S41S1 TM8E080C16MP11 21.0 CF/CM/CU42C 825 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8E080C16MP11 21.0 CF/CM30C 825 24.0 18.8 16.00 13.00

TCHE24S41S1 TM8E080C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8E080C16MP11 21.0 CF/CM42D 825 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF/CM/CU30B 850 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF/CM/CU36B 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF/CM/CU36C 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF/CM/CU42C 850 24.0 19.0 16.00 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF/CM30C 850 24.0 19.6 15.75 13.00

TCHE24S41S1 TM8E100B12MP11 17.5 CF42B 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8E100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.9 16.00 13.00

TCHE24S41S1 TM8E100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.8 16.00 13.00

TCHE24S41S1 TM8E100C16MP11 21.0 CF/CM30C 800 24.0 18.7 16.00 13.00

TCHE24S41S1 TM8E100C16MP11 21.0 CF/CM36D 800 24.0 18.9 16.00 13.00

TCHE24S41S1 TM8E100C16MP11 21.0 CF/CM42D 800 24.0 18.8 16.00 13.00

TCHE24S41S1 TM8E120C16MP11 21.0 CF/CM/CU36C 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8E120C16MP11 21.0 CF/CM/CU42C 825 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8E120C16MP11 21.0 CF/CM30C 800 24.0 18.7 16.00 13.00

TCHE24S41S1 TM8E120C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8E120C16MP11 21.0 CF/CM42D 825 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8V060A12MP11C 14.5 CF/CM/CU30A 625 23.8 17.0 15.50 12.75

TCHE24S41S1 TM8V060A12MP11C 14.5 CF/CM/CU30B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM8V060A12MP11C 14.5 CF/CM/CU36B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM8V060A12MP11C 14.5 CF/CM36A 775 24.0 18.5 15.25 12.75

TCHE24S41S1 TM8V060A12MP12C 14.5 CF/CM/CU30A 625 23.8 17.0 15.50 12.75

TCHE24S41S1 TM8V060A12MP12C 14.5 CF/CM/CU30B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM8V060A12MP12C 14.5 CF/CM/CU36B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM8V060A12MP12C 14.5 CF/CM36A 725 24.0 18.3 15.50 12.75

TCHE24S41S1 TM8V080B12MP11C 17.5 CF/CM/CU30B 775 24.0 18.4 15.50 12.75

TCHE24S41S1 TM8V080B12MP11C 17.5 CF/CM/CU36B 775 24.0 18.5 15.50 12.75

TCHE24S41S1 TM8V080B12MP11C 17.5 CF/CM/CU36C 675 24.0 17.8 15.50 12.75

TCHE24S41S1 TM8V080B12MP11C 17.5 CF/CM30C 725 24.0 18.2 15.50 12.75

TCHE24S41S1 TM8V080B12MP12C 17.5 CF/CM/CU30B 675 24.0 17.6 15.50 12.75

TCHE24S41S1 TM8V080B12MP12C 17.5 CF/CM/CU36B 675 24.0 17.8 15.50 12.75

TCHE24S41S1 TM8V080B12MP12C 17.5 CF/CM/CU36C 675 24.0 17.8 15.50 12.75

TCHE24S41S1 TM8V080B12MP12C 17.5 CF/CM30C 725 24.0 18.2 15.50 12.75

TCHE24S41S1 TM8V080C16MP11C 21.0 CF/CM/CU30D 900 24.0 19.1 15.00 12.50

TCHE24S41S1 TM8V080C16MP11C 21.0 CF/CM/CU36C 875 24.0 19.4 15.25 12.75

TCHE24S41S1 TM8V080C16MP11C 21.0 CF/CM30C 875 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8V080C16MP11C 21.0 CF/CM36D 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM/CU30C 875 24.0 19.4 15.00 12.50

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM/CU30D 875 24.0 19.4 15.00 12.50

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM/CU36C 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM/CU36D 875 24.0 19.4 15.25 12.75

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM30C 875 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8V080C16MP12C 21.0 CF/CM36D 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM/CU30D 900 24.0 19.1 15.00 12.50

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM/CU36C 875 24.0 19.4 15.25 12.75

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM30C 900 24.0 19.1 15.00 12.50

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM30C 875 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM36D 900 24.0 19.5 15.25 12.75

TCHE24S41S1 TM8V100C16MP11C 21.0 CF/CM36D 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM/CU30C 875 24.0 19.4 15.00 12.50

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM/CU30D 875 24.0 19.4 15.00 12.50

COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)

UNIT

MODEL

FURNACE COIL

MODEL2

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

5371951-YTG-C-0919

8 Johnson Controls Ducted Systems

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM/CU36C 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM/CU36D 875 24.0 19.4 15.25 12.75

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM30C 875 24.0 19.2 16.00 13.00

TCHE24S41S1 TM8V100C16MP12C 21.0 CF/CM36D 875 24.0 19.6 16.00 13.00

TCHE24S41S1 TM8X060A12MP11 14.5 CF/CM/CU30A 625 23.8 17.0 15.50 12.75

TCHE24S41S1 TM8X060A12MP11 14.5 CF/CM/CU30B 650 24.0 17.5 15.50 12.75

TCHE24S41S1 TM8X060A12MP11 14.5 CF/CM/CU36B 650 24.0 17.6 15.75 13.00

TCHE24S41S1 TM8X060A12MP11 14.5 CF/CM36A 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM8X080B12MP11 17.5 CF/CM/CU30B 775 24.0 18.5 15.75 13.00

TCHE24S41S1 TM8X080B12MP11 17.5 CF/CM/CU36B 775 24.0 18.7 15.75 13.00

TCHE24S41S1 TM8X080B12MP11 17.5 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8X080B12MP11 17.5 CF/CM30C 775 24.0 18.5 15.75 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM/CU30C 700 23.8 17.8 15.75 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM/CU30D 725 23.8 18.1 16.00 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM30C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM36D 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8X080C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM/CU30C 700 23.8 17.8 15.75 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM/CU30D 725 23.8 18.1 16.00 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM30C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM36D 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8X100C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8X100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.5 14.50 12.25

TCHE24S41S1 TM8X100C20MP11 21.0 CF/CM/CU36C 825 23.8 18.9 14.50 12.25

TCHE24S41S1 TM8X100C20MP11 21.0 CF/CM30C 825 23.8 18.3 14.50 12.25

TCHE24S41S1 TM8X100C20MP11 21.0 CF/CM36D 825 24.0 19.1 14.50 12.25

TCHE24S41S1 TM8X120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.5 14.50 12.25

TCHE24S41S1 TM8X120C20MP11 21.0 CF/CM/CU36C 825 23.8 18.9 14.50 12.25

TCHE24S41S1 TM8X120C20MP11 21.0 CF/CM30C 825 23.8 18.3 14.50 12.25

TCHE24S41S1 TM8X120C20MP11 21.0 CF/CM36D 825 24.0 19.1 14.50 12.25

TCHE24S41S1 TM8Y060A12MP11 14.5 CF/CM/CU30A 625 23.8 17.0 15.50 12.75

TCHE24S41S1 TM8Y060A12MP11 14.5 CF/CM/CU30B 650 24.0 17.5 15.50 12.75

TCHE24S41S1 TM8Y060A12MP11 14.5 CF/CM/CU36B 650 24.0 17.6 15.75 13.00

TCHE24S41S1 TM8Y060A12MP11 14.5 CF/CM36A 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM8Y080B12MP11 17.5 CF/CM/CU30B 775 24.0 18.5 15.75 13.00

TCHE24S41S1 TM8Y080B12MP11 17.5 CF/CM/CU36B 775 24.0 18.7 15.75 13.00

TCHE24S41S1 TM8Y080B12MP11 17.5 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8Y080B12MP11 17.5 CF/CM30C 775 24.0 18.5 15.75 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM/CU30C 700 23.8 17.8 15.75 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM/CU30D 725 23.8 18.1 16.00 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM30C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM36D 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8Y080C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM/CU30C 700 23.8 17.8 15.75 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM/CU30D 725 23.8 18.1 16.00 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM/CU36C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM30C 700 24.0 17.9 16.00 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM36D 725 24.0 18.3 16.00 13.00

TCHE24S41S1 TM8Y100C16MP11 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM8Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.5 14.50 12.25

COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)

UNIT

MODEL

FURNACE COIL

MODEL2

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

5371951-YTG-C-0919

Johnson Controls Ducted Systems 9

TCHE24S41S1 TM8Y100C20MP11 21.0 CF/CM/CU36C 825 23.8 18.9 14.50 12.25

TCHE24S41S1 TM8Y100C20MP11 21.0 CF/CM30C 825 23.8 18.3 14.50 12.25

TCHE24S41S1 TM8Y100C20MP11 21.0 CF/CM36D 825 24.0 19.1 14.50 12.25

TCHE24S41S1 TM8Y120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.5 14.50 12.25

TCHE24S41S1 TM8Y120C20MP11 21.0 CF/CM/CU36C 825 23.8 18.9 14.50 12.25

TCHE24S41S1 TM8Y120C20MP11 21.0 CF/CM30C 825 23.8 18.3 14.50 12.25

TCHE24S41S1 TM8Y120C20MP11 21.0 CF/CM36D 825 24.0 19.1 14.50 12.25

TCHE24S41S1 TM9E040A10MP11 14.5 CF/CM/CU30A 675 23.8 17.5 14.75 12.25

TCHE24S41S1 TM9E040A10MP11 14.5 CF/CM/CU30B 700 24.0 17.9 14.75 12.50

TCHE24S41S1 TM9E040A10MP11 14.5 CF/CM/CU36B 700 24.0 18.0 15.00 12.50

TCHE24S41S1 TM9E040A10MP11 14.5 CF/CM36A 675 23.8 17.6 14.75 12.25

TCHE24S41S1 TM9E040A10MP12 14.5 CF/CM/CU30A 600 23.6 16.6 15.25 12.50

TCHE24S41S1 TM9E040A10MP12 14.5 CF/CM/CU30B 675 24.0 17.7 15.25 12.50

TCHE24S41S1 TM9E040A10MP12 14.5 CF/CM/CU36B 625 24.0 17.2 15.25 12.50

TCHE24S41S1 TM9E040A10MP12 14.5 CF/CM36A 675 24.0 17.8 15.25 12.50

TCHE24S41S1 TM9E040A10MP12 14.5 CF42B 675 24.0 17.7 15.25 12.50

TCHE24S41S1 TM9E060A10MP12 14.5 CF/CM/CU30A 675 24.0 17.7 15.25 12.50

TCHE24S41S1 TM9E060A10MP12 14.5 CF/CM/CU30B 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM9E060A10MP12 14.5 CF/CM/CU36B 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM9E060A10MP12 14.5 CF/CM36A 675 24.0 17.8 15.50 12.75

TCHE24S41S1 TM9E060A10MP12 14.5 CF42B 700 24.0 17.8 15.75 12.75

TCHE24S41S1 TM9E060B12MP11 17.5 CF/CM/CU30B 675 24.0 17.6 15.50 12.75

TCHE24S41S1 TM9E060B12MP11 17.5 CF/CM/CU36B 675 24.0 17.8 15.50 12.75

TCHE24S41S1 TM9E060B12MP11 17.5 CF/CM/CU36C 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM9E060B12MP11 17.5 CF/CM30C 675 24.0 17.6 15.50 12.75

TCHE24S41S1 TM9E060B12MP12 17.5 CF/CM/CU30B 750 24.0 18.4 15.50 12.75

TCHE24S41S1 TM9E060B12MP12 17.5 CF/CM/CU36B 750 24.0 18.3 15.75 13.00

TCHE24S41S1 TM9E060B12MP12 17.5 CF/CM/CU36C 750 24.0 18.3 15.50 12.75

TCHE24S41S1 TM9E060B12MP12 17.5 CF/CM/CU42C 750 24.0 18.3 15.75 13.00

TCHE24S41S1 TM9E060B12MP12 17.5 CF/CM30C 750 24.0 18.4 15.50 12.75

TCHE24S41S1 TM9E060B12MP12 17.5 CF42B 725 24.0 18.1 15.75 13.00

TCHE24S41S1 TM9E080B12MP11 17.5 CF/CM/CU30B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM9E080B12MP11 17.5 CF/CM/CU36B 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM9E080B12MP11 17.5 CF/CM/CU36C 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM9E080B12MP11 17.5 CF/CM30C 700 24.0 17.9 15.75 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF/CM/CU30B 800 24.0 18.7 15.75 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF/CM/CU36B 800 24.0 19.0 15.75 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF/CM/CU36C 825 24.0 19.1 15.75 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF/CM/CU42C 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF/CM30C 825 24.0 18.8 15.75 13.00

TCHE24S41S1 TM9E080B12MP12 17.5 CF42B 775 24.0 18.7 16.00 13.00

TCHE24S41S1 TM9E080C16MP11 21.0 CF/CM/CU36C 600 23.8 16.9 15.75 13.00

TCHE24S41S1 TM9E080C16MP11 21.0 CF/CM30C 600 23.6 16.7 15.50 12.75

TCHE24S41S1 TM9E080C16MP11 21.0 CF/CM36D 600 23.8 16.9 15.75 13.00

TCHE24S41S1 TM9E080C16MP12 21.0 CF/CM/CU36C 750 24.0 18.3 16.00 13.00

TCHE24S41S1 TM9E080C16MP12 21.0 CF/CM/CU42C 750 24.0 18.4 16.00 13.00

TCHE24S41S1 TM9E080C16MP12 21.0 CF/CM30C 750 24.0 18.3 16.00 13.00

TCHE24S41S1 TM9E080C16MP12 21.0 CF/CM36D 750 24.0 18.3 16.00 13.00

TCHE24S41S1 TM9E080C16MP12 21.0 CF/CM42D 750 24.0 18.4 16.00 13.00

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM/CU30C 625 23.2 16.6 15.75 13.00

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM/CU30D 650 23.4 17.0 15.75 13.00

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM/CU36C 650 24.0 17.7 15.75 13.00

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM/CU36D 650 23.4 17.3 15.75 13.00

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM30C 625 23.8 16.9 15.75 13.00

COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)

UNIT

MODEL

FURNACE COIL

MODEL2

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

5371951-YTG-C-0919

10 Johnson Controls Ducted Systems

TCHE24S41S1 TM9E100C16MP11 21.0 CF/CM36D 650 24.0 17.7 15.75 13.00

TCHE24S41S1 TM9E100C16MP12 21.0 CF/CM/CU36C 800 24.0 18.9 16.00 13.00

TCHE24S41S1 TM9E100C16MP12 21.0 CF/CM/CU42C 800 24.0 18.8 16.00 13.00

TCHE24S41S1 TM9E100C16MP12 21.0 CF/CM30C 800 24.0 18.7 16.00 13.00

TCHE24S41S1 TM9E100C16MP12 21.0 CF/CM36D 800 24.0 18.9 16.00 13.00

TCHE24S41S1 TM9E100C16MP12 21.0 CF/CM42D 800 24.0 18.8 16.00 13.00

TCHE24S41S1 TM9E100C20MP11 21.0 CF/CM/CU30D 800 24.0 18.5 15.00 12.50

TCHE24S41S1 TM9E100C20MP11 21.0 CF/CM/CU36C 800 24.0 18.6 15.00 12.50

TCHE24S41S1 TM9E100C20MP11 21.0 CF/CM30C 800 24.0 18.5 15.00 12.50

TCHE24S41S1 TM9E100C20MP11 21.0 CF/CM36D 800 24.0 18.6 15.00 12.50

TCHE24S41S1 TM9E120D20MP11 24.5 CF/CM/CU30D 825 24.0 18.6 15.25 12.75

TCHE24S41S1 TM9E120D20MP11 24.5 CF/CM36D 825 24.0 19.1 15.25 12.75

TCHE24S41S1 TM9V040A10MP12C 14.5 CF/CM/CU30A 625 23.6 16.8 15.00 12.50

TCHE24S41S1 TM9V040A10MP12C 14.5 CF/CM/CU30B 625 23.8 17.0 15.00 12.50

TCHE24S41S1 TM9V040A10MP12C 14.5 CF/CM/CU36B 650 24.0 17.7 15.25 12.50

TCHE24S41S1 TM9V040A10MP12C 14.5 CF/CM36A 650 23.8 17.5 15.00 12.50

TCHE24S41S1 TM9V060B12MP11C 17.5 CF/CM/CU30B 800 24.0 18.5 15.25 12.75

TCHE24S41S1 TM9V060B12MP11C 17.5 CF/CM/CU36B 825 24.0 19.1 15.50 12.75

TCHE24S41S1 TM9V060B12MP12C 17.5 CF/CM/CU30B 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM9V060B12MP12C 17.5 CF/CM/CU36B 700 24.0 18.0 15.50 12.75

TCHE24S41S1 TM9V060B12MP12C 17.5 CF/CM/CU36C 700 24.0 17.9 15.50 12.75

TCHE24S41S1 TM9V060B12MP12C 17.5 CF/CM30C 700 24.0 17.9 15.50 12.75

TCHE24S41S1 TM9V080B12MP11C 17.5 CF/CM/CU30B 800 24.0 18.5 15.25 12.75

TCHE24S41S1 TM9V080B12MP11C 17.5 CF/CM/CU36B 825 24.0 19.1 15.50 12.75

TCHE24S41S1 TM9V080B12MP11C 17.5 CF/CM/CU36C 850 24.0 19.4 15.75 13.00

TCHE24S41S1 TM9V080B12MP11C 17.5 CF/CM30C 725 24.0 18.1 15.75 13.00

TCHE24S41S1 TM9V080B12MP12C 17.5 CF/CM/CU30B 800 24.0 18.7 15.75 13.00

TCHE24S41S1 TM9V080B12MP12C 17.5 CF/CM/CU36B 800 24.0 19.0 15.75 13.00

TCHE24S41S1 TM9V080B12MP12C 17.5 CF/CM/CU36C 850 24.0 19.4 15.75 13.00

TCHE24S41S1 TM9V080B12MP12C 17.5 CF/CM30C 725 24.0 18.1 15.75 13.00

TCHE24S41S1 TM9V080C16MP11C 21.0 CF/CM/CU30D 825 24.0 18.6 15.75 13.00

TCHE24S41S1 TM9V080C16MP11C 21.0 CF/CM/CU36C 850 24.0 19.1 15.50 12.75

TCHE24S41S1 TM9V080C16MP12C 21.0 CF/CM/CU36C 950 24.0 20.4 15.75 13.00

TCHE24S41S1 TM9V080C16MP12C 21.0 CF/CM30C 950 24.0 20.0 15.75 13.00

TCHE24S41S1 TM9V080C16MP12C 21.0 CF/CM36D 950 24.0 20.4 16.00 13.00

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM/CU30D 825 24.0 18.6 15.75 13.00

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM/CU36C 850 24.0 19.1 15.50 12.75

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM30C 850 24.0 19.0 15.50 12.75

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM30C 900 24.0 19.5 16.00 13.00

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM36D 825 24.0 19.1 16.00 13.00

TCHE24S41S1 TM9V100C16MP11C 21.0 CF/CM36D 900 24.0 19.7 16.00 13.00

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM/CU30C 900 24.0 19.7 15.50 12.75

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM/CU30D 900 24.0 19.7 15.75 13.00

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM/CU36C 900 24.0 19.7 16.00 13.00

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM/CU36D 900 24.0 19.8 16.00 13.00

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM30C 900 24.0 19.5 16.00 13.00

TCHE24S41S1 TM9V100C16MP12C 21.0 CF/CM36D 900 24.0 19.7 16.00 13.00

TCHE24S41S1 TM9Y040A10MP11 14.5 CF/CM/CU30A 675 23.8 17.5 14.75 12.25

TCHE24S41S1 TM9Y040A10MP11 14.5 CF/CM/CU30B 700 24.0 17.9 14.75 12.50

TCHE24S41S1 TM9Y040A10MP11 14.5 CF/CM/CU36B 700 24.0 18.0 15.00 12.50

TCHE24S41S1 TM9Y040A10MP11 14.5 CF/CM36A 675 23.8 17.6 14.75 12.25

TCHE24S41S1 TM9Y060B12MP11 17.5 CF/CM/CU30B 675 24.0 17.6 15.50 12.75

TCHE24S41S1 TM9Y060B12MP11 17.5 CF/CM/CU36B 675 24.0 17.8 15.50 12.75

COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)

UNIT

MODEL

FURNACE COIL

MODEL2

COOLING

MODEL WIDTH RATED

CFM NET MBH SEER EER

TOTAL SENS.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de York

York

York YCUL0045 Manual del propietario

York

York 14 SEER-YHE SERIES Manual de usuario

York

York YCUZ330A3 Manual del propietario

York

York SPLIT-SYSTEM YHJD18 THRU 60 Guía de inicio rápido

York

York LX series Guía de inicio rápido

York

York MH Guía de inicio rápido

York

York Champion Series Guía de inicio rápido

York

York Sunline 2000 Manual de usuario

York

York YLPA 0115SE Manual de usuario

York

York YBS006-070 Manual de usuario

York

York T2GY Instrucciones de montaje

York

York Affinity YZE02411 Guía de inicio rápido

York

York YHJF18 Guía de inicio rápido

York

York PHG4 Series Manual de usuario

York

York E*BD-(T Guía de inicio rápido

York

York Affinity BHZ024-060 Manual de usuario

York

York BQ240 Guía de inicio rápido

York

York YD480 Series Manual de usuario

York

York PHG6A24 Guía de inicio rápido

York

York YZB018 THRU 060 Guía de inicio rápido

York

York 161038-YUM-A-1205 Guía

York

York YAFS018 Manual de usuario

York

York E4FD018-60 Manual de usuario

York

York DBK/DBO-35 BG Manual

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
