YOKOGAWA Dpharp EJ 510 Series Manual de usuario

User’s

Manual

Absolute Pressure and

Gauge Pressure Transmitters

EJ510, EJ530,

EJX610A and EJX630A

IM 01C25F01-01E

16th Edition

Toc-1

IM 01C25F01-01E

Absolute Pressure and Gauge Pressure Transmitters

EJ510, EJ530, EJX610A and EJX630A

IM 01C25F01-01E 16th Edition

16th Edition: Apr. 2020 (YK)

Contents

1. Introduction............................................................................................... 1-1

Regarding This Manual................................................................................................ 1-2

Trademarks ................................................................................................................... 1-2

1.1 Safe Use of This Product ................................................................................. 1-3

1.2 Warranty............................................................................................................. 1-5

2. Handling Cautions.................................................................................... 2-1

2.1 ModelandSpecicationsCheck..................................................................... 2-1

2.2 Unpacking.......................................................................................................... 2-1

2.3 Storage............................................................................................................... 2-1

2.4 Selecting the Installation Location ................................................................ 2-2

2.5 Pressure Connection........................................................................................ 2-2

2.6 WaterproongofCableConduitConnections .............................................. 2-2

2.7 Restrictions on Use of Radio Transceivers ................................................... 2-2

2.8 Insulation Resistance and Dielectric Strength Test...................................... 2-3

2.9 Installation of an Explosion-Protected Instrument ....................................... 2-3

2.9.1 FM Approval....................................................................................... 2-4

2.9.2 CSACertication................................................................................ 2-6

2.9.3 ATEXCertication..............................................................................2-9

2.9.4 IECExCertication........................................................................... 2-13

2.10 EMC Conformity Standards........................................................................... 2-16

2.11 Pressure Equipment Directive (PED) ........................................................... 2-16

2.12 EU RoHS Directive .......................................................................................... 2-17

2.13 Safety Requirement Standards ..................................................................... 2-17

3. Component Names .................................................................................. 3-1

4. Installation................................................................................................. 4-1

4.1 Precautions ....................................................................................................... 4-1

4.2 Mounting ........................................................................................................... 4-1

4.3 Rotating Transmitter Section........................................................................... 4-2

4.4 Changing the Direction of Integral Indicator ................................................. 4-2

Toc-2

IM 01C25F01-01E

5. Installing Impulse Piping......................................................................... 5-1

5.1 Impulse Piping Installation Precautions ........................................................ 5-1

5.1.1 Connecting Impulse Piping to a Transmitter...................................... 5-1

5.1.2 Routing the Impulse Piping................................................................ 5-1

5.2 Impulse Piping Connection Examples ........................................................... 5-2

6. Wiring......................................................................................................... 6-1

6.1 Wiring Precautions ........................................................................................... 6-1

6.2 Selecting the Wiring Materials......................................................................... 6-1

6.3 Connections of External Wiring to Terminal Box .......................................... 6-1

6.3.1 Power Supply Wiring Connection ...................................................... 6-2

6.3.2 External Indicator Connection............................................................ 6-2

6.3.3 Communicator Connection................................................................6-2

6.3.4 Check Meter Connection ................................................................... 6-2

6.3.5 Status Output Connection..................................................................6-3

6.4 Wiring ................................................................................................................. 6-3

6.4.1 LoopConguration ............................................................................ 6-3

6.4.2 Wiring Installation...............................................................................6-4

6.5 Grounding.......................................................................................................... 6-5

6.6 Power Supply Voltage and Load Resistance................................................. 6-5

7. Operation................................................................................................... 7-1

7.1 Preparation for Starting Operation ................................................................. 7-1

7.2 Zero Point Adjustment ..................................................................................... 7-3

7.3 Starting Operation ............................................................................................ 7-4

7.4 Shutting Down the Transmitter ....................................................................... 7-4

7.5 Local Parameter Setting................................................................................... 7-5

7.5.1 Local Parameter Setting (LPS) Overview.......................................... 7-5

7.5.2 Activating Local Parameter Setting ................................................... 7-7

7.5.3 Parameter Setting Review................................................................. 7-7

7.5.4 LoopTestConguration..................................................................... 7-8

7.5.5 TagNumberConguration................................................................. 7-8

7.5.6 PressureUnitConguration............................................................... 7-8

7.5.7 PressureLRV/URVConguration ..................................................... 7-9

7.5.8 DampingTimeConstantConguration ............................................. 7-9

7.5.9 OutputModeConguration ...............................................................7-9

7.5.10 DisplayOut1Conguration............................................................... 7-9

7.5.11 Re-range by applying actual pressure (LRV/URV).......................... 7-10

7.5.12 Device Information Display.............................................................. 7-10

7.5.13 Save or Cancel.................................................................................7-10

7.5.14 AbortConguration.......................................................................... 7-11

7.5.14.1 AbortConguration(Menu) ............................................ 7-11

7.5.14.2 AbortConguration(Parameter) .................................... 7-11

Toc-3

IM 01C25F01-01E

7.5.15 Local Parameter Setting Lock.......................................................... 7-11

7.5.16 Others .............................................................................................. 7-11

8. Maintenance.............................................................................................. 8-1

8.1 Overview ............................................................................................................ 8-1

8.2 Calibration Instruments Selection .................................................................. 8-1

8.3 Calibration ......................................................................................................... 8-1

8.4 Disassembly and Reassembly ........................................................................ 8-3

8.4.1 Replacing the Integral Indicator ......................................................... 8-3

8.4.2 Replacing the CPU Board Assembly................................................. 8-4

8.4.3 Cleaning and Replacing the Capsule Assembly ..........................8-5

8.5 Troubleshooting................................................................................................ 8-5

8.5.1 Basic Troubleshooting ....................................................................... 8-6

8.5.2 Troubleshooting Flowcharts...............................................................8-6

8.5.3 Alarms and Countermeasures........................................................... 8-8

9. GeneralSpecications ............................................................................ 9-1

Revision Information

When using the transmitters in a Safety Instrumented System application,

refer to the Functional Safety Manual (Document No.: TI 01C25A05-01EN

or TI 01C25A05-21EN for option code SLT) and follow the instructions and

procedures described there.The document can be downloaded from the

website of Yokogawa. (Website address:

https://www.yokogawa.com/solutions/products-platforms/eld-instruments/)

In order to satisfy the requirement of Safety Instrumented System, executing

parameters setting is required. Please refer to the clause of “Setting

Parameters” for setting range in the following manuals for the actual operation.

BRAIN: IM 01C25T03-01E

HART: IM 01C25T01-06EN

Please also refer to the contact output setting in the same clause. After

installingthetransmitter,conrmthattherangeandunitissetcorrectly.

Calibration of the transmitters shall be done after completing the range setting.

<1. Introduction> 1-1

IM 01C25F01-01E

1. Introduction

Thank you for purchasing the DPharp EJX and EJA

Differential Pressure and pressure transmitter.

Your transmitter was precisely calibrated at the

factory before shipment. To ensure both safety and

efciency,pleasereadthismanualcarefullybefore

you operate the instrument.

NOTE

This manual describes the hardware

congurationsofthetransmitterslistedinbelow.

Forinformationonthesoftwareconguration

and operation, please refer to either

IM 01C25T03-01E for the BRAIN communication

type, or IM 01C25T01-06EN for the HART

communication type.

For FOUNDATION Fieldbus protocol type, please

refer to IM 01C25T02-01E.

For PROFIBUS PA protocol type, please refer to

IM 01C25T04-01EN.

Forthespecications,externaldimensions,and

model,sufxandoptioncodesofeachproduct,

pleaserefertotheGeneralSpecicationssheet

as listed in the Chapter 9.

Model Style code

EJX510A S2

EJX530A S2

EJX610A S1

EJX630A S1

EJA510E S1, S2

EJA530E S1, S2

To ensure correct use of this instrument, read

both the hardware and software manuals

thoroughly before use. When the transmitter is

used as a component of Digital Remote Sensor

(EJXC40A), please refer to

IM 01C25W05-01EN.

WARNING

When using the transmitters in a Safety

Instrumented System application, refer to the

Functional Safety Manual (Document No.:

TI 01C25A05-01EN or TI 01C25A05-21EN for

option code SLT) and follow the instructions and

procedures described there.The document can

be downloaded from the website of Yokogawa.

(Website address:

https://www.yokogawa.com/solutions/products-

platforms/eld-instruments/)

In order to satisfy the requirement of Safety

Instrumented System, executing parameters

setting is required. Please refer to the clause

of “Setting Parameters” for setting range in the

following manuals for the actual operation.

BRAIN: IM 01C25T03-01E

HART: IM 01C25T01-06EN

Please also refer to the contact output setting in

the same clause. After installing the transmitter,

conrmthattherangeandunitissetcorrectly.

Calibration of the transmitters shall be done after

completing the range setting.

NOTE

When describing the model name like EJ510

or EJ530, it shows the applicability for

both EJX510A and EJA510E or EJX530A and

EJA530E.

NOTE

Unless otherwise stated, the illustrations in this

manual are of the EJ530gauge pressure

transmitter.

Users of the EJ510, EJX610A and EJX630A

should bear in mind that certain features of their

instrument will differ from those shown in the

illustrations of the EJ530.

<1. Introduction>1-2

IM 01C25F01-01E

Regarding This Manual

• Thismanualandtheidenticationtagattached

on the packing box are essential parts of the

product. Please keep them in a safe place for

future reference.

• This manual should be provided to the end

user.

• The contents of this manual are subject to

change without prior notice.

be reproduced in any form without Yokogawa’s

written permission.

• Yokogawa makes no warranty of any kind with

regard to this manual, including, but not limited

to, implied warranty of merchantability and

tnessforaparticularpurpose.

• If any question arises or errors are found, or if

any information is missing from this manual,

please inform the nearest Yokogawa sales

ofce.

• Thespecicationscoveredbythismanualare

limited to those for the standard type under the

speciedmodelnumberbreak-downanddonot

cover custom-made instruments.

• Pleasenotethatchangesinthespecications,

construction, or component parts of the

instrumentmaynotimmediatelybereected

in this manual at the time of change, provided

that postponement of revisions will not cause

difcultytotheuserfromafunctionalor

performance standpoint.

• Yokogawa assumes no responsibility for this

product except as stated in the warranty.

• If the customer or any third party is harmed by

the use of this product, Yokogawa assumes

no responsibility for any such harm owing to

any defects in the product which were not

predictable, or for any indirect damages.

• The following safety symbols are used in this

manual:

WARNING

Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious

injury.

CAUTION

Indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate

injury. It may also be used to alert against unsafe

practices.

IMPORTANT

Indicates that operating the hardware or software

in this manner may damage it or lead to system

failure.

NOTE

Draws attention to information essential for

understanding the operation and features.

Direct current

Functional grounding terminal

Caution

This symbol indicates that the operator must

refer to an explanation in the user’s manual

in order to avoid the risk of injury or death of

personnel or damage to the instrument.

Trademarks

• ‘DPharp’, ‘EJX’, ‘EJA’, ‘FieldMate’ and ‘BRAIN

TERMINAL’ are registered trademarks or

trademarks of Yokogawa Electric Corporation.

Company names and product names used

in this material are registered trademarks or

trademarks of their respective owners.

• In this manual, trademarks or registered

trademarks are not marked with ™ or ®.

<1. Introduction> 1-3

IM 01C25F01-01E

1.1 Safe Use of This Product

For the safety of the operator and to protect the

instrument and the system, please be sure to follow

this manual’s safety instructions when handling this

instrument. If these instructions are not heeded,

the protection provided by this instrument may be

impaired. In this case, Yokogawa cannot guarantee

that the instrument can be safely operated. Please

pay special attention to the following points:

(a) Installation

WARNING

• The instrument must be installed by an

expert engineer or a skilled personnel. The

procedures described about INSTALLATION

are not permitted for operators.

• In case of high process temperature, care

should be taken not to burn yourself because

the surface of body and case reaches a high

temperature.

• The instrument installed in the process is

under pressure. Never loosen the process

connection to avoid the dangerous spouting

ofprocessuid.

• During draining condensate from the

pressure detector section, take appropriate

care to avoid contact with the skin, eyes

or body, or inhalation of vapors, if the

accumulatedprocessuidmaybetoxicor

otherwise harmful.

• When removing the instrument from

hazardous processes, avoid contact with the

uidandtheinteriorofthemeter.

• All installation shall comply with local

installation requirement and local electrical

code.

(b) Wiring

WARNING

• The instrument must be installed by an

expert engineer or a skilled personnel. The

procedures described about WIRING are not

permitted for operators.

• Pleaseconrmthatvoltagesbetweenthe

power supply and the instrument before

connecting the power cables and that the

cables are not powered before connecting.

WARNING

• Wait 5 min. after power is turned off, before

opening the covers.

• Do not open the cover in wet weather or

humid environment. If the cover is opened,

stated enclosure protection is not applicable.

(d) Maintenance

WARNING

• Please do not carry out except being written

to maintenance descriptions. When these

procedures are needed, please contact

nearestYOKOGAWAofce.

• Care should be taken to prevent the build

up of drift, dust or other material on the

display glass and name plate. In case of its

maintenance, soft and dry cloth is used.

(e) Explosion Protected Type Instrument

WARNING

• Users of explosion proof instruments should

referrsttosection2.4(Installationofan

Explosion Protected Instrument) of this

manual.

• The use of this instrument is restricted to

those who have received appropriate training

in the device.

• Take care not to create sparks when

accessing the instrument or peripheral

devices in a hazardous location.

(f) Modication

WARNING

Yokogawa will not be liable for malfunctions or

damageresultingfromanymodicationmadeto

this instrument by the customer.

(g) Product Disposal

The instrument should be disposed of in

accordance with local and national legislation/

regulations.

<1. Introduction>1-4

IM 01C25F01-01E

(h) Authorized Representative in EEA

In relation to the CE Marking, The authorized representative for this product in the EEA (European Economic

Area) is:

Yokogawa Europe B.V.

Euroweg 2, 3825 HD Amersfoort,The Netherlands

(i) Control of Pollution Caused by the Product

This is an explanation for the product based on “Control of Pollution caused by Electronic Information

Products” in the People’s Republic of China. The information is valid only in China.

产品中有害物质或元素的名称及含量

型号部件名称

有害物质

铅

（Pb）

汞

（Hg）

镉

（Cd）

六价铬

（Cr(VI)）

多溴联苯

（PBB）

多溴二苯醚

（PBDE）

EJX/EJA-E

Series

差压/压力变送器

壳体 × ○○○○○

膜盒组件 × ○○○○○

基板组件 × ○○○○○

电源连接线 × ○○○○○

○：表示该部件的所有均质材料中的有害物质的含量均在 GB/T26572 标准中所规定的限量以下。

×：表示至少该部件的某些均质材料中的有害物质的含量均在 GB/T26572 标准中所规定的限量以上。

环保使用期限：

该标识适用于 SJ /T11364 中所述，在中华人民共和国销售的电子电气产品的环保使用期限。

注）该年数为“环保使用期限”，并非产品的质量保证期。

<1. Introduction> 1-5

IM 01C25F01-01E

1.2 Warranty

• The warranty shall cover the period noted on

the quotation presented to the purchaser at the

time of purchase. Problems occurring during

the warranty period shall basically be repaired

free of charge.

• If any problems are experienced with this

instrument, the customer should contact the

Yokogawa representative from which this

instrument was purchased or the nearest

Yokogawaofce.

• If a problem arises with this instrument,

please inform us of the nature of the problem

and the circumstances under which it

developed,includingthemodelspecication

and serial number. Any diagrams, data and

other information you can include in your

communication will also be helpful.

• Thepartyresponsibleforthecostofxingthe

problem shall be determined by Yokogawa

following an investigation conducted by

Yokogawa.

• The purchaser shall bear the responsibility for

repair costs, even during the warranty period, if

the malfunction is due to:

- Improper and/or inadequate maintenance by

the purchaser.

- Malfunction or damage due to a failure

to handle, use, or store the instrument in

accordancewiththedesignspecications.

- Use of the product in question in a location

notconformingtothestandardsspeciedby

Yokogawa, or due to improper maintenance

of the installation location.

- Failureordamageduetomodicationor

repair by any party except Yokogawa or an

approved representative of Yokogawa.

- Malfunction or damage from improper

relocation of the product in question after

delivery.

- Reasonofforcemajeuresuchasres,

earthquakes,storms/oods,thunder/

lightening, or other natural disasters, or

disturbances, riots, warfare, or radioactive

contamination.

<2. Handling Cautions> 2-1

IM 01C25F01-01E

2. Handling Cautions

This chapter provides important information on how

to handle the transmitter. Read this carefully before

using the transmitter.

The transmitters are thoroughly tested at the

factory before shipment. When taking delivery of an

instrument, visually check them to make sure that

no damage occurred during shipment.

Also check that all transmitter mounting hardware

showningure2.1isincluded.Ifthetransmitter

is ordered without the mounting bracket and the

process connector, the transmitter mounting

hardware will not be included. After checking the

transmitter, carefully repack it in its box and keep it

there until you are ready to install it.

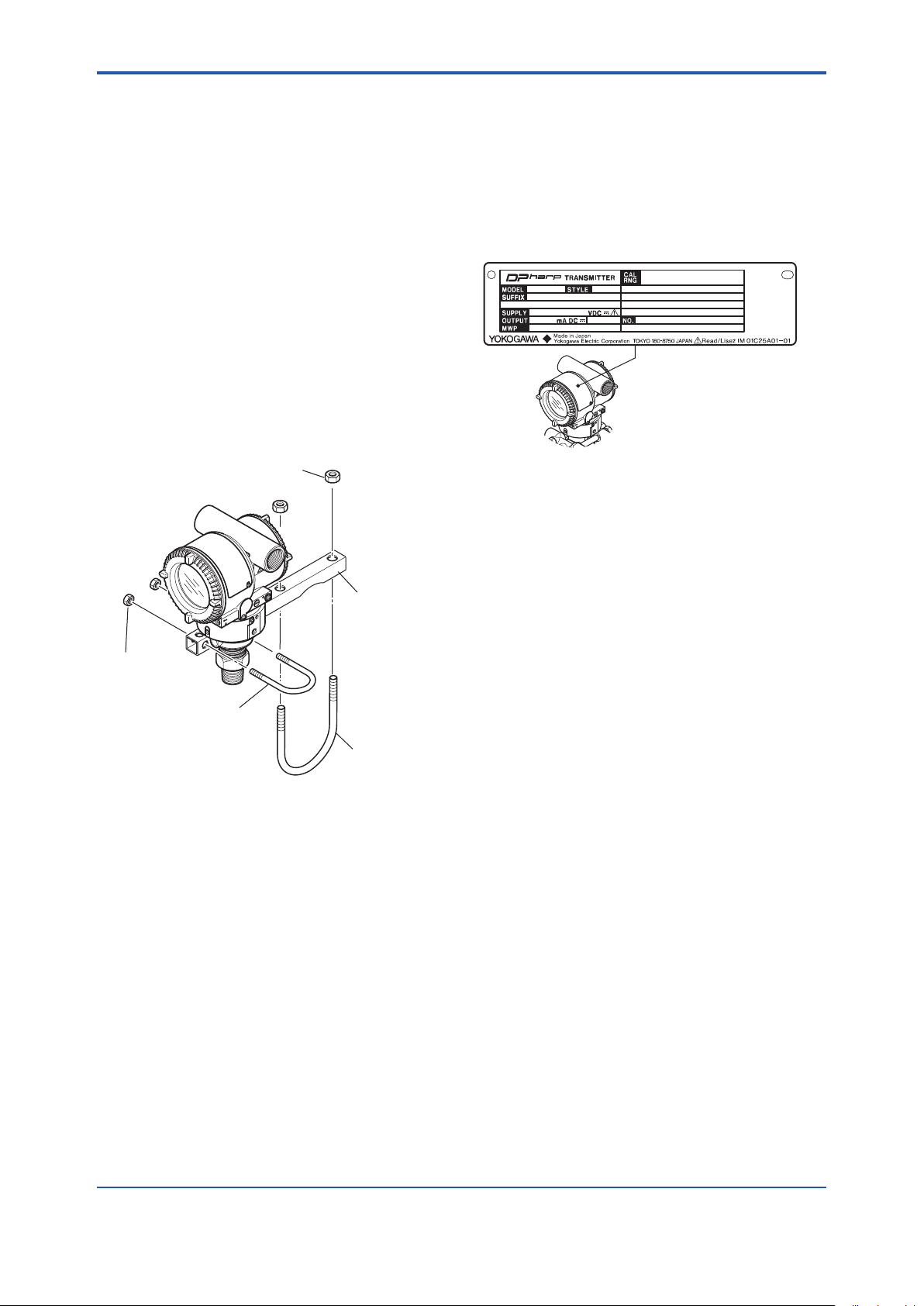

U-bolt nut (L)

Mounting bracket

U-bolt (L)

U-bolt (S)

U-bolt nut (S)

F0201.ai

Figure 2.1 Transmitter Mounting Hardware

2.1 ModelandSpecications

Check

Themodelnameandspecicationsarewrittenon

the name plate attached to the case.

F0202.ai

Figure 2.2 Name Plate

2.2 Unpacking

Keep the transmitter in its original packaging to

prevent it from being damaged during shipment.

Do not unpack the transmitter until it reaches the

installation site.

2.3 Storage

The following precautions must be observed when

storing the instrument, especially for a long period.

(a) Select a storage area which meets the following

conditions:

• It is not exposed to rain or subject to water

seepage/leaks.

• Vibration and shock are kept to a minimum.

• It has an ambient temperature and relative

humidity within the following ranges.

Ambient temperature:

–40* to 85°C without integral indicator

–30* to 80°C with integral indicator

*–15°Cwhen/HEisspecied.

Relative humidity:

0% to 100% R.H.

Preferred temperature and humidity:

approx. 25°C and 65% R.H.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Transmisor de YOKOGAWA

YOKOGAWA

YOKOGAWA DPharp EJX Series Manual de usuario

YOKOGAWA

YOKOGAWA Y/11GM Manual de usuario

YOKOGAWA

YOKOGAWA vigilantplant YTA70 Manual de usuario

YOKOGAWA

YOKOGAWA vigilantplant YTA Series Manual de usuario

YOKOGAWA

YOKOGAWA YTMX580 Manual de usuario

YOKOGAWA

YOKOGAWA EJA564E Manual de usuario

YOKOGAWA

YOKOGAWA YTA Series Manual de usuario

YOKOGAWA

YOKOGAWA VJS7 Manual de usuario

YOKOGAWA

YOKOGAWA Dpharp vigilantplant EJA210A Manual de usuario

YOKOGAWA

YOKOGAWA vigilantplant YTA50 Manual de usuario

YOKOGAWA

YOKOGAWA EJX115A Manual de usuario

YOKOGAWA

YOKOGAWA YTA610 Manual de usuario

YOKOGAWA

YOKOGAWA DPHarp EJX210B Manual de usuario

YOKOGAWA

YOKOGAWA DP harp EJX210B Manual de usuario

YOKOGAWA

YOKOGAWA DP Harp EJX118B Manual de usuario

YOKOGAWA

YOKOGAWA VJQ8 Manual de usuario

YOKOGAWA

YOKOGAWA vigilantplant YTA70 Manual de usuario

YOKOGAWA

YOKOGAWA YTA610 Manual de usuario

YOKOGAWA

YOKOGAWA Dpharp vigilantplant EJA Series Manual de usuario

YOKOGAWA

YOKOGAWA DPharp EJX510B Manual de usuario

YOKOGAWA

YOKOGAWA vigilantplant YTA Series Manual de usuario

YOKOGAWA

YOKOGAWA DO202G Manual de usuario

YOKOGAWA

YOKOGAWA YTA610 Manual de usuario

YOKOGAWA

YOKOGAWA YTMX580 Guía del usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
