Yetter 5000-025B Manual de usuario

5000 SERIES

STALK DEVASTATOR

CORN STALK ROLLER

*PATENTED*

5000-025B, 5000-026B, 5000-027B, 5000-028B, 5000-034A

John Deere Model Corn Heads (606C, 643, 693, 706C, 608C, 843,

893, 708C, 612C, 612FC Folding, 712C, 1243, 1293, 616C, & 716C)

OWNER’S MANUAL

PART IDENTIFICATION

2565-785_Rev_E – 8/2019

YETTER MANUFACTURING CO.

Founded 1930

Colchester, IL 62326

Toll free: (800)447 5777.

Fax: (309)776 3222

Website: yetterco.com

E mail: [email protected]

Table of Contents

Foreword ..................................................................................................... 3

Warranty ...................................................................................................... 3

Safety Information ................................................................................. 4 - 6

Pictorial Part List ................................................................................... 7 - 9

Bolt Torque & Tools Required ................................................................. 10

Assembly Instructions ...................................................................... 11 - 36

5000-025B ....................................................................................11 – 15

5000-026B ....................................................................................16 – 20

5000-027B ....................................................................................21 – 25

5000-028B ....................................................................................26 – 31

5000-034A

...................................................................................

32 – 36

Operation / Maintenance / Lock Up ......................................................... 37

Part Identification ............................................................................. 38 – 47

Troubleshooting ....................................................................................... 50

FOREWORD

You’ve just joined an exclusive but rapidly

growing club.

For our part, we want to welcome you to the

group and thank you for buying a Yetter product.

We hope your new Yetter products will help you

achieve both goals-increase your productivity and

increase your efficiency so that you may generate

more profit.

This operator’s manual has been designed into

four major sections: Foreword, Safety

Precautions, Installation Instructions and Parts

Breakdown.

This SAFETY ALERT SYMBOL

indicates important safety messages in

the manual. When you see this

symbol, be alert to the possibility of

PERSONAL INJURY and carefully

read the message that follows.

The word NOTE is used to convey information

that is out of context with the manual text. It

contains special information such as

specifications, techniques and reference

information of a supplementary nature.

The word IMPORTANT is used in the text when

immediate damage will occur to the machine due

to improper technique or operation.

Important will apply to the same information as

specified by note only of an immediate and

urgent nature.

It is the responsibility of the user to read the

operator’s manual and comply with the safe and

correct operating procedure and to lubricate and

maintain the product according to the

maintenance schedule in the operator’s manual.

The user is responsible for inspecting his

machine and for having parts repaired or

replaced when continued use of the product

would cause damage or excessive wear to the

other parts.

It is the user’s responsibility to deliver his

machine to the Yetter dealer who sold him the

product for service or replacement of defective

parts, which are covered by the warranty policy.

If you are unable to understand or follow the

instructions provided in this publication, consult

your local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111

800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: info@yetterco.com

WARRANTY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material.

This warranty being expressly limited to replacement at the factory of such parts or products as shall

appear to be defective after inspection. This warranty does not obligate the Company to bear cost

of labor in replacement of parts. It is the policy of the Company to make improvements without

incurring obligations to add them to any unit already sold. No warranty is made or authorized to be

made, other than herein set forth. This warranty is in effect for one year after purchase.

DEALER: ________________________________________

Yetter Manufacturing warrants its own products only and cannot be responsible for damages

to equipment on which mounted.

BE ALERT!

YOUR SAFETY IS INVOLVED

WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY

PRECAUTIONS. IT MEANS “ATTENTION – BE ALERT!”

It is your responsibility as an owner, operator, or supervision to know and

instruct everyone using this machine at the time of initial assignment and at

least annually thereafter, of the proper operation, precautions, and work

hazards which exist in the operation of the machine in accordance with

OSHA regulations.

Safety Is No Accident

The following safety instructions, combined with common sense, will

save your equipment from needless damage and the operator from

unnecessary exposure to personal hazard. Pay special attention to

the caution notes in the text. Review this manual at least once a year

with all operators.

1. Read and understand the operator’s manual before operating this machine.

Failure to do so is considered a misuse of the equipment.

2. Make sure equipment is secure before operating.

3. Always keep children away from equipment when operating.

4. Make sure everyone that is not directly involved with the operation is out of the

work area before beginning operation.

5. Make sure all safety devices, shields, and guards are in place and functional

before beginning operation

6. Shut off all power to adjust, service, or clean.

7. Keep hands, feet, and clothing away from moving parts. It is a good idea to

remove all jewelry before operating.

8. Inspect the machine periodically during operation for signs of excessive wear,

loose fasteners, and unusual noises.

PLEASE READ, VERY IMPORTANT

SECURE CORN HEADER AGAINST UNWANTED LOWERING BY

APPLYING THE LOCKING MECHANISM ON THE HYDRAULIC CYLINDERS!

1. Attach head to combine, lock head to combine

2. Raise the head off the ground and engage safety stop on the feeder house cylinder.

3. Apply combine parking brake, turn off combine engine, and remove the key

4. Wear personal protective equipment during installation: steel toe footwear, safety

glasses, & gloves

FOLLOW ALL INSTRUCTIONS GIVEN BY THE COMBINE

MANUFACTURER

PLEASE READ, VERY IMPORTANT

Subject to the size and weight of the corn header, one

or two additional hydraulic cylinders may be required.

The combine manufacturer generally keeps

corresponding kits readily available for dealers.

Subject to the design of the corn header and the

carrying capacity of different combines, the steering

axle may require the fitting of additional weights and

the rear tires be filled with ballast.

FOLLOW ALL INSTRUCTIONS GIVEN BY THE COMBINE

MANUFACTURER

PICTORIAL PART LIST

BEFORE INSTALLATION BEGINS, PLEASE CHECK THAT ALL PARTS WERE

RECEIVED BY GOING THROUGH THE CRATE AND SORTING THE PARTS!!!

5000-025B for JD 606C, 643, 693, 706C, (wheel tracks only) 612C, 712, 1243, 1293, 616C, & 716 Parts List

4) 5000-136, 4) 5000-138, 4) 5000-139, 4) 5000-202, 2) 5000-211B, 2) 5000-254, 2) 5000-256, 2) 5000-259, 4)

5000-355

5000-026B for JD 608C, 708C, 843, & 893 Parts List – 6) 5000-136, 6) 5000-138, 6) 5000-139, 6) 5000-202,

1) 5000-203B, 2) 5000-211B, 2) 5000-254, 1) 5000-255, 3) 5000-256, 3) 5000-259, 2) 5000-301, 6) 5000-355

5000-027B for JD 612C, 712C, 1243, & 1293 Parts List – 8) 5000-136, 8) 5000-138, 8) 5000-139, 8) 5000-

202, 4) 5000-211B, 4) 5000-254, 4) 5000-256, 4) 5000-259, 2) 5000-301, 8) 5000-355

5000-028B for JD 616C & 716C Parts List – 12) 5000-136, 12) 5000-138, 12) 5000-139, 12) 5000-202, 2)

5000-203B, 4) 5000-211B, 4) 5000-254, 2) 5000-255, 6) 5000-256, 6) 5000-259, 12) 5000-355

5000-034A for JD 612FC & 712FC Folding Parts List – 8) 5000-136, 8) 5000-138, 8) 5000-139, 1) 5000-141,

4) 5000-202, 4) 5000-211B, 4) 5000-254, 4) 5000-256, 4) 5000-259, 4) 5000-263, 8) 5000-355

5000-080 – 5” Extension Kit Parts List (Optional) – 2) 2502-363 – ½” X 4 ½” GR 5 Bolts, 2) 2502-365 – ½”-

13 X 3 ¾” GR 5 Bolts, 6) 2520-357 – ½” Lock Nuts, 2) 5000-378 Spacer Bushings, 2) 5000-393 5” Extension

Plates, & 2) 5000-394 Short Spacers

5000-082 – 2” Lift Kit Parts List (Optional) – 2) 5000-408 Extender Plate, 1) 5000-409 Connector Pin

5000-083 – 6 Row Devastator Lock Up Kit (Optional) – 1) 5000-161Hardware Bag, 1) 5000-430 Lock Pin

5000-084 – 8/12 Row Devastator Lock Up Kit (Optional) – 1) 5000-162 Hardware Bag, 2) 5000-430 Lock Pin

5000

202

5000

203B

”

5000

211B

”

5000

254

–

”

5000

255

”

5000

256 (LH)

5000

259 (RH)

5000

355

5000

136

5000

301

2550

059

5000

139

5000

138

5000

080

OPTIONAL

ONLY USED ON

8 3 & 12 3

5000

141

5000

263

PICTORIAL PART LIST

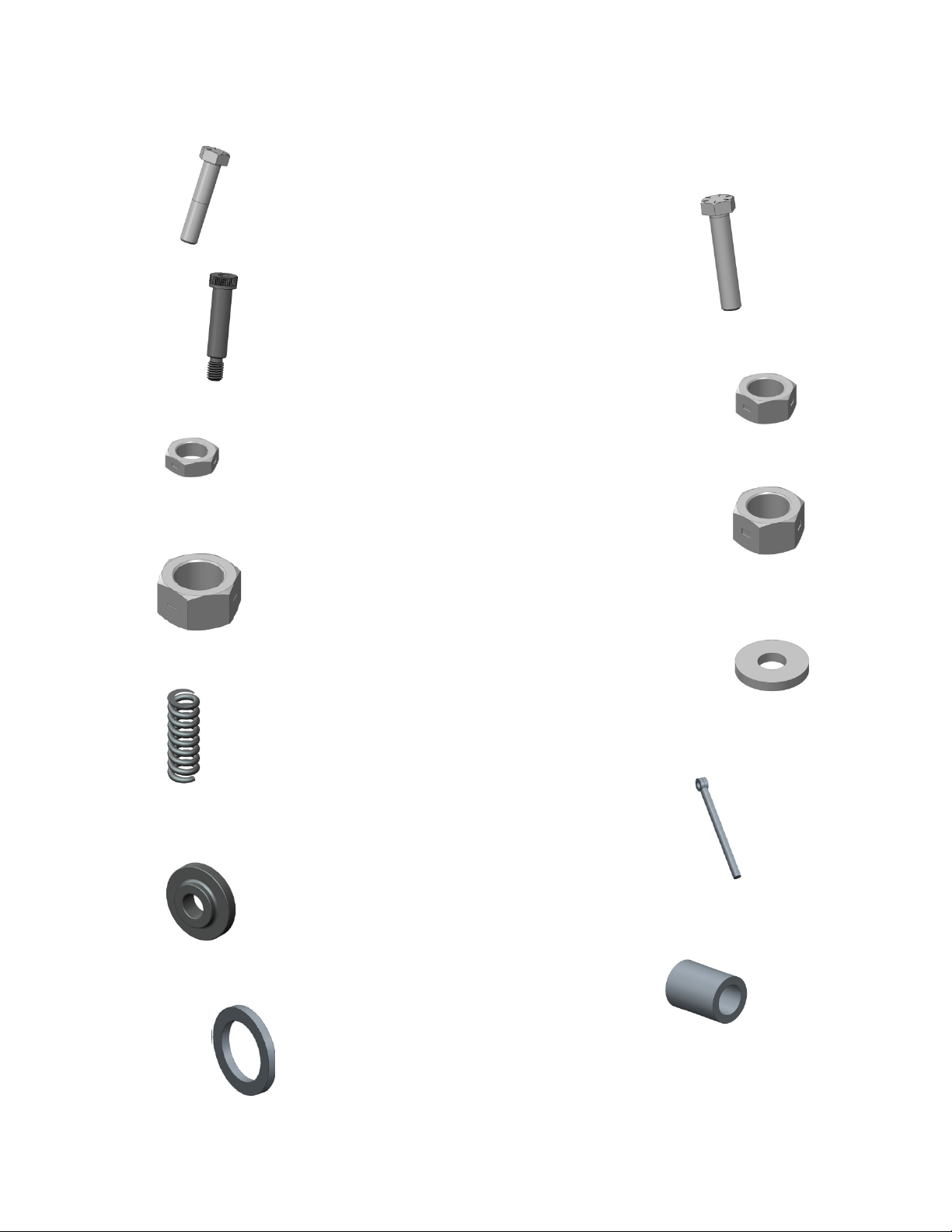

5000-136 Hardware Bag



2502

325

5/8

11 X 3 HHCS GR 5 ZP

–

QTY 1

2502

353

–

13 x 2

, HHCS, GR8, ZP

–

QTY 3





2510

121

5/8 DIA. SHLDR, 2

1/4 L SHLDR,

QTY 1

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 3





2520

364

1/2

13 HEX LOCKNUT, JAM, GR 2

–

QTY 1

2520

459

5/8

11 LOCK HEX NUT, GR 5, ZP

–

QTY 1





2520

515

3/4

10 LOCK HEX NUT, GR A, ZP

–

QTY 1

2526

449

5/8FLATWASHER1/4+

.010 THK, ZP

–

QTY 2





2550

709

1/2 WIRE 2

1/2 OD X 1

1/2 ID X 7

1/4 COMP SPRING

–

QTY 1

2570

126

3/4 X 10 EYEBOLT, ZP

–

QTY 1





2975

302

2975 SPRING BUSHING, PAINTED

–

QTY 1

5000

318

PIVOT BUSHING

–

QTY 1





5000

322

SHIM WASHER ZP

–

QTY 1

PICTORIAL PART LIST

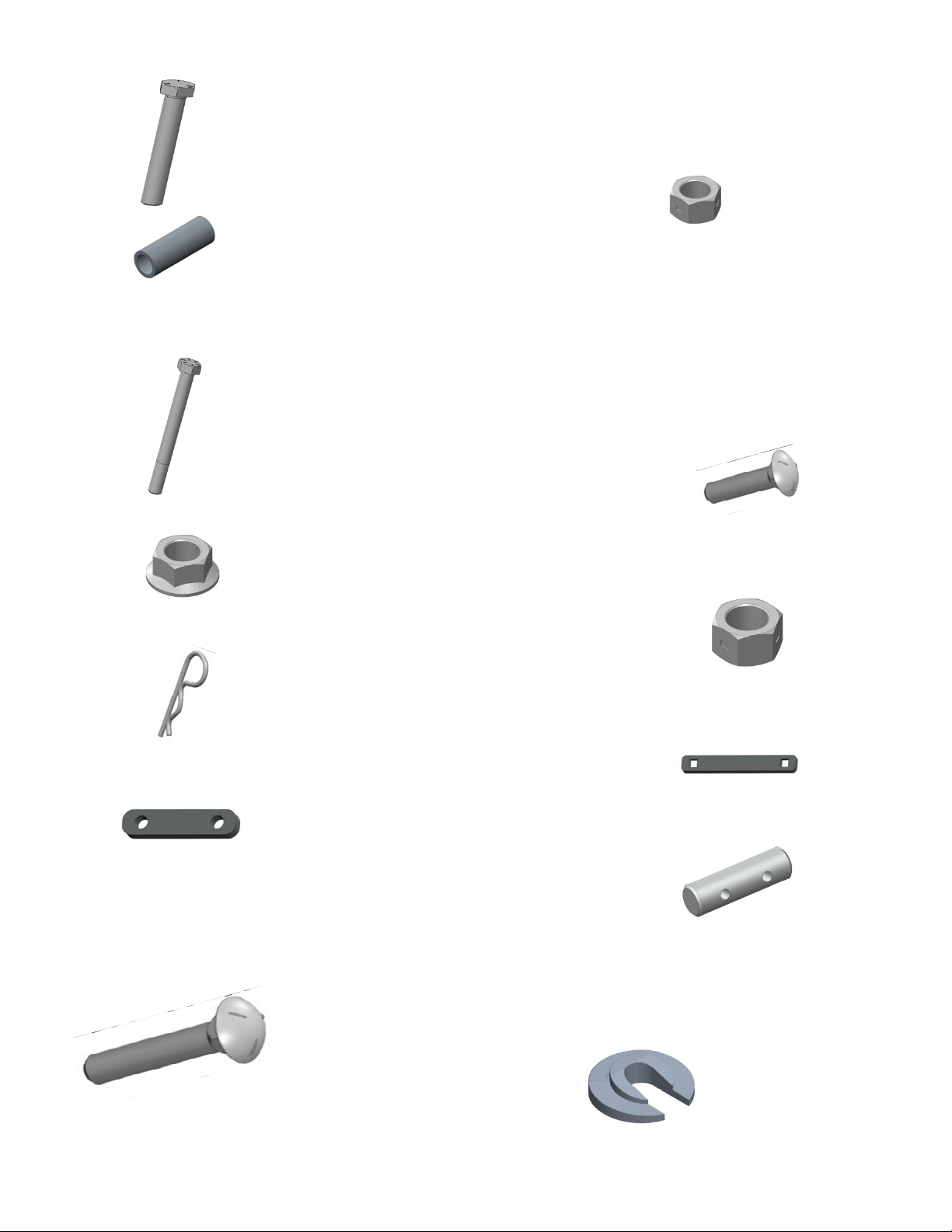

5000-138 Hardware Bag

5000-139 Hardware Bag

5000-141 Hardware Bag



2502

365

1/2

13 X 3

3/4 HHCS GR5 YD

–

QTY 2

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 2





5000

378

SPACER BUSHING

–

QTY 2



2502

352

5/8

11 X 6 HHCS GRADE 8 ZP

–

QTY 4

2505

345

1/2

13 X 2 CAR BLT GR5 ZP

–

QTY 2





2520

361

1/2

13FLANGE WHZLCK HXNT, GR 5, ZP

QTY 2



2570

465

7 GA. HAIRPIN COTTER ZP

–

QTY 2

2520

459

5/8

11 LOCK HEX NUT, GR A, ZP

–

QTY 4



5000

309

SUPPORT STRAP

–

QTY 2





5000

319

MOUNT STRAP 3

“

–

QTY 2

5000

323

LOCK UP PIN ZP

–

QTY 1





2505

414

–

5/8

–

11 X 6 CARRIAGE BOLT, GR 5 ZP

–

QTY 2

5000

402

–

WEDGE

–

QTY 2



BOLT TORQUE

Important: Over-tightening hardware can cause just as much damage as under-tightening.

Tightening hardware beyond the recommended range can reduce its shock load capacity.

All hardware on the 5000 Devastator is either Grade 5 or Grade 8, unless otherwise noted. Grade 5 cap

screws are marked with three radial lines on the head. Grade 8 cap screws are marked with six radial

lines on the head. If hardware must be replaced, be sure to replace it with hardware of equal size,

strength and thread type. Refer to the torque values chart when tightening hardware.

The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in

the manual.

Torque is the force applied to the end of the handle or cheater bar, times the length of the handle or bar.

Use a torque wrench wherever possible

The following table shows torque in ft.-lbs. for coarse thread hardware.

INSTALLATION TOOLS REQUIRED:

- Pneumatic or electric impact driver

- ¾ & 15/16 size sockets

- 10” impact driver extension

- Ratchet

- ¾, 15/16, & 1 1/8 size wrenches

- 5/16 Allen Wrench

- Torque Wrench

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Maquinaria agrícola de Yetter

Yetter

Yetter 500 Series Manual de usuario

Yetter

Yetter 5500 Series Manual de usuario

Yetter

Yetter SCREW ADJUST Manual de usuario

Yetter

Yetter CAB CONTROL STRIP FRESHENER 2984-050A Manual de usuario

Yetter

Yetter Strip Freshener CC Manual de usuario

Yetter

Yetter 2967-115A Manual de usuario

Yetter

Yetter MAXIMIZER Manual de usuario

Yetter

Yetter 8500 SERIES Manual de usuario

Yetter

Yetter 5000-080 Manual de usuario

Yetter

Yetter 2968-050 Manual de usuario

Yetter

Yetter 2965 Series Manual de usuario

Yetter

Yetter 5000 SERIES Manual de usuario

Yetter

Yetter 2565-980 Manual de usuario

Yetter

Yetter TITAN Series Manual de usuario

Yetter

Yetter CAB CONTROL STRIP FRESHENER 2984-050-R Manual de usuario

Yetter

Yetter 6200-022 Manual de usuario

Yetter

Yetter TITAN 2960-021A Manual de usuario

Yetter

Yetter Systems One Seed Jet II Manual de usuario

Yetter

Yetter NARROW ROW Manual de usuario

Yetter

Yetter 5000 SERIES Manual de usuario

Yetter

Yetter Nutrient Pro 4000 Series Manual de usuario

Yetter

Yetter TITAN 2967-033A Manual de usuario

Yetter

Yetter 2966-020A Manual de usuario

Yetter

Yetter 2968-050 Manual de usuario

Manuales populares de Maquinaria agrícola de otras marcas

GSi

GSi PNEG-2314 Manual de usuario

Checchi & Magli

Checchi & Magli TEXDRIVE Manual de usuario

Amazone

Amazone Cenius 4003-2TX Manual de usuario

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manual de usuario

Cima

Cima BLITZ Instrucciones de funcionamiento y mantenimiento

Amazone

Amazone CombiDisc 3000 Instrucciones de instalación

HE-VA

HE-VA Disc-Roller XL Contour Manual de usuario

AGT

AGT AGT-SSFM Manual de usuario

Milestone

Milestone 72-84 Manual de usuario

KUHN

KUHN Hector 3000 Manual de usuario

Krone

Krone X-Disc 6200 Manual de usuario

Eliet

Eliet DZC450 Manual de usuario

Taarup

Taarup BIO+ B4000 Manual de usuario

Garland

Garland SHAKER 310 DPG Manual de usuario

stable comfort

stable comfort StableWall System Manual de usuario

Raven

Raven AccuBoom Manual de usuario

International

International 710 Manual de usuario

Ashland

Ashland HDW-3217-14 Manual de usuario
