Configuring Yealink W52P

1. View and record the unique MAC address of the base station which can be found at

the rear of the base station. (Alternatively via the Handset)

Network Settings

You can configure the base station to obtain network settings in one of the following ways:

DHCP: By default, the base station attempts to contact a DHCP server in your network to obtain the

valid network settings, e.g., IP address, subnet mask, gateway address and DNS address

STATIC: If the base station cannot contact a DHCP server for any reason, you need to configure the

IP address, subnet mask, gateway address, primary DNS address and secondary DNS address for the

base station manually.

The Handset in the W52P package is pre-registered to the base station

For the purpose of this document we will accept that DHCP is functional and network settings are

automatically assigned

For further details refer to Yealink Documentation

http://www.yealink.com/DocumentDownload.aspx?Cateld=142&flag=142

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

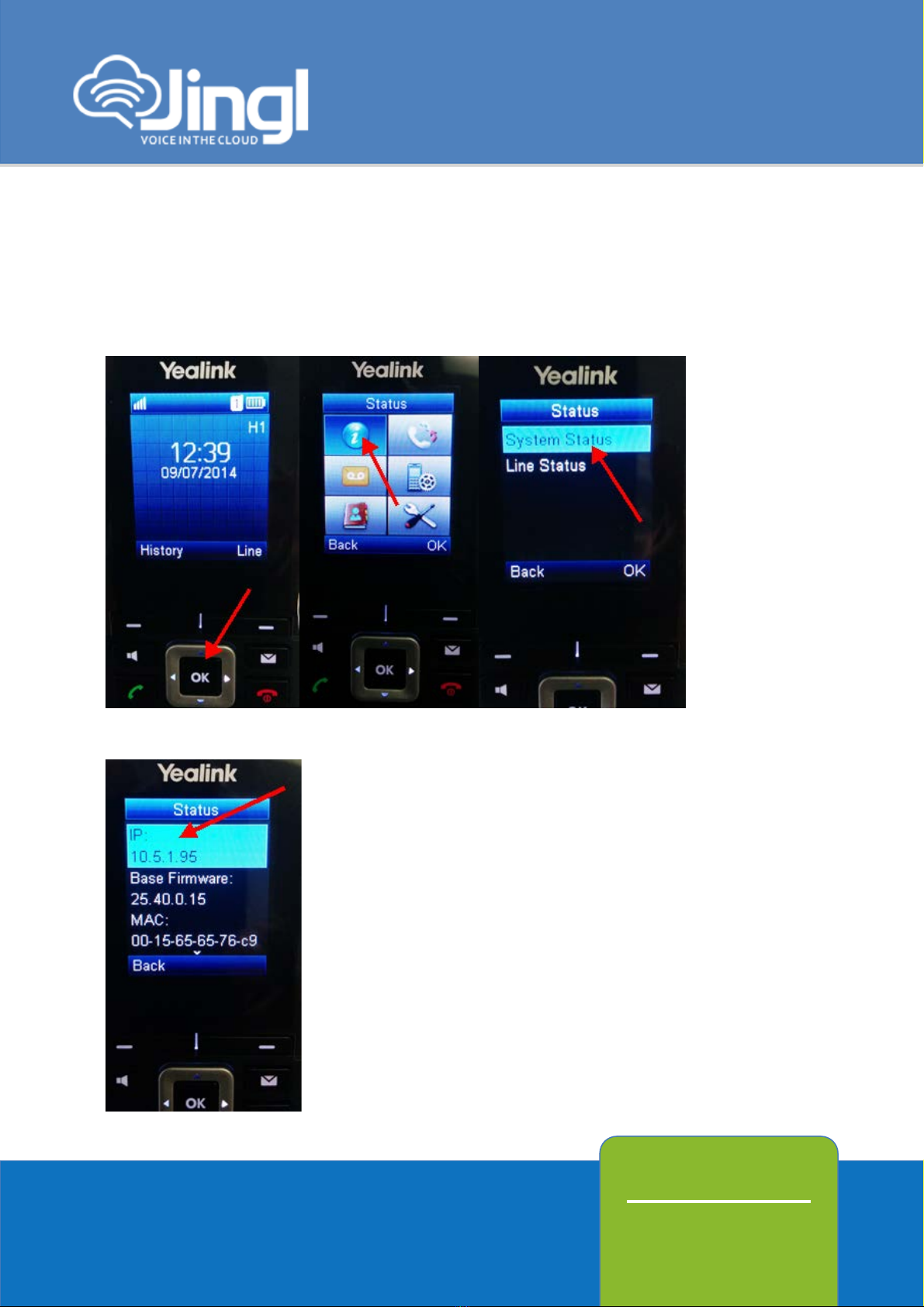

2. Using the Handset obtain and record the IP Address. You will require the IP Address

inorder to login to Phone Admin Web Menu to configure Auto Provisioning of Phone.

On the Handset Press the OK button; Select “i” icon and press OK

Select System Status and press OK

Handset screen will present IP address and MAC address

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

3. Logon to the jingl web portal, using specific customer domain URL

https://’customer’.jingl.com.au

Enter your User Name and Password

Presented with Dashboard

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

4. Select and click the settings menu

5. Click on “Add new”

In general tab, choose and enter extension number and a display name

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

6. Select and expand Provisioning tab. Enter the MAC address of the phone

7. Select and expand Hardware Type. Select the phone model

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

Click Add to finish your extension configuration.

8. Use a compatible browser and login to Phone Web Admin Menu using previous

recorded phone IP address. Log in with default Username: admin and default

Password: admin. Then click Confirm

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

9. Select Phone, Then Select Auto Provision

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

10. In the ‘Provisioning Server’ Tab – Type:

“http://tftp.jingl.com.au”

Select Confirm to save Provisioning Server details

Then Select and click ‘Autoprovision Now’ Tab

Head Office:

Level 1 21 Shierlaw Ave Canterbury 3126, Victoria, Australia

1300 0 JINGL

1300 0 54645

www.jingl.com.au

11. Click OK to acknowledge to autoprovision

12. Phone will automatically restart for the new settings to take place

Will download and configure all settings from the provisioning server as well as any

necessary firmware files.
