Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display and the External Device (target inverter).

In this manual, the connection procedure is described in the sections identified below.

1System Configuration

This section lists the types of External

Devices and SIO that you can connect.

)"1 System Configuration" (page 3)

2External Device Selection

Select a model (series) of the External

Device and its connection method.

)"2 External Devices Selection" (page 8)

3Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Communication Settings" (page 9)

4Setup Items

This section describes communication

setup items on the Display. Set the

Display’s communication settings in GP

Pro-EX or in off-line mode.

)"4 Setup Items" (page 45)

5Cable Diagrams

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagrams" (page 49)

Operation

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The following table lists system configurations for connecting YASKAWA Electric Corporation External Device

and the Display.

Series Inverter*1 Link I/F SIO Type Setting

Example Cable

Diagram

Varispeed F7 CIMR-

F7A

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 1

(page 9)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 2

(page 11)

Cable

Diagram 2

(page 54)

Varispeed G7 CIMR-

G7A

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 3

(page 13)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 4

(page 15)

Cable

Diagram 2

(page 54)

VS mini J7 CIMR-

J7A

Terminal Block on the

SI-485/J7 RS-422/485

interface card

RS-422/485

(4wire)

Setting

Example 5

(page 17)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 6

(page 19)

Cable

Diagram 2

(page 54)

VS mini V7/

VS-606V7 CIMR-

V7A

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 7

(page 21)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 8

(page 23)

Cable

Diagram 2

(page 54)

Varispeed F7S CIMR-

F7S

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 9

(page 25)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 10

(page 27)

Cable

Diagram 2

(page 54)

Varispeed L7 CIMR-

L7B

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 11

(page 29)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 12

(page 31)

Cable

Diagram 2

(page 54)

Varispeed AC CIMR-

ACA

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 13

(page 33)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 14

(page 35)

Cable

Diagram 2

(page 54)

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 4

V1000 CIMR-

VAA

Terminal Block on the

inverter

RS-422/485

(4wire)

Setting

Example 15

(page 37)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 16

(page 39)

Cable

Diagram 2

(page 54)

J1000 CIMR-

JAA

Terminal Block on the

SI-485/J RS-422/485

interface card

RS-422/485

(4wire)

Setting

Example 17

(page 41)

Cable

Diagram 1

(page 49)

RS-422/485

(2wire)

Setting

Example 18

(page 43)

Cable

Diagram 2

(page 54)

*1 The symbol in the inverter model names represents the maximum applicable motor capacity and

other specifications.

Series Inverter*1 Link I/F SIO Type Setting

Example Cable

Diagram

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 5

Connection Configuration

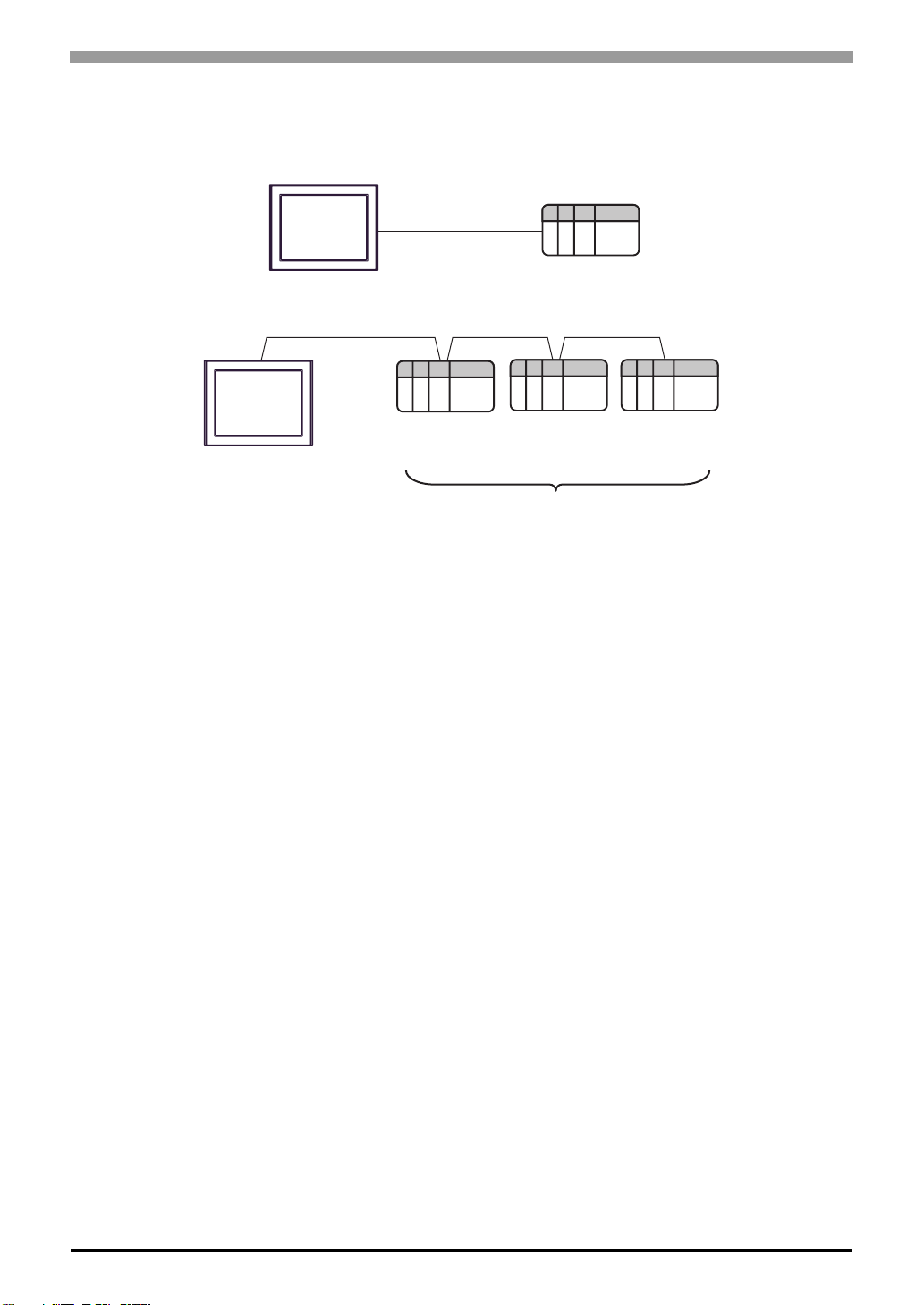

1:1 Connection

1:n Connection

Display

External Device

Display

External

Device

External

Device

External

Device

Maximum 16 units

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 6

IPC COM Port

When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please

refer to the IPC manual for details.

Usable port

DIP switch setting: RS-232C

Series Usable Port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.

PS-3450A, PS-3451A,

PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2

PS-3650A, PS-3651A COM1*1 --

PS-3700A (Pentium®4-M)

PS-3710A COM1*1, COM2*1,

COM3*2 , COM4

*2 Set up the SIO type with the DIP switch. Please set up as follows according to SIO type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

PL-3000B, PL-3600T,

PL-3600K, PL-3700T,

PL-3700K, PL-3900T

COM1*1*2, COM2*1,

COM3, COM4 COM1*1*2 COM1*1*2

DIP switch Setting Description

1OFF

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 7

DIP switch setting: RS-422/485 (4 wire)

DIP switch setting: RS-422/485 (2 wire)

DIP switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

DIP switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available

9ON

RS (RTS) Auto control mode: Enabled

10 ON

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 8

2 External Devices Selection

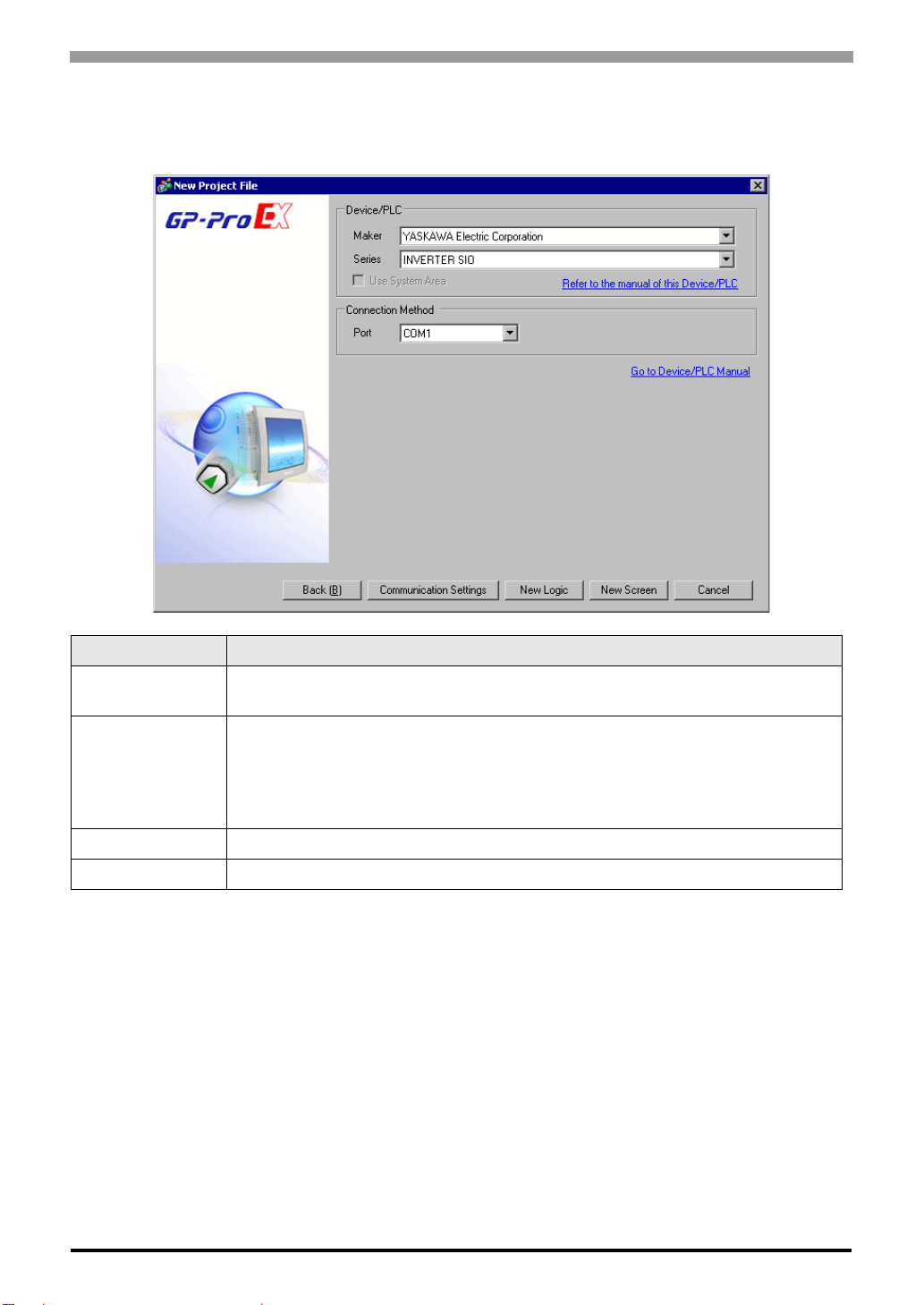

Select the External Device to be connected to the Display.

Setup Items Setup Description

Maker Select the maker of the External Device to be connected. Select "YASKAWA Electric

Corporation".

Series

Select a model (series) of the External Device to be connected and connection method. Select

"INVERTER SIO".

In System configuration, check to make sure the external device to which you are connecting

is supported in "INVERTER SIO".

)"1 System Configuration" (page 3)

Use System Area Not available in this driver.

Port Select the Display port to be connected to the External Device.

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 9

3 Communication Settings

This section provides examples of communication settings recommended by Pro-face for the Display and the

External Device.

3.1 Setting Example 1

GP-Pro EX Settings

Communication Settings

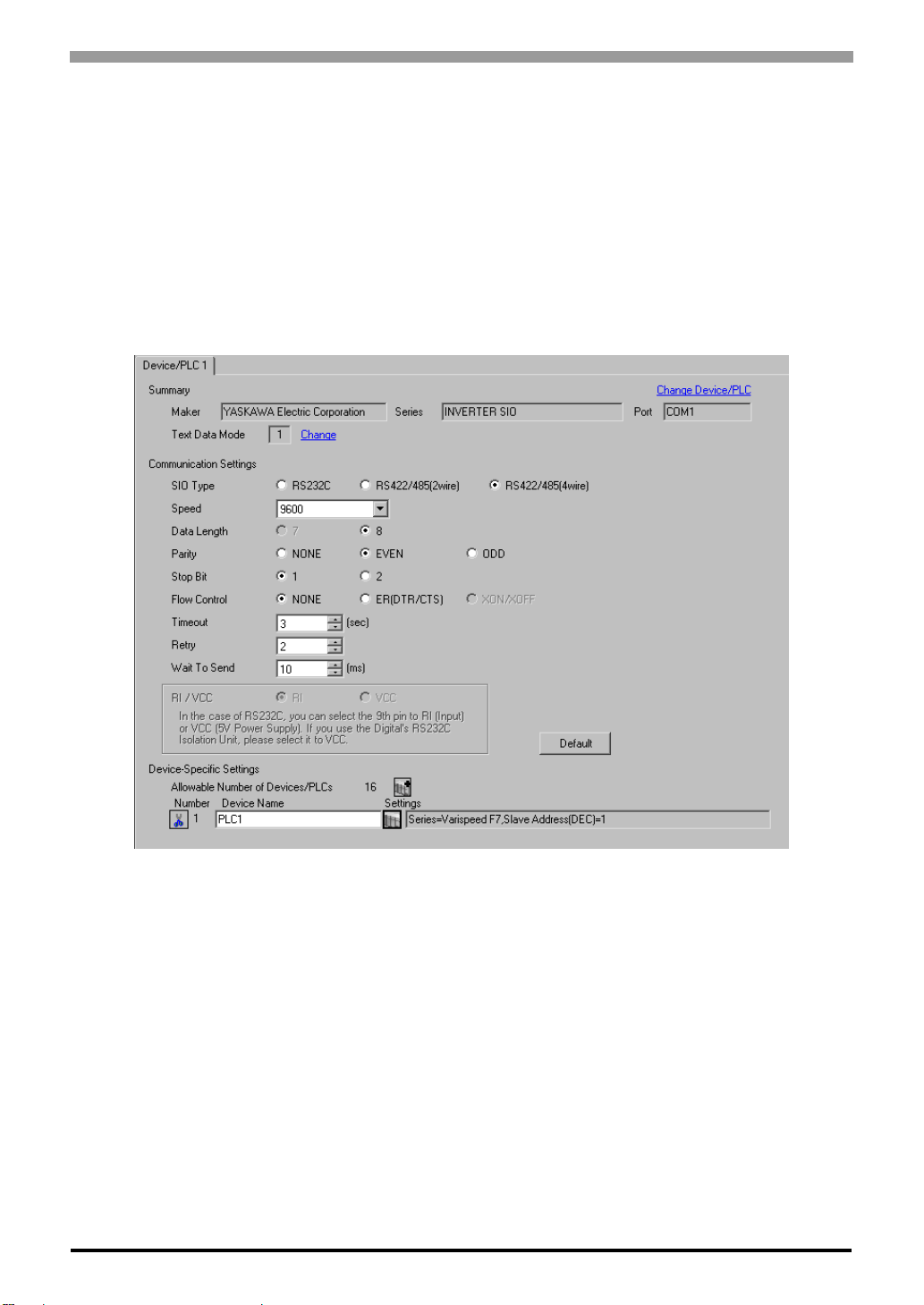

To display the setup screen, from the [System Settings] workspace, select [Device/PLC].

Inverter SIO Driver

GP-Pro EX Device/PLC Connection Manual 10

Device Setting

To display the [Individual Device Settings] dialog box, select the external device and click [Setting] from

[Device-Specific Settings] in the [Device/PLC] window. To connect multiple External Devices, click from

[Device-Specific Settings] in the [Device/PLC] window to add another External Device.

External Device Settings

To configure communication settings, use the MENU, DATA/ENTER, Up, Down, or Shift/RESET key on the

digital operator located on the front of the inverter. Refer to your External Device manual for details.

1Press the MENU key to select [Programming].

2Press the DATA/ENTER key.

3Press the Up key to display the parameter you want to set.

4Press the DATA/ENTER key.

5Press the Up, Down, or Shift/RESET key to display the setting value.

6Press the DATA/ENTER key.

7Reboot the External Device.

This completes the setting of the External Device.

Parameter No. Settings Setup Description

H5-01 01 Slave address (HEX)

H5-02 3 Communication speed selection

H5-03 1 Communication parity selection

H5-04 3 Stopping method after communication error

H5-05 1 Communication error detection selection

H5-06 5 Send wait time

H5-07 1 RTS control ON/OFF

Otros manuales para Varispeed f7

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Inversor de YASKAWA

YASKAWA

YASKAWA Varispeed CIMR-G7A Manual de usuario

YASKAWA

YASKAWA CIMR-SSA Series Manual de usuario

YASKAWA

YASKAWA SOLECTRIA XGI 1500-DCG Series Instrucciones de funcionamiento

YASKAWA

YASKAWA VS-606V7 Series Manual de usuario

YASKAWA

YASKAWA XGI 1000-65/65 Instrucciones de funcionamiento

YASKAWA

YASKAWA CIMR-MC5A20P4 Manual de usuario

YASKAWA

YASKAWA FSDrive-MV1S Manual de usuario

YASKAWA

YASKAWA Solectria PVI 25TL-208 Instrucciones de funcionamiento

YASKAWA

YASKAWA VS-606V7 Series Manual de usuario

YASKAWA

YASKAWA VS-626M5 Manual de usuario

YASKAWA

YASKAWA A1000 Series Manual de lista de piezas

YASKAWA

YASKAWA VS mini C Series Manual de usuario

YASKAWA

YASKAWA XGI 1000-65/65 Instrucciones de funcionamiento

YASKAWA

YASKAWA VS MINI J7 Manual de usuario

YASKAWA

YASKAWA VS-616G5 Series Manual de usuario

YASKAWA

YASKAWA Varispeed V7 Series Manual de usuario

YASKAWA

YASKAWA VS MINI J7 series Manual de usuario

YASKAWA

YASKAWA PVI 36TL Manual de usuario

YASKAWA

YASKAWA VS-616G5 Series Manual del propietario

YASKAWA

YASKAWA VS MINI J7 Manual de usuario

YASKAWA

YASKAWA PVI 23 TL Manual de usuario

YASKAWA

YASKAWA CIMR-F7A Manual de usuario

YASKAWA

YASKAWA Varispeed f7 Manual de usuario

YASKAWA

YASKAWA SOLECTRIA XGI 1500 Series Instrucciones de funcionamiento

Manuales populares de Inversor de otras marcas

Fourgroup

Fourgroup Easy Manual de usuario

Velleman

Velleman PI300M Manual de usuario

Sungrow

Sungrow SG350HX-US Manual de usuario

WilTec

WilTec 61897 Manual de usuario

SMA

SMA SUNNY BOY STORAGE 2.5 Manual de usuario

Simplicity

Simplicity LANDLORD 316 Manual de usuario

Santak

Santak SMAX 3000 Manual de usuario

ATON

ATON RA.Store-3 Manual de usuario

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manual de usuario

Tektronix

Tektronix CFG250 Manual de usuario

Champion

Champion 200989 Manual de usuario

Vanner

Vanner 20-500 Series Manual de usuario

GE GEP Manual de usuario

Astrel Group

Astrel Group Power Reducer Guía rápida

MULTIQUIP

MULTIQUIP GDP-5H Guía

GoWISE

GoWISE PS1007 Manual de usuario

Promate

Promate PM13500D ES Manual de usuario

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manual de usuario
