Yamaha YHT-23 Instrucciones de montaje

QUICK-CONNECT GUIDE

YHT-23

YHT-23 QUICK-CONNECT GUIDE

INTRODUCTION

Yamaha developed the YHT-23 A/V Home Theater

package to turn your home into a theater. In addition

to enhancing the sound of a video source, like your

TV, DVD player, or VCR, the YHT-23 also superbly

reproduces audio sources, such as a CD player or a

cassette deck.

This Quick-Connect Guide will help you get started.

Study the speaker system plan (below), and then use

the interconnect diagrams (on the following pages) to

connect the receiver and speakers to your system.

For the video portion, you will need a DVD (or LD)

player or a hi-fi stereo VCR and a television or monitor.

Refer to the Yamaha HTR-5240 Owner’s Manual, as well as

the owner’s manuals that came with your other compo-

nents, for complete instructions and cautions. Be sure to

turn off all power while making connections.

Please keep this guide handy for future reference.

NOTE: Label the end of each speaker wire (i.e., left rear, right

front, etc.) before connecting them to the A/V receiver. For wire

runs over 30 feet, use larger 18- or 16-gauge speaker wire.

• Toggle bolts, molly anchor screws, sheet metal screws,

and/or speaker brackets (for securing the NS-A327

speakers to walls)

NOTE: If you are unsure of how to securely and safely fasten

speakers to a wall, please contact a reliable source about the best

type of hardware for your particular wall's construction.

Secure installation is the purchaser's responsibility.

TOOLS AND PARTS

The YHT-23 Home Theater package consists of (1) HTR-5240

A/V receiver with a universal remote control, (1) NS-AP327

package containing (4) 2-way NS-A327 front/rear channel

speakers, (1) NS-AC327 2-way center-channel speaker, 100'

of speaker wire, (1) YST-SW45 Powered Subwoofer, and

related owner’s manuals. You will also need:

• Wire strippers (optional)

SPEAKER SYSTEM PLAN

NS-A327

(left side, same height as TV)

NS-A327

(right side, same height as TV)

L = Left Channel

R = Right Channel

C = Center Channel

S = Surround Channel

NS-A327

(on stand or wall, at least

ear level or preferably higher)

NS-A327

(on stand or wall, at least

ear level or preferably higher)

8'~10' apart

NS-AC327

(on top or below TV)

6'~8' apart

Couch

Listening Area

Sub

YST-SW45 Subwoofer (on floor)

YHT-23 QUICK-CONNECT GUIDE

CONNECTING AUDIO COMPONENTS

NOTE: For your convenience, the Yamaha HTR-5240 receiver is equipped with

two switched ac outlets (100 W max.). If desired, use them to power on connected

components (e.g., CD player or turntable) each time the receiver is turned on.

However, do not use them for components equipped with clocks (e.g.,VCR).

Yamaha HTR-5240 Receiver (Rear Panel)

L Out

Ground

Use RCA Audio Cables For Audio Interconnections

R Out

L Out R Out

L Out* R Out*

* Use Playback Or Line Out

** Use Line In

L In** R In**

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Turntable

CD Player (Changer)

Cassette Deck

YHT-23 QUICK-CONNECT GUIDE

CONNECTING THE YHT-23 SPEAKERS (BASIC HOOK-UP)

NS-A327

(Front Right)

NS-AC327

(Center Channel)

NS-A327

(Surround Right)

NS-A327

(Surround Left)

NS-A327

(Front Left)

Yamaha HTR-5240

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to left position

−

−−

−

Cntr R

Surround

Main Spkrs.

YST-SW45

(Subwoofer)

From

Amplifier

To Speakers

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Speaker

Wiring

Initial

Settings

(on Front

Panel)

❶Strip 1⁄4" off ends of

speaker wires.

❷Loosen terminals.

❸Insert speaker wires;

tighten terminals.

❶

❸

❷

RED = positive (+)

use clear wire

BLK = negative (–)

use clear with

white stripe wire

HIGH CUT

STANDBY/ON

50 Hz 150 Hz

VOLUME

010

YHT-23 QUICK-CONNECT GUIDE

CONNECTING THE YHT-23 SPEAKERS (ADVANCED SPEAKER CONNECTIONS)

NS-A327

(Front Right)

NS-AC327

(Center Channel)

NS-A327

(Surround Right)

NS-A327

(Surround Left)

NS-A327

(Front Left)

Yamaha HTR-5240

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to left position

−

−−

−

Cntr R

Surround

Main Spkrs.

YST-SW45

(Subwoofer Rear)

INPUT2 AUTO

STANDBY

OFF

LOW HIGH

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

RCA Audio Cable

(not included)

Speaker

Wiring

Initial Settings

(on Front Panel)

❶Strip

1⁄4" off ends of

speaker wires.

❷Loosen terminals.

❸Insert speaker wires;

tighten terminals.

❶

❸

❷

RED = positive (+)

use clear wire

BLK = negative (–)

use clear with

white stripe wire

HIGH CUT

STANDBY/ON

50 Hz 150 Hz

VOLUME

010

YHT-23 QUICK-CONNECT GUIDE

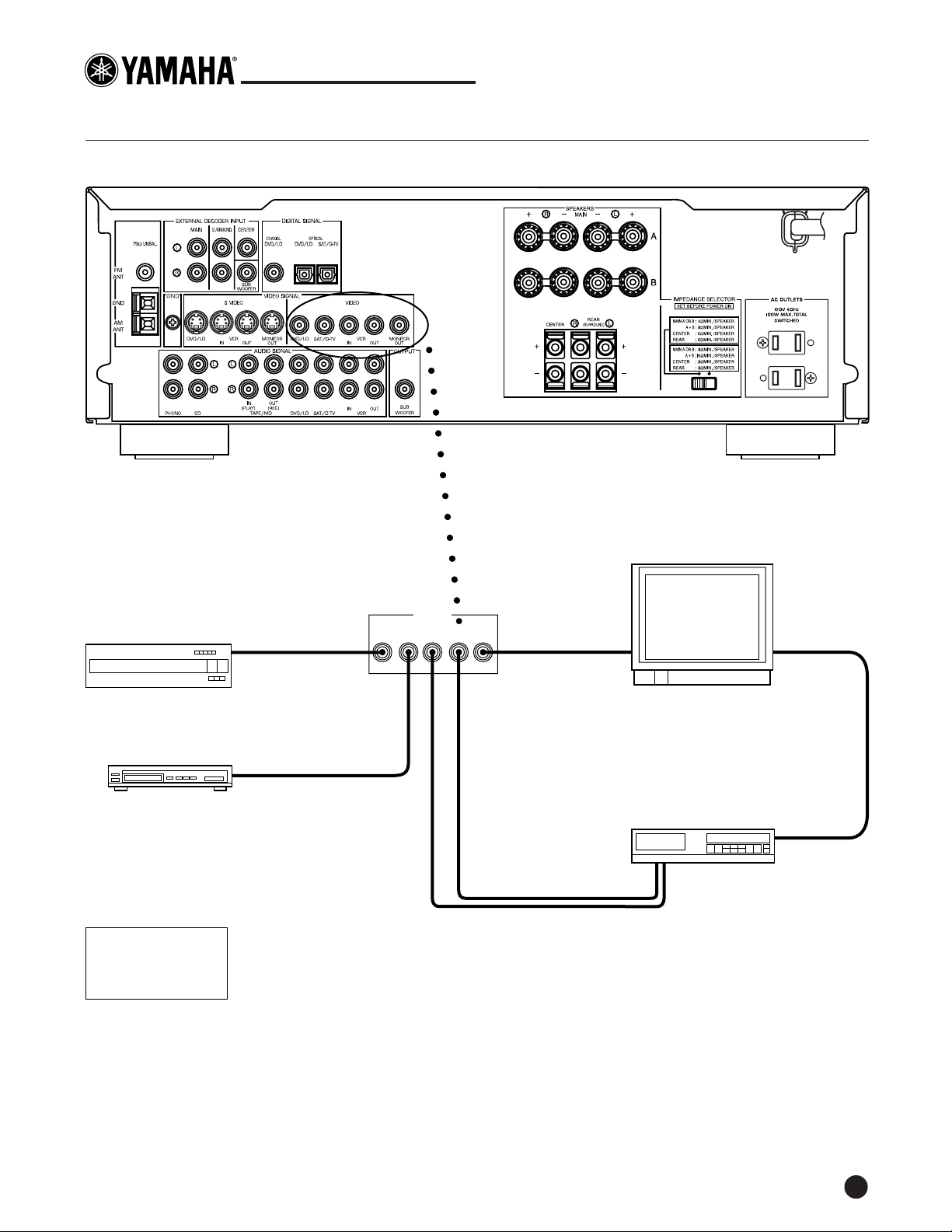

CONNECTING VIDEO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch

(on the VCR) to Line position to record from another source

connected to the Yamaha HTR-5240 receiver.

Yamaha HTR-5240 Receiver (Rear Panel)

DVD/LD

SAT/D-TV MONITOR

OUT

IN OUT

VCR

VIDEO SIGNAL

VIDEO

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use RCA Video Cables And Jacks For Video Interconnections

Optional 75-ohm

Coaxial Cable

Hi-Fi Stereo VCR

DVD or LD Player

(or Video Game)

Video In Video Out

Video Out

ANT In

ANT Out

(RF Out)

Video In

Monitor/TV

Satellite Receiver

YHT-23 QUICK-CONNECT GUIDE

*Analog Audio Out connections are required for playback of CD-Rs and recording

from DVD to VCR.

CONNECTING A DVD PLAYER

Yamaha HTR-5240 Receiver (Rear Panel)

DVD/LD

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use an RCA Video Cable And Jacks For Video Interconnections

DVD Player

Mixed Audio L Out

Mixed Audio R Out

Digital Audio Out

(Coaxial)

Digital Audio Out

(Optical)

Video Out

YHT-23 QUICK-CONNECT GUIDE

*Dolby Pro Logic Surround is a trademark of Dolby Laboratories Licensing Corp.

CONNECTING A 5.1-CHANNEL DECODER

If you own a 5.1-channel decoder (or a unit which

incorporates a 5.1-channel decoder), you can connect

its discrete outputs to the HTR-5240 as shown below.

• To hear playback of a stereo or mono audio source

or one encoded with Dolby Pro Logic Surround*,

connect the unit (e.g., DVD player) to the DVD/LD

(or SAT/D-TV) AUDIO SIGNAL input terminals.

• The discrete signals feeding to the HTR-5240 cannot

be recorded by a tape deck, MD recorder, or VCR.

To record programs from a source (e.g., laserdisc

player), connect the source unit to the DVD/LD (or

SAT/D-TV) AUDIO SIGNAL input terminals.

Yamaha HTR-5240 Receiver (Rear Panel)

DVD/LD

MAIN SUR.

CNTR.

SUB.

EXTERNAL DECODER INPUT

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use an RCA Video Cable And Jacks

For Video Interconnections

Digital Audio Cable

(Optical or Coaxial)

DVD Player

Audio L Out Audio R Out

L Main Out

R Main Out

L Surround Out

Center Out

Subwoofer Out

R Surround Out

Video Out

5.1-Channel Decoder

YHT-23 QUICK-CONNECT GUIDE

CONNECTING AUDIO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch (on the VCR) to Line

position to record from another source connected to the Yamaha HTR-5240 receiver.

Yamaha HTR-5240 Receiver (Rear Panel)

DVD/LD SAT/D-TV

VCR

IN OUT

AUDIO SIGNAL

Audio

L Out

Audio

R Out

Audio

L In

Audio

R In

Use RCA Audio Cables And Jacks For Audio Interconnections

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Audio L Out

Audio R Out

Audio L Out

Audio R Out

Hi-Fi Stereo VCR

DVD or LD Player

(or Video Game)

Satellite

Receiver
