Yamaha NS-E50 Manual de usuario

NS-E50 Natural Sound Effect Speaker System

PRECAUTIONS

This model is designed to be used as an effect

speaker

system.

Read these precautions carefully before using your

speaker.

●Any time you note distortion, reduce the volume control

on your amplifier to a lower setting. Never allow your

amplifier to be driven into “clipping”. Otherwise the

speaker may be damaged.

●When using an amplifier with a rated output power higher

than the nominal input power of the speaker, care should

be taken never to exceed the speaker’s maximum input.

●Do not attempt to clean the speaker with chemical

solvents as this might damage the finish. To clean, wipe

with a dry, soft cloth.

●To prevent the enclosure from warping or discoloring, do

not place the speaker where it will be exposed to direct

sunlight or excessive humidity.

●Do not place the speaker where it is liable to be knocked

over or struck by falling objects. Stable placement will

also ensure better sound performance.

●Placing the speaker on the same shelf or rack as the

turntable can result in feedback.

●As these speakers contain strong magnets, avoid placing

watches, magnetic tapes, etc. near them. Also, placing

the speakers near a TV set may impair picture color. If

this happens, move the TV set away from the speakers.

●Secure placement or installation is the owner’s

responsibility. YAMAHA shall not be liable for any

accident caused by improper placement or

installation of the speaker.

■Mounting the speakers on a wall

The speakers can be mounted on a wall by using the holes

provided on the speakers’ back panels.

Fasten screws into a firm wall or wall support as shown in

the diagram, and hang the holes on the protruding screws.

WARNING:

* Each speaker weighs 1.7 kg (3 lbs. 12 oz.). Do not

mount them on thin plywood or soft wall surface material,

as the screws may come out of the flimsy surface,

causing the speakers to fall down and be damaged, or

result in personal injury.

* Do not fasten the speakers to wall with nails, adhesives,

or other unsound hardware. Long-term use and

vibrations may cause them to fall down.

* To avoid accidents resulting from tripping over loose

speaker cables, fix them to the wall.

40 mm

Holes

Diam. 4 – 5mm

2mm

Tapping screw

(Available at a

hardware store)

Wall or

wall support

Min.

12mm

SETTING UP THE SPEAKERS

Pads

Make sure that the screws are caught by a narrow part of

the holes securely.

Put the screws into a wall according to the figure shown

below.

SPECIFICATIONS

Type..........Full range acoustic-suspension speaker system

Speaker Unit...............................................10 cm full range

Input Terminal ......................................................Push-type

Nominal Impedance..................................................6 ohms

Frequency Response...................................70 Hz – 20 kHz

Nominal Input Power.....................................................25W

Music Input Power.........................................................80W

Sensitivity ............................................................90 dB/w/m

Dimensions (WxHxD)

...............................................170 mm x 280 mm x 107 mm

......................................................(6-11/16” x 11” x 4-3/16”)

Weight..................................................1.7 kg (3 lbs. 12 oz.)

Accessories............................2 speaker cables (10m each)

* Specifications subject to change without notice due to

product improvements.

* Care should be taken not to exceed the input power

values noted above.

BEFORE MAKING CONNECTIONS, MAKE SURE THAT

THE AMPLIFIER IS SWITCHED OFF.

■CONNECTIONS

●Connect the push-type input terminals at the rear of the

speakers to the speaker output terminals of your

amplifier with the provided speaker cables.

●One side of the speaker cable is marked by a blue line.

Connect the (+) terminals on both the amplifier and the

speakers using this blue-marked side. Connect the (–)

terminals on both components using the unmarked side

of the cable.

●Connect one speaker to the left (marked L) terminals of

your amplifier, and another speaker to the right (marked

R) terminals, making sure not to reverse the polarity (+,

–). If one speaker is connected with reversed polarity, the

sound will be unnatural and lack bass.

Procedures:

➀Press the tab on the terminal down, as shown in the

figure.

➁Insert the bare speaker wire end properly into the

terminal hole. [Remove approx. 5 mm (1/4”) insulation

from the speaker cable.]

➂Remove your finger from the tab to allow it to lock

snugly on the cable’s wire end.

➃Test the security of the connection by tugging lightly on

the cable at the terminal.

Note

Do not let the bare speaker wires touch each other as

this could damage the speaker and/or the amplifier.

Blue line

Speaker (L)

Speaker (R)

Press tab

Blue line Blue line

Speaker output

terminals of

the amplifier

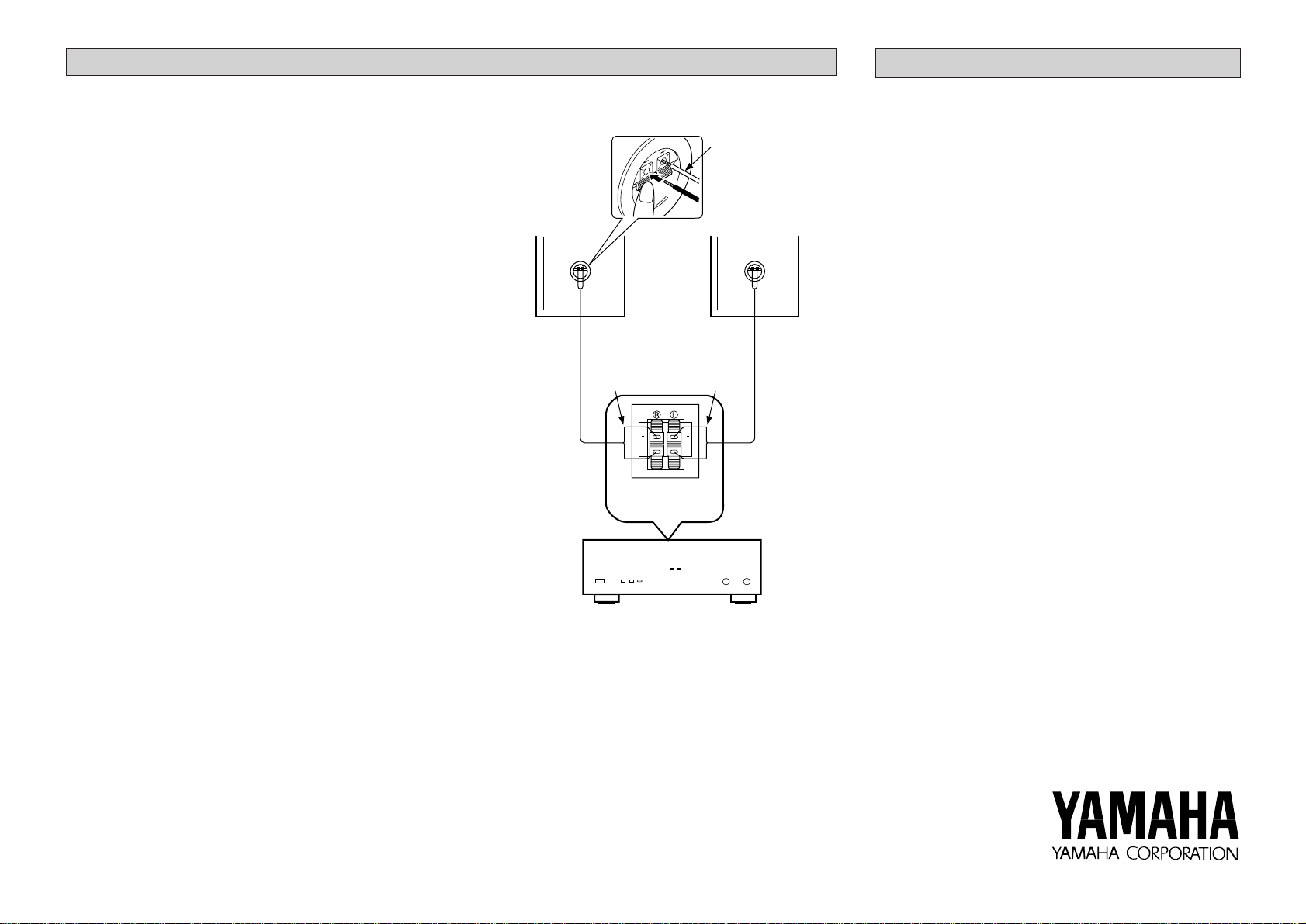

CONNECTION TO YOUR AMPLIFIER
