Yamaha NS-45E Manual de usuario

TERMINAL

TWEETER

WOOFER

INPUT WOOFER

TWEETER

4.7µF

15µF

WOOFER

0.45mH

1.8mH

233 (9-3/16")

Unit : mm (inch)

244 (9-5/8")

(1-1/4")275 (10-13/16")

768 (30-1/4")

880 (34-5/8")

P.O.Box 1, Hamamatsu, Japan

100693

SERVICE MANUAL

SPEAKER SYSTEM

NS-45E

■DIMENSIONS

■WIRING DIAGRAM

■NETWORK CIRCUIT DIAGRAM

■SPECIFICATIONS

Type....................2-way 3-speaker bass reflex speaker system

Speaker Unit

Woofer.......................................16 cm (6.5") cone x 2

Tweeter ...............................................3 cm (1") dome

Input Terminal ......................................................Screw-type

Impedance ................................................................... 6 ohms

Frequency Response ................................. 38 Hz – 30 kHz

Nominal Input Power ................................................... 80 W

Maximum Input Power .............................................. 240 W

Sensitivity ......................................................90 dB/2.83 V/m

Crossover Frequency ................................................ 3 kHz

Dimensions (W x H x D) .................... 233 x 880 x 275 mm

(9-3/16" x 34-5/8" x 10-13/16")

Weight..................................... 11.6 kg (25 lbs. 8 oz.) /1 piece

Accessories ..................... Speaker cord (4m) x 2, Stand x 8,

Screw x 16, Leg x 8

✻Specifications are subject change without notice due to

product improvements.

2-2

2-1 1-1

201

203

202

200

1-5

1-6

NS-45E

■EXPLODED VIEW

ABCDE

■PARTS LIST

* 1 V4126000 SPEAKER CABINET

1-1 VU932600 HOLDER

1-5 FM177150 ELECTROLYTIC CAP 15uF 50V

1-6 VD929600 ELECTROLYTIC CAP 4.7uF 50V

* 2 V4106400 SPEAKER TERMINAL 203-TST-S14BC

2-1 V2729700 EMBLEM A

2-2 VP161000 PUSH NUT SPN1.5

* 3 XW307A00 LOUD SPEAKER TWEETER

* 4 XW309A00 LOUD SPEAKER WOOFER

* 6 V4140500 FRONT GRILLE ASS’Y

21 V2769000 HEXAGON SOCET TAPPING SCREW 4x20 MFC2-BL

22 EN230180 OVAL HEAD TAPPING SCREW 3.5x16 MFC2-BL

ACCESSORIES

200 VT704200 SPEAKER CABLE 4.0m

201 V4564100 STAND ASS’Y STANDx1

* 202 V4564500 LEG LEGx8

203 EP040250 BIND HEAD TAPPING SCREW 4x16 ZMC2-BL

* New Parts

Ref.

No. PART NO. Description Remarks Markets

NS-45E

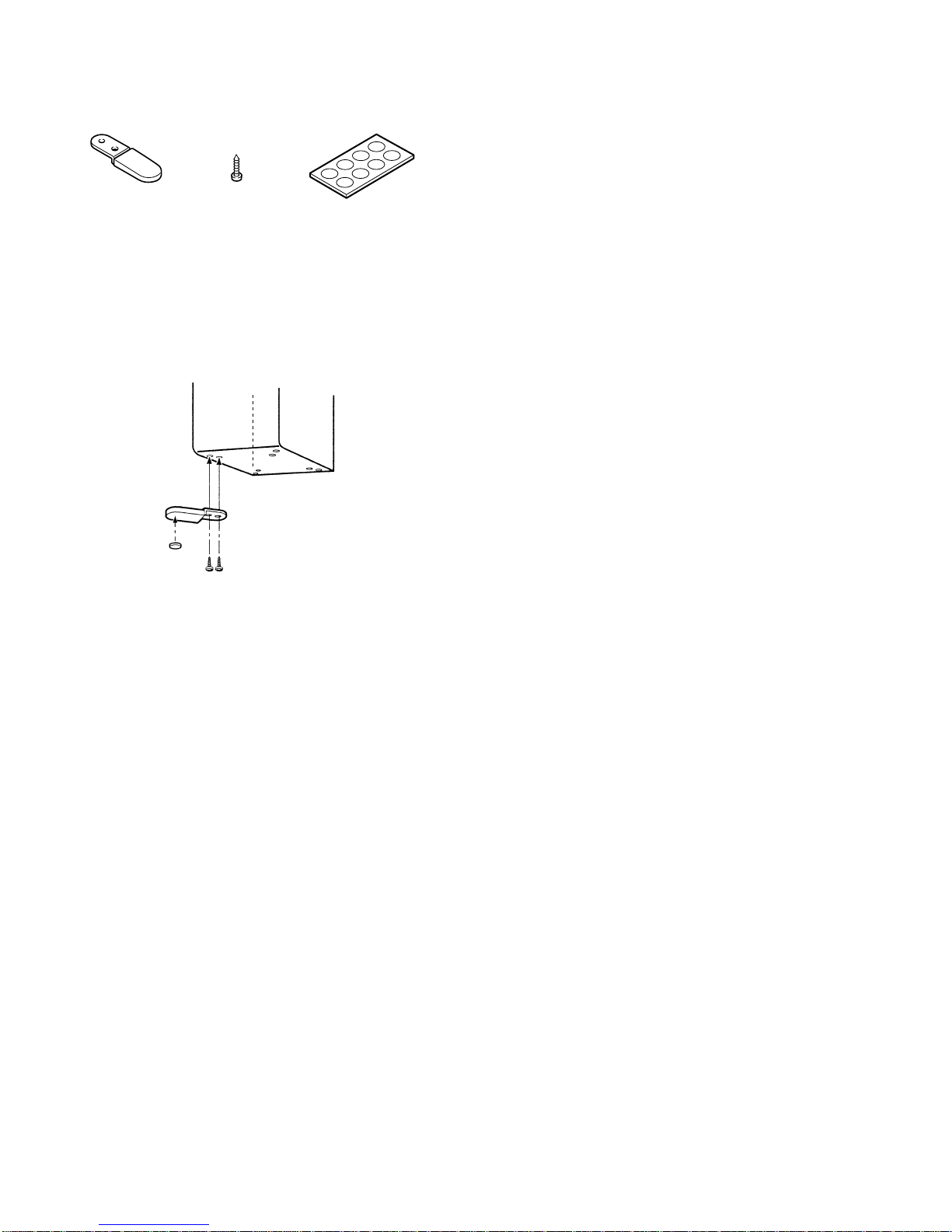

Stand x 8 Screw x 16 Leg x 8

■ATTACHING THE STANDS

Procedures

1. Put a screw through the inside hole on the stand and

screw it into the speaker at one of the outside holes on

the base of the speaker.

At this time, screw it untightly so that the stand can still

be moved.

2. Put another screw through the outside hole on the

stand, and screw it into the inside hole on the base of

the speaker.

3. Tighten both of the screws firmly.

4. Attach the leg to the bottom of the end portion of the

stand.

5. Attach the other stands to the other corners of the base

of the speaker in the same way and confirm that all 4

stands have been firmly attached.

Note

Be carefull not to apply force to the side of the

speaker, otherwise the speaker may fall causing

damage to the speaker or personal injury.

When placing the speakers, be sure to use the stands to

increase stability.

Use the 8 specified holes located on the base of the

speaker.

NS-45E
