Yamaha CRX-N560 Manual de usuario

Network CD Receiver / Ampli-Tu n e r C D R éseau

OWNER ’S MANUAL

MODE D’EMPLOI

Read the supplied booklet “Safety Brochure” before u s i n g t h e u n i t .

Lisez le livret fourni «Brochure sur la sécurité» avant d’utiliser l’unité.

Printed in Malaysia ZH10720-1 UC

English Français

2 En

Contents

Introduction......4

Supplied accessories......4

About this manual......4

Part name......5

Front panel......5

Rear panel......6

Front panel display......7

Adjusting display brightness......7

Remote control......8

Preparations......9

Connecting the speakers......9

Connecting antenna......10

Connecting to the network......11

Turning on the power......12

Setting the network devices......13

PC......13

NAS......13

Mobile devices......13

Listening to CD......14

Listening to iPod/USB devices......15

Playing iPod......15

Playing USB devices......15

Listening to the songs in the

computer......17

Setting the media sharing of music files......17

Playing back songs in the PC......18

Listening to external sources......19

More on music

A variety of external devices (Blu-ray/

DVD/mobile music player etc.) can

be connected...... 19

I can listen to the internet radio

from my audio system...... 25

Anytime,

anywhere,

music!

Convenient App! My smartphone as a

remote control ......18

Songs in my iPhone from

speakers wirelessly.......26

4 En

Introduction

Confirm the package contents and useful points of this manual.

Supplied accessories

•Change both batteries when the operation range of the remote control decreases.

Remote control

Batteries (× 2)

(AA, R6, UM-3)

FM antenna

Check the “+” and “-” of the batteries and

inset them the correct way around.

About this manual

•How to operate this unit is described mainly using the

remote control.

•Illustrations may differ from actual item depicted.

•“iPod” described in this manual may also refer to

“iPhone” or “iPad.”

•Symbols:

Indicates precautions for use of the unit and its

feature limitations.

Indicates supplementary explanations for better

use.

&Indicates the corresponding reference page(s).

En 5

English

Part name

Familiarize yourself with all parts and these functions.

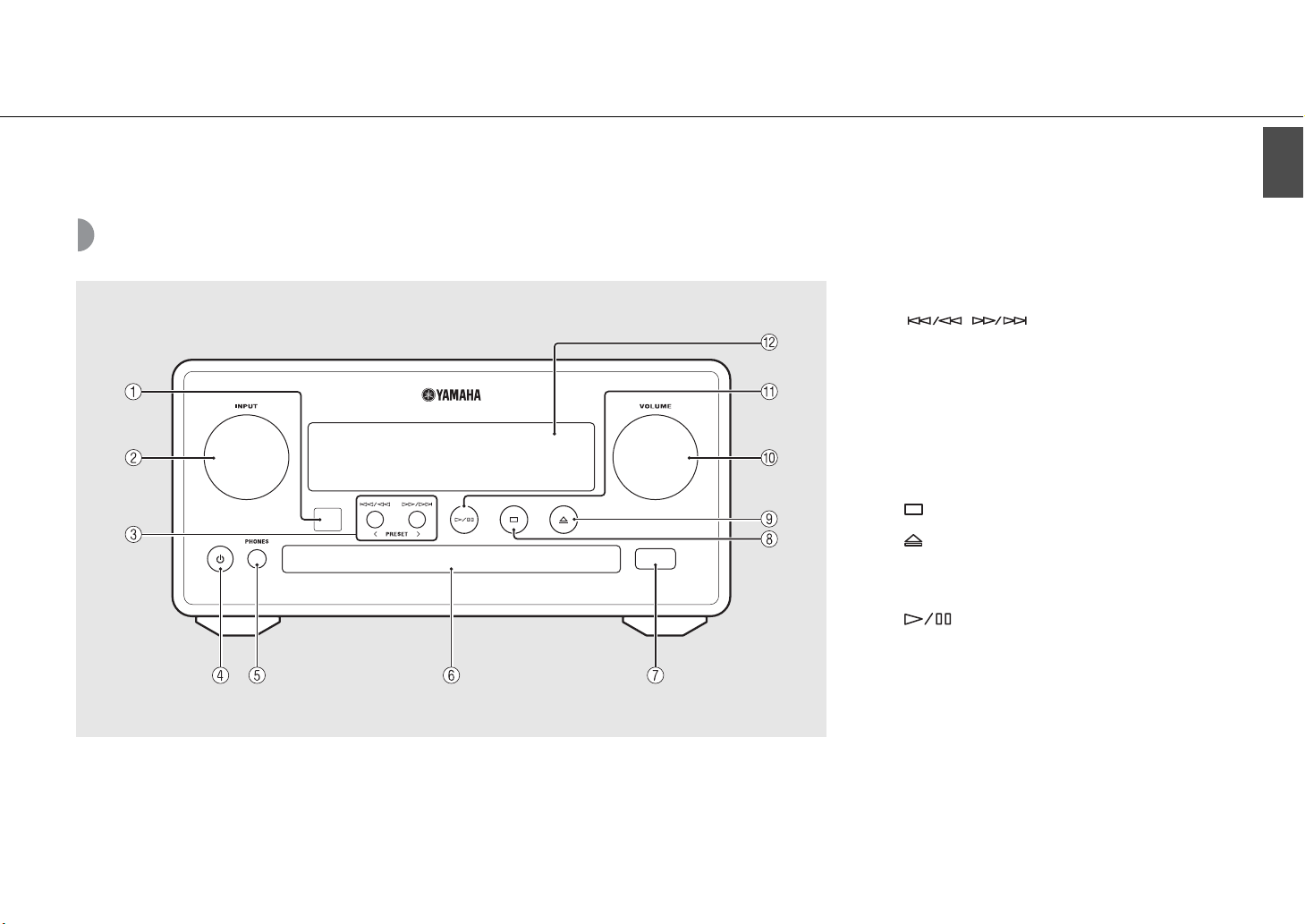

Front panel 1Remote control receiver

2INPUT

Turn left or right to change the audio source. (The source

is shown on the front panel display.)

3(&P.14, 16, 18)

PRESET</> (&P.24)

4A(Power) (&P.12)

5PHONES

Connect headphones to this jack.

6Disc tray (&P.14)

7USB jack (&P.15)

8(Stop) (&P.14, 16, 18, 25)

9(Open/close the disc tray) (&P.14)

0VOLUME

Controls the volume.

A(Play/pause) (&P.14, 16, 18)

BFront panel display (&P.7)

Part name

6 En

Rear panel 1Power cable (&P.12)

2DC OUT terminal

Supplies power to the Yamaha AV accessories from this

terminal. When using this, set [Use Accessory] in [System

Config] from the option setting, to [YES] (&P.31). For

details, refer to the owner’s manual supplied with the

accessory.

3NETWORK terminal (&P.11)

Connects to a network using a commercially available

network cable.

4FM antenna terminal (&P.10)

5DIGITAL IN 1 terminal (optical input) (&P.19)

6DIGITAL IN 2 terminal (coaxial input) (&P.19)

7AUX 1 terminal (RCA input) (&P.19)

8AUX 2 terminal (mini jack input) (&P.19)

9SUBWOOFER terminal (&P.9)

0SPEAKERS terminal (&P.9)

Part name

En 7

English

Front panel display

1Clock

Displays the time when the power is on.

2TUNED indicator

Lights up when the unit is tuned into a station.

3Multi information display

Shows various information, such as the clock in standby

mode, music information, or radio frequency

(alphanumerics only).

4MUTE indicator

Lights up when the sound is muted (&P.8).

5Wake-up timer indicator

Blinks while setting the wake-up timer and lights up

when the timer is set (&P.28).

6Sleep timer indicator

Lights up when the sleep timer is set (&P.29).

7Shuffle/repeat indicator

Lights up when you set your iPod, CD, USB device, or

computer to shuffle or repeat playback (&P.20).

8STEREO indicator

Lights up when the unit is receiving a strong signal from

an FM stereo broadcast.

9Operation indicators

Shows available control buttons S/T/ENTER (&P.8) of

the remote control.

Adjusting display brightness

You can adjust the brightness of the front panel

display by pressing the DIMMER button on the

remote control (&P.8).

•Each press of the button changes the brightness:

bright (default), mid dim, or dim.

Part name

8 En

Remote control 1Infrared signal transmitter

2(Open/close the disc tray) (&P.14)

3Source buttons

Switch the audio source to be played.

4Numeric buttons (&P.14)

5HOME (&P.16, 18, 25)

6RETURN (&P.14, 16, 18, 25)

7Audio control, cursor control buttons

(&P.14, 16, 18, 25)

8DISPLAY (&P.21)

9(SHUFFLE) (&P.20)

0FM control buttons (&P.23, 24)

ADIMMER (&P.7)

BA(Power) (&P.12)

COPTION (&P.22, 27, 31)

DNOW PLAYING (&P.16, 18, 25)

EVOLUME +/–

Controls the volume.

FMUTE

Turns mute on or off.

G(REPEAT) (&P.20)

HTIMER (&P.28)

ISLEEP (&P.29)

En 9

English

Preparations

Connect speakers or antenna and turn the unit on.

Do not connect the power cable of the unit until you have finished connecting all cables.

Connecting the speakers

1Remove the insulation from the end of

the speaker cable to expose the bare

wires.

2Connect the speaker to the unit, as the

illustration shows.

•Prepare speakers and speaker cables separately.

•For connection of the speakers, refer to the

owner’s manual supplied with them.

15 mm (5/8 in.)

•Take care not to allow the bare speaker wires to touch each other or any metal part of the unit. This could damage the

unit and/or the speakers.

•Make sure that left and right (L, R) connections and polarity (red: +, black: -) are correct. If connections are incorrect, the

sound will be unnatural.

•Use speakers of at least 6 Ω impedance.

•You can also connect a subwoofer with built-in amplifier to the unit.

Right speaker

Left speaker

Subwoofer

Monaural pin cable

Speaker

cable

Preparations

10 En

Connecting antenna

1Connect the supplied antenna to the

unit.

2Install it with pins where the unit can

obtain good reception.

•Be sure to stretch out the antenna as the illustration shows.

•If radio reception with the supplied antenna is not satisfactory, a commercially available outdoor antenna may improve

reception.

Supplied antenna
