Quick Guide for Useful Functions

What is the multi-zone function?

The multi-zone function allows you to play back different input sources in the room

where the unit is installed (main zone) and in another room (Zone2). For example, while

you are watching TV in the living room (main zone), another person can listen to radio in

the study room (Zone2).

You can select the following input sources for Zone2:

• Audio sources input from the HDMI or digital audio input jacks cannot be output to Zone2.

• AirPlay is available in Zone2 only when Airplay playback is ongoing in the main zone.

This guide explains how to set up a Zone2 system using the unit’s internal amplifier.

This will enable you to use the 5.1-channel speaker system in the main zone and

2-channel speaker system in Zone2 simultaneously. (When Zone2 output is disabled,

you can use the 7.1-channel speaker system in the main zone.)

For more information, refer to the Owner’s Manual in the supplied CD-ROM.

Preparations

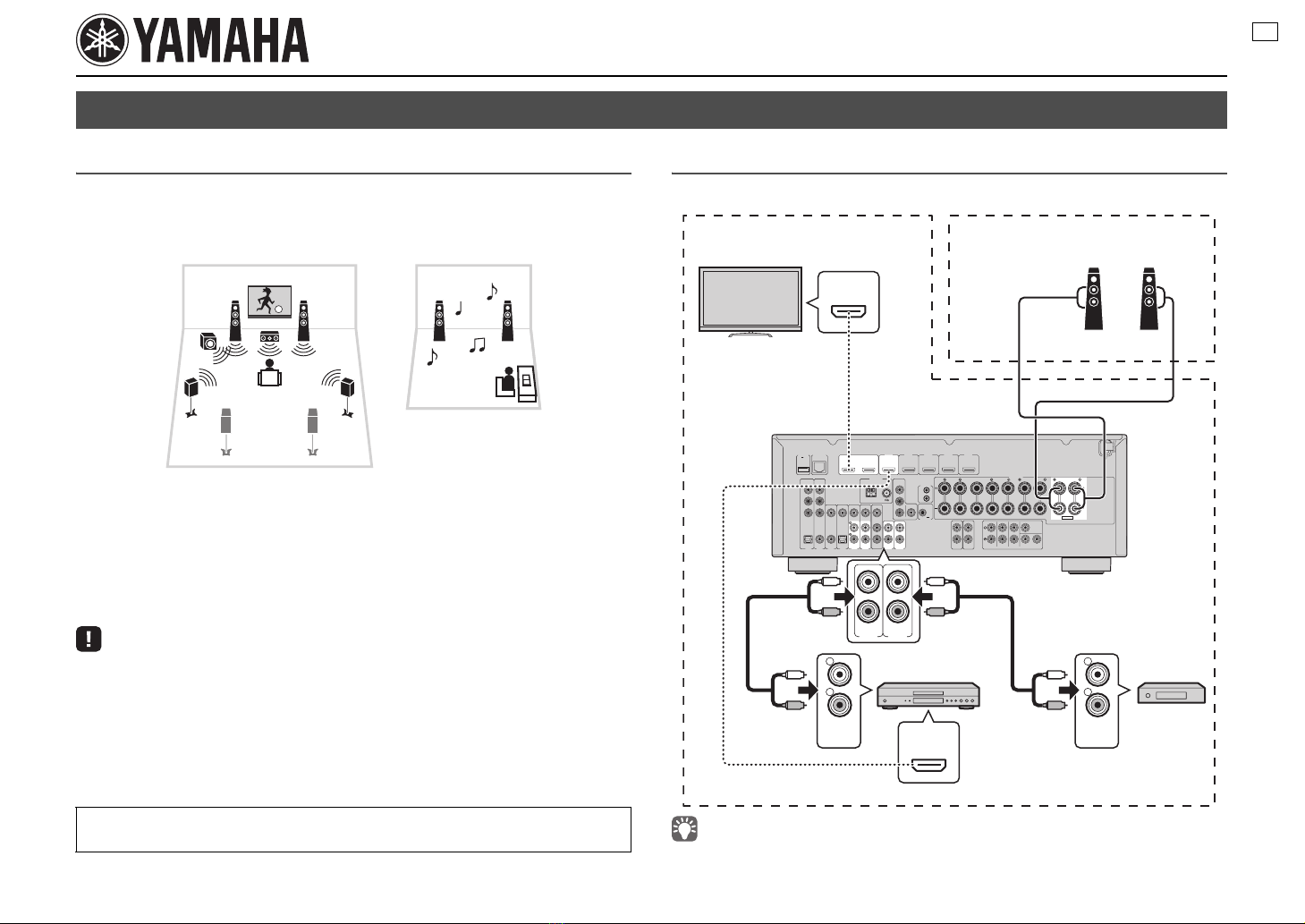

■Connection overview

• For information on how to connect speakers or a TV in the main zone, refer to the Easy Setup Guide.

Multi-zone function

• Analog audio input

(AV 5–6, AUDIO 1–2, V-AUX [RX-A820 only])

• TUNER (FM/AM radio)

• USB (including iPod)

• SERVER

•AirPlay

• Network streaming services

(available on some models)

• The illustrations of the main unit and remote control may be different from the actual product depending

on the model.

Living room (main zone)

Study room (Zone2)

FRONT CENTER SURROUND

SINGLE

SURROUND BACK/BIAMP

ZONE 2/PRESENCE

EXTRA SP

COMPONENT

AV 1 AV 2 AV 3 AV 4 AV 5

AUDIO 1 AUDIO 2

OUT

AV 6

VIDEO

OPTICAL OPTICAL

(TV)

COAXIAL COAXIAL

COMPONENT

VIDEO

MONITOR OUT

OUT

REMOTE

TRIGGER OUT

AUDIO

OUT

ZONE 2

OUT

FRONT

SURROUND SUR. BACK

PRE OUT

SINGLE CENTER

SUBWOOFER

HDMI 1

(BD/DVD)

NETWORKDC OUT

0.5A

(NET)

HDMI 4 HDMI 5HDMI 3HDMI 2

ANTENNA

(RADIO)

HDMI

OUT

ARC

SPEAKERS

12V

0.1A

HDMI IN

HDMI

OUT

AUDIO

OUT

AUDIO

OUT

AUDIO 1 AUDIO 2

Left Right

TV Speakers

BD/DVD player CD player

Already connected

(refer to Easy Setup Guide)

Zone2Main zone

The unit (rear)

Already connected

(refer to Easy Setup Guide)

■Connections

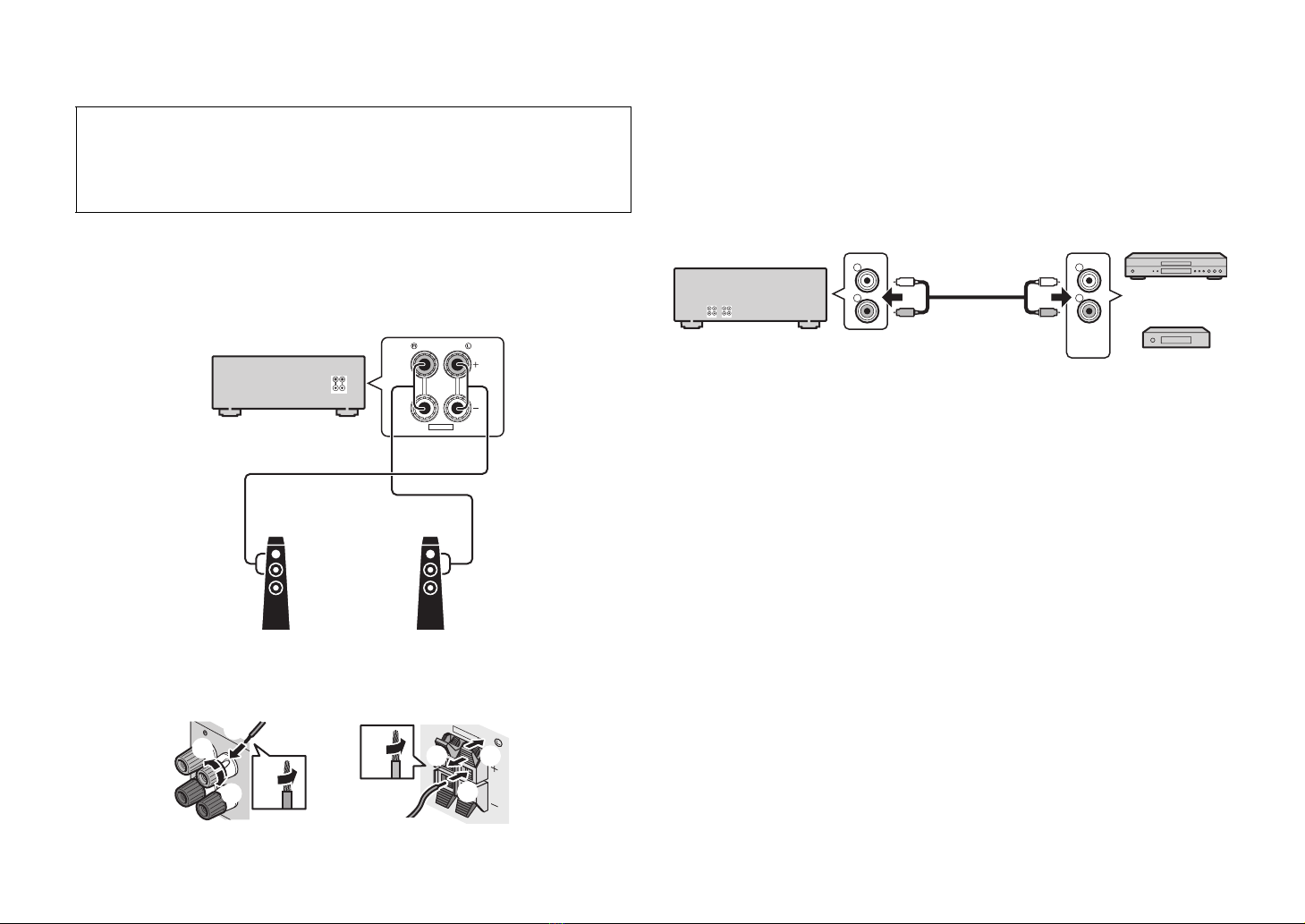

1Connect the speaker in Zone2 to the EXTRA SP terminals with

speaker cables.

The type of the speaker terminals varies depending on the model.

2Connect the playback devices (such as BD/DVD players and CD

players) in the main zone to the analog stereo input jacks with stereo

pin cables.

Only analog audio sources (including FM/AM radio), and USB and network

sources can be output to Zone2. To listen to the playback of an external device

in Zone2, you need to connect the device to the analog audio input jacks.

3Connect the power cable to an AC wall outlet.

To operate the unit and external devices from Zone2

You can operate the unit and external devices from Zone2 using the supplied remote

control if you connect an infrared signal receiver/emitter to the unit’s REMOTE IN/OUT

jacks. For details, refer to the Owner's Manual in the supplied CD-ROM.

Caution

• Before connecting the speakers, remove the unit’s power cable from the AC wall outlet.

• Ensure that the core wires of the speaker cable do not touch each other or come into contact with the

unit’s metal areas. This may damage the unit or the speakers.

• Connect the speakers with the correct polarity.

EXTRA SP

ZONE 2/PRESENCE

EXTRA SP terminals

Left

Speakers (Zone2)

Right

The unit (rear)

ZONE 2/PRESENCE

+ (red)

- (black)

(Rotate-type) (Push-type)

PRESENCE

EXTRA SP

aa b

d+ (red)

- (black)

AUDIO

OUT

AV 5–6 jacks

AUDIO 1–2 jacks BD/DVD player

CD player

The unit (rear)

■Zone2 setup

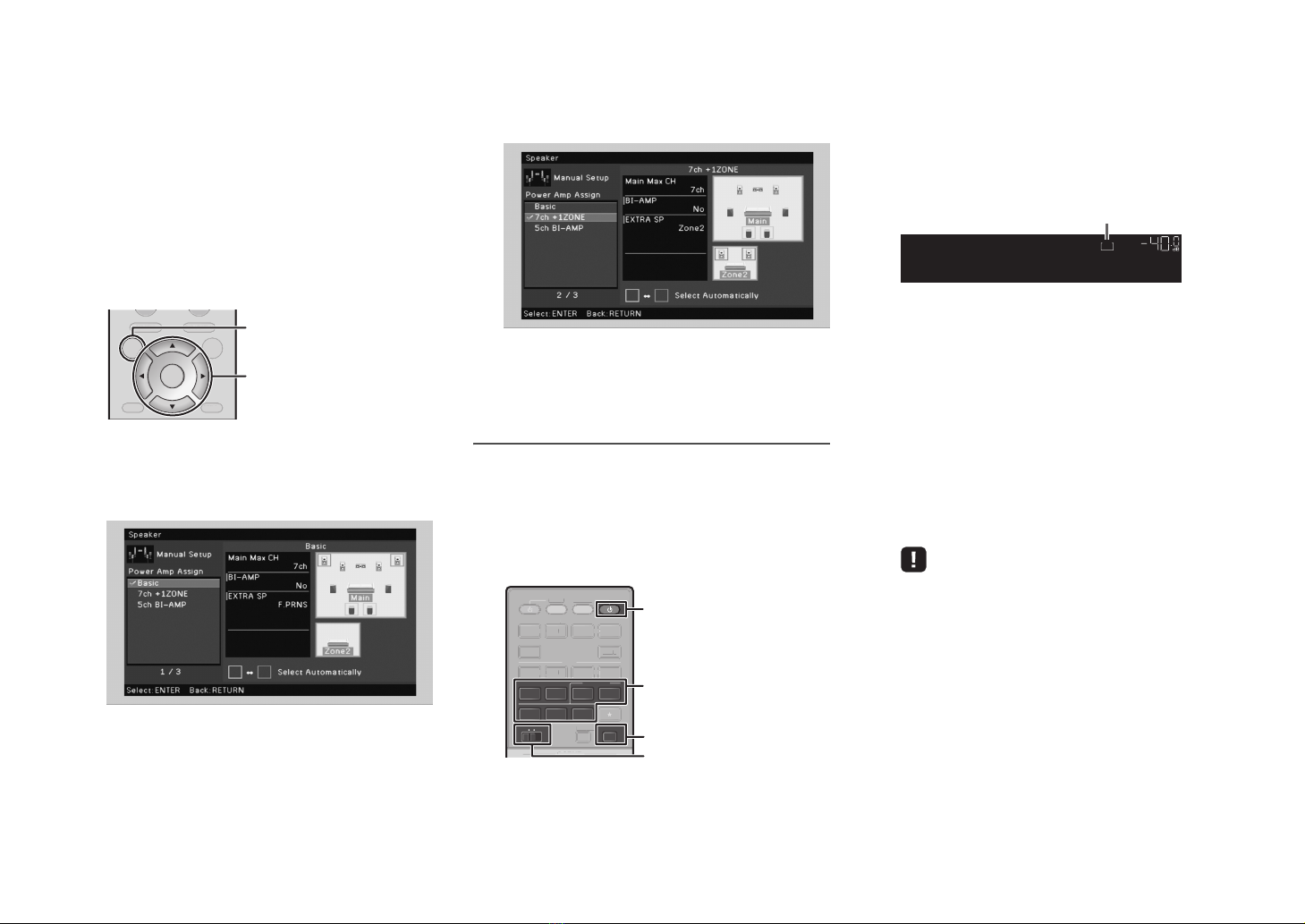

Use the supplied remote control to set the Zone2

function.

1Turn on the unit and TV.

2Switch the TV input to display video from

the unit.

3Press ON SCREEN to display the

on-screen menu on the TV.

4Use the cursor keys and ENTER to select

“Setup” →“Speaker” →“Manual Setup”

→“Power Amp Assign”.

5Use the cursor keys to select

“7ch +1ZONE” and press ENTER.

6Press ON SCREEN to exit from the

on-screen menu.

Controlling Zone2

Follow the procedure below to enable Zone2 output and

select an input source for Zone2.

1Set MAIN/ZONE2 to “ZONE2”.

This changes the zone (main zone or Zone2)

that is controlled by the remote control.

2Press RECEIVER z.

Each time you press the key, Zone2 output is

enabled or disabled.

When Zone2 output is enabled, “ZONE2” lights

up in the front display.

3Use the following keys to select an input

source.

AV 5–6: AV 5–6 (AUDIO) jacks

AUDIO 1–2: AUDIO 1–2 jacks

V-AUX: (RX-A820 only)

VIDEO AUX (AUDIO) jacks (on the front panel)

TUNER: FM/AM radio

USB: USB jack (on the front panel)

NET: NETWORK jack (press repeatedly to

select a desired network source)

• You cannot select USB and network sources exclusively for

each zone. For example, if you select “SERVER” for Zone2

when “USB” is selected for the main zone, the input source for

the main zone also switches to “SERVER”.

4Start playback on the external device or

select a radio station.

For details about the playback operation, refer to

the instruction manual for the external device or

Owner’s Manual on the supplied CD-ROM.

DISPLAYRETURN

ENTER

SCREEN OPTION

TOP MENU

POP-UP/MENU

PLA

RETURN

PTI

P MEN

P-

ON SCREEN

ENTER

Cursor keys

NET

PARTY HDMI OUT

TUNER

MAIN

ZONE 2

USB

SCENE

SOURCE

RECEIVER

HDMI

AUDIO

V-AUX

1234

PART

EIVE

HDMI

-A

2 3

HDMI OUT

MAIN/ZONE2

AV 5–6

AUDIO 1–2

TUNER

USB

NET

RECEIVER z

Zone2On

VOL.

ZONE

Lights up

TV VOL TV CH

INPUT

MUTE

CODE SET

ENT

MEMORY

5687

1234

MOVIE

ENHANCER

TUNING PRESET

BAND

DISPLAYRETURN

ENTER

SCREEN OPTION

TOP MENU

MUTE

PROGRAM VOLUME

POP-UP/MENU

PURE DIRECT

STRAIGHT

INFO SLEEP

MUSIC

NET

PARTY HDMI OUT

TUNER

MAIN

ZONE 2

USB

MODE

SCENE

DVD TV

NET

RADIO

SOURCE

RECEIVER

HDMI

AUDIO

V-AUX

1234

SUR. DECODE

ENHAN

NIN

BAN

RETURN

ENTE

PTI

P MEN

MUTE

RAM V

P-

RE DIRE

TRAI

INF

USI

PART

DMI

OUT

TUNE

MAIN

SCEN

RADI

RECEIVE

HDM

UDI

R. DE

COD

CODE SET

TV z

SOURCE

By registering the remote control code for your TV, you can operate it with the remote control of the unit.

For information on how to register remote control codes for other external devices, refer to Owner’s Manual in the supplied CD-ROM.

Registering the remote control code

1Use “Remote Control Code Search” in the supplied

CD-ROM to find your TV’s remote control code.

• If there are multiple remote control codes, register the first code in the list. If

that does not work, try the other codes.

2Press CODE SET.

SOURCE blinks twice.

Perform each of the following steps within 1 minute.

Otherwise, the setting will be canceled. If this happens,

repeat from Step 2.

3Press TV z.

4Use the numeric keys to enter the 4-digit remote

control code.

Once the remote control code is successfully registered, SOURCE

blinks twice.

If it blinks six times, registration has failed. Repeat from Step 2.

TV operations

Once you have registered the remote control code for your TV, you

can control it using the TV operation keys, regardless of the input

source selected on the unit.

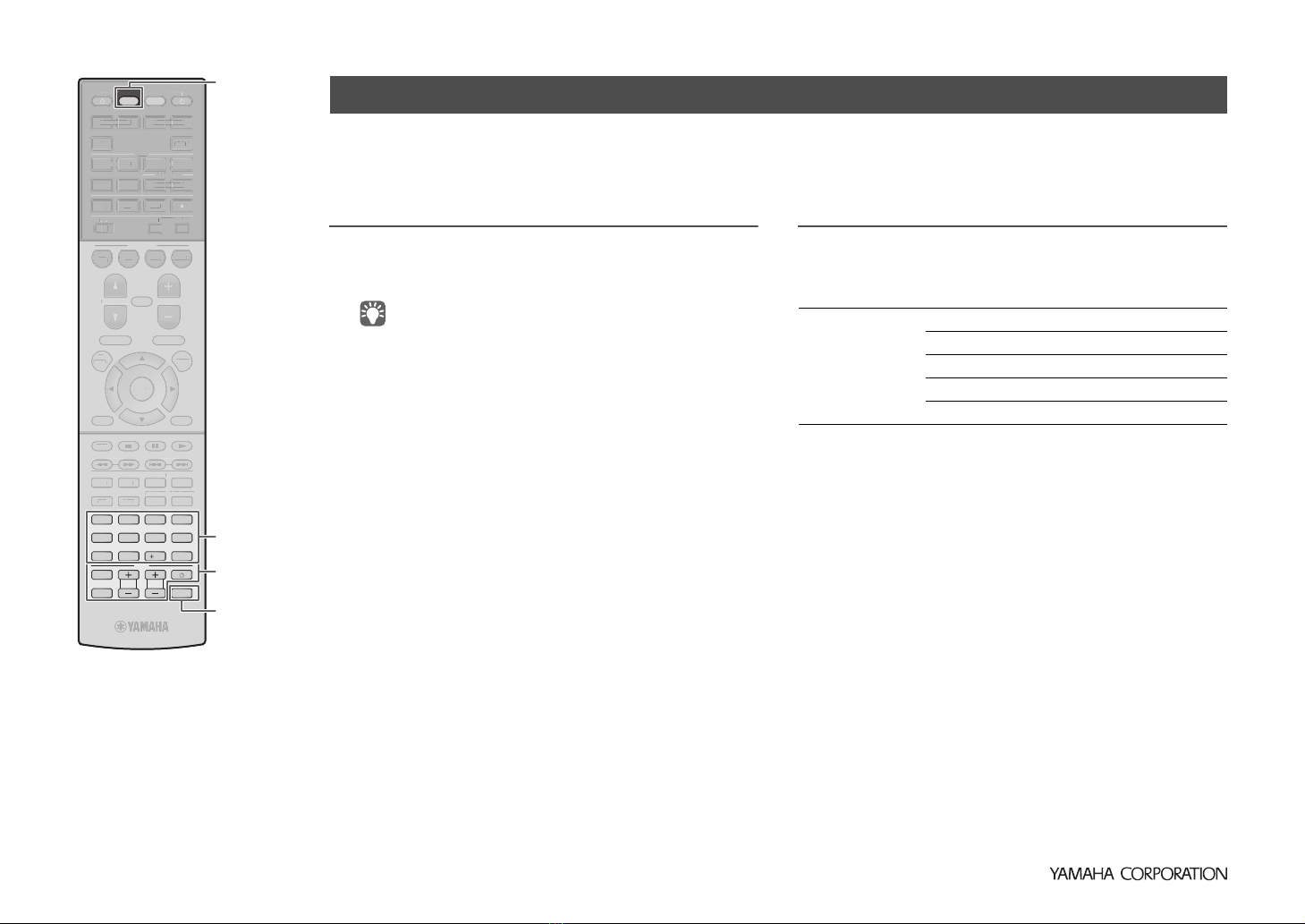

Controlling your TV with the remote control of the unit

TV operation keys

INPUT Switches the video inputs of the TV.

MUTE Mutes the audio output of the TV.

TV VOL Adjust the volume of the TV.

TV CH Switch the channels of the TV

TV zTurns on/off the TV.

Numeric keys

TV operation keys
