This manual describes the process of setting up a DME system, from making the initial DME processor settings

(DME64N / DME24N / DME8i-C / DME8o-C / DME4io-C / DME8i-ES / DME8o-ES / DME4io-ES) to synchronizing with

the DME Designer application installed on a computer.

nFor details about the DME units refer to the manual supplied with the speciﬁc device, and for details about the DME Designer

application refer to the pdf-format DME Designer manual.

nIn this document the term “DME” will refer to the DME64N, DME24N, DME8i-C, DME8o-C, DME4io-C, DME8i-ES, DME8o-ES and

DME4io-ES, while the term “DME Satellite” will refer only to the DME8i-C, DME8o-C, DME4io-C, DME8i-ES, DME8o-ES and DME4io-ES.

Workﬂow

Software Installation

●DME Designer and DME-N Network Driver installation (page 3).

●USB-MIDI Driver installation (page 4).

DME Network Setup (page 6)

Connecting via a USB cable and setting the DME IP address and Device Group Master/Slave status from the

DME Designer.

Computer to DME Connection (page 8)

The procedures for connecting a single DME unit to a computer as well as for connecting multiple DME units to a

computer in the same subnet are described. Refer to the DME manual for information on audio connection and

further network connection details.

Computer Network Setup

These settings must be made properly when connecting a computer to DME units via an Ethernet cable.

●Computer TCP/IP settings (page 9).

●DME-N Network Driver settings (page 11).

DME Designer Operation

●Creating Conﬁgurations (page 12).

Explains the process of launching the DME Designer application and combining and connecting various

audio components to create conﬁgurations.

●Going Online (page 14)

Explains how to go online and transfer conﬁgurations created using the DME Designer application to DME

devices.

Troubleshooting (page 17)

Appendix

●DME64N/24N Network Setup via Panel Operation (page 19).

●DME-N Network Driver Setup Details (page 20).

DME Setup Manual 2

Begin by downloading the DME Designer Combo Installer and the USB-MIDI Driver from the “Downloads” page on

the Yamaha Pro Audio website.

http://www.yamahaproaudio.com/

System Requirements

Software Installation

OS Windows®XP Professional/XP Home Edition/2000 Professional

CPU 1 GHz or higher Intel®Core™/Pentium®/Celeron®family processor

Memory 256 MB or more

Hard disk space 300 MB or more

Display 1,280 x 1,024 pixels or higher; High Color 16-bit or higher

Other Mouse, 100Base-TX/10Base-T Ethernet or USB connection

OS Windows®Vista Ultimate/Business/Enterprise

CPU 1.4 GHz or higher Intel®Core™/Pentium®/Celeron®family processor

Memory 1 GB or more

Hard disk space 300 MB or more

Display 1,280 x 1,024 pixels or higher; High Color 16-bit or higher

Other Mouse, 100Base-TX/10Base-T Ethernet or USB connection

DME Setup Manual 3

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

DME Designer and DME-N Network Driver Installation

Install the DME Designer application and DME-N Network Driver from the DME Designer Combo Installer by

following the procedure outlined below.

nThe following procedure is applicable even if an older version of the DME Designer and/or DME-N Network Driver is already installed.

nBe sure to read the license agreement at the end of this document before installing this software.

1Open the downloaded and extracted “DME Designer Combo Installer V*.*.*” folder (*.*.* will be the version

number on the actual ﬁle), and double-click the “setup.exe” ﬁle located in the “Installer” folder.

The DME Designer Combo Installer setup dialog window will appear on the display.

2Follow the on-screen instructions to install the software.

The DME Designer will be installed ﬁrst, followed by the DME-N Network Driver.

If a previous version of the DME Designer and/or DME Network Driver exists on the computer, the older software will be

uninstalled before installation of the new software begins. After the older software has been uninstalled, you will be asked to

restart the computer. In this case the computer must be restarted before the installation process can continue. The installer

will automatically be re-launched and the installation will continue after the computer has been restarted.

The software will be installed in a “DME Designer” folder in the “Program Files\YAMAHA\OPT Tools” folder (default).

nRefer to the pdf-format DME Designer manual for operating instructions. The manual is not installed by the installer. Download the

manual separately from the “Downloads” page on the Yamaha Pro Audio website.

http://www.yamahaproaudio.com/

nDME Designer V3 cannot communicate with DME devices using ﬁrmware version 2 or earlier. If you are using DME Designer V3, be

sure to update the DME device ﬁrmware to the latest version that can be downloaded from Yamaha Pro Audio website.

http://www.yamahaproaudio.com/

nThe installer will launch automatically when the computer is restarted after the uninstall process, but in rare cases the installer may

be hidden by the task bar. In such cases click this icon to continue the installation.

DME Setup Manual 4

USB-MIDI Driver Installation

nYou can also refer to the installation guide supplied with the driver for detailed installation procedures.

■Windows Vista

1Start the computer and log on with

administrator privileges while power to the DME

is off.

2Connect the computer to the DME unit via a USB

cable.

3Turn the DME power on: “Found New Hardware”

will be displayed.

4Select [Locate and install driver software

(recommended)] ➞[Don’t search online].

5When a message appears prompting you to

insert the supplied disc, select [I don’t have the

disc. Show me other options.] ➞[Browse my

computer for driver software (advanced).] ➞

[Browse], specify the downloaded and extracted

“Driver” folder, then click [OK].

6Click [Next] to start installation.

7When a message appears indicating that the

driver has been successfully installed, click

[Finish].

The driver has been installed.

■Windows XP

1Start the computer and log on with

administrator privileges while power to the DME

is off.

2Select [Start] ➞[Control Panel], and then

“Switch to Classic View” in the upper left of the

display to show all control panels and icons.

3Select [System] ➞[Hardware] ➞[Driver Signing]

➞[File Signature Veriﬁcation], and check the

radio button to the left of “Ignore—Install all

ﬁles, regardless of ﬁle signature” and click [OK].

Restore this setting to its original state after the

installation has been completed.

4While the DME power is still off, connect the

computer to the DME unit via a USB cable.

5Turn the DME power on, and the “Found New

Hardware Wizard” message will appear

automatically.

6Select [Install from a list or speciﬁc location

(Advanced).] ➞[Search for the best driver in

these locations], check only [Include this

location in the search], click [Browse] to specify

the downloaded and extracted “Driver” folder,

then click [OK].

7Click [Next] to start the installation.

8When a message appears indicating that the

driver has been successfully installed, click

[Finish].

9Restart the computer when a message appears

prompting you to do so.

The driver has been installed.

DME Setup Manual 5

■Windows 2000

1Start the computer and log on with

administrator privileges while power to the DME

is off.

2Select [My Computer] ➞[Control Panel] ➞

[System] ➞[Hardware] ➞[Driver Signing] ➞

[File Signature Veriﬁcation] and check the radio

button to the left of “Ignore—Install all ﬁles,

regardless of ﬁle signature” and click [OK].

Restore this setting to its original state after the

installation has been completed.

3While the DME power is still off, connect the

computer to the DME unit via a USB cable.

4Turn the DME power on, and the “Found New

Hardware Wizard” message will appear

automatically.

Click [Next].

5Select [Search for a suitable driver for my device

(recommended)] ➞[Specify a location], click

[Browse] to specify the downloaed and

extracted “Driver” folder, then click [OK].

6Click [Next] to start the installation.

7When a message appears indicating that the

driver has been successfully installed, click

[Finish].

8Restart the computer when a message appears

prompting you to do so.

The driver has been installed.

DME Setup Manual 6

After connecting the computer to the DME unit via a USB cable, the Device Group and IP address for each DME

unit can be individually set from the DME Designer.

nThese parameters can also be set directly via the panel controls and displays of the DME64N and DME24N (page 19).

Device Group

When a system uses multiple DME units, the DME units can be controlled from the DME Designer application in

Device Groups. Since all devices in a group are controlled via the Device Group Master, one device in each group

must be assigned as the master device.

IP Address

All devices to be included in the same group must be assigned the same network address. The Device Group

Master is speciﬁed by its host address.

1While the DME power is off, connect the computer to the DME unit via a USB cable.

2Turn the DME power on.

3Click [Start] ➞[All Programs] ➞[YAMAHA OPT Tools] ➞[DME Designer] ➞[DME Designer] to launch the

DME Designer application.

4Click the MIDI Setup button to open the MIDI dialog box.

nIf you can’t locate the MIDI Setup button on the display, it is most probably hiding in the taskbar. Double-click it to open the MIDI

dialog box.

5Select the “YAMAHA USB IN 0-1” or “Yamaha DME NETWORK-1” input port in the [In] ﬁeld, and the

“YAMAHA USB OUT 0-1” or “Yamaha DME NETWORK-1” output port in the [Out] ﬁeld, and click [OK].

nIf the DME port does not appear in the MIDI dialog box, check that the DME device’s power is turned on, and re-launch the DME

Designer application.

DME Network Setup

Network address Host address

USB cable

DME Setup Manual 7

From the DME Designer main panel, click [Port] in the [Setup] menu to open the Port dialog box.

7Select “YAMAHA USB OUT 0-1” or “Yamaha DME NETWORK-1” in the [Tx] ﬁeld, and “YAMAHA USB IN 0-

1” or “Yamaha DME NETWORK-1” in the [Rx] ﬁeld, and click [OK].

8In the main panel window click [Network Setup] in the [Hardware] menu to open the Network Setup dialog

box.

9Make the following network settings, then click [OK].

1MIDI Port List (Tx/Rx)

Select “YAMAHA USB OUT 0-1/YAMAHA USB IN 0-1” or “Yamaha DME NETWORK-1/Yamaha DME NETWORK-1” as the

DME port for the network settings.

2Master/Slave

Selects Device Group Master or Slave status.

Master: One device must be assigned as the Master in each Device Group.

Slave: All other DME devices in the group should be set to Slave.

nWhen DME64N/24N and DME Satellite units are combined in a Device Group, be sure to assign a DME Satellite unit as the Group

Master.

3IP Address

Set the IP addresses of the DME devices. All DME devices in the same Device Group must be set to the same network address.

nWhen only one DME device (Master) is used, set the IP address to “192.168.0.2”.

nThe subnet mask is ﬁxed at “255.255.255.0”.

nThe host address can be set from 2 to 253 for the Master device, and from 3 to 253 for Slaves.

nAlways use a private address (192.168.0.2. through 192.168.255.253) unless it is absolutely necessary to use a global address.

Consult with the network administrator if it is necessary to use a global address.

Network address Host address

DME Setup Manual 8

4Master ID

When a device is assigned as a Slave in Master/Slave (2) above, this sets the host address for the Master device in that

group. This parameter cannot be set for the Master device.

5Link Mode

Make sure that “100Base-TX” is selected.

10 If the system includes multiple DME devices, repeat the above settings for each individual device.

Refer to the DME manual for information on audio connection and further network connection details.

nIf you will be using CobraNet™ for audio connections, the required bundle numbers and related settings must be made via the DME

Designer application.

nIf you will be using EtherSound™ for audio connections, the routing and other EtherSound settings must be made via the AuviTran AVS-

ESMonitor software available from the AuviTran website:

http://www.auvitran.com/view.php?products_AVS-ESMonitor.php

Directly Connecting a Single DME Device to a Computer

When only one DME device is to be controlled, connect the device to the computer via a USB cable as described

in “DME Network Setup” on page 6.

Connecting Multiple DME Devices to a Computer in the Same Subnet

Connect multiple DME devices to the computer via a switching hub and Ethernet cables.

nIt is possible to connect the computer to the Device Group Master using a USB cable.It is also possible to connect the computer to a

Slave DME using a USB cable if a DME Satellite is assigned as the Device Group Master.

nUse a switching hub that is capable of 100Base-TX operation.

nThe maximum length of cables that can be used to connect DME units to a switching hub is 100 meters. Proper operation at this length,

however, will depend on the quality of the hub and cables used, and cannot be guaranteed.

nUse CAT5 STP (shielded twisted pair) type cable to maximize resistance to electromagnetic interference.

Computer to DME Connection

USB cable

Group Master

DME Satellite (IP Address: 192.168.0.2)

Device Group

Ethernet cable

Ethernet straight cable

DME Satellite

(IP Address: 192.168.0.3)

(Master ID: 2) DME64N/24N

(IP Address: 192.168.0.250)

(Master ID: 2)

Computer

(IP Address: 192.168.0.100)

Switching hub

DME Setup Manual 9

These settings must be made when DME devices are connected via Ethernet cables.

Computer TCP/IP Settings

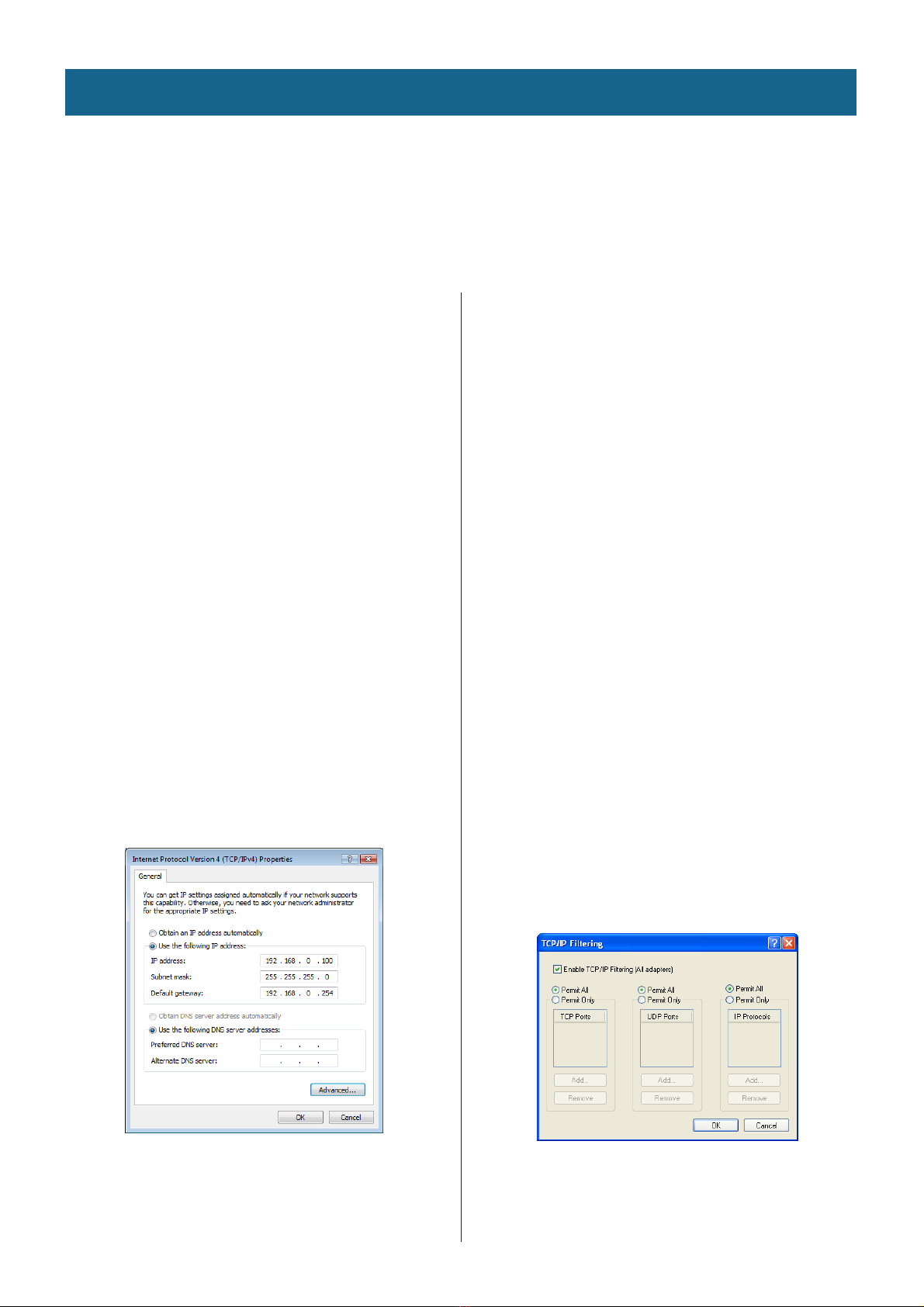

The computer’s IP address and TCP/IP ﬁltering must be set up to allow network communication with the DME

device(s).

■Windows Vista

1Select [Start] ➞[Control Panel] ➞[Network and

Sharing Center] ➞[Manage network

connections] ➞[Local Area Connection].

The “Local Area Connection Properties” dialog box will

be displayed.

2Select [Internet Protocol Version 4 (TCP/Ipv4)]

on the [Networking] tab, then click [Properties].

The “Internet Protocol Version 4 (TCP/IPv4) Properties”

dialog box will be displayed.

3Click [Use the following IP address] on the

[General] tab.

4Enter your computer’s IP address into [IP

address], the Gateway’s IP address into [Default

gateway], and “255.255.255.0” into [Subnet

mask].

nWhen the computer and DME devices are connected in

the same subnet as described on page 8, the network

address must be set to that same address as the DME

devices, while the host address must be set to a

different value.

When the computer and DME devices are connected in

the same subnet, Set the gateway IP host address to 254.

5Click [OK].

6Restart your computer

■Windows XP

1Select [Start] ➞[Control Panel].

The “Control Panel” is displayed.

2If the “Control Panel” is in Category display,

click [Switch to Classic View].

3Double-click [Network Connections] ➞[Local

Area Connection].

The “Local Area Connection Status” dialog box will be

displayed.

4Click [Properties] on the [General] tab.

The “Local Area Connection Properties” dialog box will

be displayed.

5Select [Internet Protocol (TCP/IP)] on the

[General] tab, then click [Properties].

The “Internet Protocol (TCP/IP) Properties” dialog box will

be displayed.

6Click [Advanced...], then [Properties] on the

[Options] tab.

The “TCP/IP Filtering” dialog will be displayed.

7Select “Permit All” for TCP Ports, then click

[OK].

The display returns to the “Advanced TCP/IP Settings”

dialog. Click [OK] to return to the “Internet Protocol (TCP/

IP) Properties” dialog.

8Click [Use the following IP address] on the

[General] tab.

Computer Network Setup

DME Setup Manual 10

9Enter your computer’s IP address into [IP

address], the Gateway’s IP address into [Default

gateway], and “255.255.255.0” into [Subnet

mask].

nWhen the computer and DME devices are connected in

the same subnet as described on page 8, the network

address must be set to that same address as the DME

devices, while the host address must be set to a

different value.

When the computer and DME devices are connected in

the same subnet, Set the gateway IP host address to 254.

10 Click [OK].

11 Restart your computer.

■Windows 2000

1Select [Start] ➞[Settings] ➞[Control Panel] ➞

[Network and Dial-Up Connections] ➞[Local

Area Connection].

The “Local Area Connection Status” dialog box will be

displayed.

2Steps 4 and after are the same as for Windows

XP.

Otros manuales para DME Designer

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Yamaha

Yamaha

Yamaha SPX90 II Manual de usuario

Yamaha

Yamaha PLG150-VL Manual de usuario

Yamaha

Yamaha DSP-A700 Manual de usuario

Yamaha

Yamaha GQ1031 Manual de usuario

Yamaha

Yamaha PLG100-XG Manual de usuario

Yamaha

Yamaha DME Series Guía del usuario

Yamaha

Yamaha MY8-SDI-ED Manual de usuario

Yamaha

Yamaha DX7mega128 Manual

Yamaha

Yamaha PLG100-DX Manual de usuario

Yamaha

Yamaha GSP100 Manual de usuario

Yamaha

Yamaha DB-SREV1 Manual de usuario

Yamaha

Yamaha SPX2000 Editor Manual de usuario

Yamaha

Yamaha R-100 Manual de usuario

Yamaha

Yamaha MTX3 Manual de usuario

Yamaha

Yamaha mLAN8P Manual de usuario

Yamaha

Yamaha PLG150-DX Guía de inicio rápido

Yamaha

Yamaha PLG150-AN Manual de usuario

Yamaha

Yamaha PLG100-VL Manual de usuario

Yamaha

Yamaha MY8-SDI-ED Manual de usuario

Yamaha

Yamaha PLG150-VL Manual de usuario

Yamaha

Yamaha FX500 Manual de usuario

Yamaha

Yamaha DX7mega128 Manual de usuario

Yamaha

Yamaha ME02R96 Manual de usuario

Yamaha

Yamaha MIM1D Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
