Yale Sync IA-310 Manual de usuario

Sync.

Smart Home Alarm

Installation Manual

IA-310

IA-320

IA-330

IA-340

1. Go to Yale web site

www.yale.co.uk/product-registration

2.Complete product information form

3.Activate your guarantee

Thank you for choosing the Yale Sync Smart Home Alarm.

This simple to install system has been designed with the user in mind, just follow

these simple steps:

the product details. Register your product to get products news and updates.

Installation Service

Want us to install this product ?

Why not call Yale Smart Security Partners and

let a professional installer take care of the rest.

Choose your package online at

www.yalestore.co.uk/installation

Choose your

package.

Agree a Date & Time

A B

Enjoy your

professionally installed

Yale product!

Date

(03)

(p. 04-06)

Unboxing

Location planning

App. download

Smart Hub Installation

Device activation Battery install / replacement

Installation

System setup

App. setup / operations

(p. 07)

(p. 08)

(p. 09-10)

(p. 22-24)(p. 11)

(p. 11)

(p. 18-22

+ 25)

(p. 12-21)

Install your system in a few easy steps. Please read through all of the steps shown below and then

follow the detailed instructions in the following pages. See your product box for kit content information

(04)

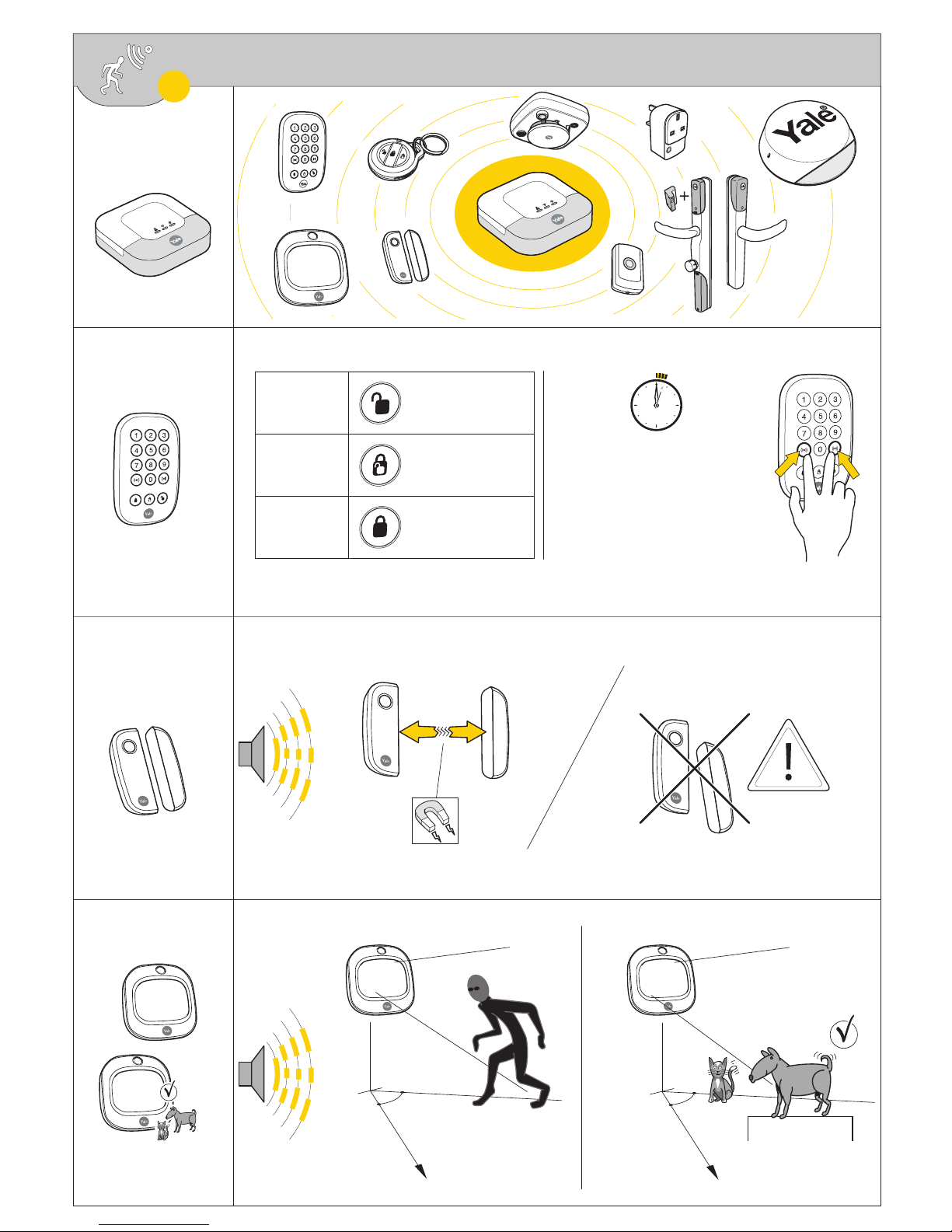

Smart Hub

IA-HUB

Max. Total 40 pcs.

Motion Detector

AC-PIR

Motion Detector

Pet Friendly

AC-PETPIR

AC-PIR AC-PETPIR

~12m

110°

~ 1.8

2.1m

~ 1.8

2.1m

Max < 27 kg

Door/Window

Contact

AC-DC

Keypad

AC-KP

110°

+ PIN CODE

Panic buttons press/hold

Panic Buttons can activate your

alarm immediately - even when

the system is disarmed.

How to

Disarm

>3sec.<

How to

Full-Arm

How to

Part-Arm

All the devices in this kit are pre-paired for easy installation. If you are adding more devices

(purchased separately to this kit) you will need to pair these into the system separately

(see page 18)

(05)

>3sec.<

Panic Button

AC-PB

Keyfob

AC-KF

Smoke Detector

+ Motion / Heat

Detection

AC-PSD

All the devices in this kit are pre-paired for easy installation. If you are adding more devices

(purchased separately to this kit) you will need to pair these into the system separately

(see page 18)

Hold

PIR / Heat detection function

Smoke detection

10 m

5.5 m

2.4 - 3.0 m

C°- F°

Temperature

Detection

The Temperature

Sensor will transmit

temperature signals

regularly according to

setting. The factory

default interval is

10min

• The Smoke Detector

will also send

temperature signal

when temperature

changes by +/- 2°C.

• You can also press

the Test Button once to

transmit a temperature

signal manually.

• The temperature

detection range is

about -10°C ~ 50°C.

( 14°F ~ 122°F)

(06)

Conexis L1

Smart Lock

Sync Lock

Module AC-LM

ON / OFF

Most of the devices are provided with either internal or external

security tamper mechanism, please make sure the tamper spring

is fully compressed when you install the devices.

All the devices in this kit are pre-paired for easy installation. If you are adding more devices

(purchased separately to this kit) you will need to pair these into the system separately

(see page 18)

Smart Plug

AC-PS

(07)

Plan Your home

Location tips:

1. Keypad should be accessible from a protected entry/exit point. Ensure that the Keypad is not visible from

the outside of the premises.

2. Mount Door/Window Contacts as high as possible on the door / window frame.

3. PIR Motion Detectors should be located in the corner of the room to maximise coverage.

Do not point directly at a source of heat (eg.fires or boilers), facing a window or a door protected by a

Door/Window Contact. Avoid installing directly above radiators.

4. If you have Pets that may climb on furniture, avoid using PET PIR Motion detectors as this can cause false

alarms. Instead replace with additional Door/ Window Contacts.

5. Mount the external siren as high as possible on an external wall.

Example

Plan your system: Before beginning the installation process, take some time to plan your

system, decide where you want to locate the devices.

(08)

Yale Smart Living Home

IOS 9.0 +

Android 4.2 +

Serial No.

Please register the hub within one hour of power up, otherwise

the app "authentication error" will appear. Re-boot the

hub(including switch off/on the back up battery) and start the

process again if necessary.

Download the app, create an account and follow the on screen step by step set up wizard.

(09)

Smart Hub connection

Router

NOT INCLUDED

Battery

(10)

Re-boot

HOME SERVER

Network

Shows server connection status

Fault Status

Shows fault status and AC

failure warning

Alarm Mode

Shows arming status

Fully Armed

Part Armed

Disarmed

Check app history log

to see fault details.

Smart Hub connection

System normal.
