Yale Conexis Smart Lock L2 Manual de usuario

Conexis® Smart Lock L2

User Manual

KM 735817

Introduction

Contents

Hereby, ASSA ABLOY Ltd declares that the Conexis® Smart Lock L2 is in compliance with

Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the

following internet address: https://yalehome.co.uk/declarations-of-conformity

Conexis® Smart Lock L2 Product Overview 4

Inside The Box 4

Removing existing handle & cylinder 6

Measuring Your Door 7

Installing The Actuator 8

Installing Handles 9

Handing The Lock 15

Installing the Yale Access Module and Connect Wi-Fi Bridge 16

Locking the Conexis® Smart Lock L2 17

Unlocking with Key Card or Key Tag 18

Installation Checklist 19

Battery Indicator 20

Factory Reset 21

Conexis® Smart Lock L2 Product Overview

INSIDE

OUTSIDE

(02)

INSIDE

OUTSIDE

Radio Cover

Battery Cover

Tools Required

Lever Handle

Inside LED

Thumbturn

Key Card/Tag Reader

Lever Handle

Bluetooth Wakeup

Button and LED

Backup 9V

contacts

(02)

INSIDE

OUTSIDE

Radio Cover

Battery Cover

Tools Required

Lever Handle

Inside LED

Thumbturn

Key Card/Tag Reader

Lever Handle

Bluetooth Wakeup

Button and LED

Backup 9V

contacts

Tools Required*

*Additional tools may be required to remove your existing handles

Lever Handle

Battery Cover

Thumbturn

Lever Handle

Inside LED

Radio Cover Key Card/Tag Reader

Outside LED

Backup 9V

battery contacts

Inside The Box

(03)

The smart way to protect your home.

145mm

160mm

170mm

55mm

70mm

80mm

Fixing Pack B

Fixing Pack A

Fixing Pack CFixing Pack D

1x Key Tag 1x Yale Access

Module

Trusted every day

Key Card

1x Yale Connect

Wi-Fi Bridge

1x DoorSenseTM

Cover

Instruction

Manual

1x Manual

Fixing Pack A

(03)

The smart way to protect your home.

145mm

160mm

170mm

55mm

70mm

80mm

Fixing Pack B

Fixing Pack A

Fixing Pack C Fixing Pack D

4x AA Alkaline

4 x AA Alkaline Batteries

Fixing Pack B Fixing Pack C

Fixing Pack D

Removing Existing Handle And Cylinder

Do not close

door until

installation is

complete

Make note of your

current fixing screw

positions

INSIDE

Measuring Your Door

Measure the thickness of the door to select the correct fixing pack.

44-50mm 58-65mm 70mm

Door thickness Door thickness Door thickness

Measure the distance between the centre of the lock

and the inside of the door to select the correct tailbar.

INSIDE

Installing The Actuator

INSIDE

Choose suitable

size screw for door

3Once installed in the door, turn the tailbar

left and right, do not turn past angle shown on

diagram. Does it move freely?

Yes, if it moves freely, please proceed.

No, remove the actuator from door and

realign until it moves freely.

Tip: You may need to reset the actuator

so that the tailbar is in the vertical position

before continuing.

INSIDE

(06)

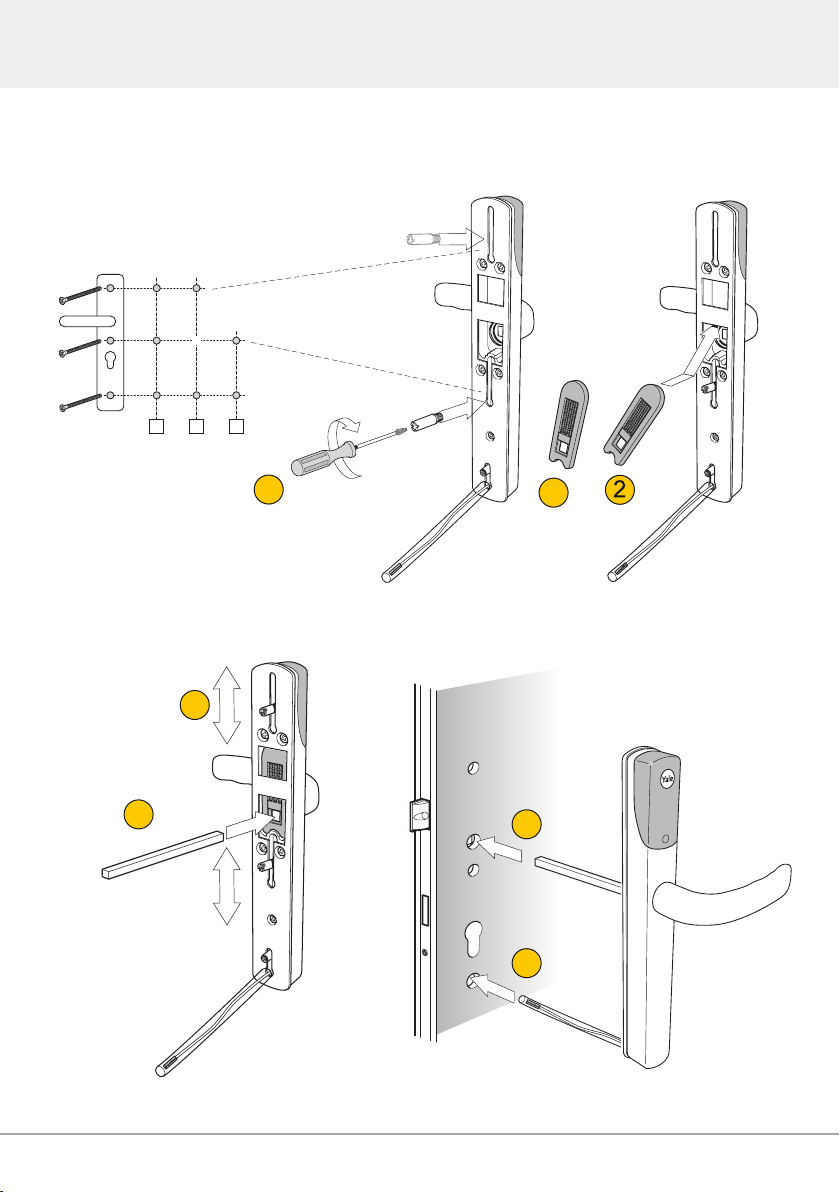

Installing External Handle

(06)

Refer to current fixing

screw positions

You may need to screw in an additional lug from fixing pack A.

(08)

Installing Internal Fixing Plate

Ensure correct fixing

pack is used for width

of door. Do not fully

tighten as the handle

needs to be aligned in

the next step.

(08)

Fixing pack B, C or D screws.

Remove
